JUMO TYA HL303
Three-phase thyristor controller for controlling non-linear loads

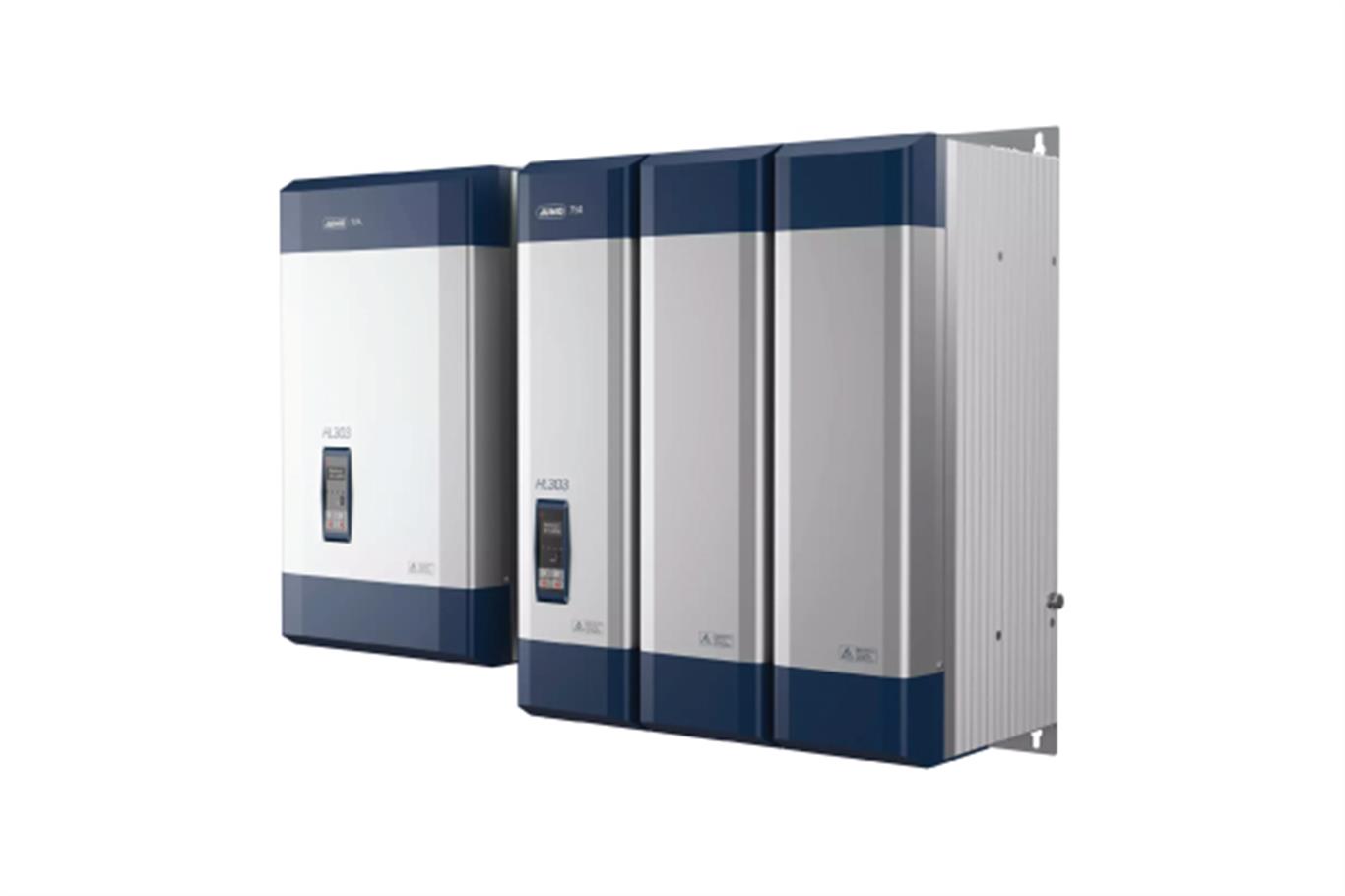

The JUMO TYA HL303 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function and an oscilloscope for function control increase process reliability and ensure smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
 |
 |
 |
|
Optional load
management |
Versatile communication
protocols |
Suitable for
all load types |
|
|
|
|
|
|
|
|
|
High flexibility as it can be used for all load types and a wide range of fieldbus interfaces
GENERAL TECHNICAL DATA |
| Load currents | 300 to 800 A |
| Load voltage | 230 to 690 V |
| Control types | U, I, P, U², I² |
| Approvals | cUL 508 (for currents from 300 A to 700 A and nominal voltages up to 600 V), UL (for currents from 800 A and nominal voltages up to 600 V) |
| Interfaces | USB (Setup), Modbus RTU, optional: PROFINET, EtherNet/IP, Modbus TCP, EtherCAT, another Modbus RTU |
| Inputs | 2 digital inputs, 2 analog inputs (0 to 10 V, 0 to 20 mA, potentiometer) |
| Besonderheiten | Compact size; Top-Bottom wiring; Setup program with wizard, oscilloscope, remote control option; practical operating panel; Load management up to 24 zones (optional); data logging with SD memory |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of resistive inductive loads at a high switching frequency, particularly in the industrial sector.
 |
 |
 |
|
With heat
sink |
UL approval
|
Control/power
section galvanically isolated |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of ohmic-inductive loads at a high switching frequency, particularly in the industrial sector.
|
|
|
|
Control/power
section galvanically isolated |
UL approval
|
Without heat
sink |
Single-phase thyristor controller for controlling non-linear loads
The JUMO TYA HL301 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function and an oscilloscope for function control increase process reliability and ensure smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
|
|
|
|
