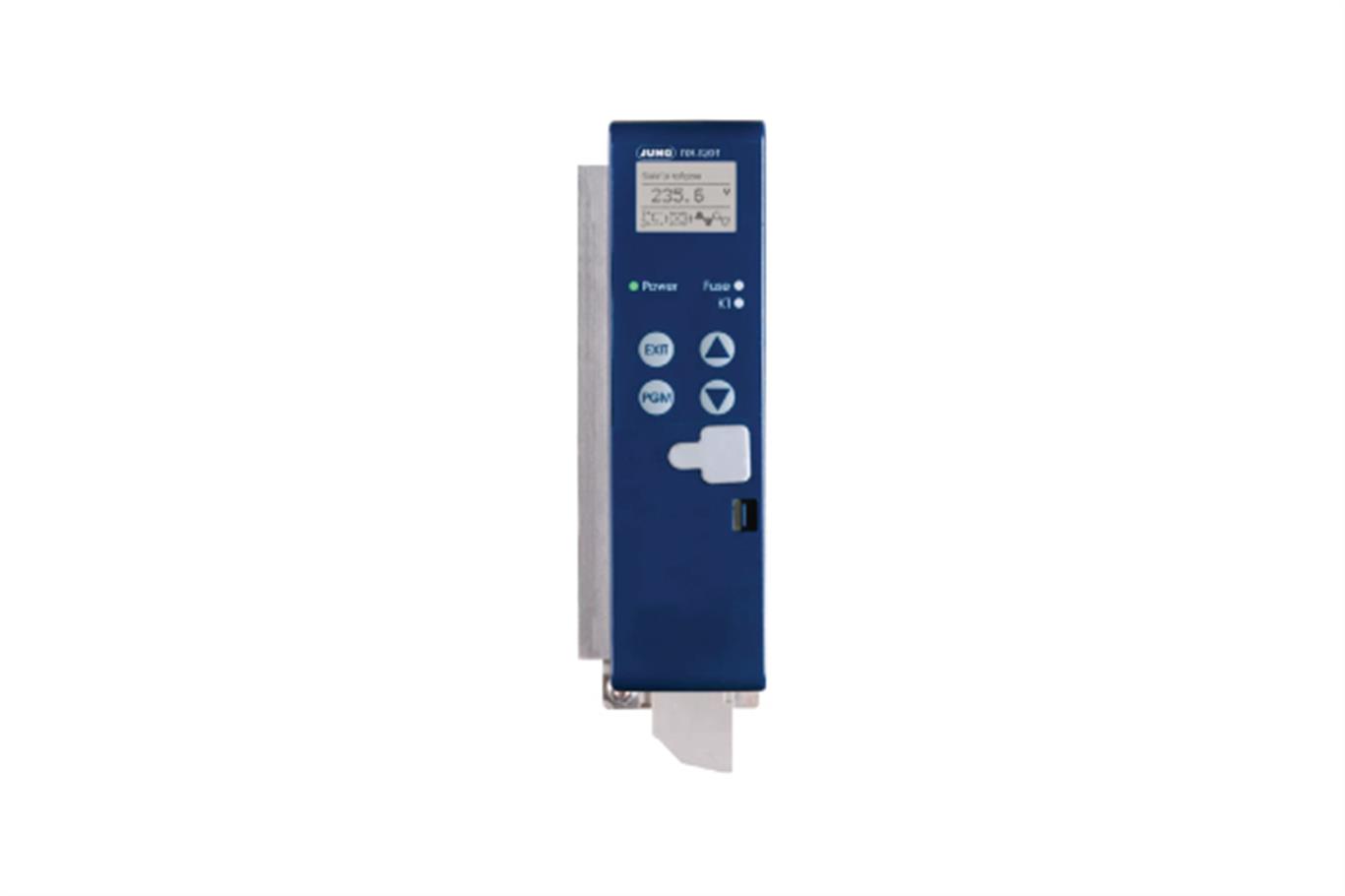

JUMO TYA S201
Single-phase thyristor power controller for burst-firing operation
The JUMO TYA S201 is used to control larger resistive and inductive loads. This is carried out using pulse group control. Areas of application include industrial furnace construction and plastics processing.
 |
 |
 |
|
LCD display
with info line |
Setup program
via USB interface |
Close mounting
possible |
GENERAL TECHNICAL DATA |
| Load type | Resistive load, resistive inductive load; in the case of transformer loads, the nominal induction of 1.2 tesla must not be exceeded (value is 1.45 T in the case of mains overvoltage). |
| Load voltage | 230 V, 400 V, 460 V, 500 V |
| Load currents | 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A |
| Approval | cULus |
| Special features | Soft start function, network load optimization through dual energy management, load monitoring for detection of partial load failure or load short circuit "Teach-In", integrated diagnosis system, device configuration without auxiliary voltage, LCD display with info line |
| Protection type | IP20 |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of resistive inductive loads at a high switching frequency, particularly in the industrial sector.
 |
 |
 |
|
With heat
sink |
UL approval
|
Control/power
section galvanically isolated |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of ohmic-inductive loads at a high switching frequency, particularly in the industrial sector.
|
|
|
|
Control/power
section galvanically isolated |
UL approval
|
Without heat
sink |
Single-phase thyristor controller for controlling non-linear loads
The JUMO TYA HL301 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function and an oscilloscope for function control increase process reliability and ensure smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
 |
 |
 |
|
Optional load
management |
Versatile
communication protocols |
Suitable for
all load types |
