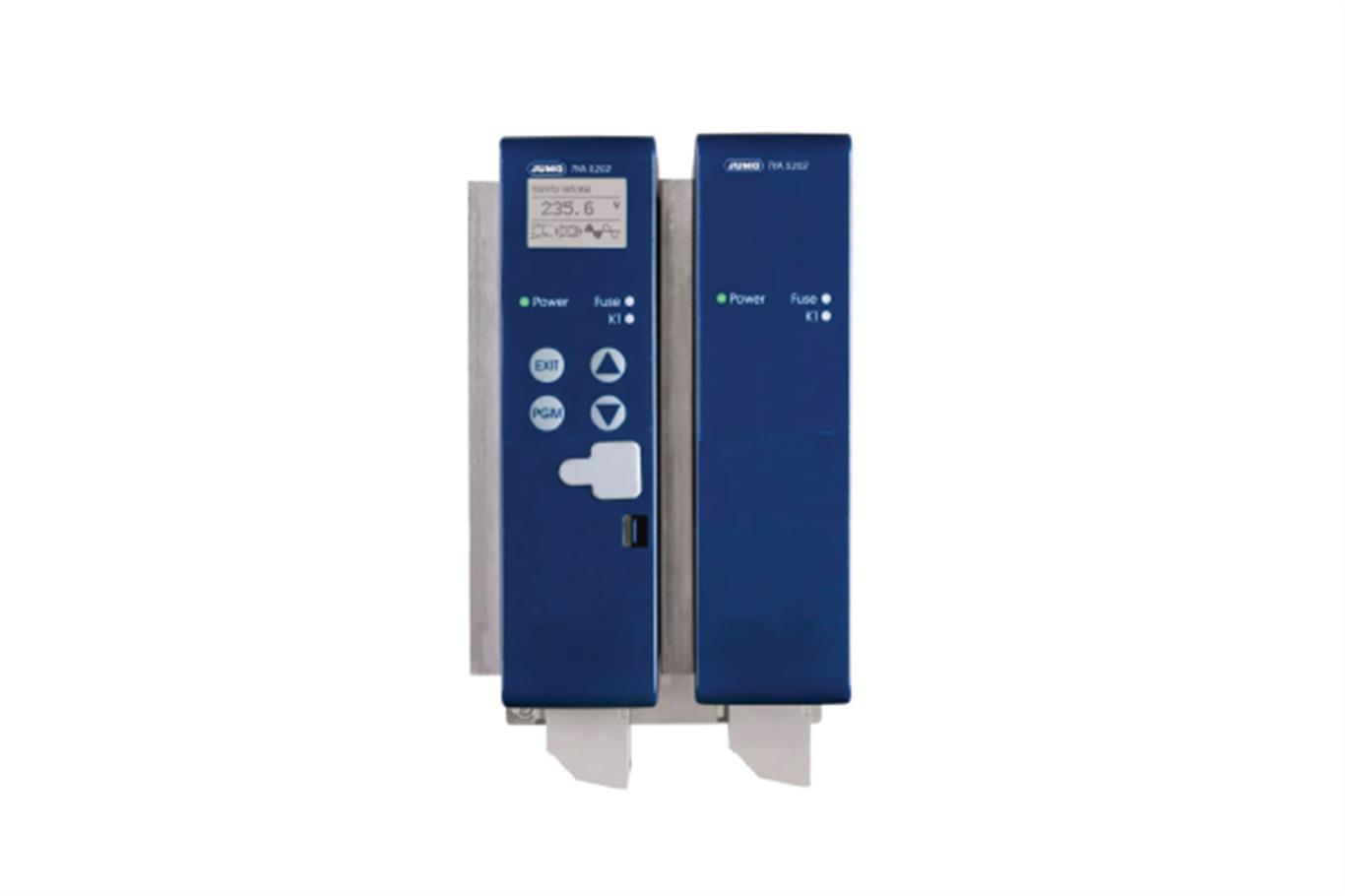

JUMO TYA S202
Three-phase thyristor power controller for burst-firing operation in economy circuit
The JUMO TYA S202 switches three-phase resistive inductive loads in a three-phase economy circuit. The thyristor power controller is used to switch larger resistive and inductive loads such as in furnace construction.
 |
 |
 |
|
LCD display
with info line |
Close mounting
possible |
Setup program via
USB interface |
GENERAL TECHNICAL DATA |
| Load voltage | 400 V, 460 V, 500 V |
| Load currents | 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A |
| Load type | Resistive and resistive inductive loads, in the case of transformer loads, the nominal induction of 1.2 tesla must not be exceeded (value is 1.45 T in the case of mains overvoltage). |
| Operating modes | Burst-firing operation |
| Configuration | Setup/USB-powered; plain text display on the device |
| Special features | Transfer of the setup data possible even without voltage supply to the device (USB port supply), network load optimization through dual energy management, soft start function with pulse groups, load monitoring for the detection of partial load failure or load short circuit "Teach-In", integrated diagnosis systems, such as rotary field detection |
| Approval | UL 508 |
| Protection type | IP20 |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of resistive inductive loads at a high switching frequency, particularly in the industrial sector.
 |
 |
 |
|
With heat
sink |
UL approval
|
Control/power
section galvanically isolated |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of ohmic-inductive loads at a high switching frequency, particularly in the industrial sector.
|
|
|
|
Control/power
section galvanically isolated |
UL approval
|
Without heat
sink |
Single-phase thyristor controller for controlling non-linear loads
The JUMO TYA HL301 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function and an oscilloscope for function control increase process reliability and ensure smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
 |
 |
 |
|
Optional load
management |
Versatile
communication protocols |
Suitable for
all load types |
