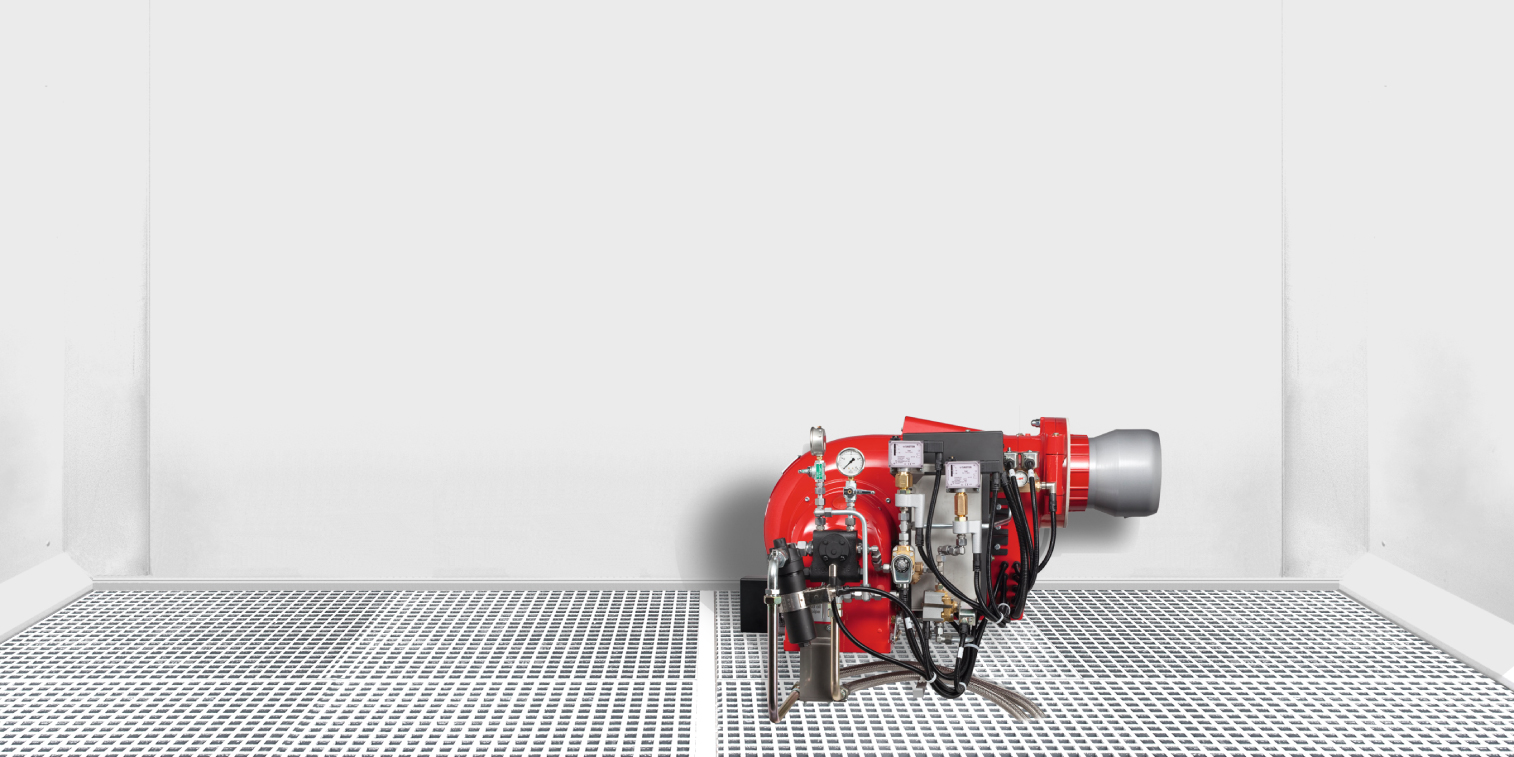

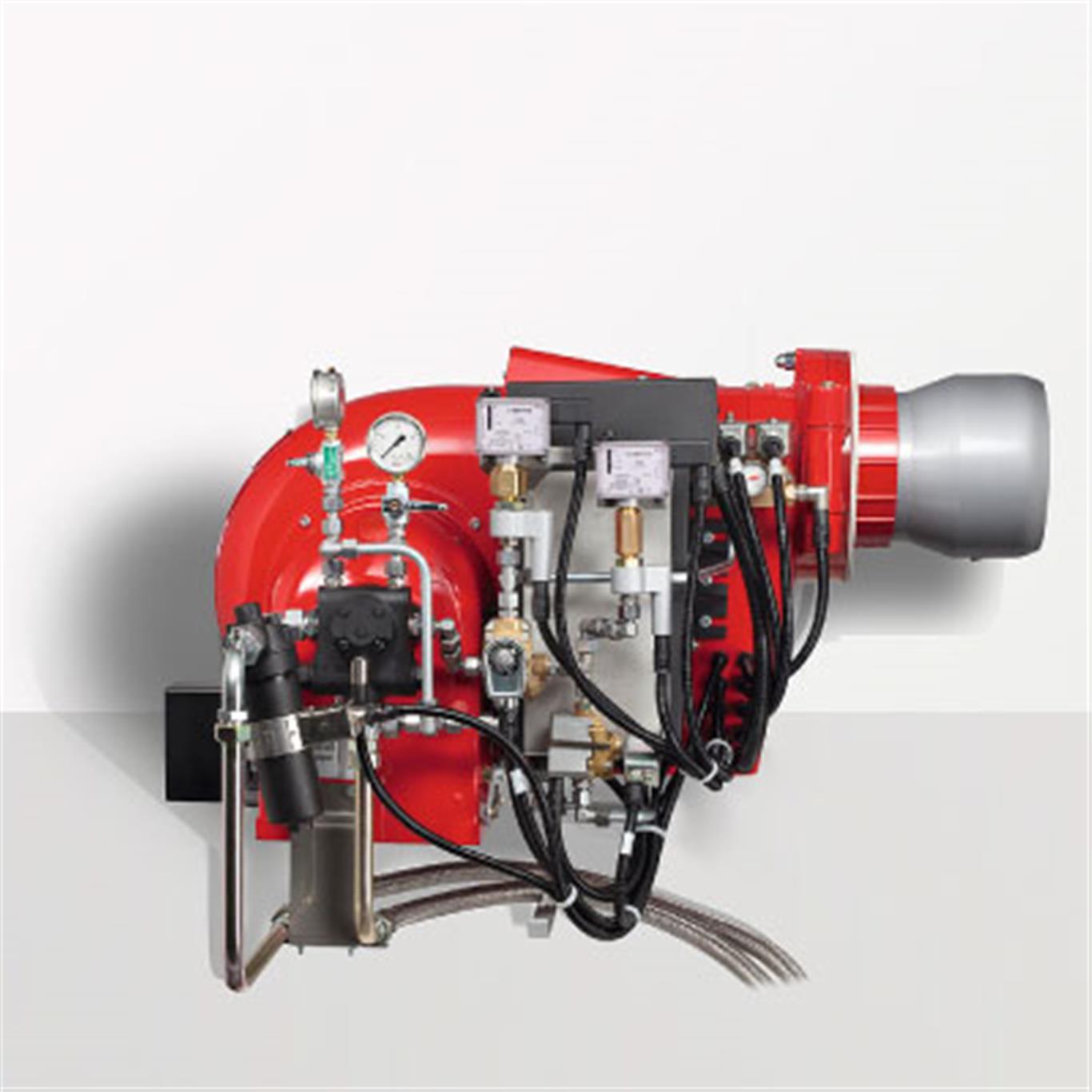

Marine-execution burners
Weishaupt burners in marine execution Weishaupt burners are at home on all of the world's oceans. Burners on board ships face gruelling conditions; this is where Weishaupt's years of expertise in reliable operation comes into its own.
Reliability on
the high seas.
With Weishaupt
marine burners.
|
|
|
For more than 40 years, Weishaupt has designed and produced marine-execution burners for a wide range of applications, such as auxiliary and hot-water boilers on board ships or in offshore installations.
In addition to standard oils, residual and distillate marine fuel oils can also be fired. Weishaupt burners are suitable for marine fuel oils that comply with ISO 8217 2010-06-15 and ISO 8217 2011-09 (please enquire regarding other Fuels).
|
Space on board ship is tight and the demands placed on a burner are particularly high. Weshaupt marine burners are best suited to these operating conditions.
Type Approval controls which burners and components are permitted for use by shipping and offshore installations. This approval is the basis for the Final Approval inspection at the place of use.
|
Reliability
BenefitsWeishaupt marine-execution burners
| Type | Rating (kW) | |
| WM-L10/1 | 75 - 405 |
|
| WM-L10/2 | 150 - 600 |
|
| WM-L10/3 | 250 - 800 |
|
| WM-L10/4 | 325 - 1 120 |
|
| WM-L20/1 | 400 - 1 400 |
|
| WM-L20/2 | 600 - 2 100 |
|
| WM-L20/3 | 800 - 2 600 |
|
| WM-L30/1 | 800 - 3 100 |
|
| WM-L30/2 | 900 - 4 100 |
|
| Type | Rating (kW) | |
| WM-L10/2 | 150 - 600 |
|
| WM-L10/3 | 250 - 800 |
|
| WM-L10/4 | 325 - 1 120 |
|
| WM-L20/1 | 400 - 1 400 |
|
| WM-L20/2 | 600 - 2 100 |
|
| WM-L20/3 | 800 - 2 600 |
|
| WM-L30/1 | 800 - 3 100 |
|
| WM-L30/2 | 900 - 4 100 |
|
| WM-L30/3 | 1 100 - 5 700 |
|
| WM-L50/1 | 1 200 - 8 000 |
|
| WM-L50/2 | 1 750 - 11 000 |
|
| Type | Rating (kW) | |
| M1Z | 90 - 415 |
|
| M3Z | 190 - 775 |
|
| M5Z | 225 - 1 190 |
|
| MS7Z | 450 - 1 965 |
|
| MS8Z | 675 - 2 740 |
|
| MS8Z/2 | 675 - 3 155 |
|
| Type | Rating (kW) | |
| RMS7 | 450 - 1 965 |
|
| RMS8 | 675 - 2 740 |
|
| RMS8/2 | 675 - 3 155 |
|
| RMS50/2 | 1 460 - 6 170 |
|
| RMS70/1 | 2 025 - 8 750 |
|
| RMS70/2 | 2 025 - 10 900 |
|
The Weishaupt WM-series monarch® burners (55 - 12 000 kW) The classic monarch® burner from Weishaupt laid the cornerstone that underlies the brand: reliability. The current range is robust, durable, and equipped with the latest digital technology. Weishaupt monarch® burners are available as gas, oil, and dual-fuel units..
The Weishaupt WK-series burners (Up to 32 000 kW) The WK-series burners are Weishaupt's most powerful burners of all. They were designed especially for hard industrial use, with capacities of up to 32 000 kW. The modular concept with an external fan facilitates a specific matching to all operating conditions. WK-series burners are available as gas, oil, and dual-fuel units.
The Weishaupt WKmono-series burners (Up to 17 000 kW) The WKmono-series burners are Weishaupt's most powerful monobloc burners. They were designed especially for hard industrial use, with capacities of up to 17 000 kW. Desptite their enormous capacity range, the cleverly designed WKmono-series gas, oil, and dual-fuel burners don't actually take up that much space.
