WKmono-series burners

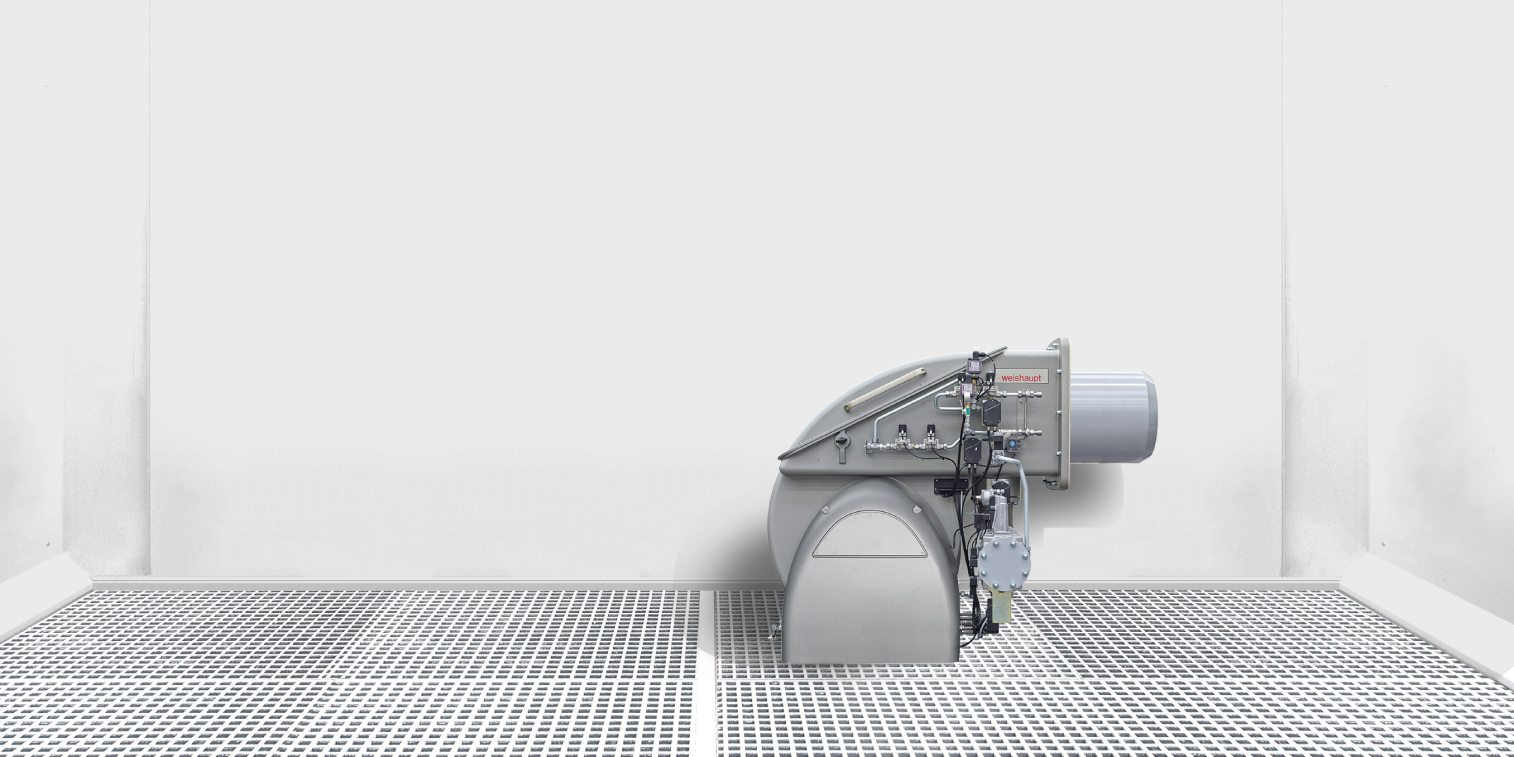

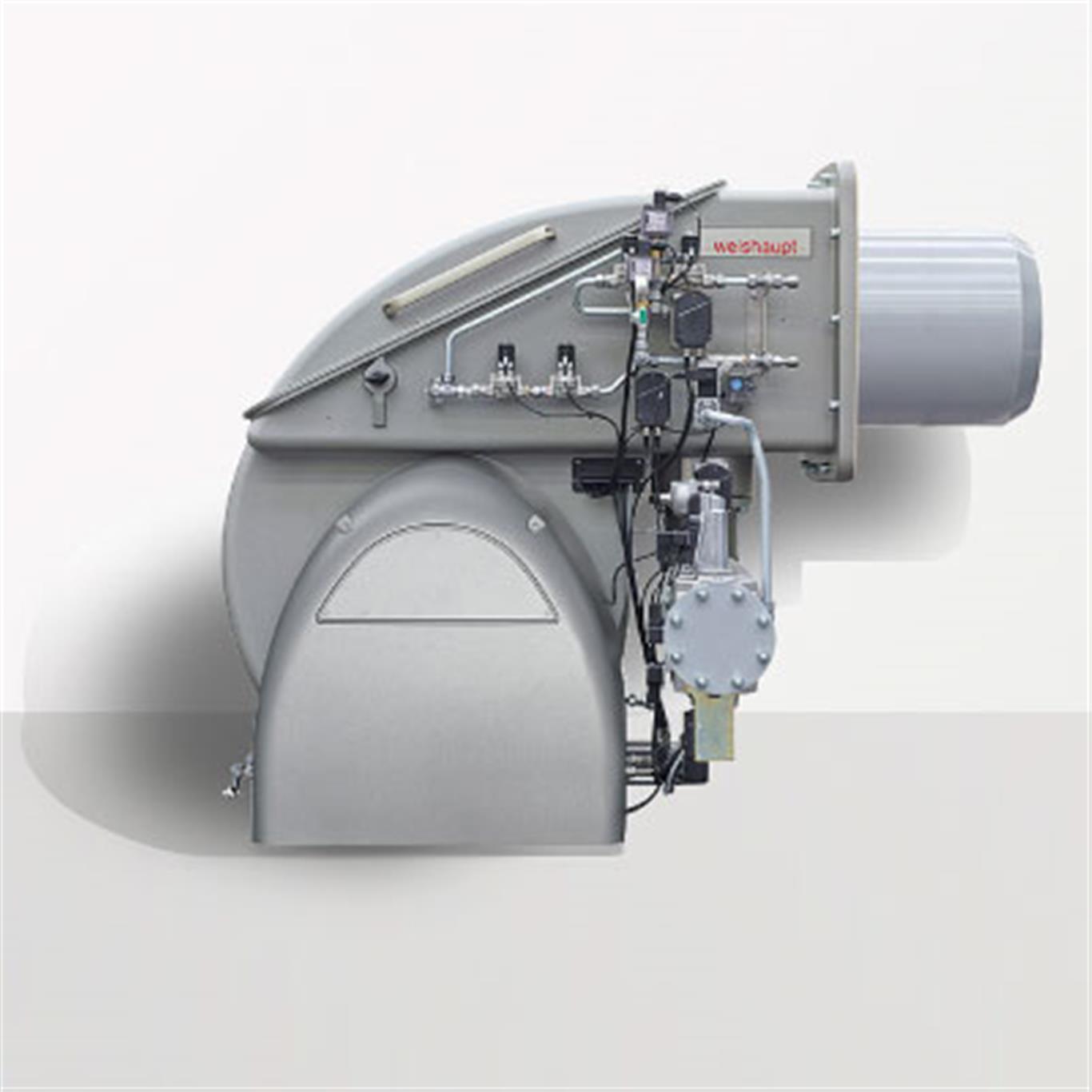

The Weishaupt WKmono-series burners (Up to 17 000 kW) The WKmono-series burners are Weishaupt's most powerful monobloc burners. They were designed especially for hard industrial use, with capacities of up to 17 000 kW. Desptite their enormous capacity range, the cleverly designed WKmono-series gas, oil, and dual-fuel burners don't actually take up that much space.
Compact high
capacity.
With powerful
monobloc
burners.
|
|
|
|
Despite its relatively compact design, with a length of just 1630 mm, the capacity range of the WKmono-series burners extends from 1 200 kW all the way up to 17 000 kW. Many elements – the mixing assemblies, for example – are drawn from the tried-and-tested range of WK-series duobloc burners and are pefectly matched to one another.
Digital combustion management, which is included in the WKmono range of burners as standard, provides for the economical regulation of gas and oil and simplifies the operation and maintenance of the burner. Commissioning takes place step-by-step following a user-friendly menu. Digital combustion management also offers the possibility of communication with various monitoring and control systems, up to and including integration into complete building management systems.
All components are readily accessible, so servicing is an uncomplicated affair. The Mixing assembly can be moved into a servicing position within the burner housing. Furthermore, mixing assemblies up to 700 mm overall length can be withdrawn and removed through the burner housing.
|
Oil-firing WKmono-series burners are suitable for Class D and Class A2 gas oil per BS 2869 (fuel oil EL and low-sulphur fuel oil EL per DIN 51603-1), and for blended gas oil with a biogenic admixture of up to 99.9 % (fuel oil EL A Bio). FAME per EN 14214 or paraffinic oil (fuel oil EL P per DIN/TS 51603-8) can also be used. Hydrogen blends of up to 20 vol% in natural gas are possible for most gas-firing burners, although in some cases an individual approval inspection might be necessary.
Weishaupt WKmono-series burners are available in a range of executions to suit different applications. Various mixing assemblies are available to meet special Emissions limit requirements.
Reliable service and support is available to customers through Weishaupt's comprehensive network. This ensures that systems with a Weishaupt burner always perform reliably.
|
Weishaupt's patented multiflam® technology enables large combustion plant to meet very low emission limits.
Key to the system is a special Mixing assembly that establishes an internal flue gas recirculation. This cools the flame and reduces the formation of nitrogen oxides. The NOx levels that can be achieved are comparable to those of compact burners.
The various Weishaupt burners that are available in multiflam® execution cover a range of capacities extending from 100 kW to 23 000 kW.
Weishaupt's 4LN-version burners meet the world's most stringent Emissions limits. A 4LN-version burner is equipped with a flue gas recirculation system that has its control components integrated into the burner.
Gaseous Fuels contain almost no sulphur, and so their flue gases mostly comprise Carbon dioxide (CO₂), steam (H₂O), and nitrogen (N₂). This is beneficial to the flue gas recirculation, since there is no ash or soot to contaminate the system.
Special adaptations of the Mixing assembly together with the W-FM200 digital Combustion manager ensure a high degree of flame stability and reliable operational behaviour.
|
Benefits
Applications
TechnologyWeishaupt WKmono-series burners (up to 17.000 kW)
| Type | Rating (kW) | |
| WKmono-G80/1 | 1 300 - 13 000 |
|
| WKmono-G80/2 | 1 600 - 16 000 |
|
| Type | Rating (kW) | |
| WKmono-G80/1 | 1 100 - 13 000 |
|
| WKmono-G80/2 | 1 600 - 17 000 |
|
| Type | Rating (kW) | |
| WKmono-G80/1 | 1 200 - 13 000 |
|
| WKmono-G80/2 | 2 200 - 17 000 |
|
| Type | Rating (kW) | |
| WKmono-G80/2 | 2 200 - 17 000 |
|
| Type | Rating (kW) | |
| WKmono-L80/1 | 1 790 - 13 000 |
|
| WKmono-L80/2 | 2 380 - 16 000 |
|
| Type | Rating (kW) | |
| WKmono-L80/1 | 1 750 - 13 000 |
|
| WKmono-L80/2 | 3 500 - 17 000 |
|
| Type | Rating (kW) | |
| WKmono-GL80/1 | 1 300 - 13 000 |
|
| WKmono-GL80/2 | 1 600 - 16 000 |
|
| Type | Rating (kW) | |
| WKmono-GL80/1 | 1 200 - 13 000 |
|
| WKmono-GL80/2 | 1 600 - 16 000 |
|
| Type | Rating (kW) | |
| WKmono-GL80/1 | 1 200 - 13 000 |
|
| WKmono-GL80/2 | 2 200 - 17 000 |
|
Information.
Detailed,
comprehensive,
interesting.

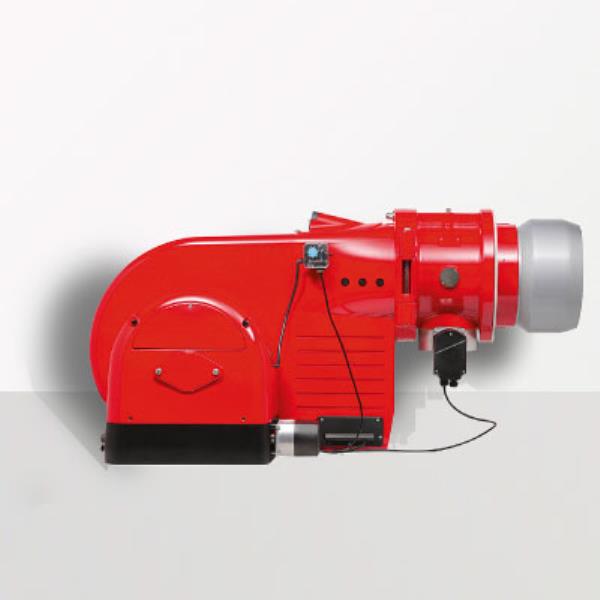

The Weishaupt WM-series monarch® burners (55 - 12 000 kW) The classic monarch® burner from Weishaupt laid the cornerstone that underlies the brand: reliability. The current range is robust, durable, and equipped with the latest digital technology. Weishaupt monarch® burners are available as gas, oil, and dual-fuel units..
