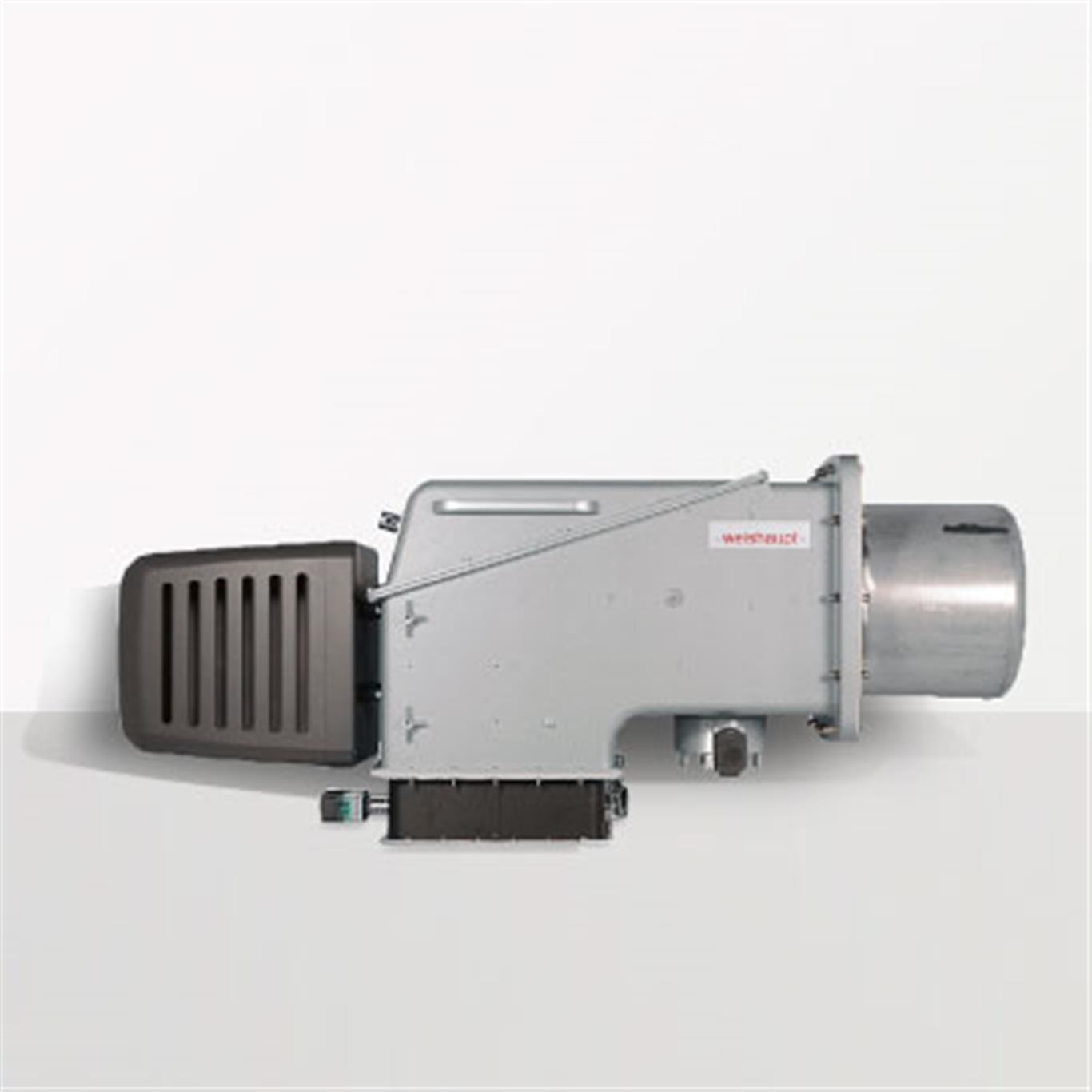

The Weishaupt WK-series burners (Up to 32 000 kW) The WK-series burners are Weishaupt's most powerful burners of all. They were designed especially for hard industrial use, with capacities of up to 32 000 kW. The modular concept with an external fan facilitates a specific matching to all operating conditions. WK-series burners are available as gas, oil, and dual-fuel units.


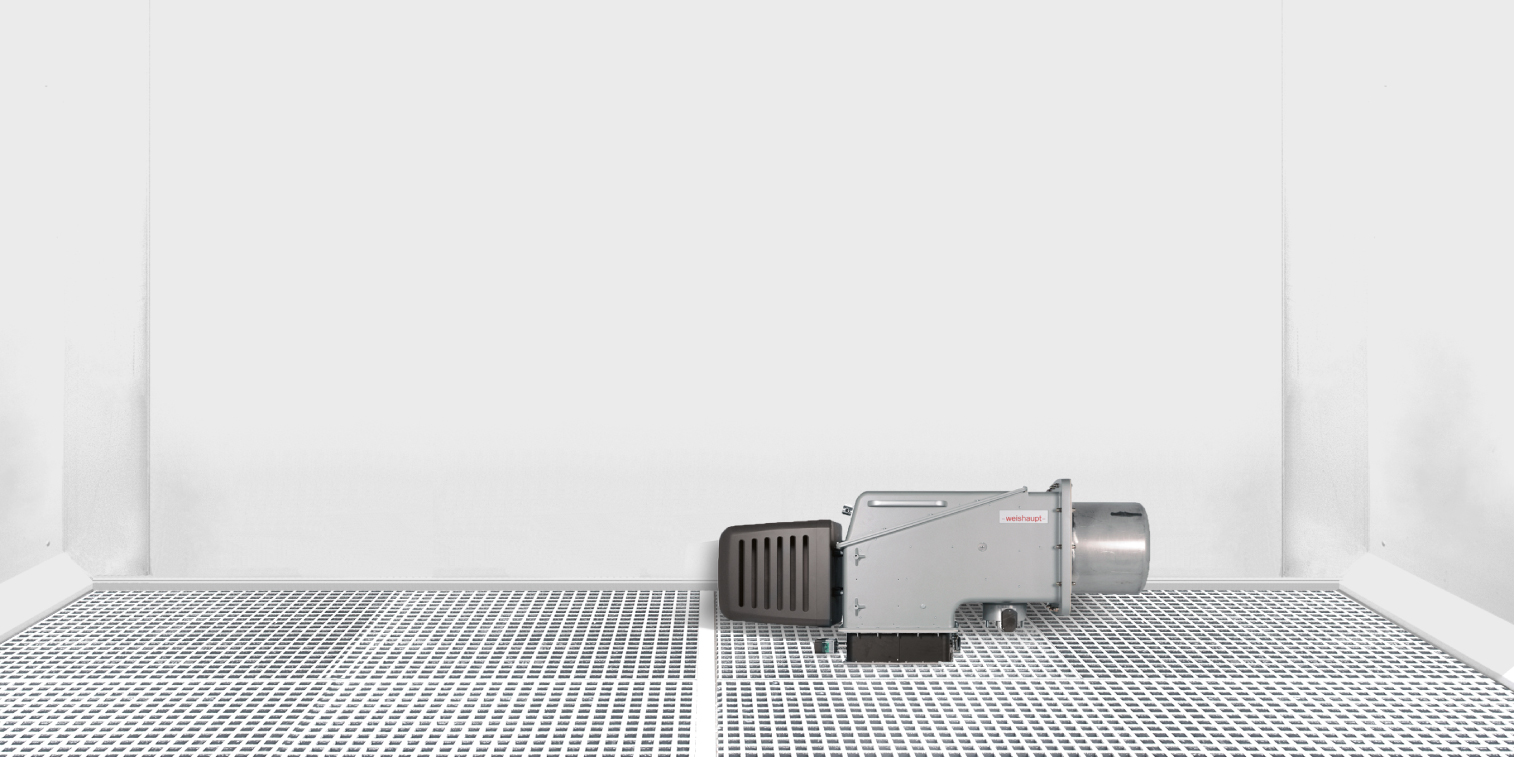

Fixing_lay-hinh-nay-cho-WK

All-round

powerhouse up

to 32 000 kW.

The powerful

high-capacity

burner.



benefit Benefits

Applications Applications

Technology Technology

Digital combustion management, which is included in this range of burners as standard, provides for the economical regulation of gas and oil and simplifies the operation and maintenance of the burner. It also offers the possibility of communication with various monitoring and control systems, up to and including integration into complete building management systems.
The internal insulation reduces the noise level and minimises the surface temperature of the housing when the burner is operating with preheated Combustion air. The burners can be operated with Combustion air temperatures up to 250 °C.
The fan, control panel, pump station, and preheater station are all sized independently of the burner. This concept offers a large degree of freedom, for example when faced with particularly difficult conditions, such as dust or thermal load.
Weishaupt WK-series burners are available in a range of executions to suit different applications. Various mixing assemblies are available to meet special Emissions limit requirements. There are also “swirlflame” executions with swirled Combustion air for extremely short combustion chambers.
Oil-firing WK-series burners are suitable for Class D and Class A2 gas oil per BS 2869 (fuel oil EL and low-sulphur fuel oil EL per DIN 51603-1), and for blended gas oil with a biogenic admixture of up to 99.9 % (fuel oil EL A Bio). FAME per EN 14214 or paraffinic oil (fuel oil EL P per DIN/TS 51603-8) can also be used. Hydrogen blends of up to 20 vol% in natural gas are possible for most gas-firing burners, although in some cases an individual approval inspection might be necessary.
Reliable service and support is available to customers through Weishaupt's comprehensive network. This ensures that systems with a Weishaupt burner always perform reliably.
Weishaupt's patented multiflam® technology enables large combustion plant to meet very low emission limits.
Key to the system is a special Mixing assembly that establishes an internal flue gas recirculation. This cools the flame and reduces the formation of nitrogen oxides. The NOx levels that can be achieved are comparable to those of compact burners.
The various Weishaupt burners that are available in multiflam® execution cover a range of capacities extending from 100 kW to 23 000 kW.
Weishaupt's 4LN-version burners meet the world's most stringent Emissions limits. A 4LN-version burner is equipped with a flue gas recirculation system that has its control components integrated into the burner.
Gaseous Fuels contain almost no sulphur, and so their flue gases mostly comprise Carbon dioxide (CO₂), steam (H₂O), and nitrogen (N₂). This is beneficial to the flue gas recirculation, since there is no ash or soot to contaminate the system.
Special adaptations of the Mixing assembly together with the W-FM200 digital Combustion manager ensure a high degree of flame stability and reliable operational behaviour.

Weishaupt WK-series burners (up to 32.000 kW)



Type Rating (kW)
WKG70/0 900 - 7 500

WKG70/1 1 000 - 10 000

WKG70/3 1 300 - 13 000


WKG80/1 1 700 - 17 000


WKG80/2 2 200 - 23 000



Type Rating (kW)
WKG70/0 750 - 7 000


WKG70/1 1 000 - 10 000


WKG70/3 1 100 - 13 000


WKG80/1 1 800 - 17 000


WKG80/2 2 200 - 23 000



Type Rating (kW)
WKG70/1 900 - 7 000

WKG70/2 1 100 - 12 000


Type Rating (kW)
WKG70/1 1 100 - 7 700


WKG70/3 1 400 - 12 000


WKG80/3 2 200 - 22 000



Type Rating (kW)
WKG70/1 1 000 - 8 000


WKG70/2 1 300 - 12 000


WKG80/4 2 200 - 22 000


WKG80/5 2 700 - 27 000


WKG80/6 4 000 - 32 000



Type Rating (kW)
WKL70/1 1 200 - 7 700

WKL70/3 1 800 - 12 000

WKL80/3 3 200 - 22 000



Type Rating (kW)
WKL70/1 1 800 - 8 000


WKL70/2 2 500 - 12 000


WKL80/3 3 200 - 19 000



Type Rating (kW)
WKMS70/1 1 800 - 7 700


WKMS70/3 2 150 - 12 000


WKMS80/3 3 800 - 22 000



Type Rating (kW)
WKMS70/1 1 800 - 8 000


WKMS70/2 2 500 - 12 000


WKMS80/3 3 200 - 19 000



Type Rating (kW)
WKGL70/0 900 - 7 500

WKGL70/1 1 000 - 10 000

WKGL70/3 2 020 - 13 000


WKGL80/1 1 700 - 17 000


WKGL80/2 2 200 - 23 000



Type Rating (kW)
WKGL70/0 750 - 7 000


WKGL70/1 1 000 - 10 000


WKGL70/3 1 100 - 13 000


WKGL80/1 1 800 - 17 000



Type Rating (kW)
WKGL70/1 900 - 7 000


WKGL70/2 1 100 - 12 000



Type Rating (kW)
WKGL70/1 1 100 - 8 000


WKGL70/3 1 400 - 12 000


WKGL80/3 2 200 - 22 000



Type Rating (kW)
WKGL70/1 1 000 - 8 000


WKGL70/2 1 300 - 12 000


WKGL80/3 2 500 - 19 000



Type Rating (kW)
WKGMS70/1 1 100 - 7 700


WKGMS70/3 1 400 - 12 000


WKGMS80/3 2 200 - 22 000



Type Rating (kW)
WKGMS70/1 1 000 - 8 000


WKGMS70/2 1 300 - 12 000


WKGMS80/3 2 500 - 19 000



Type Rating (kW)
WKG40/1 200 - 1 200

WKG50/1 400 - 2 800

WKG50/2 500 - 4 000


WKG70/0 900 - 7 500


WKG70/1 1 000 - 8 000


WKG70/3 1 300 - 10 400


WKG80/1 1 700 - 13 600


WKG80/2 2 200 - 18 400



Type Rating (kW)
WKG40/1 200 - 1 200


WKG40/2 300 - 2 200


WKG50/1 450 - 2 800


WKG50/2 500 - 4 000


WKG70/0 750 - 5 600


WKG70/1 1 000 - 8 000


WKG70/3 1 100 - 10 400


WKG80/1 1 800 - 13 600


WKG80/2 2 200 - 18 400



Type Rating (kW)
WKG40/2 500 - 2 500


WKG50/1 600 - 3 000


WKG50/2 800 - 4 800


WKG70/1 900 - 5 600


WKG70/2 1 100 - 9 600



Type Rating (kW)
WKG50/1 600 - 3 200


WKG50/2 800 - 5 000


WKG70/1 1 100 - 6 100


WKG70/3 1 400 - 9 600


WKG80/3 2 200 - 17 600



Type Rating (kW)
WKG40/1 300 - 1 800


WKG40/2 400 - 2 500


WKG50/1 600 - 3 200


WKG50/2 800 - 5 000



Type Rating (kW)
WKG70/1 1 000 - 6 400


WKG70/2 1 300 - 9 600


WKG80/4 2 200 - 17 600


WKG80/5 2 700 - 21 600


WKG80/6 4 000 - 25 600



Type Rating (kW)
WKL40/1 450 - 1 800

WKL40/2 650 - 2 500

WKL50/1 712 - 3 200


WKL50/2 1 125 - 5 000


WKL70/1 1 200 - 6 1000


WKL70/3 1 800 - 9 600


WKL80/3 3 200 - 17 600



Type Rating (kW)
WKL70/1 1 800 - 6 400


WKL70/2 2 500 - 9 600


WKL80/3 3 200 - 15 200



Type Rating (kW)
WKMS40/1 550 - 1 800


WKMS40/2 750 - 2 500


WKMS50/1 1 012 - 3 200


WKMS50/2 1 700 - 5 000


WKMS70/1 1 800 - 6 100


WKMS70/3 2 150 - 9 600


WKMS80/3 3 200 - 17 600



Type Rating (kW)
WKMS70/1 1 800 - 6 400


WKMS70/2 2 500 - 9 600


WKMS80/3 3 200 - 15 200



Type Rating (kW)
WKGL50/1 400 - 2 800

WKGL50/2 500 - 4 000

WKGL70/0 1 450 - 6 000


WKGL70/1 1 000 - 10 000


WKGL70/3 1 300 - 10 400


WKGL80/1 1 700 - 13 600


WKGL80/2 18 400 - 23 600



Type Rating (kW)
WKGL40/2 300 - 1 760

WKGL50/1 450 - 2 800

WKGL50/2 500 - 4 000


WKGL70/0 750 - 5 600


WKGL70/1 1 000 - 8 000


WKGL70/3 1 100 - 10 400


WKGL80/2 1 800 - 13 600



Type Rating (kW)
WKGL50/1 600 - 3 000

WKGL50/2 800 - 4 800

WKGL70/1 900 - 5 600


WKGL70/2 1 100 - 9 600



Type Rating (kW)
WKGL50/1 600 - 4 000

WKGL50/2 800 - 5 000

WKGL70/1 1 100 - 6 100


WKGL70/3 1 400 - 9 600


WKGL80/3 2 200 - 17 600



Type Rating (kW)
WKL40/1 450 - 1 800

WKL40/2 650 - 2 500

WKL50/1 712 - 3 200


WKL50/2 1 125 - 5 000


WKL70/1 1 200 - 6 1000


WKL70/3 1 800 - 9 600


WKL80/3 3 200 - 17 600



Type Rating (kW)
WKGL70/1 1 000 - 6 400


WKGL70/2 1 300 - 9 600


WKGL80/3 2 500 - 15 200



Type Rating (kW)
WKMS50/1 600 - 3 200


WKMS50/2 800 - 5 000


WKMS70/1 1 100 - 6 100


WKMS70/3 1 400 - 9 600


WKMS80/3 2 200 - 17 600



Type Rating (kW)
WKMS40/1 550 - 1 800


WKMS40/2 750 - 2 500


WKMS50/1 1 012 - 3 200


WKMS50/2 1 700 - 5 000


WKMS70/1 1 800 - 6 100


WKMS70/3 2 150 - 9 600


WKMS80/3 3 200 - 17 600



Type Rating (kW)
WKMS70/1 1 800 - 6 400


WKMS70/2 2 500 - 9 600


WKMS80/3 3 200 - 15 200



Information.

Detailed,

comprehensive,

interesting.

csm_informationsmaterial-magazin_7ac5cb8433

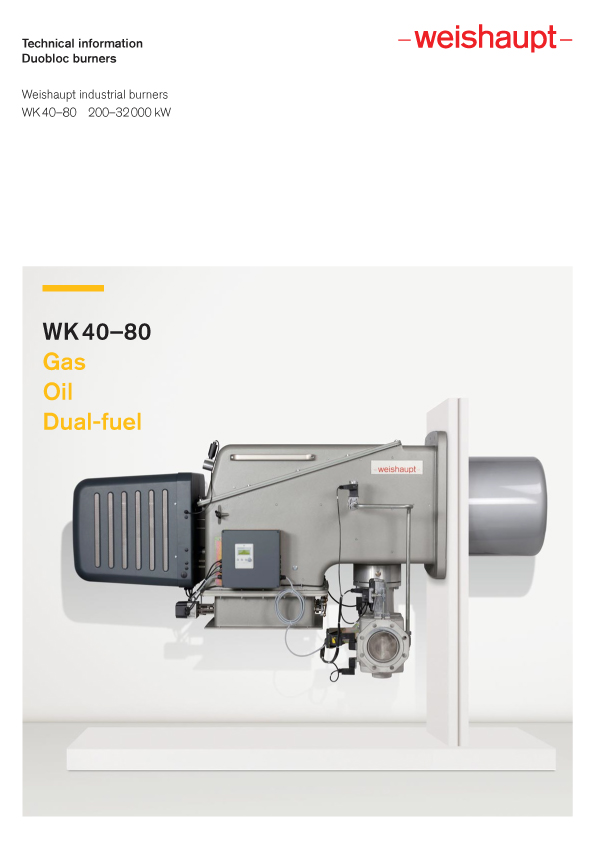

Industrial-WK-Series
