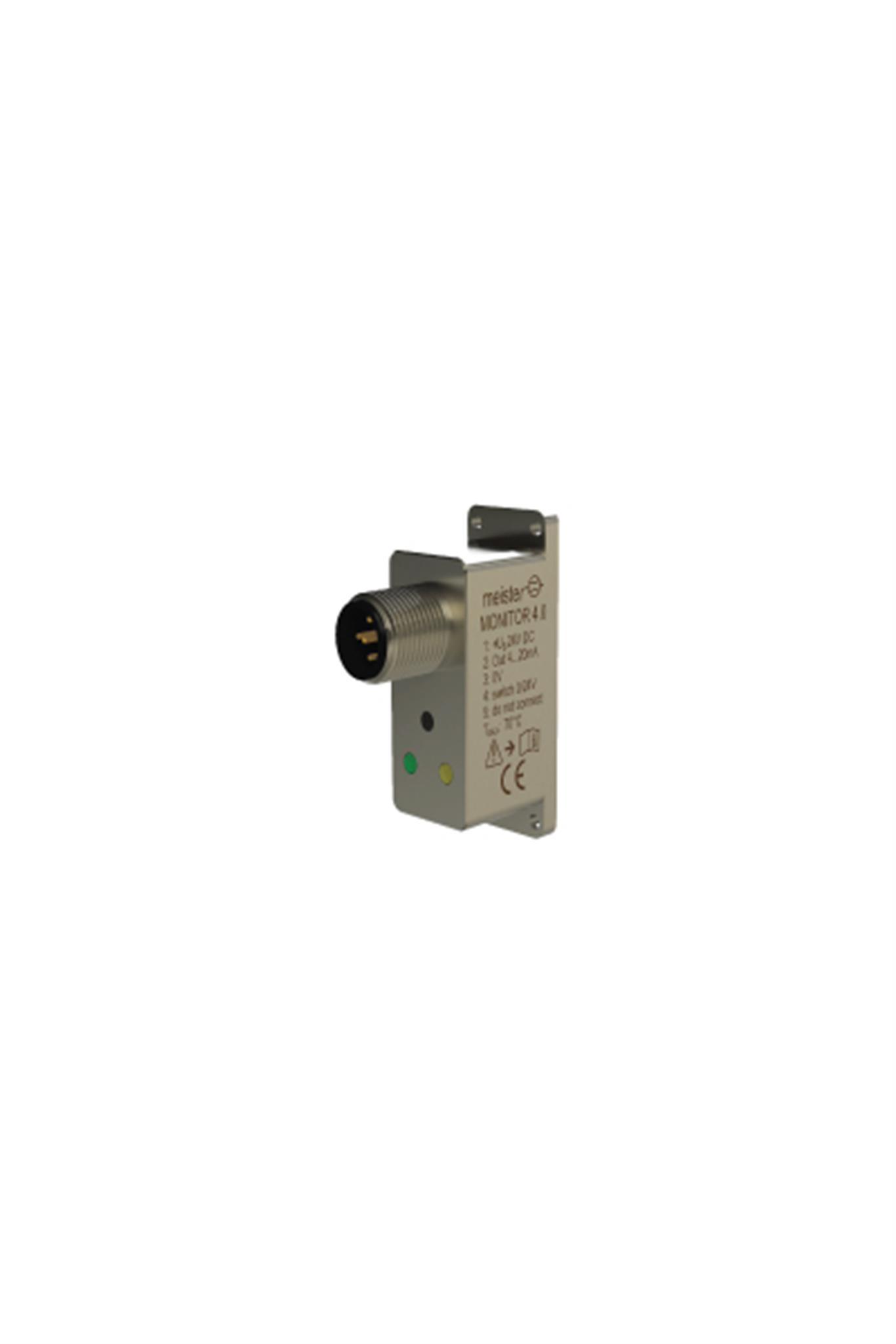

MONITOR 4.0
Analog transmitter with electrical switch output
| CAN BE COMBINED WITH OUR SENSORS SIGNAL 4.0 AND SIGNAL 4.0 IO PRO | |||
 |
> Analog Output (4-20mA) > Electrical switch output > Industry 4.0 |
SPECIFICATIONS | |
|---|---|---|---|
 |
Operating temperature: from -20°C to 70°C |
||
|
Operation The position of a magnetic float / piston is detected by means of analog Hall-Sensors. The electronics provides an analog signal. In addition the device has an electrical switch output. It can be programmed via button press. |
|
||
| COMPATIBLE WITH THE FOLLOWING DEVICES | ||
| DEVICES FOR WATER | DEVICES FOR OIL | DEVICES FOR GASEOUS MEDIA |
| DUG | DKG-1 | DWG-L |
| DWG | DKG-2 | DWM-L |
| DUM | DKM-1 | DWM/A-L |
| DUM/A | DKM/A-1 | RVO/U-L1 |
| DWM | DKM-2 | RVO/U-L2 |
| DWM/A | DKM/A-2 | RVO/U-L4 |
| RVM/U-1 | DKME-1 | RVM/U-L1 |
| RVM/UA-1 | DKME/A-1 | RVM/U-L2 |
| RVM/U-2 | RVM/U-L4 | |
| RVM/UA-2 | RVM/UA-L1 | |
| RVM/U-4 | RVM/UA-L2 | |
| RVO/U-1 | ||
| RVO/U-2 | ||
| RVO/U-4 | ||
| WY | ||
|
DOCUMENTS (Click on the name to download directly) |
|
| DATASHEET | |
| MANUAL BASICS | |
| PRODUCT BROCHURE | |
| VIDEO 3D animation | |
| VIDEO Teaching setpoint | |
| DoCEMC-DIRECTIVE 2014/30/EU and RoHS-Directives 2011/65/EU and 2015/863/EU | |
| UKCA-DoC in Accordance with UK S.I. 2016/1091 and UK S.I. 2012/3032 |
