CAN BE COMBINED WITH OUR SENSORS SIGNAL 4.0 AND SIGNAL 4.0 IO PRO | |||
![]() |
> IO-Link Interface (IEC 61131-9) > Internal recording of the flow rate > Connection of external temperature and pressure sensors possible > Conversion of the analog temperature and pressure signal to IO-Link > Calculation of viscosity from measured temperature for ISO VG oils > Housing manufactured with additive manufacturing |
SPECIFICATIONS | |
---|---|---|---|
![]() |
Operating temperature: from -20°C to 70°C |
||

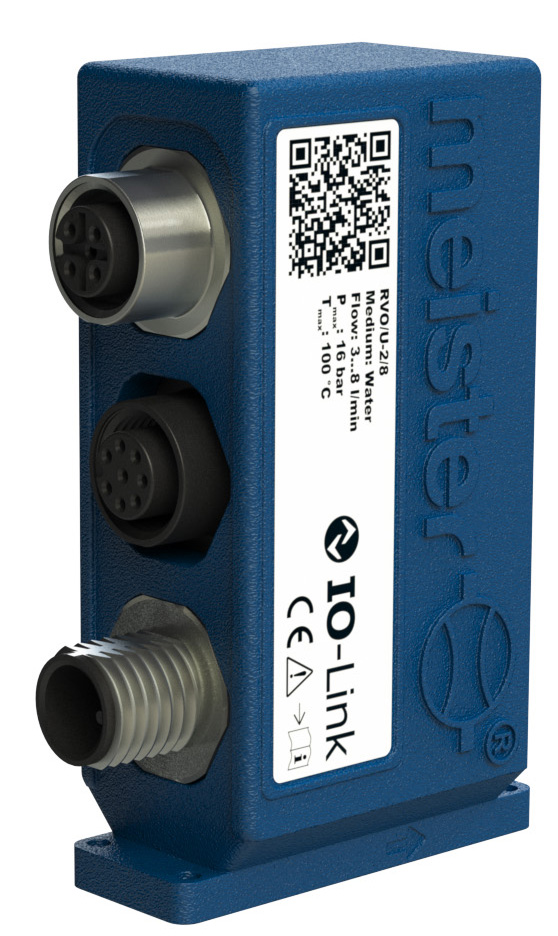

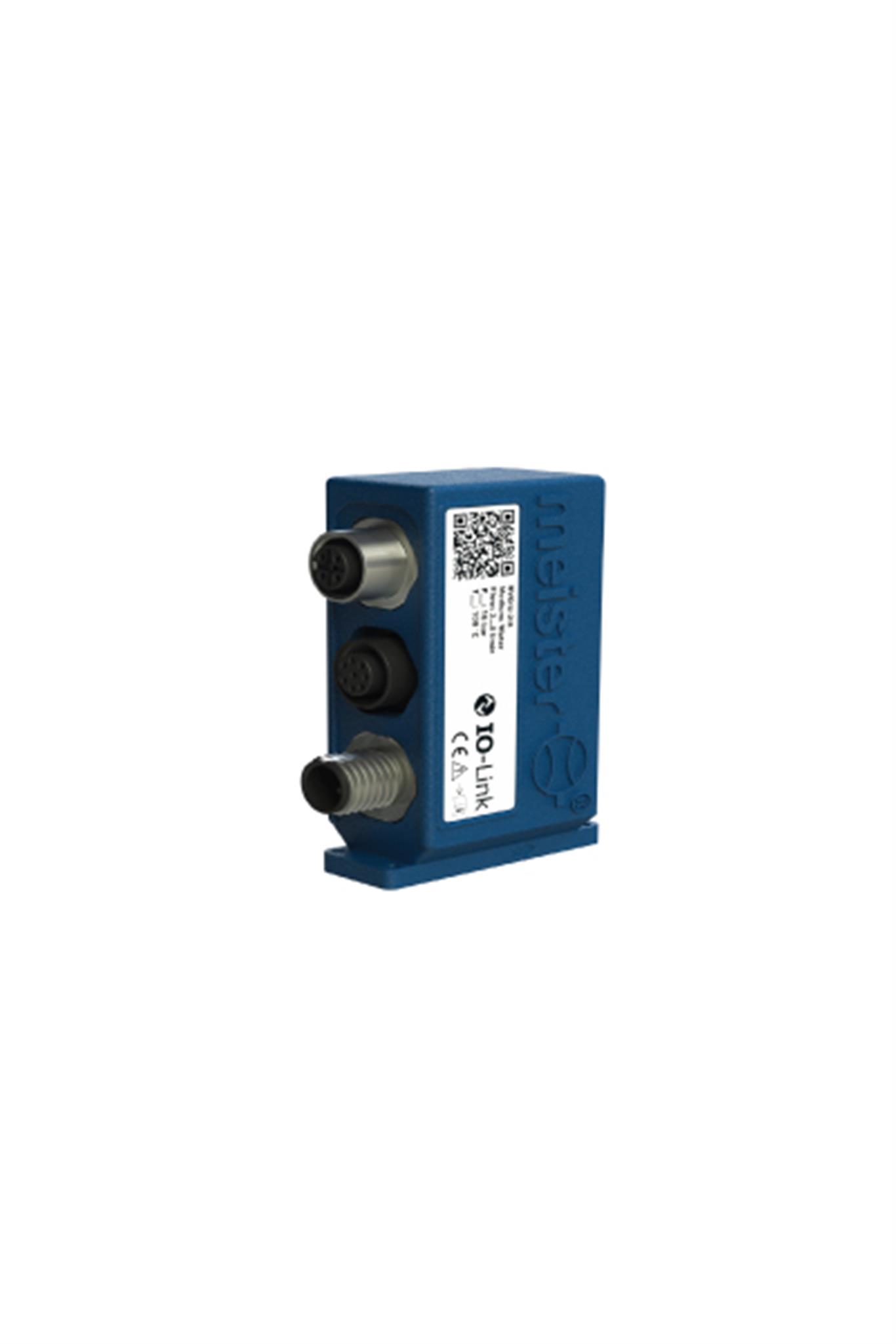

Operation The SIGNAL 4.0 IO PRO is a fully digital transceiver for industrial process measurement. The position of a magnetic float / piston is detected by means of a well-proven Hall sensor and transmitted Additionally, it is possible to connect external sensors to monitor temperature and pressure. Those signals are then transmitted via the IO-Link Interface. |
|
COMPATIBLE WITH THE FOLLOWING DEVICES | ||
DEVICES FOR WATER | DEVICES FOR OIL | DEVICES FOR GASEOUS MEDIA |
DUG | DKG-1 | DWG-L |
DWG | DKG-2 | DWM-L |
DUM | DKM-1 | DWM/A-L |
DUM/A | DKM/A-1 | RVO/U-L1 |
DWM | DKM-2 | RVO/U-L2 |
DWM/A | DKM/A-2 | RVO/U-L4 |
RVM/U-1 | DKME-1 | RVM/U-L1 |
RVM/UA-1 | DKME/A-1 | RVM/U-L2 |
RVM/U-2 | RVM/U-L4 | |
RVM/UA-2 | RVM/UA-L1 | |
RVM/U-4 | RVM/UA-L2 | |
RVO/U-1 | ||
RVO/U-2 | ||
RVO/U-4 | ||
WY |
