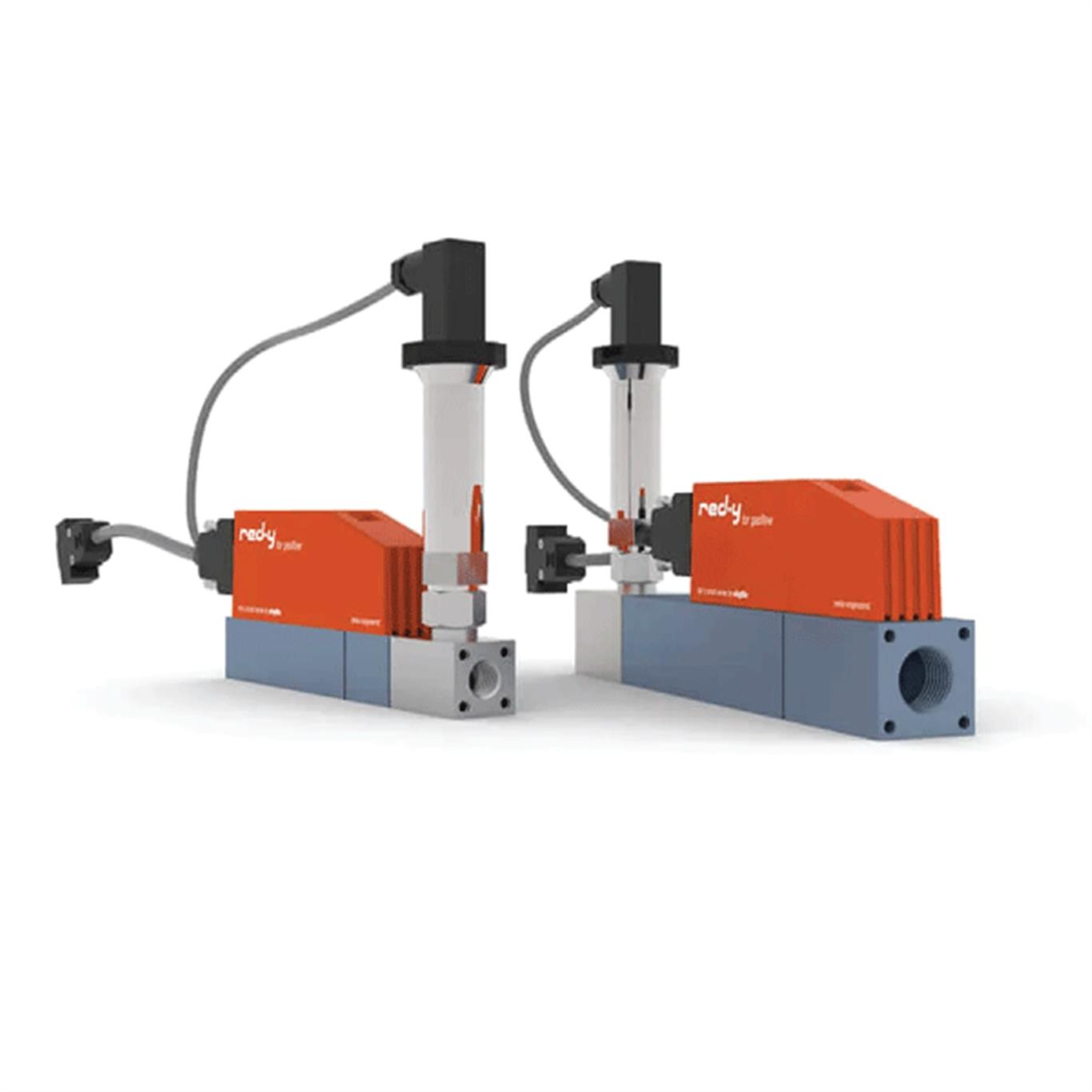

red-y smart pressure controller
Digital Pressure Controllers for Gases with integrated Flow Measurement
The electronic red-y smart pressure controller combine the reliable technology of our digital mass flow controllers with electronic pressure control. The devices automatically control a predefined process pressure and at the same time measure and/or limit the flow rate. On-the-fly switching between pressure control and flow control offers maximum flexibility.
1 Device – 3 Functions
The pressure controller combines three functions:
- Pressure controller
- Pressure controller with flow measurement/limitation
- Flow controller with pressure measurement
The following instrument versions are available:
- Integrated pressure control: Accuracy:± 0.5 % of full scale
- Integrated back pressure control: Accuracy:± 0.5 % of full scale

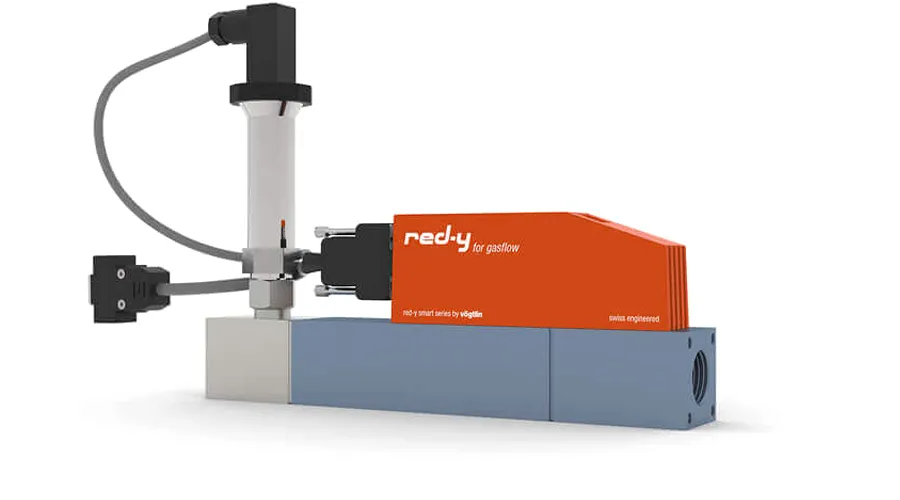

- Pressure control with external pressure transmitters
- Pressure controller with gas mixer function
Analog & Digital: 2 in 1
The pressure controllers make use of the latest CMOS technology and have a digital (Modbus RTU) and analog interface as standard.Profibus, Profinet RT and EtherCAT interfaces are available.

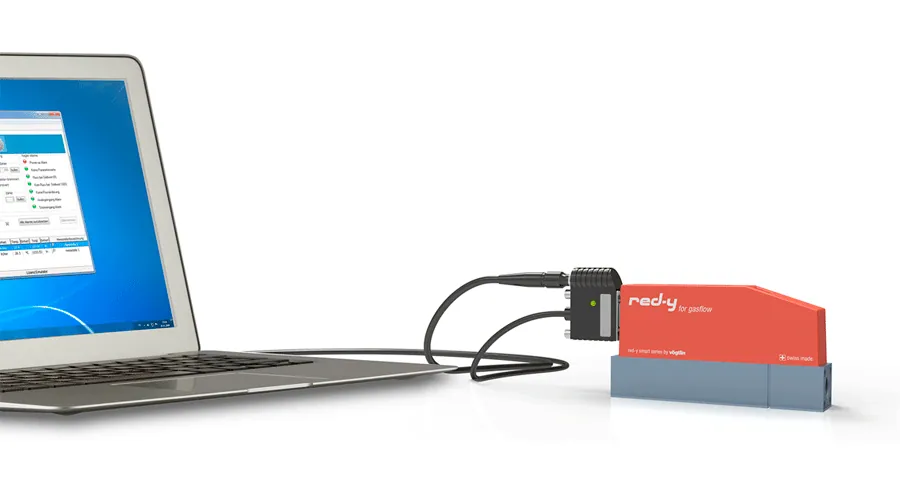

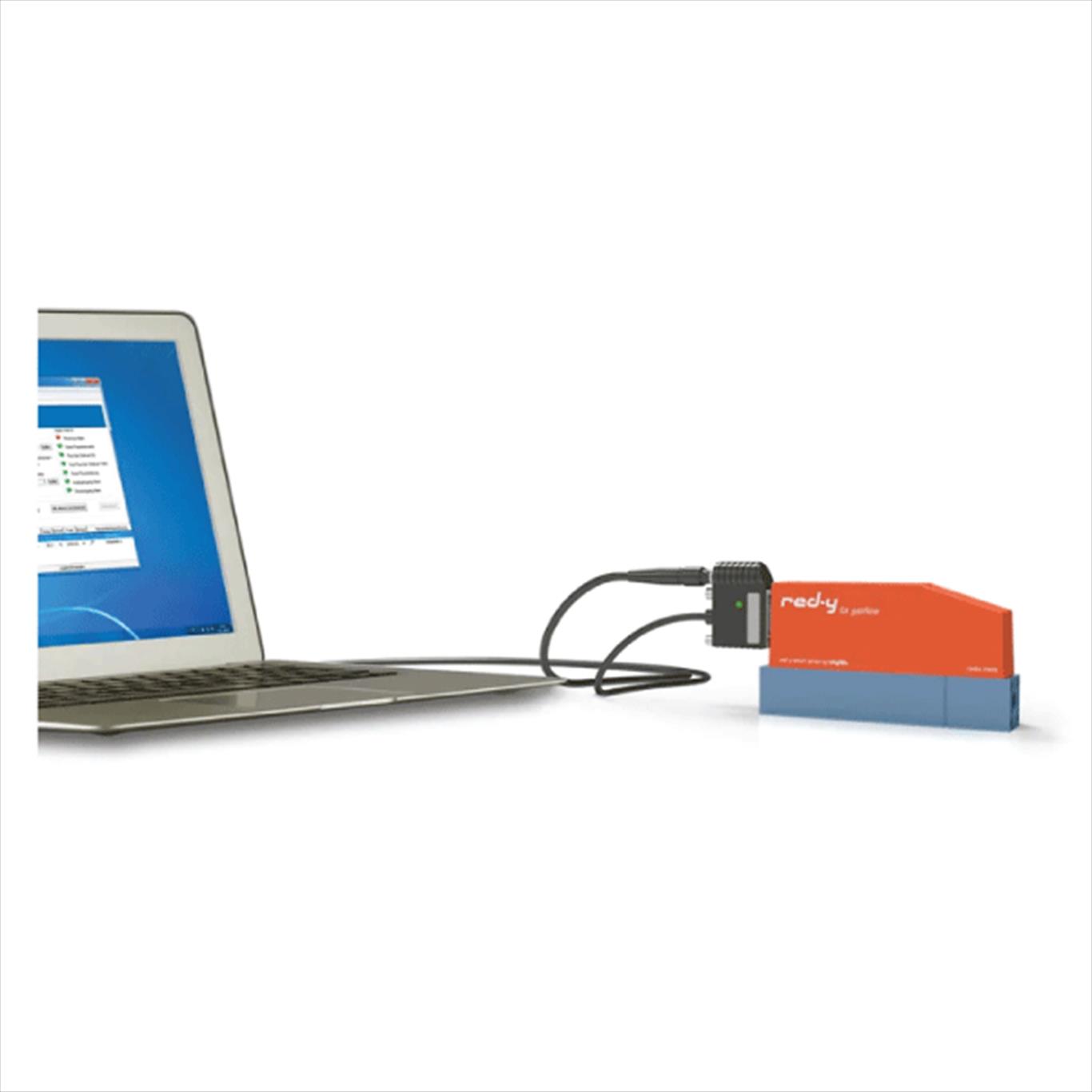

Software get red-y
Efficient device setup with the free get red-y software:
- View flow rate & temperature
- Change set points
- Select measured gas
- Visualization of measured data
- Adjusting control parameter
Optional modules get red-y software:
- Datalogging
- Gasmixing
Options

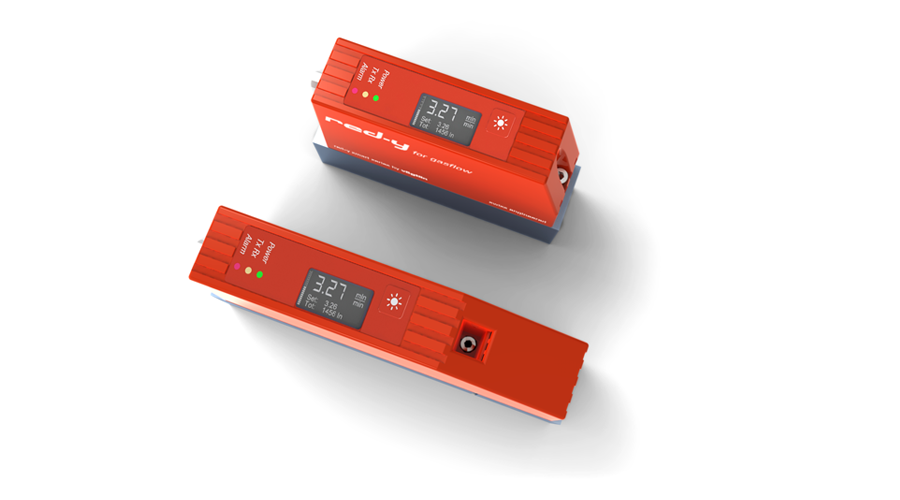

Built-in display
Display includes: Flow rate, totalizer, unit of measure & set point control
Multigas
One controller or controller can be used for up to 10 different gases or gas mixtures
Profibus
The instruments are available with Profibus interface: DP-V0 & DP-V1 protocols
Industrial Ethernet
Two industrial ethernet protocols Profinet RT and EtherCAT are available
IP67/ATEX Versions
red-y industrial pressure controllers are available as IP67/ATEX versions
It‘s a red-y smart
The pressure controllers combine the innovative equipment design of the red-y smart series with the development competence of Vögtlin Instruments GmbH. High-quality components ensure long and trouble-free operation.
Operating Status Indication
The instruments offer a built-in LED status indication
3-Year Warranty
High-quality components ensure long and trouble-free operation (does not apply to calibration, options and accessories)

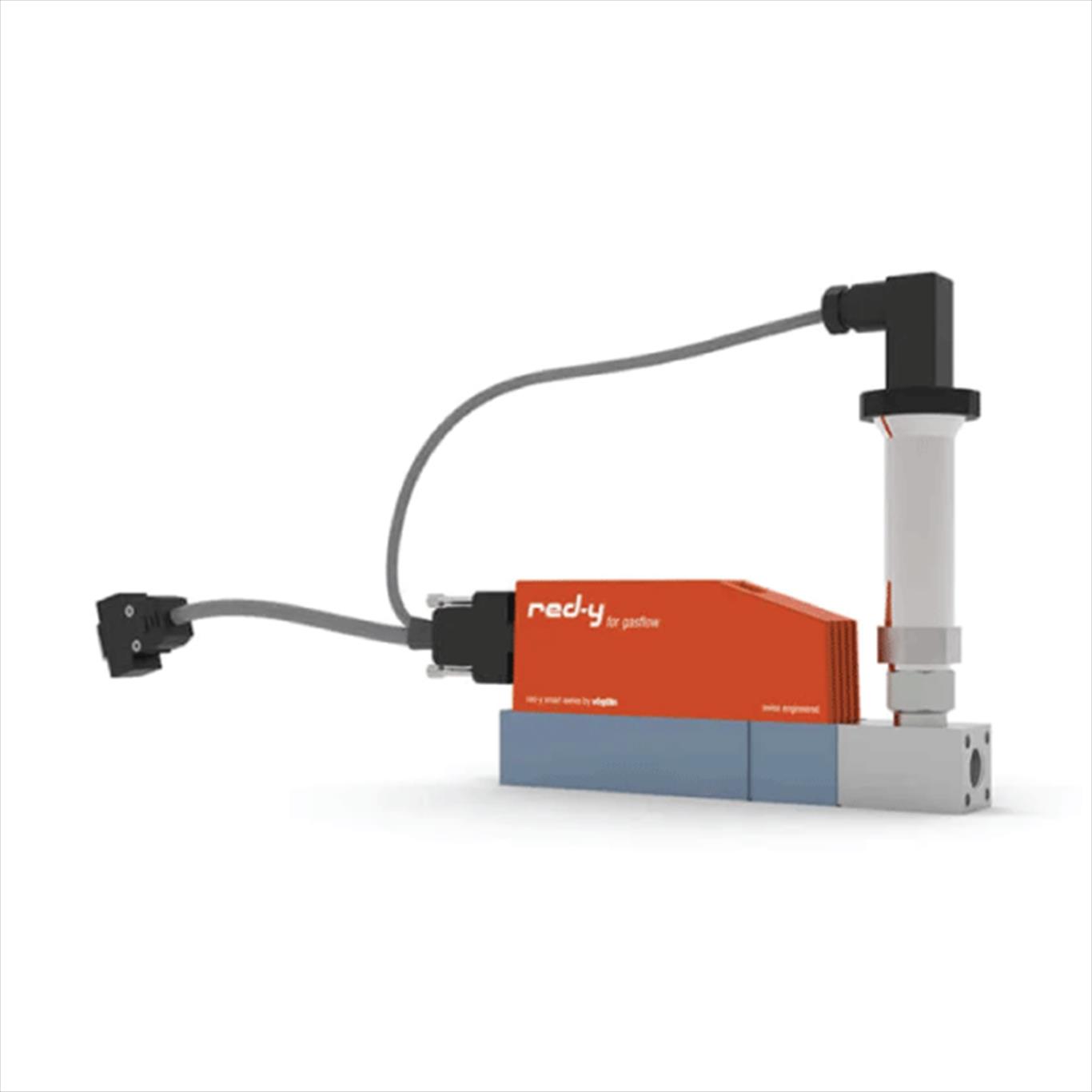

red-y smart pressure controller GSP
- Digital Pressure Controller with integrated Flow Measurement
- Flow up to 60 ln/min
- Aluminium version
- Body size ¼”

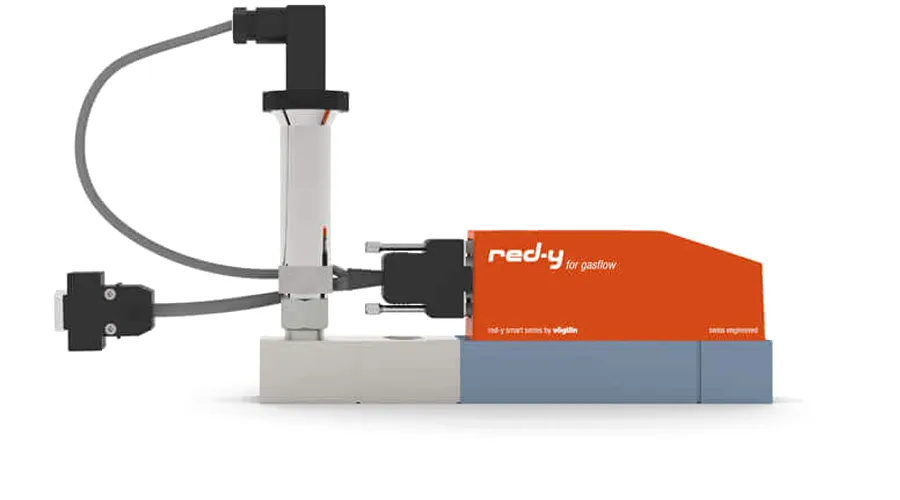

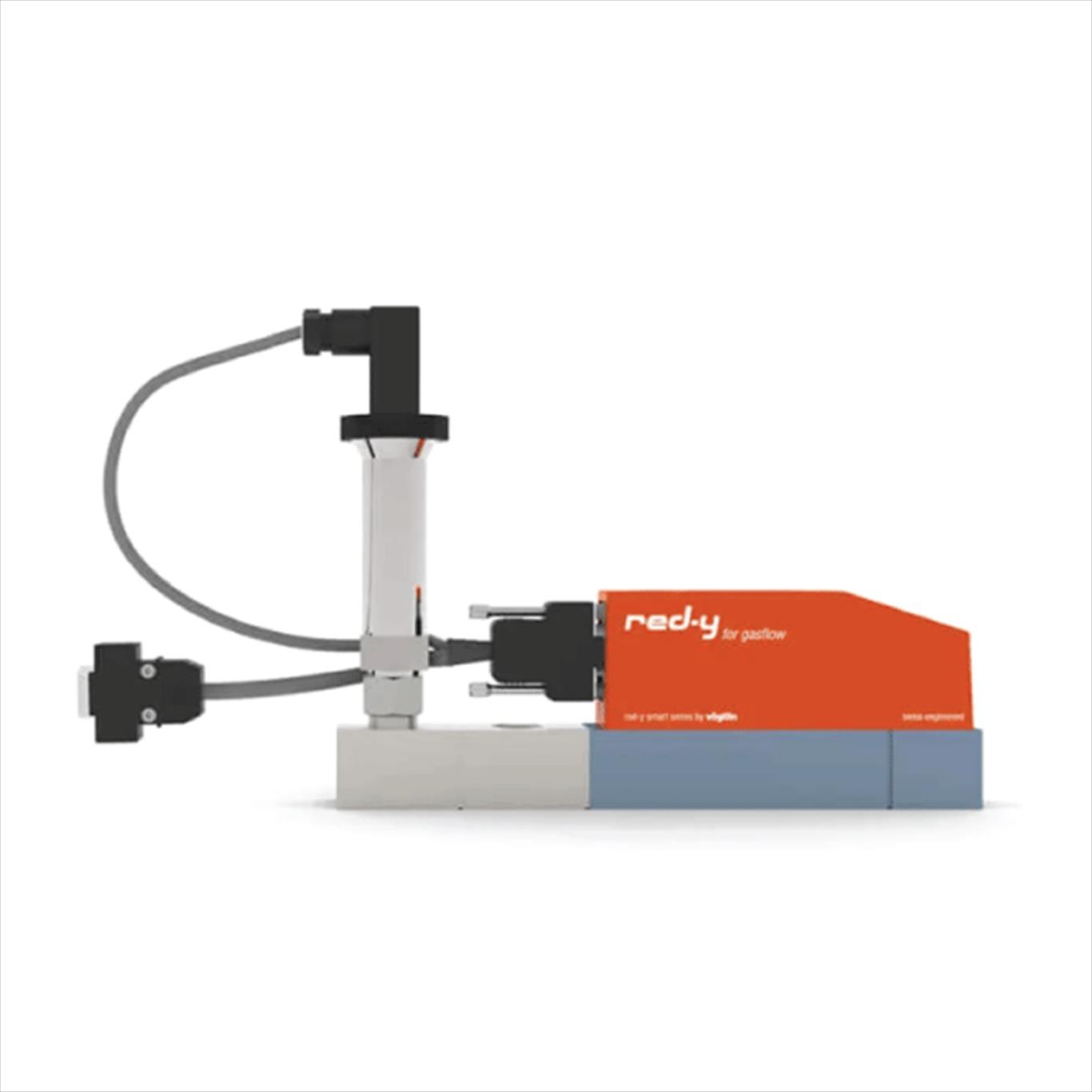

red-y smart controller GSB
- Digital Pressure Controller with integrated Flow Measurement
- Flow up to 60 ln/min
- Aluminium version
- Body size ¼”

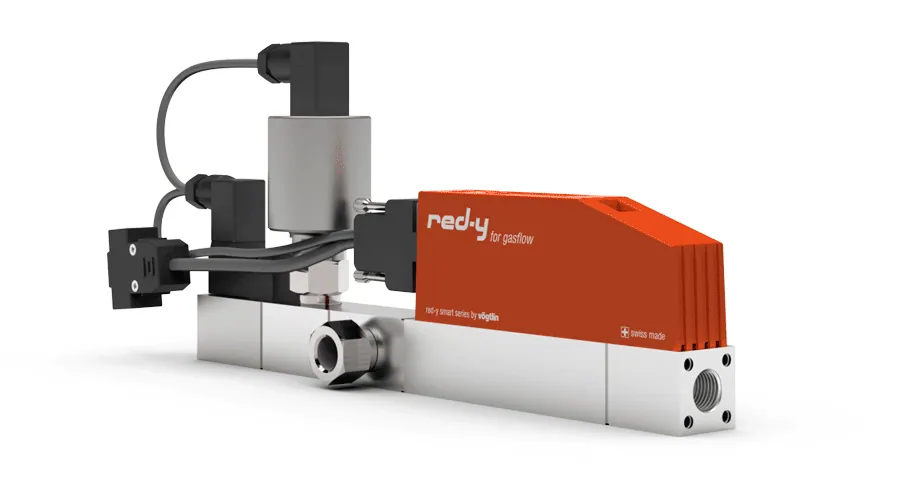

Flow up to 450 ln/min
- Pressure controller and back pressure controller with measuring ranges up to 450 ln/min
- Gas connection G½”
Customized OEM Solutions
- Optimize and simplify your processes with our customized & modular flow solutions.
- For a wide range of applications the thermal mass flow meters and mass flow controllers offer you a significant optimization and simplification of your processes.
