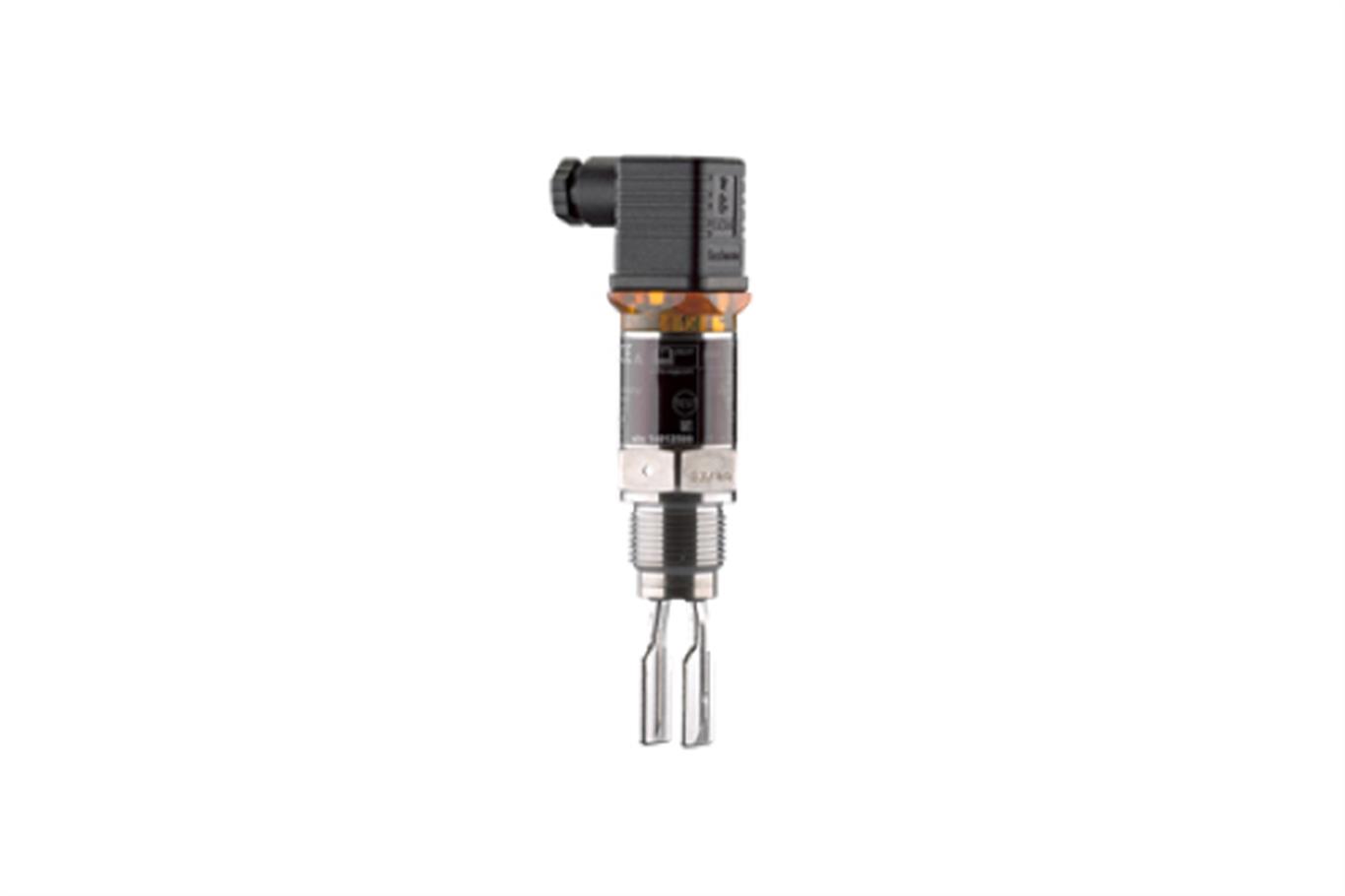

VEGASWING 51

Vibrating level switch for liquids

For liquids (density: > 0.5 ... 2.5 g/cm³)

Introduction Application Technical specifications Documentation

Application area

It detects the limit level reliably and with millimetre accuracy directly at the mounting position. Small level switch version with stainless steel housing

The VEGASWING 51 is a universal level switch with small dimensions for use in liquids. Independent of the mounting position, it detects reliably with millimetre accuracy the limit level. The instrument can be used as empty or full detector, as approved overfill protection, dry run protection or pump protection in vessels and pipelines. The VEGASWING 51 is an economical solution with maximum reliability and safety.

Your benefit

Precise and reliable function due to product-independent switching point
Low maintenance costs
Minimum time and cost expenditure thanks to simple setup without medium

Other applications

Measuring range - Distance	- [Meter - Foot]
Process temperature	-40 ... 150 °C [°C - °F]
Process pressure	-1 ... 64 bar [Bar - kPa - psi]
Version	Standard Extended temperature range Hygienic applications
Materials, wetted parts	316L
Threaded connection	≥ G¾, ≥ ¾ NPT
Hygenic fittings	Clamp ≥ 1" - DIN32676, ISO2852 Slotted nut ≥ DN25 - DIN 11851 Hygienic fitting F40 with compression nut SMS DN38
Seal material	no media contact
Housing material	Plastic Stainless steel
Protection rating	IP67 IP65 IP68 (0,2 bar)
Output	Contactless electronic switch Transistor (PNP) IO-Link
Ambient temperature	-40 ... 70 °C

Scope	CSA / USA and Canada
Foodstuffs/Pharma	EHEDG FDA EG1935/2004
Overfill protection	WHG VLAREM II
Ship approval	ABS BV CCS DNV LR RINA
