Vibrating level switch for granular bulk solids

For granulated bulk solids from density 100 g/l

Request a quote
Introduction Technical specifications Documentation

Application area

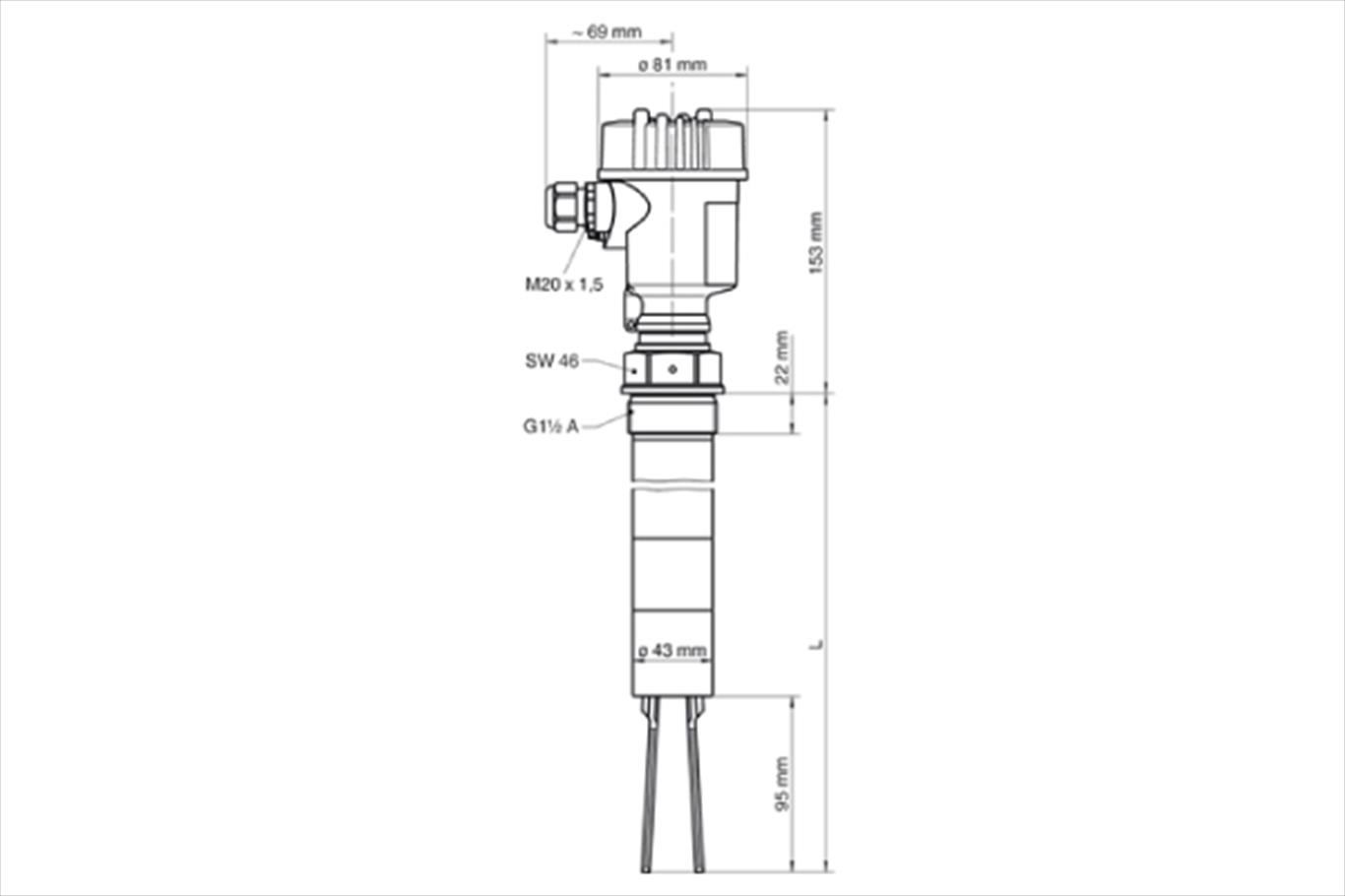

Pre-configured lengths of 165, 500, 1000 or 1500 mm available. Limited choice of electronics and approvals.

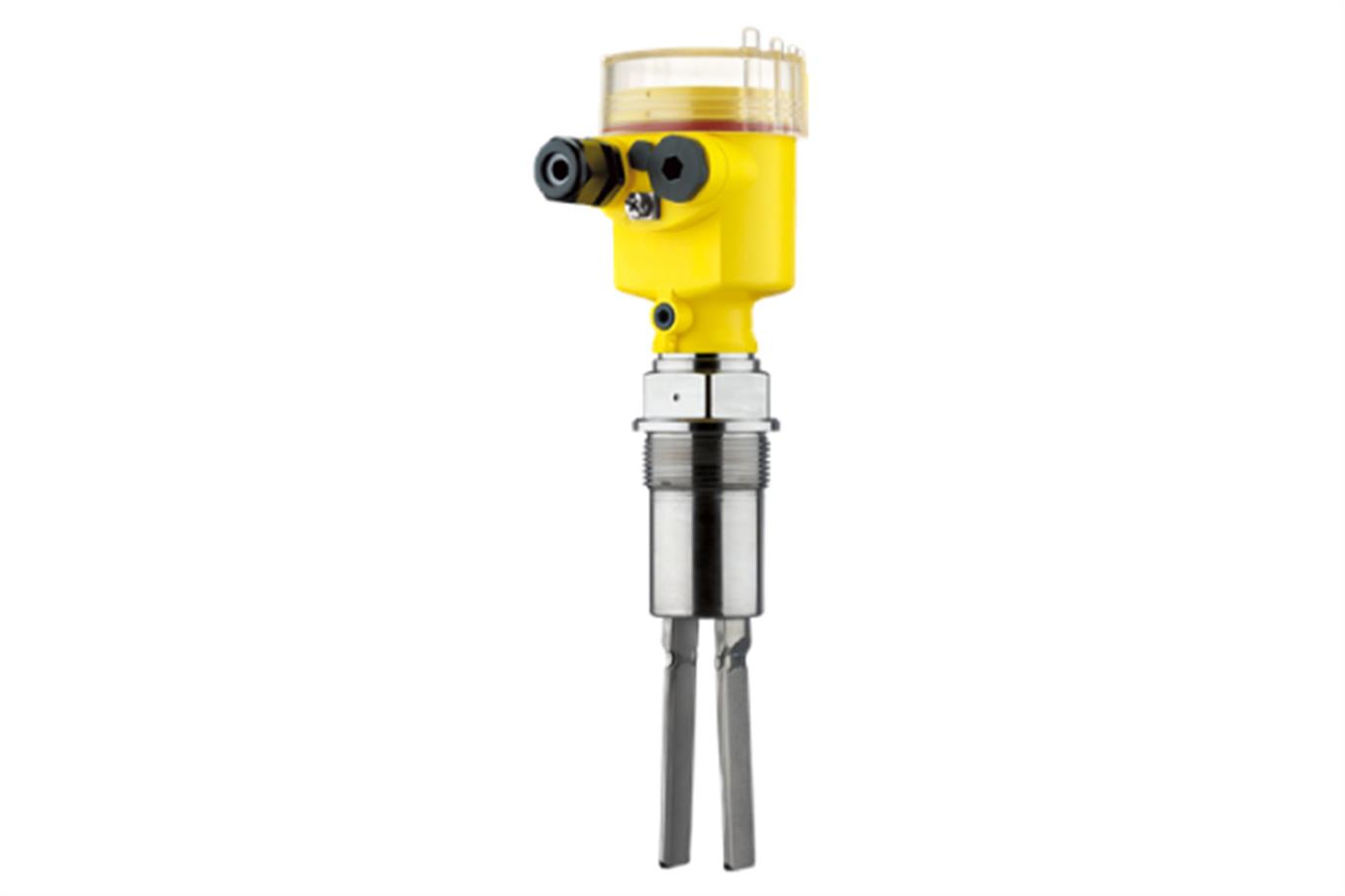

The VEGAWAVE S61 is a level switch for universal use in powders and fine-grained bulk solids. The level switch detects reliably and robust the min. or max. level. The tuning fork is ideal for use either in adhesive and abrasive products as well as in bulk solids with very low density.

Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 150 °C [°C - °F]
Process pressure
  • -1 ... 25 bar [Bar - kPa - psi]
Version
  • Standard
Materials, wetted parts
  • 316L
Threaded connection
  • ≥ G1½, ≥ 1½ NPT
Seal material
  • no media contact
Housing material
  • Plastic
Protection rating
  • IP66/IP67

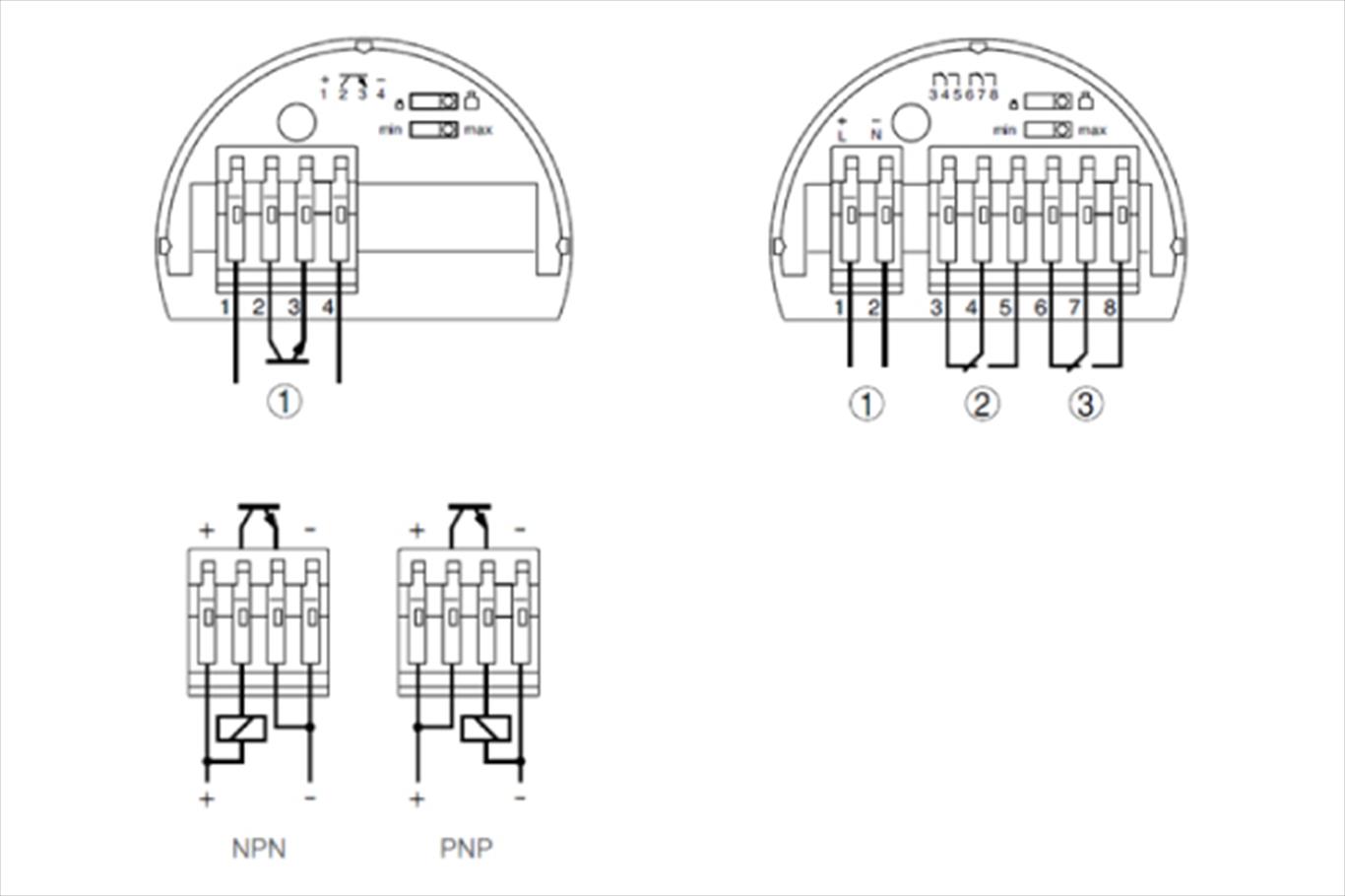

Output
  • Relay (DPDT)
  • Transistor (NPN/PNP)
Ambient temperature
  • -40 ... 80 °C

Scope
  • ATEX / Europe
Explosion protection
  • Dust ignition protection "t"

Indication
  • LED

Product catalog

Vibration

Dowload

Operating instructions

VEGAWAVE S 61
Transistor (NPN/PNP), Relay (DPDT)

Dowload

Further downloads for this product

All documents and software for this product can be found in our Download Center.

Show all dowloads
