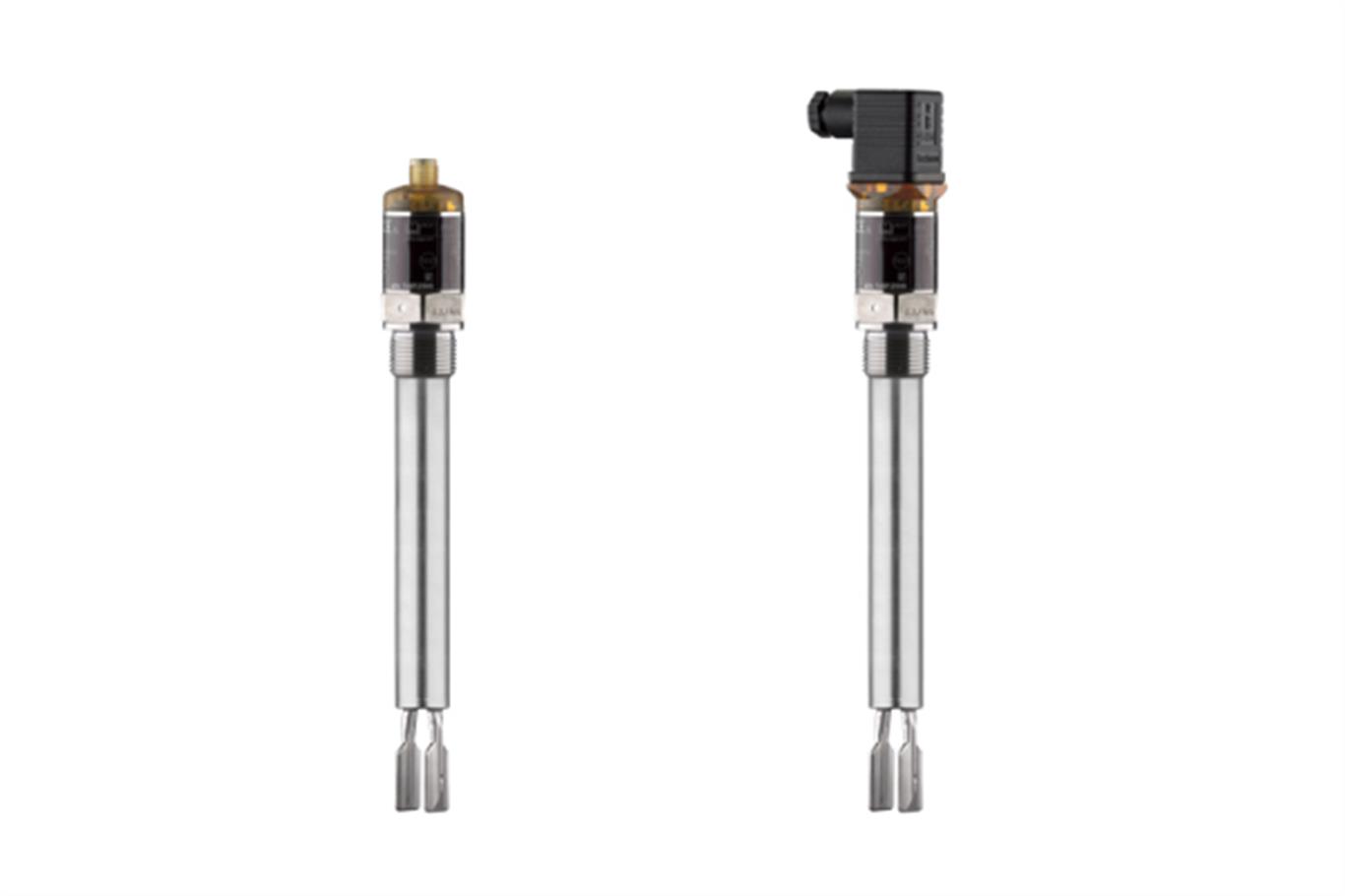

VEGASWING 53

Vibrating level switch for liquids

For liquids (density: > 0.5 ... 2.5 g/cm³) – with tube extension

Introduction Technical specifications Documentation

Application area

The position of the switching point can be up to 1 m away from the installation location.

VEGASWING 53 is a universal liquid level switch with smallest dimensions. Independent of the mounting position, it detects the limit level reliably and with millimetre accuracy. The device can be used for full or empty alarm, as approved overfill protection or dry run or pump protection in vessels and pipelines. VEGASWING 53 is an economical solution with maximum reliability and safety.

Your benefit

Precise and reliable function due to product-independent switching point
Low maintenance costs
Minimum time and cost expenditure thanks to simple setup without medium

Measuring range - Distance	- [Meter - Foot]
Process temperature	-40 ... 150 °C [°C - °F]
Process pressure	-1 ... 64 bar [Bar - kPa - psi]
Version	Standard Extended temperature range Hygienic applications
Materials, wetted parts	316L
Threaded connection	≥ G¾, ≥ ¾ NPT
Hygenic fittings	Clamp ≥ 1" - DIN32676, ISO2852 Slotted nut ≥ DN25 - DIN 11851
Seal material	no media contact
Housing material	Plastic Stainless steel
Protection rating	IP67 IP68 IP65
Output	Contactless electronic switch Transistor (PNP) IO-Link
Ambient temperature	-40 ... 70 °C

Scope	EAC (GOST) / Russia UKR Sepro / Ukraine CSA / USA and Canada
Foodstuffs/Pharma	EHEDG FDA EG1935/2004
Overfill protection	WHG VLAREM II
