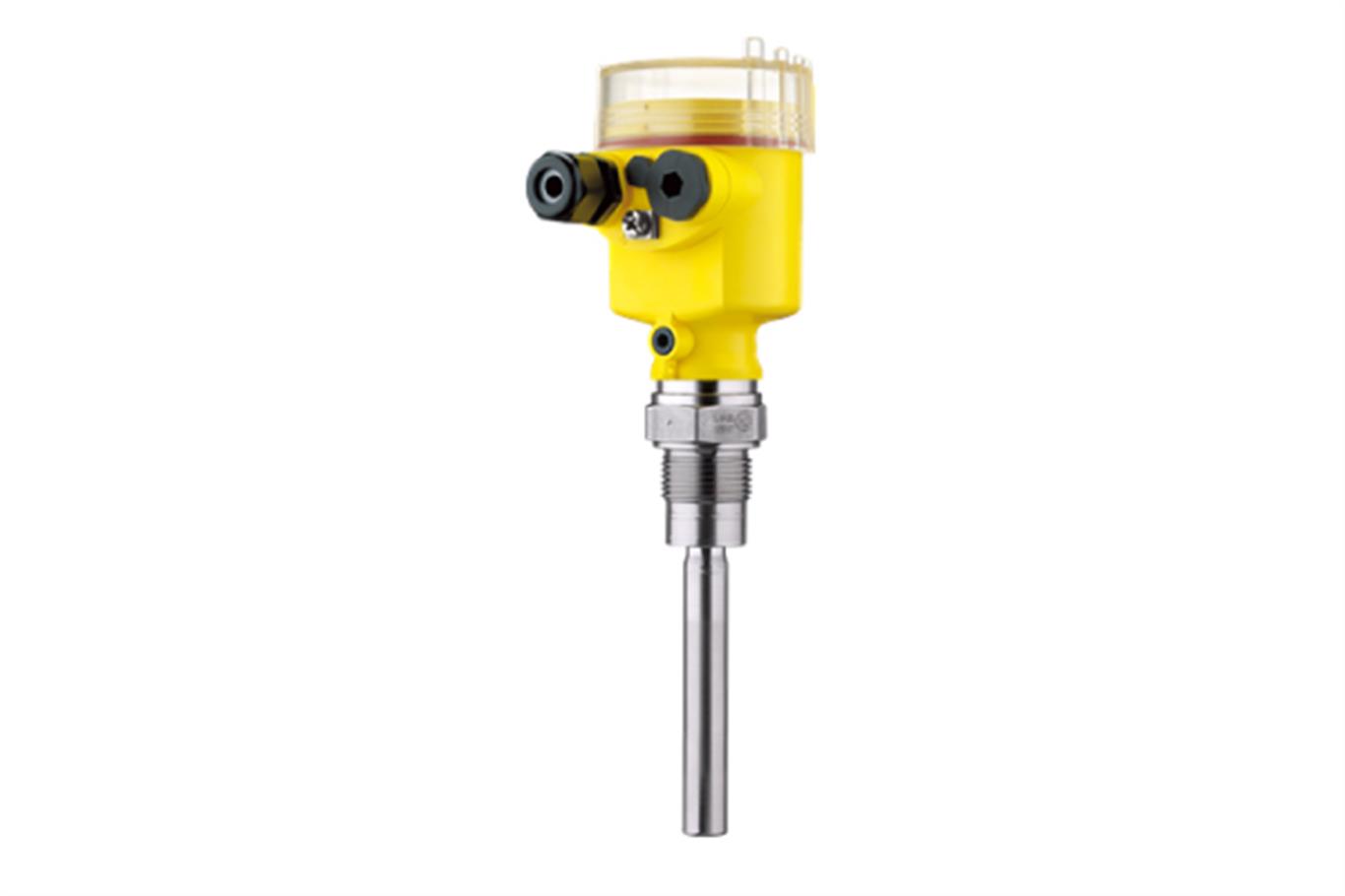

VEGAVIB S61

VEGAVIB S61

Vibrating level switch for granular bulk solids

For granulated bulk solids from density 100 g/l

Request a quote
Introduction Technical specifications Documentation

Application area

Pre-configured lengths of 150, 500, 1000 or 1500 mm available. Limited choice of electronics and approvals.
The VEGAVIB S61 is a level switch for granular and coarse-grained bulk solids. The VEGAVIB S61 detects reliably and accurately the min. or max. level. The smooth surface of the vibrating rod, without corners and edges, avoids jamming of the bulk solid and is easy to clean.

Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 150 °C [°C - °F]
Process pressure
  • -1 ... 16 bar [Bar - kPa - psi]
Version
  • Standard
Materials, wetted parts
  • 316L
Threaded connection
  • ≥ G1, ≥ 1 NPT
Seal material
  • no media contact
Housing material
  • Plastic
Protection rating
  • IP66/IP67
Output
  • Relay (DPDT)
  • Transistor (NPN/PNP)
Ambient temperature
  • -40 ... 80 °C

Scope
  • ATEX / Europe
Explosion protection
  • Dust ignition protection "t"

Indication
  • LED

Product catalog

VEGAVIB S61, 61, 62, 63

Dowload

Operating instructions

VEGAVIB S 61
Transistor (NPN/PNP), Relay (DPDT)

Dowload

Further downloads for this product

All documents and software for this product can be found in our Download Center.

Show all dowloads
Related products

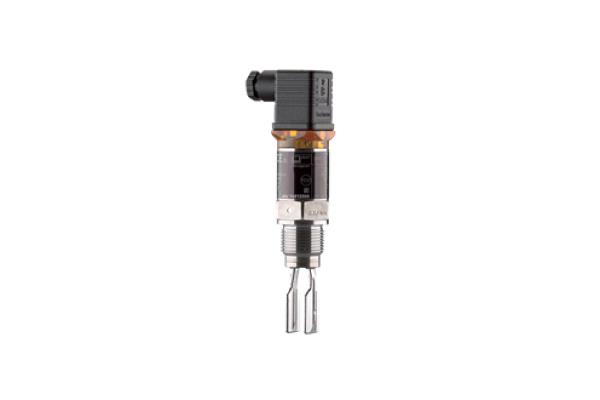

VEGASWING 51
VEGASWING 51

Vibrating level switch for liquids

For liquids (density: > 0.5 ... 2.5 g/cm³)

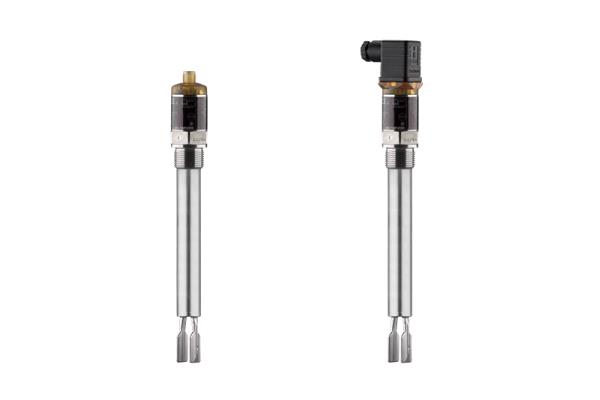

VEGASWING 53
VEGASWING 53

Vibrating level switch for liquids

For liquids (density: > 0.5 ... 2.5 g/cm³) – with tube extension

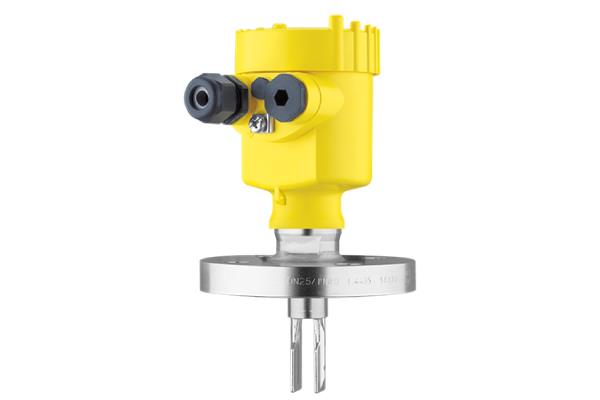

VEGASWING 61
