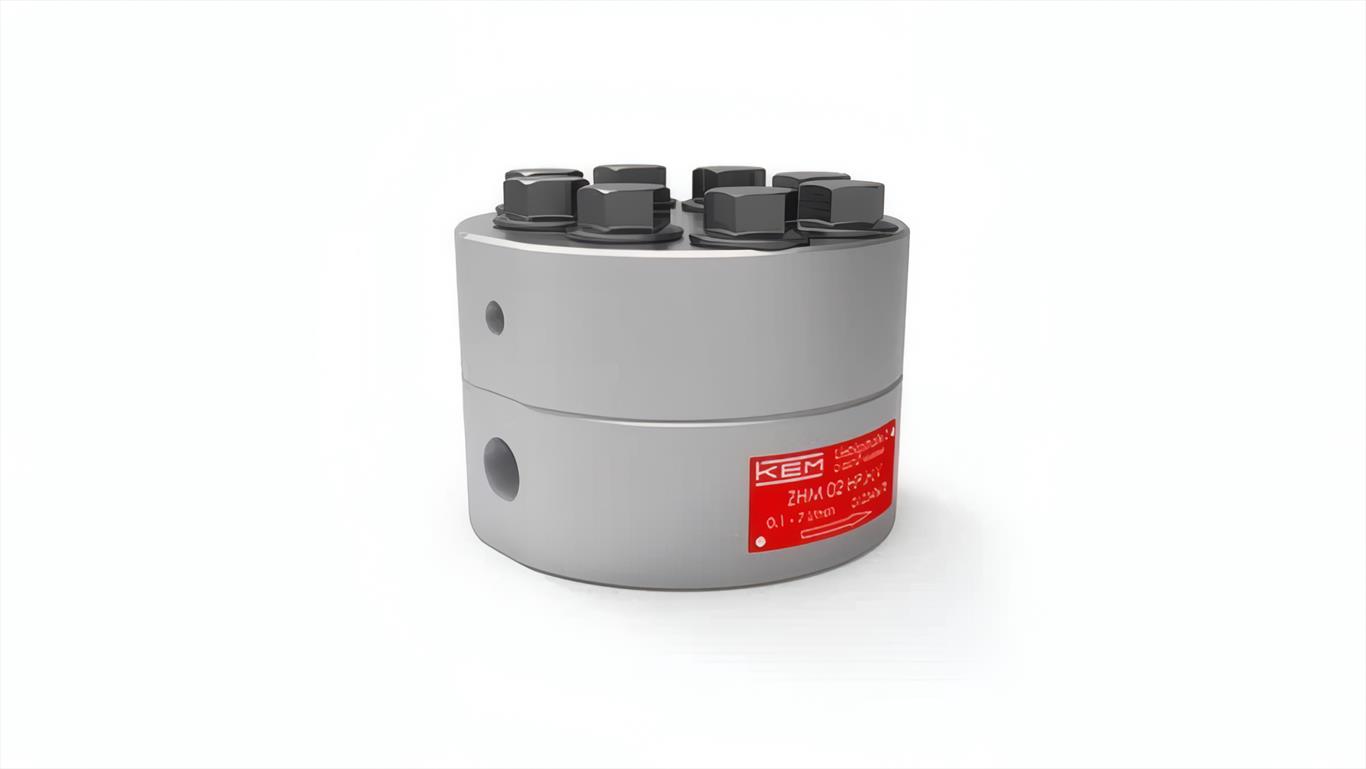

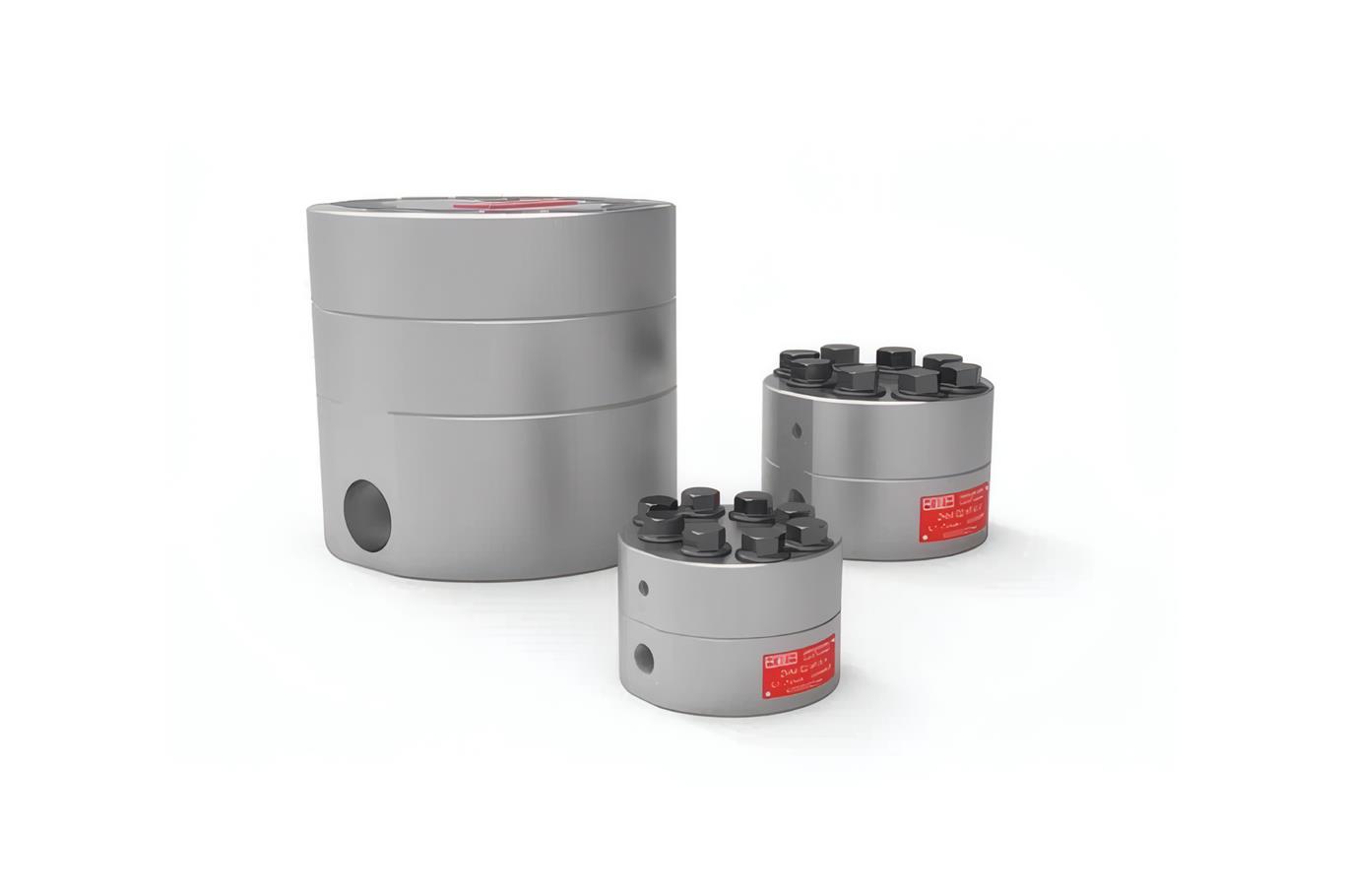

ZHM HP Series
ZHM HP Series
ZHM HP Series
ZHM HP Series

ZHM HP Series

Gear Flow Meters
Mechanical

Gear Flow Meters for High Pressure Applications with Autoclave connections

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

Thanks to their robust design, gearwheel flowmeters are particularly well suited for volume flow measurement in high-pressure applications and in tough environments, for example in offshore and subsea applications.

The ZHM HP is suitable for applications wherever hydraulic fluids, additives, and injections have to be measured or dosed under high pressures.

Measuring Ranges 0.005 up to 70 l/min
Measuring Accuracy up to ±0.1 %
Repeatability ±0.05 % (under the same conditions)
Linearity ±0.5 % of actual flow (viscosity ≥ 30 mm²/s)
Materials
  • Housing: as per DIN 1.4404 [AISI 316L]
  • Gears: as per DIN 1.4122, 1.4501 [AISI F55]
  • Bearing: Stainless steel ball bearing, Tungsten carbide sleeve bearing
  • Seals: FKM, FFKM
Pressure up to 1,035 bar [15,000 psi]
Medium Temperature -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)
Gear Flow Meters – Datasheet ZHM HP Series Dowload PDF
Gear Flow Meters – Manual ZHM Series Dowload PDF
