Gear Flow Meters
Mechanical

for lubricating and non-lubricating liquids

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

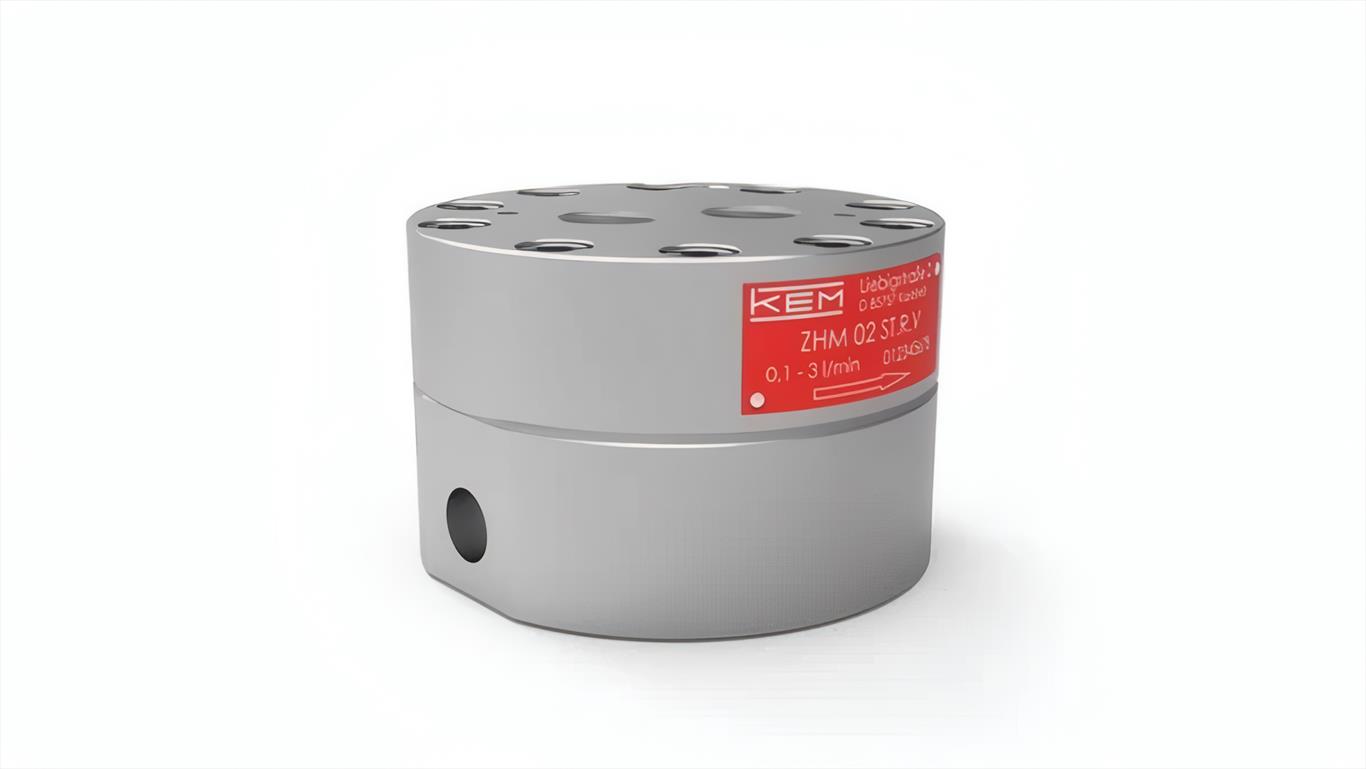

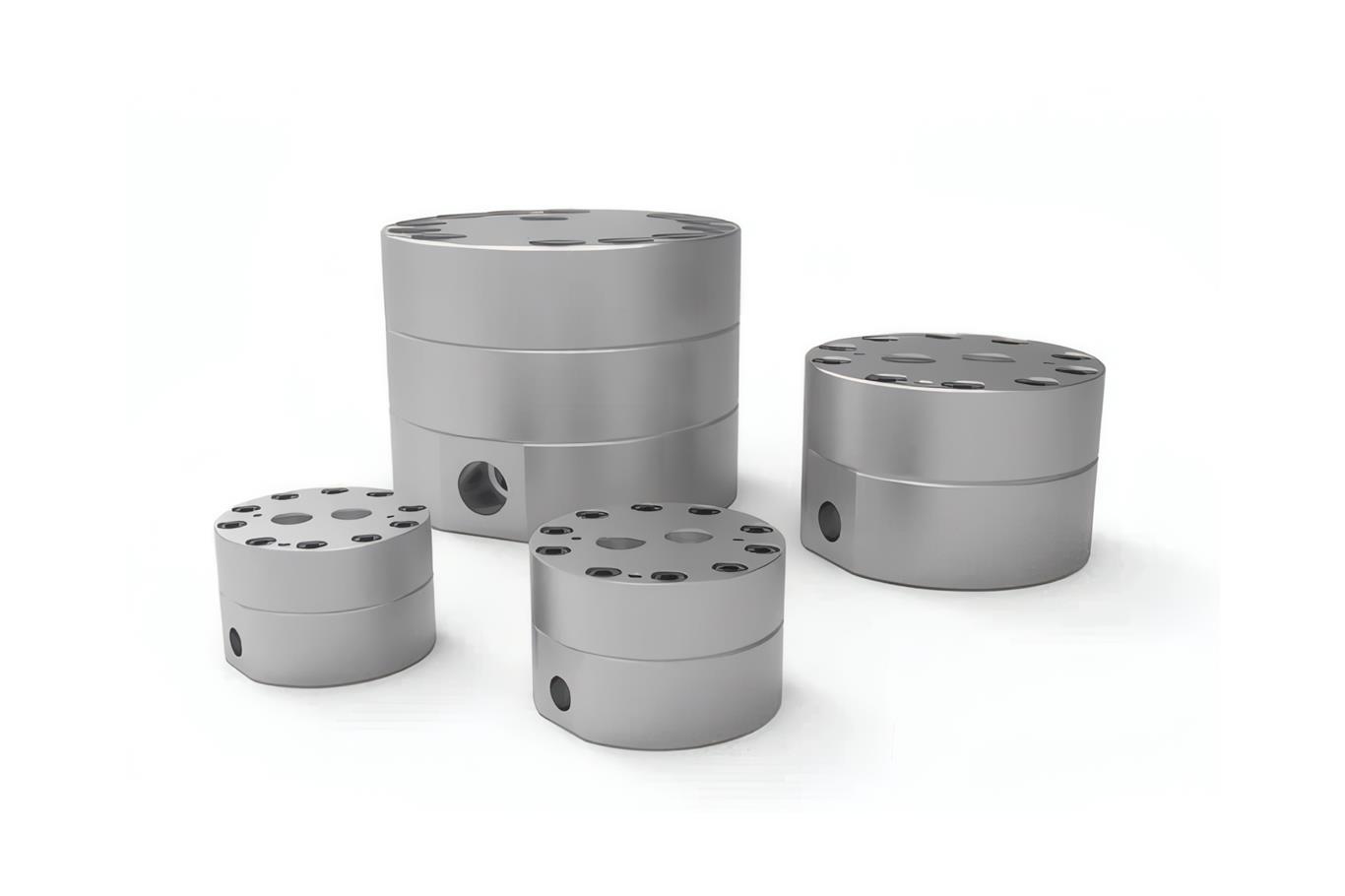

The ZHM ST gear flow meter series tungsten carbide sleeve bearing design) are flow meters which are mainly used in lubrication and non-lubrication liquids. They are equallysuitable for filled, viscous and abrasive media.

Measuring Ranges 0.005 up to 150 l/min
Measuring Accuracy up to ±0.1 %
Repeatability ±0.05 % (under the same conditions)
Linearity ±0.5 % of actual flow (viscosity ≥ 30 mm²/s)
Materials
  • Housing: as per DIN 1.4305 [AISI 303], 1.4404 [AISI 316L]
  • Gears: as per DIN 1.4122, 1.4501 [AISI F55]
  • Bearing: Tungsten carbide sleeve bearing
  • Seals: FKM, PTFE (others on request)
Pressure up to 420 bar [6,000 psi]
Medium Temperature -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)
Gear Flow Meters – Datasheet ZHM ST Series Dowload PDF
Gear Flow Meters – Manual ZHM Series Dowload PDF
