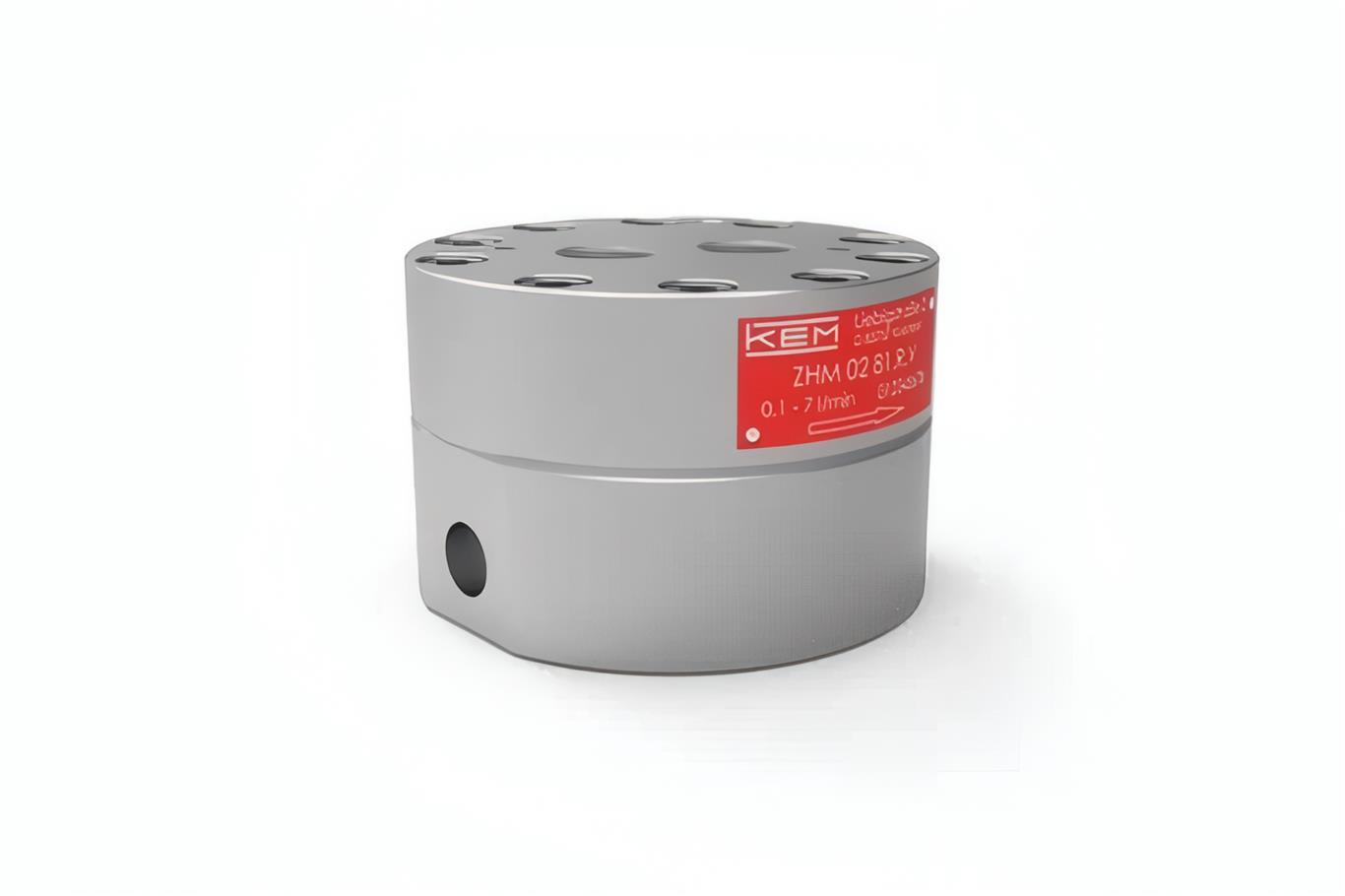

ZHM MK Series

ZHM MK Series

Gear Flow Meters
Mechanical

Gear Flow Meter with ball bearing for low viscous, lubricating fluids

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

The ZHM MK gear flow meter (ball bearing design) are flow meters which are mainly used in lubrication and non-viscous liquids. Therefore they are used especially for the fuel consumption measurement and the dosing of low viscous media.

Measuring Ranges 0.002 up to 70 l/min
Measuring Accuracy up to ±0.1 %
Repeatability ±0.05 % (under the same conditions)
Linearity ±1.5 % of actual flow (viscosity ≥ 5 mm²/s)
±2.5 % of actual flow (viscosity ≥ 5 mm²/s for ZHM 01/3)
Materials
  • Housing: as per DIN 1.4305 [AISI 303], 1.4404 [AISI 316L]
  • Gears: as per DIN 1.4122
  • Bearing: Stainless steel ball bearing
  • Seals: FKM, PTFE (others on request)
Pressure up to 420 bar [6,000 psi]
Medium Temperature -40 °C up to +180 °C [-40 °F up to +356 °F]
Gear Flow Meters – Datasheet ZHM MK Series Dowload PDF
Gear Flow Meters – Manual ZHM Series Dowload PDF
