32 x KEM - Gear Flow Meter ZMH ST Series + 32 x FlowPod + 32 x sensor adaptor for Chemical Injection Skid

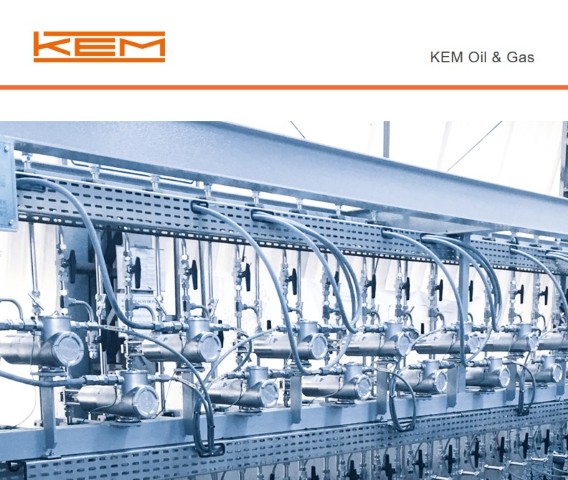

Chemical Injection
ZHM ST Series + FlowPod display + Ex sensor adaptor » read more ZHM ST Flowpod Ex sensor adaptor
| Technical data | Medium: | Corrosion Inhibitor, Scale Inhibitor, Biozid, Demulsifier, etc. | | Temperature: | -40 °C up to +50 °C [-40 °F up to +122 °F] | | Pressure: | up to 1,035 bar [15,000 psi] | | Measuring range: | 0,12 up to 2,500 l/min | | Viscosity: | 5 up to 400 mPas 20 °C | | Density at 20 °C: | 800 up to 1,200 kg/cm³ |
Application Chemical Injection is used to maintain flow, reduce corrosion and deposits, and improve oil / water treatment. It is a process that is intended to improve oil production and in which reliable and accurate measurement is required for expensive chemicals. It is important that flow meters used are able to ensure a highly precise measurement with continuous dosing quantities despite the pulsating nature of the pumps and also withstand high system pressures. Solution The KEM ZHM ST-series, ZHM MK-Series, and ZHM HP-Series gear flow meters for accurate flow measurement in high pressure applications. Advantages ● Pressure shock resistant construction
● Large viscosity range
● Wide measuring range dynamics
● Low maintenance
● Corrosion-resistant wetted parts (PREN <40) Documentation Application spotlight - Chemical Injection - ZHM (PDF) ZHM ST Series datasheet (PDF) Flowpod datasheet (PDF) Ex sensor adaptor manual (PDF) »»» All KEM download »»» |
Huynh Bang supplied the following products for this project:
KEM Küppers productsPr

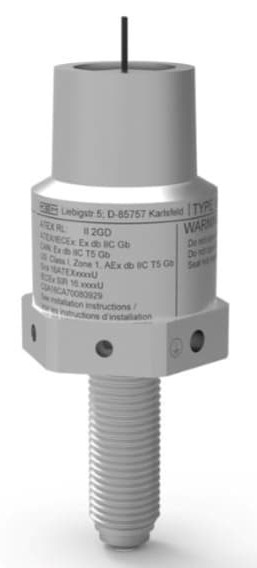

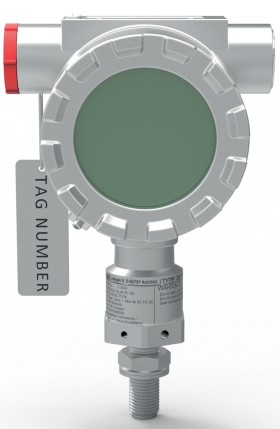

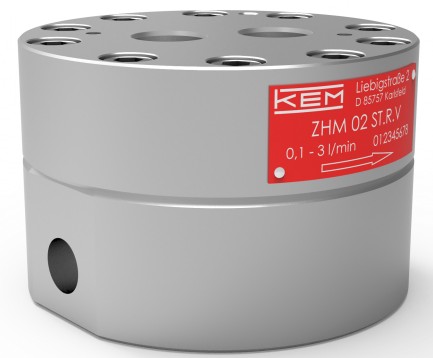

Gear flow meter ZHM ST series | FlowPod display | SV ExD sensor adaptor |
 |  |  |
| Datasheet (PDF) | Datasheet (PDF) | Manual (PDF) |
32 pcs supplied
| 32 pcs supplied | 32 pcs supplied |

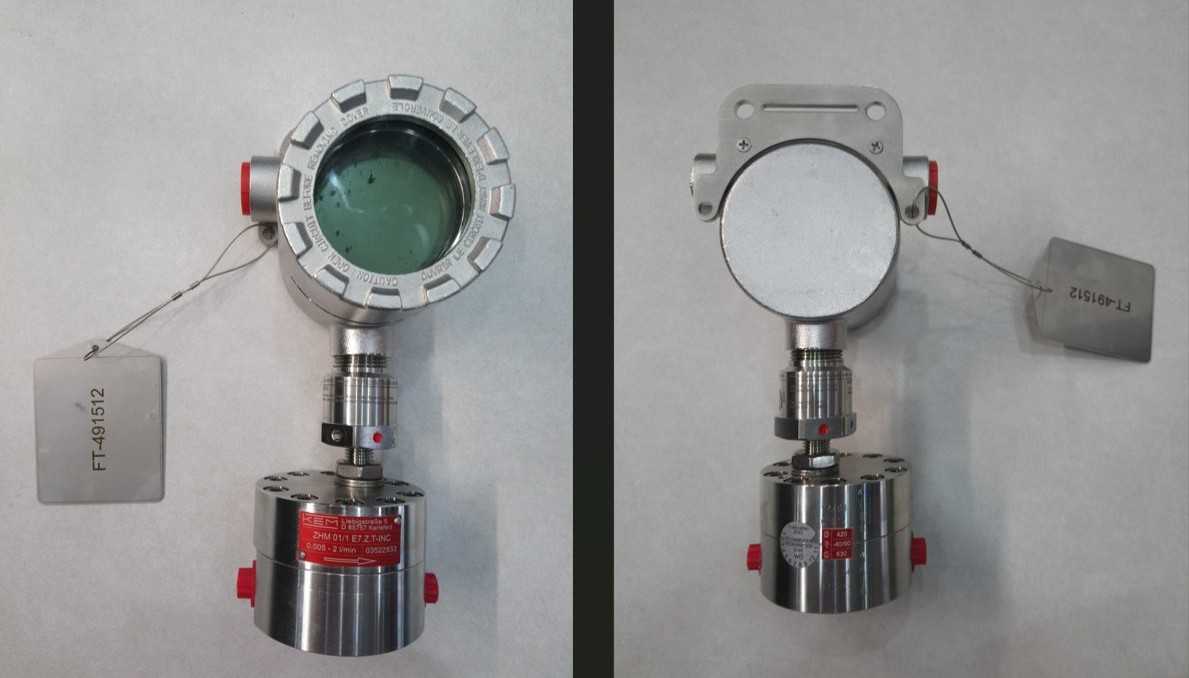

ZHM ST for lubricating and non-lubricating liquids The ZHM ST gear flow meter series tungsten carbide sleeve bearing design) are flow meters which are mainly used in lubrication and non lubrication liquids. They are equallysuitable for filled, viscous and abrasive media. | Local Display (FlowPod) with HART and Exd certification | Explosion-proof Sensor Adaptor (SV ExD Sensor Adapter) with ExD certificate |
Functions & Specifications | Measuring Ranges | 0.005 up to 150 l/min | | Measuring Accuracy | up to ±0.1 % | | Repeatability | ±0.05 % (under the same conditions) | | Linearity | ±0.5 % of actual flow (viscosity ≥ 30 mm²/s) | | Materials | Housing: as per DIN 1.4305 [AISI 303], 1.4404 [AISI 316L] Gears: as per DIN 1.4122, 1.4501 [AISI F55] Bearing: Tungsten carbide sleeve bearing Seals: FKM, PTFE (others on request) | | Pressure | up to 420 bar [6,000 psi] | | Medium Temperature | -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request) |
| Functions & Specifications | Technical Data | ● Carrier frequency, inductive or Reed switch input
● Analog Output: 4 to 20 mA passive (2-wire)
● HART 7 interface
● 2x configurable switch outputs for alarm, pulse or batch
● Operating Temperature: ‐20 °C up to +75 °C
● 20+ point linearization of the measured value
● Ingress Protection: IP66/68 - NEMA 4X
● ATEX, IECEx | | Features | ● Explosion-proof (Exd/XP)
● Lightweight DIN 1.4401 [AISI 316] stainless steel housing
● Screwless design for quick and easy on-site installation
● Calibration data transmission by memory card
● FRAM memory |
| Functions & Specifications | Features | ● Explosion-proof (Exd/XP)
● ATEX/IECEx certified
● 360° rotatable, can be mounted in any position
● Carrier frequency and inductive version
● Material: DIN 1.4305 [AISI 303], DIN 1.4404 [AISI 316L] |
|

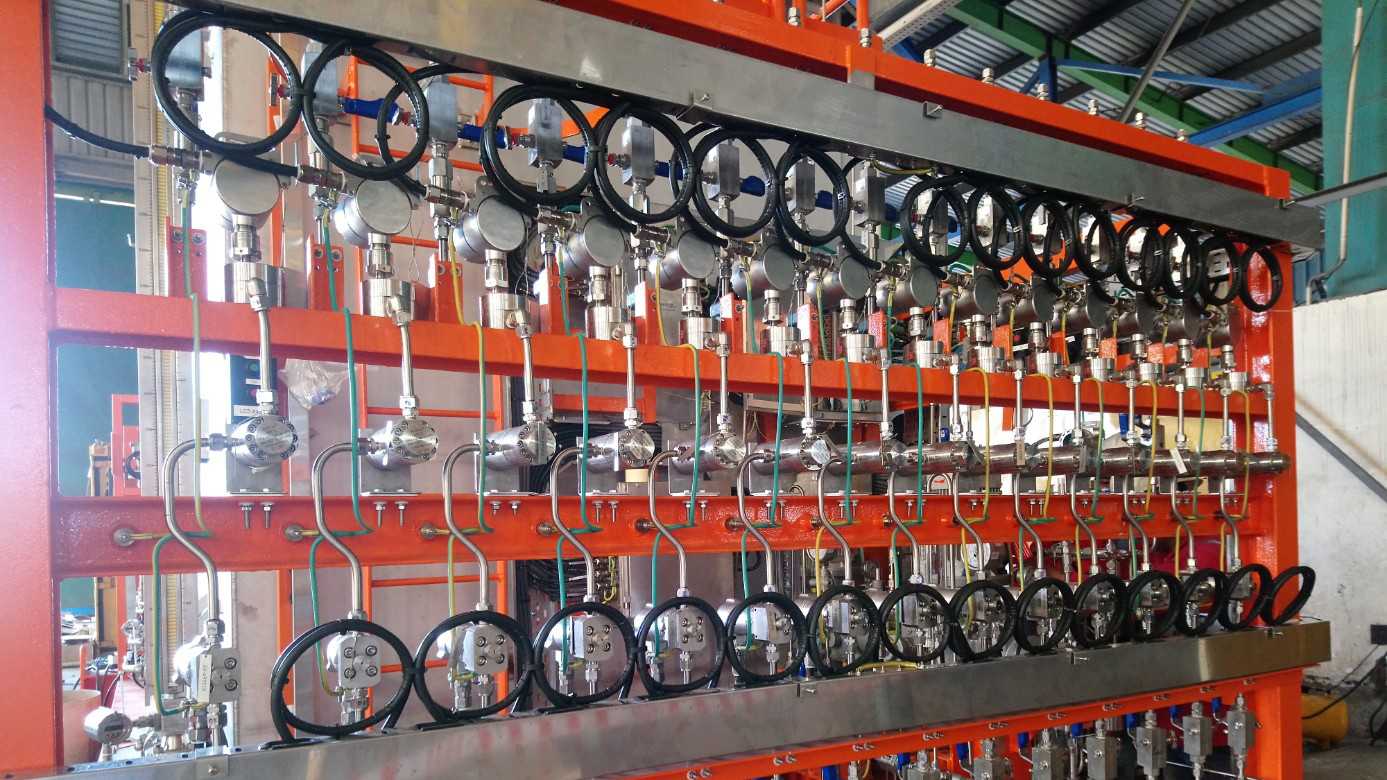

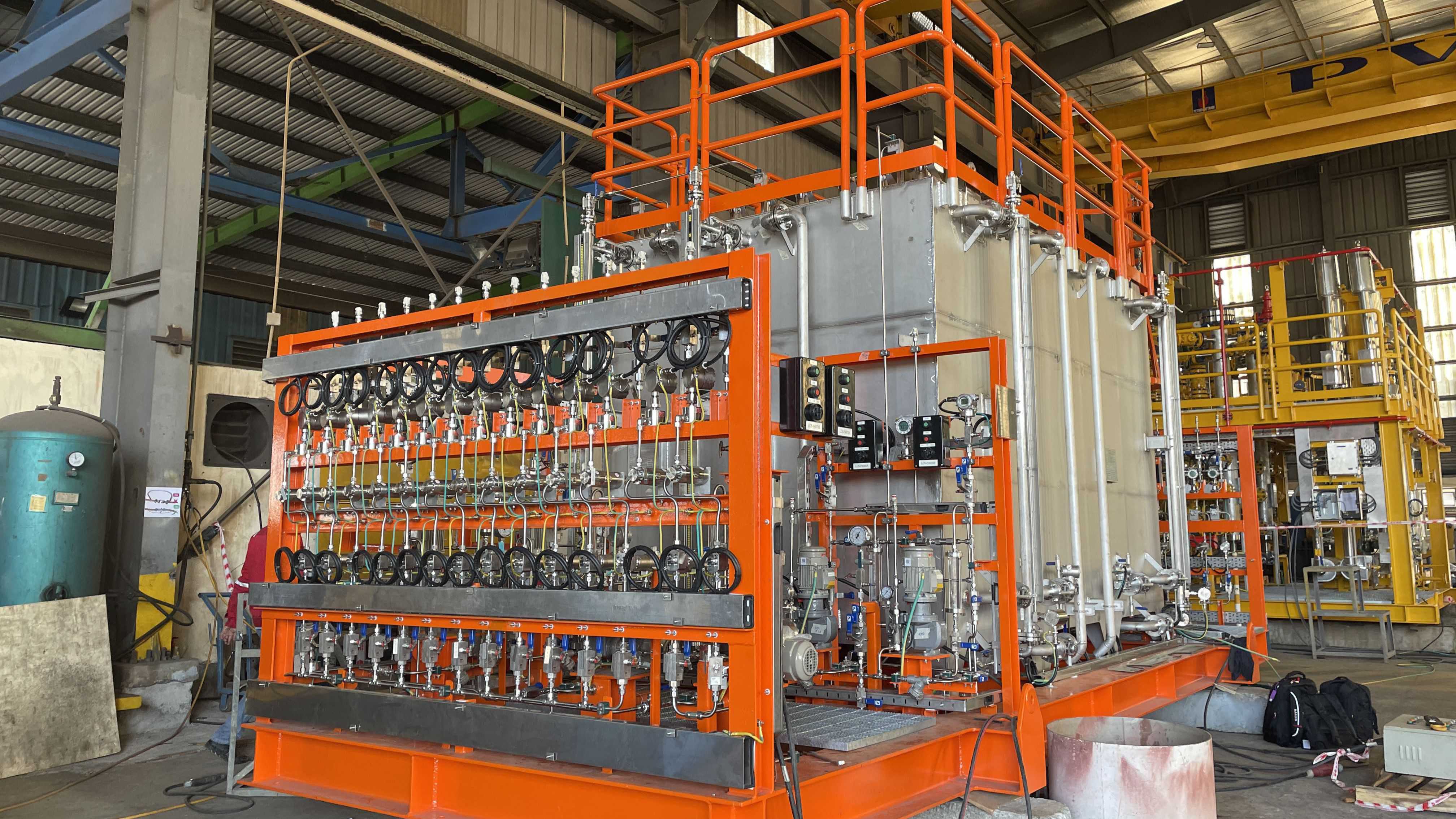

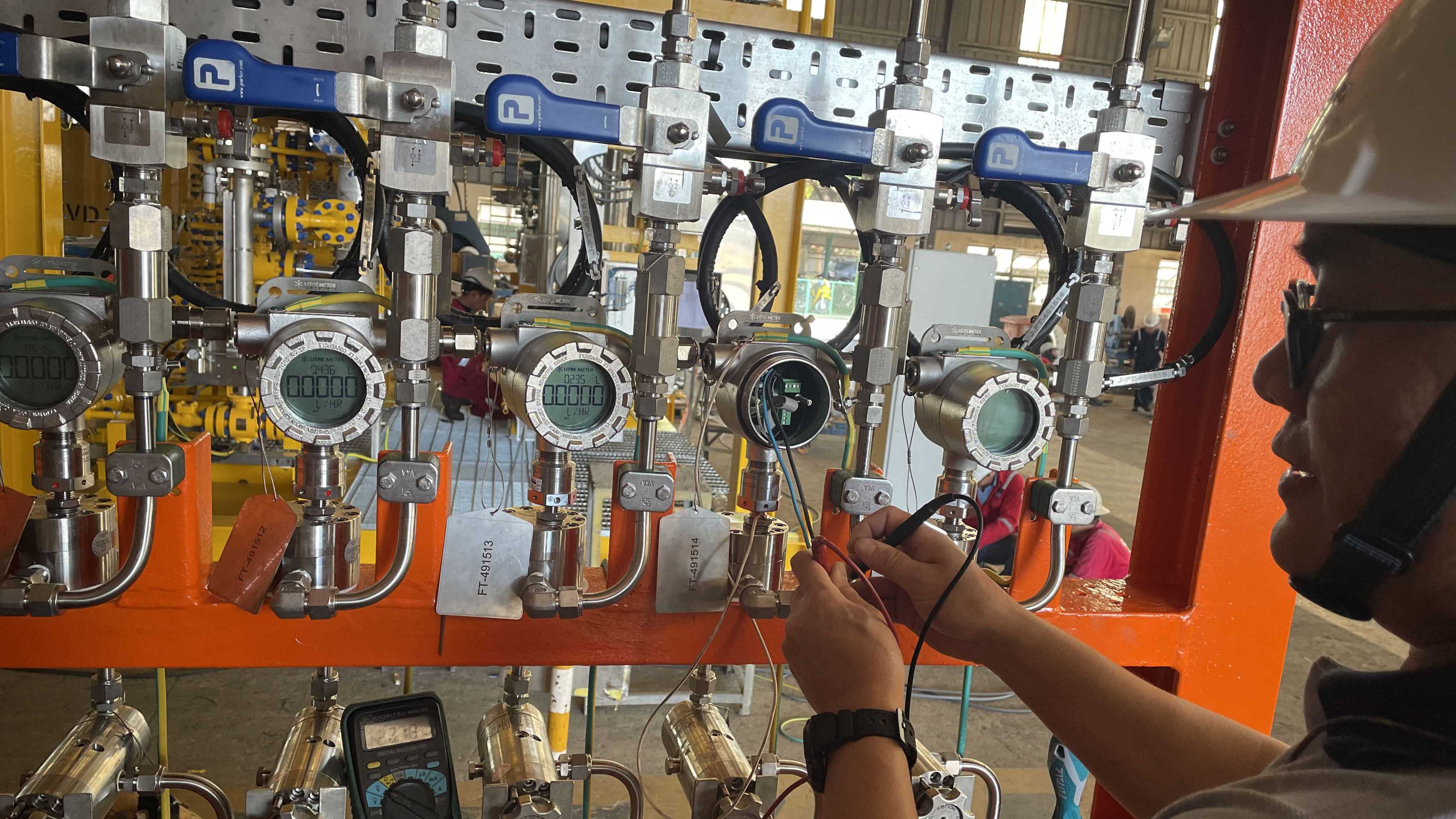

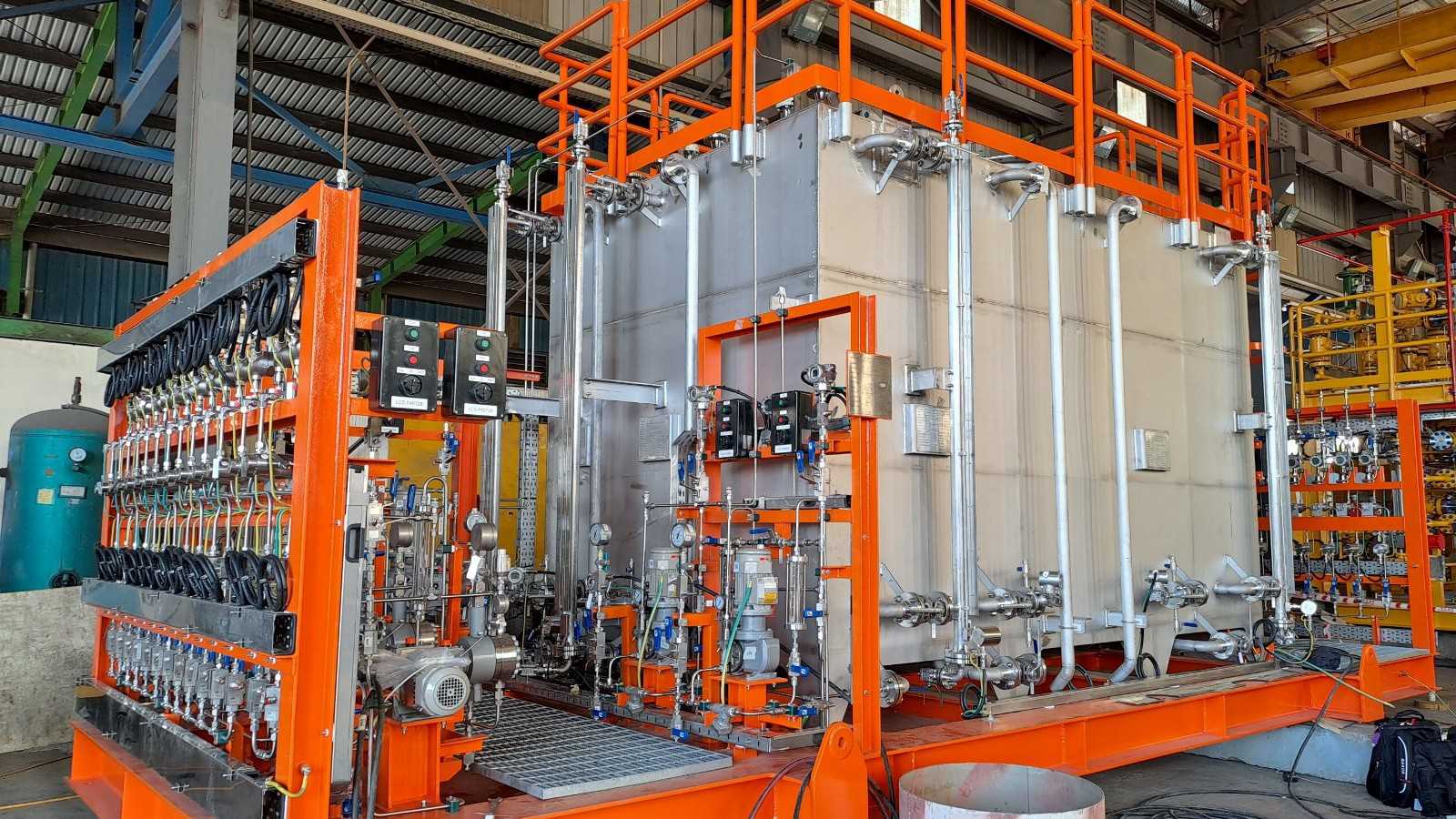

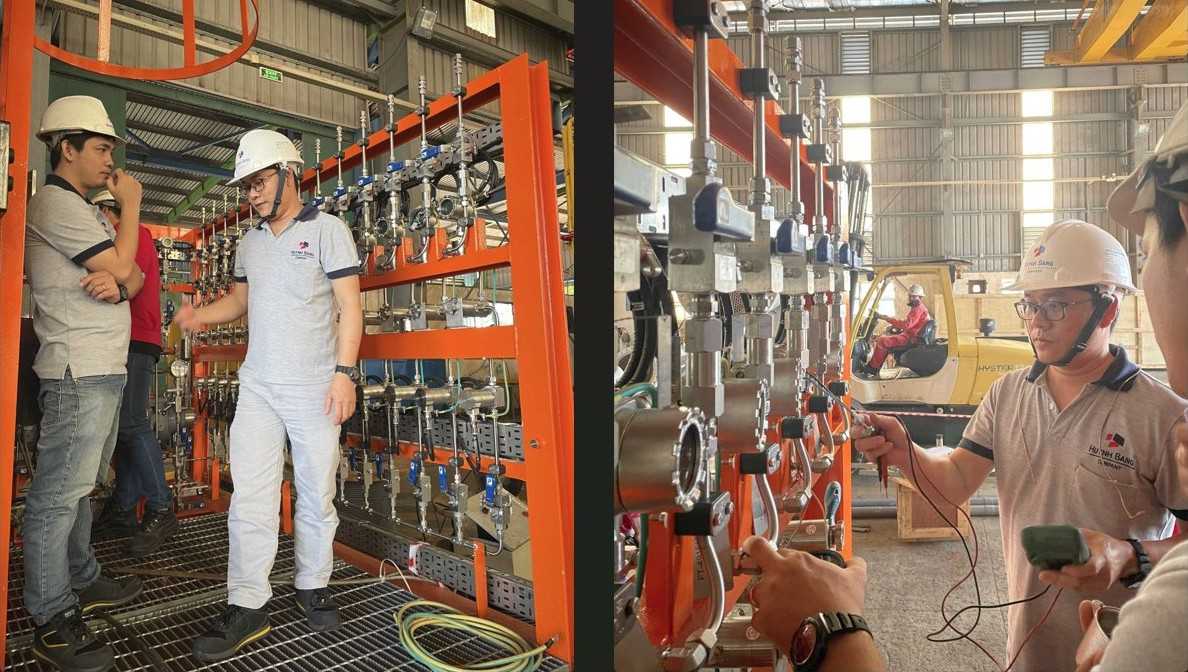

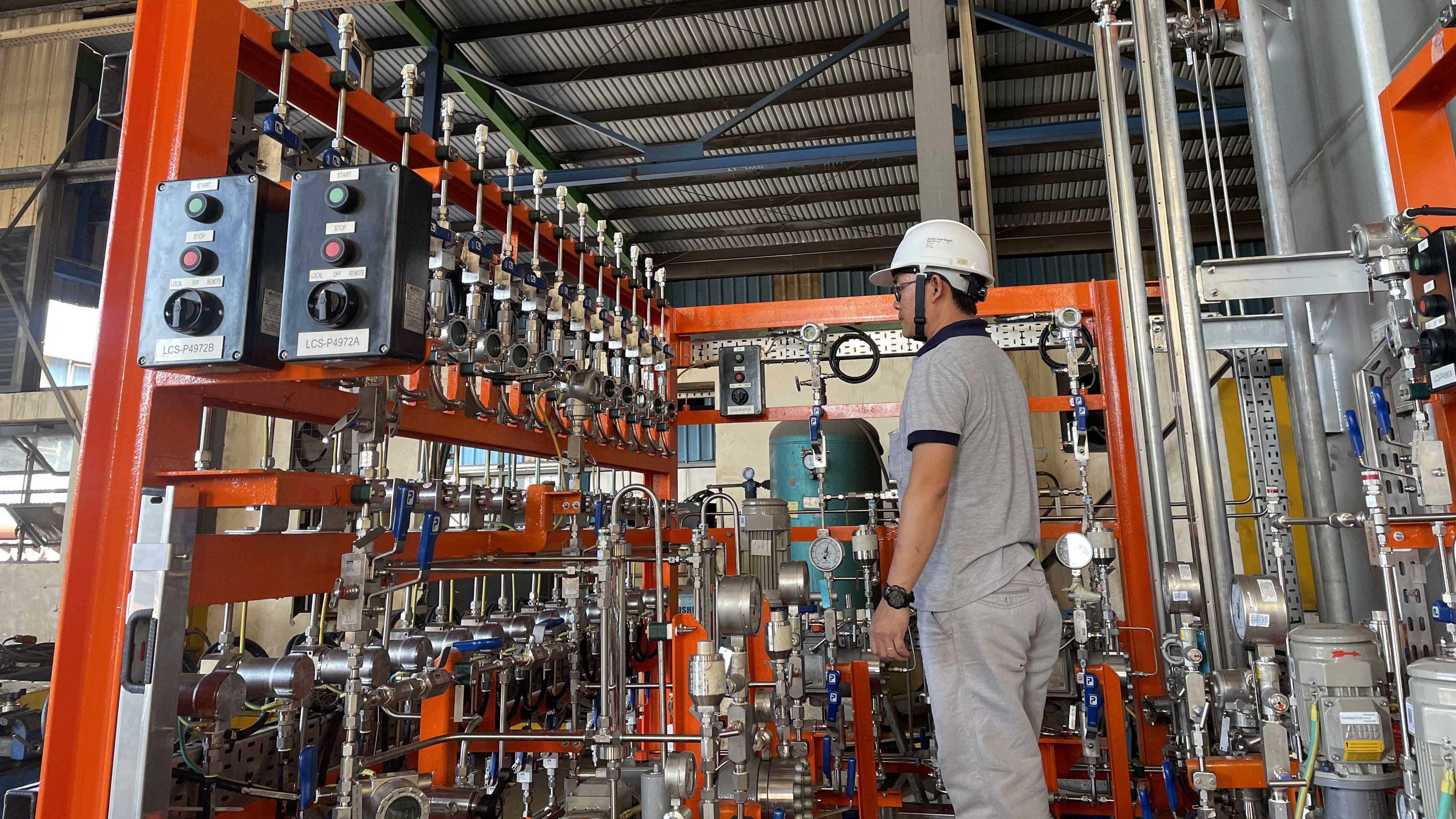

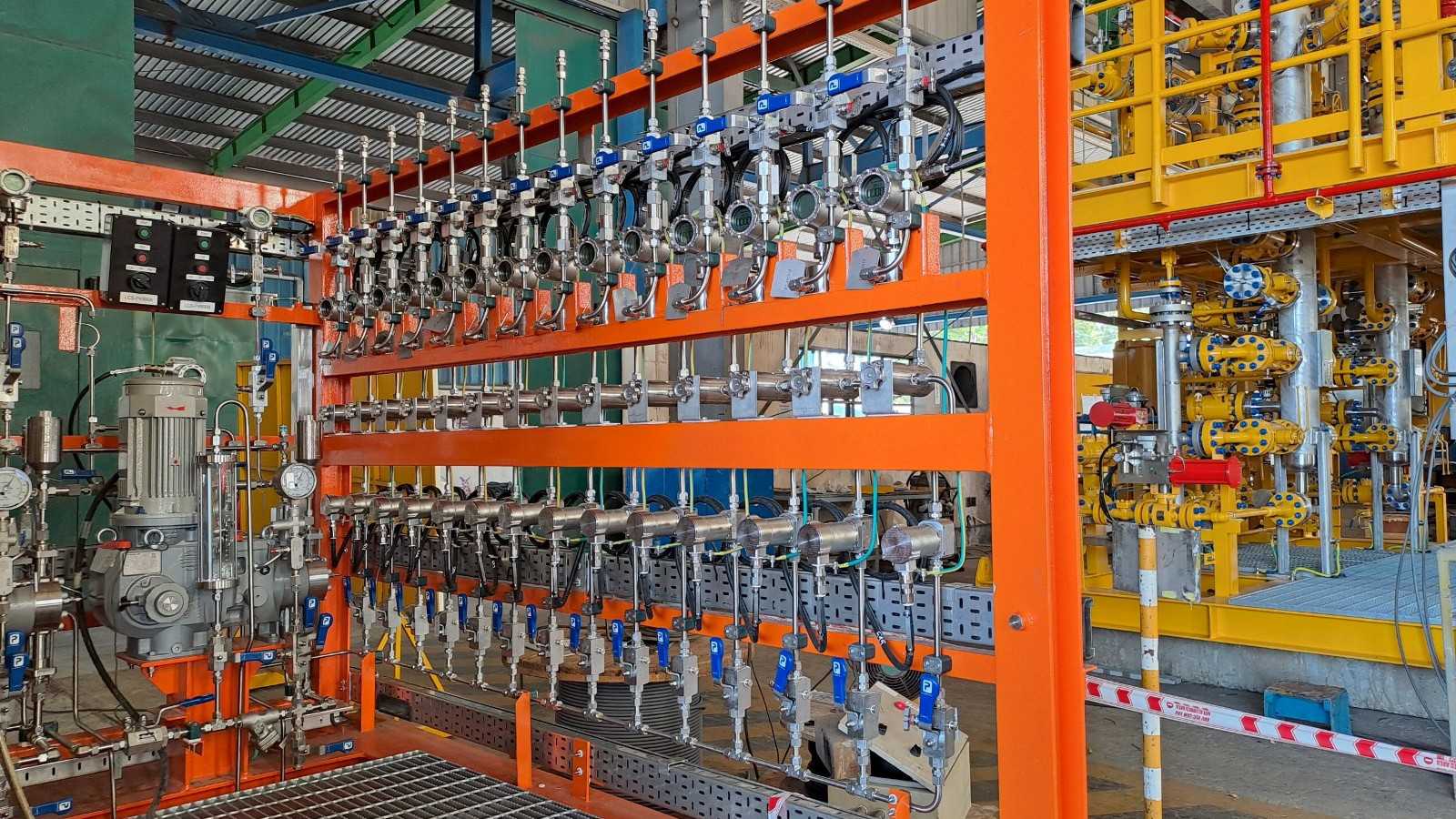

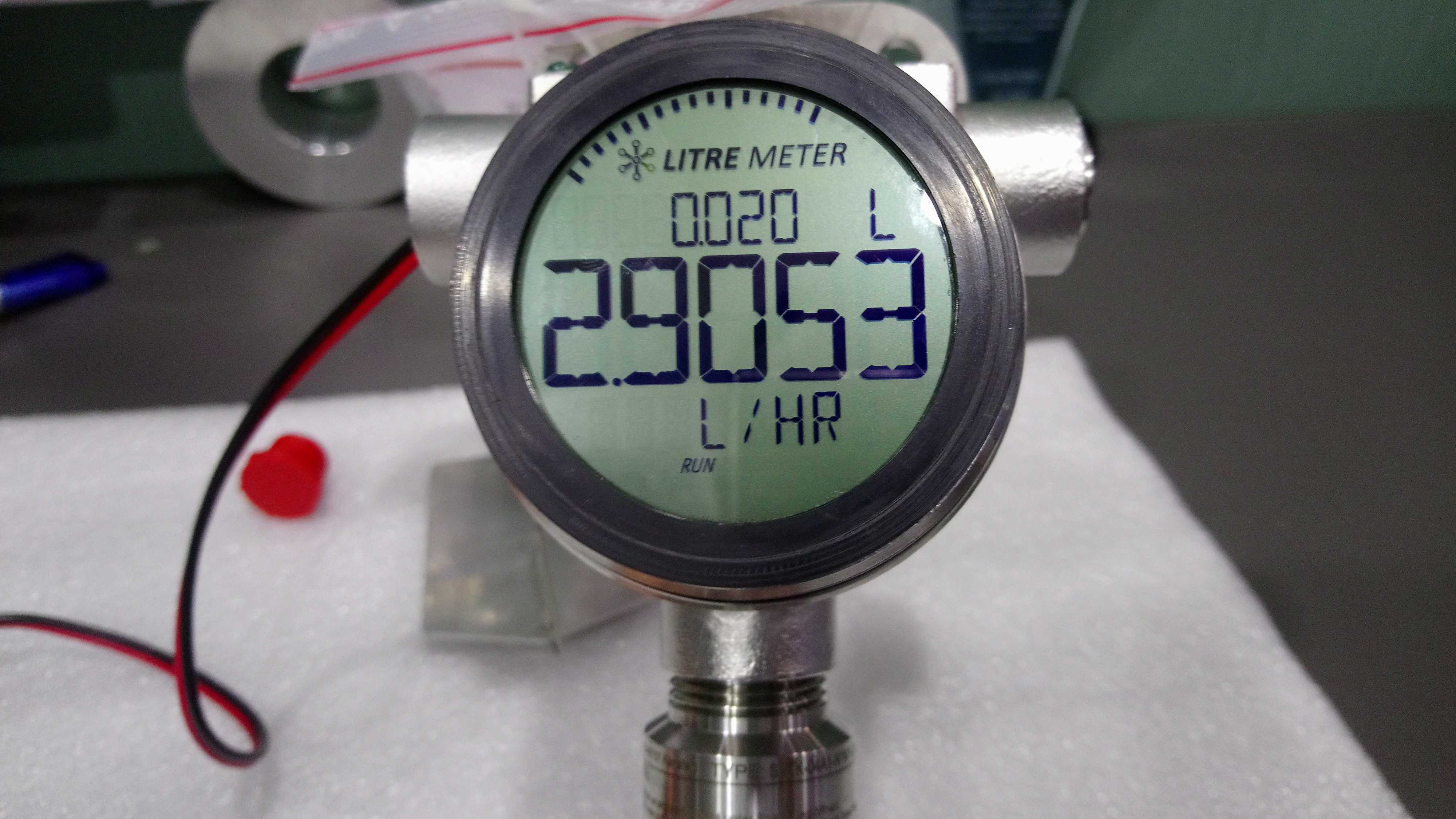

Project images:
✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨
✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨
