JUMO DICON Touch 703571 _ Process controller _ Binh Duong (TR1359000)

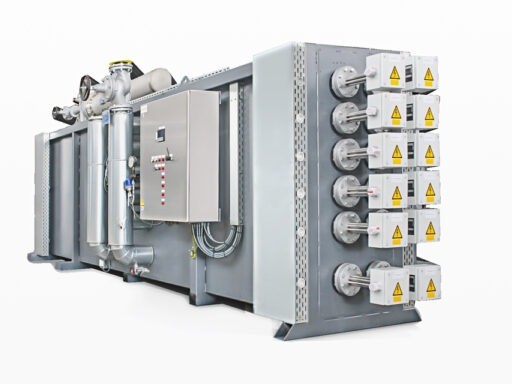

Electrically heated thermal oil system

Application

Thermal oil heating systems are extremely efficient in heat transfer and have very low wear. No additional boiler room is required for the electrically heated thermal oil heating system. The systems can therefore be integrated into the existing production environment. In addition, a particularly gentle and precise heating of the thermal oil can be achieved with the system.

System properties

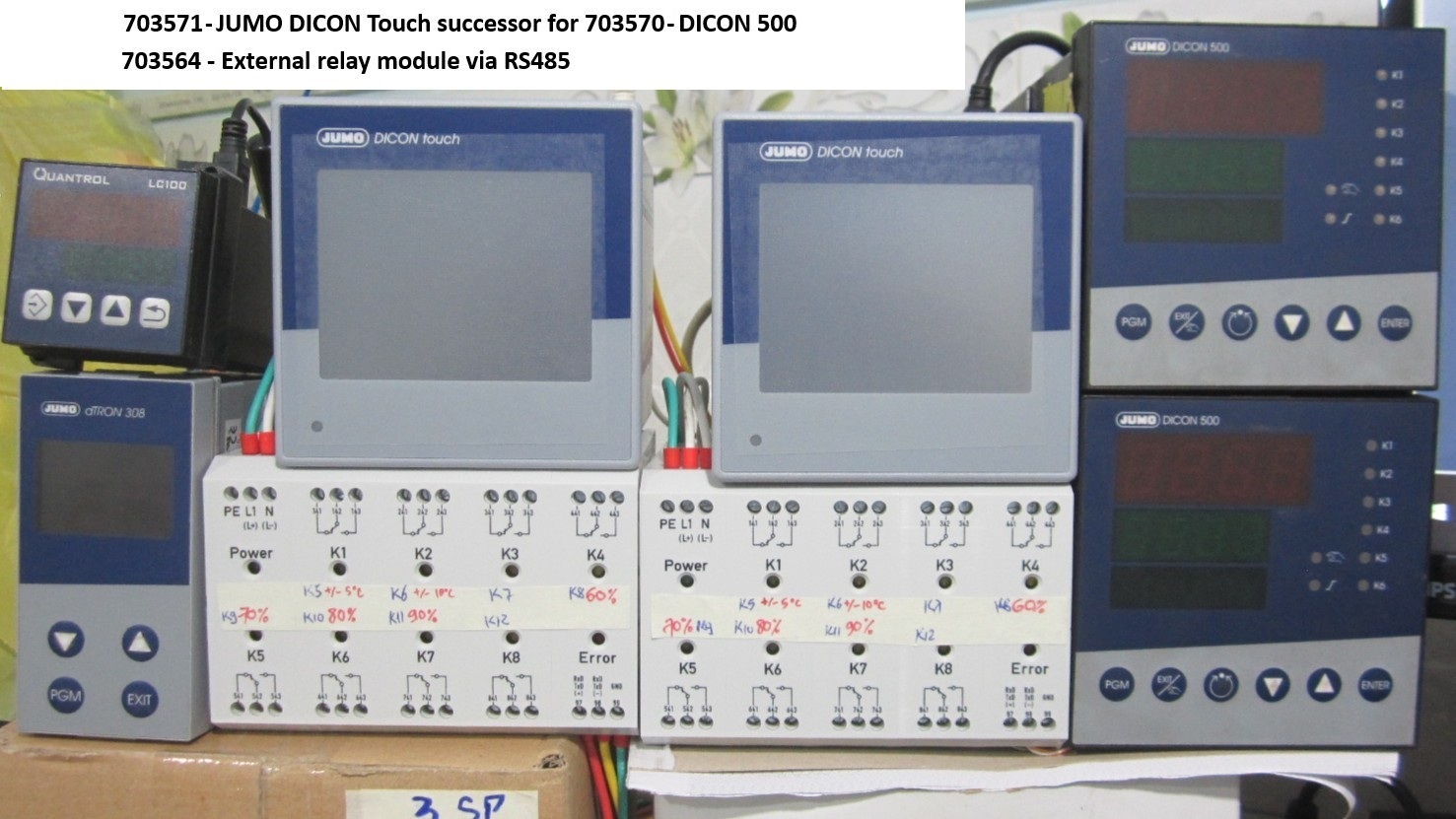

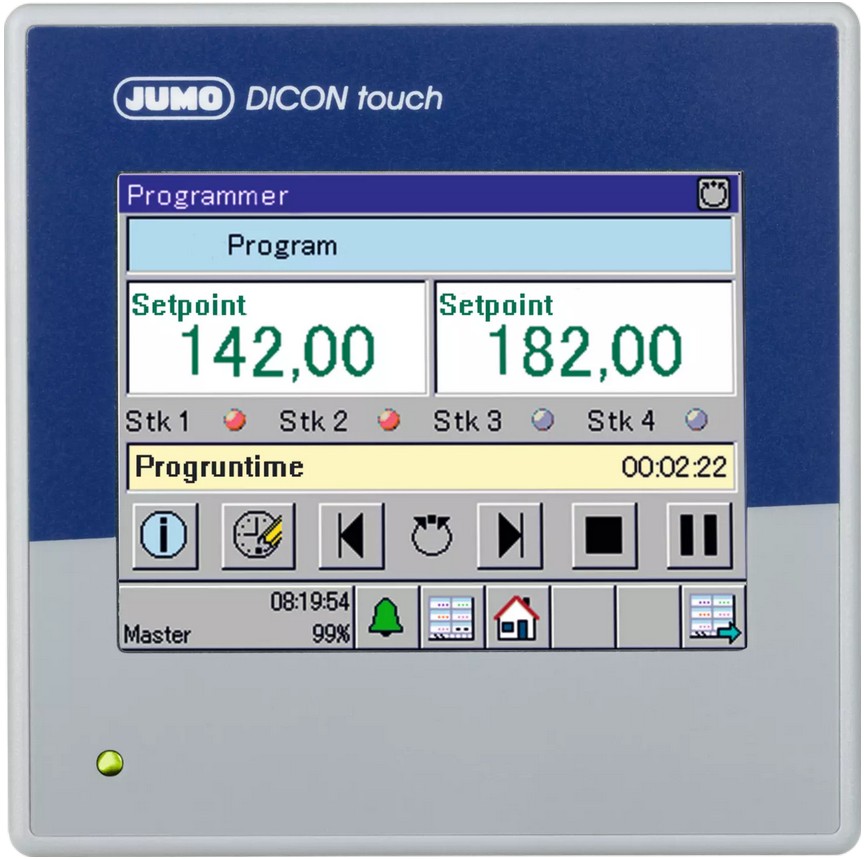

Two-Channel/Four-Channel Process and Program Controller

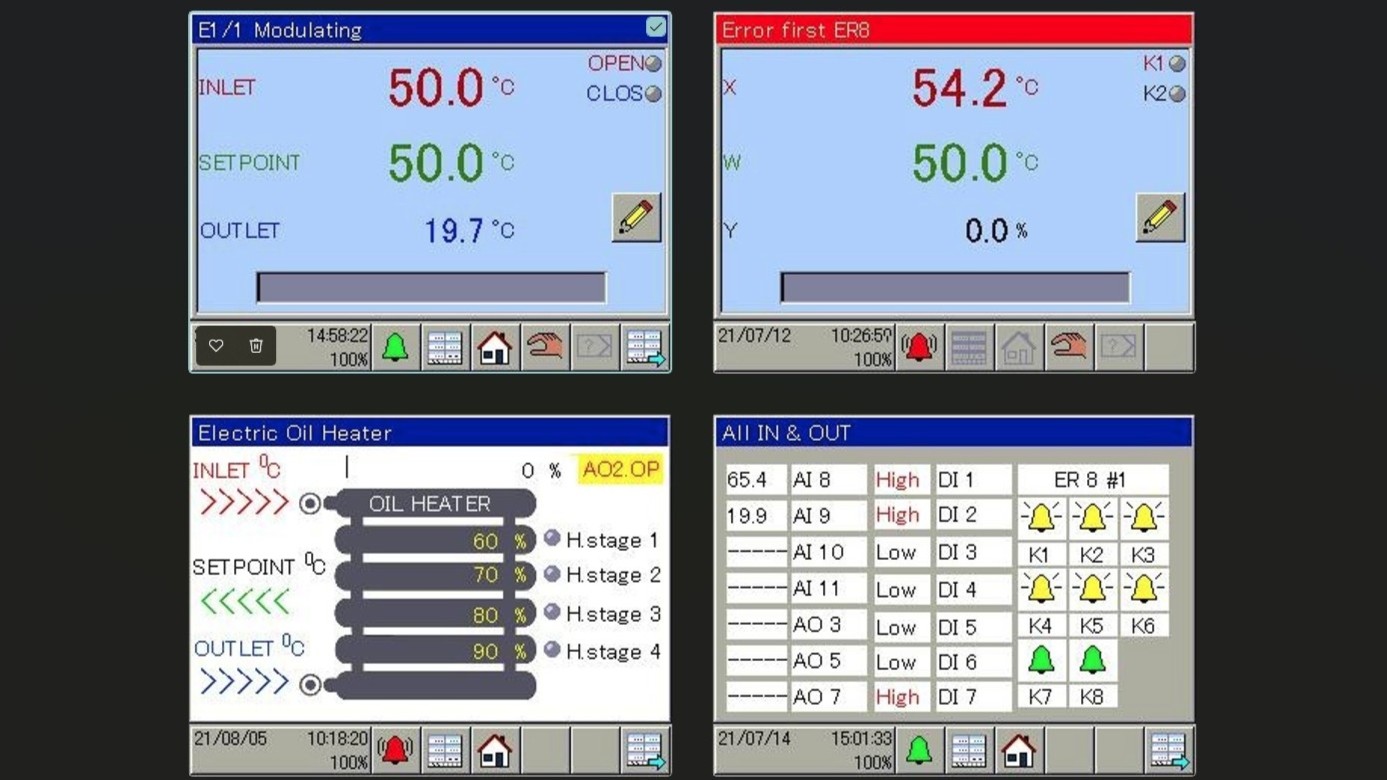

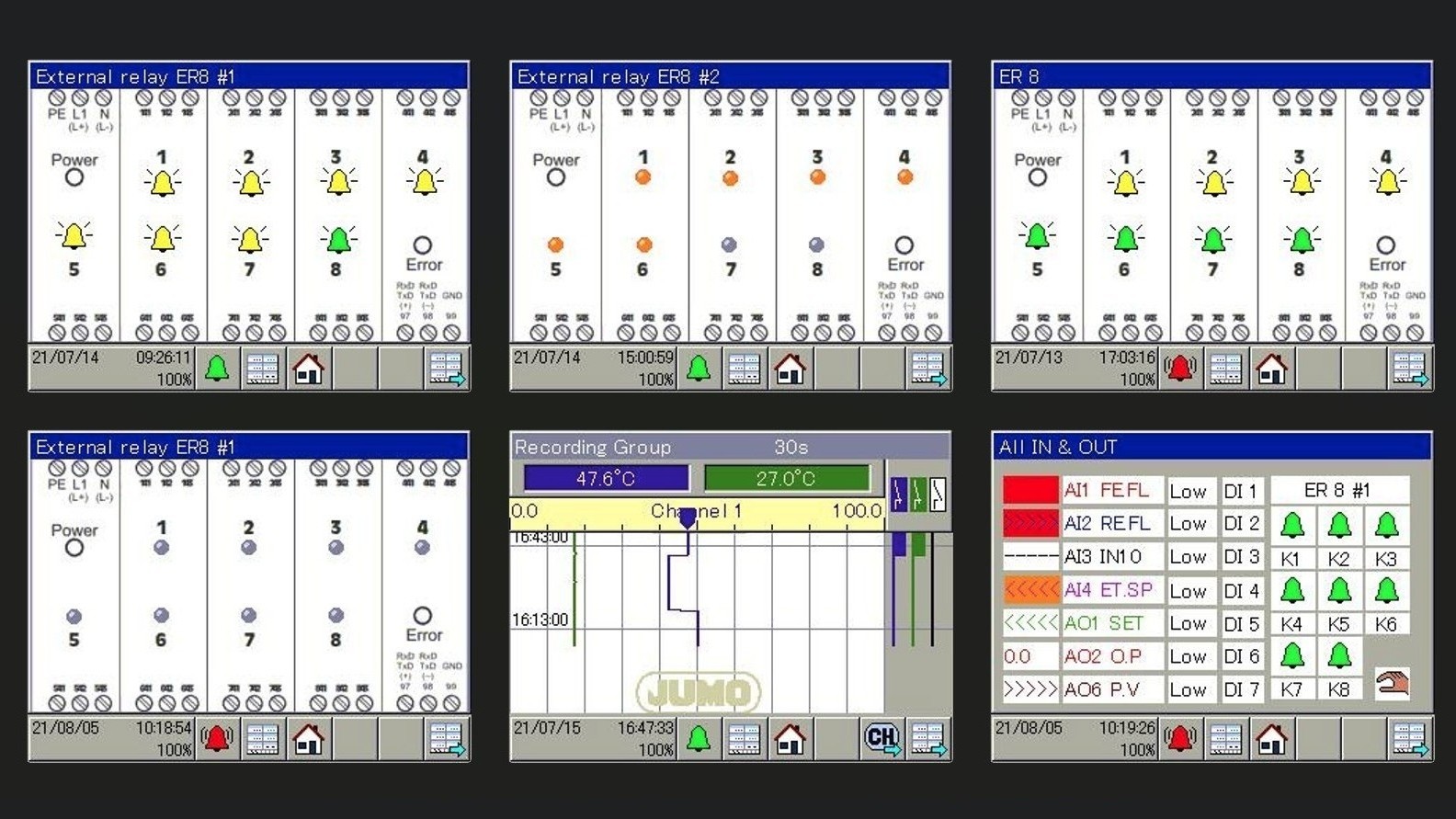

JUMO DICON touch can be used to perform complex control and management tasks. The plant can be visualized and operated via freely-definable process screens.

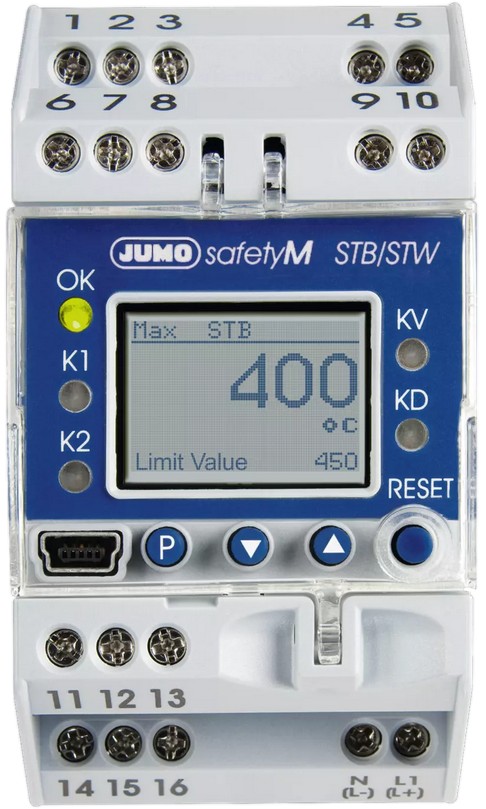

Safety temperature limiter, safety temperature monitor according to DIN EN 14597

The device is primarily built to monitor thermotechnical processes accurately and switch the systems to a safe operating status in the event of malfunctions.

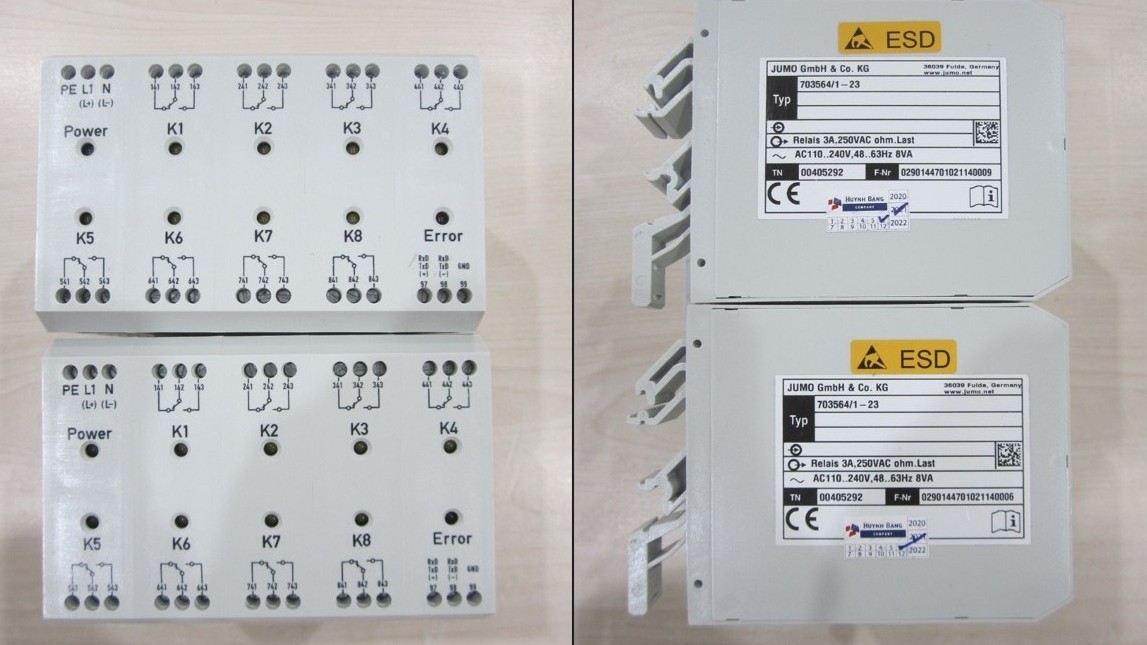

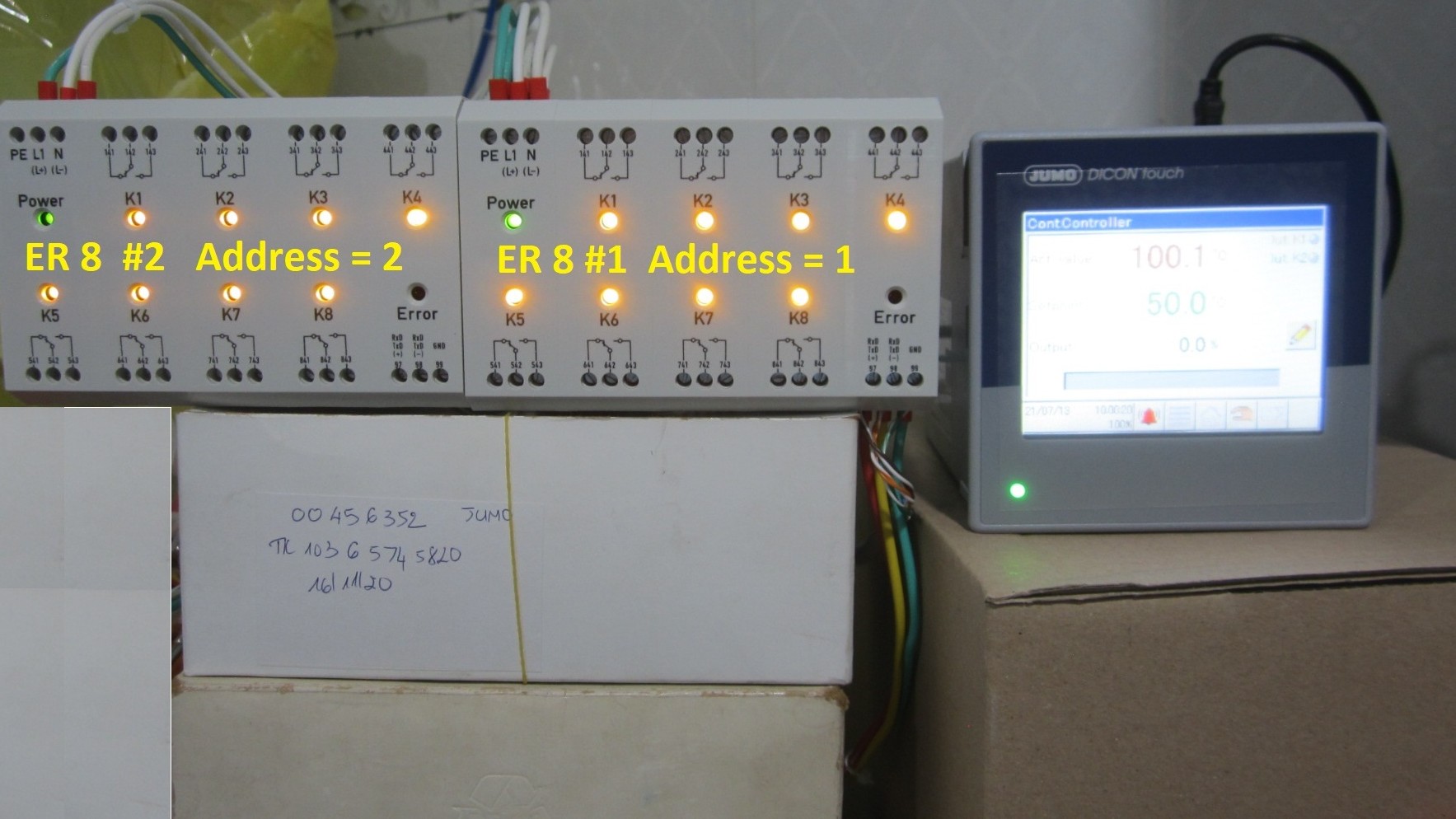

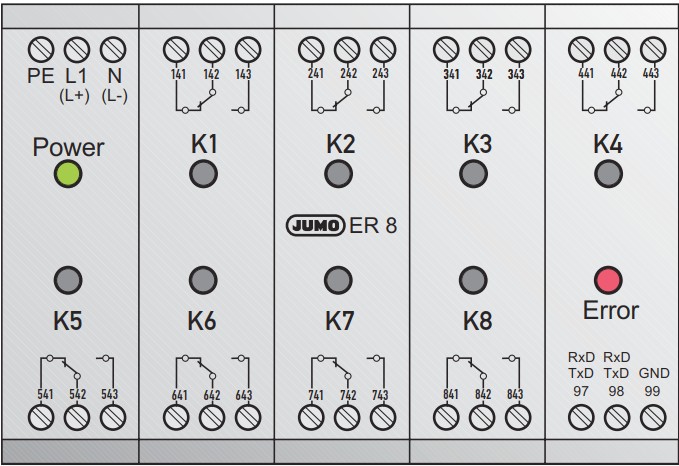

JUMO ER8 / EL8
External Relay Module / Logic Module

This external module with the functions of the outputs are defined in the instrument that is connected or via the setup program and takes place through the serial interface.

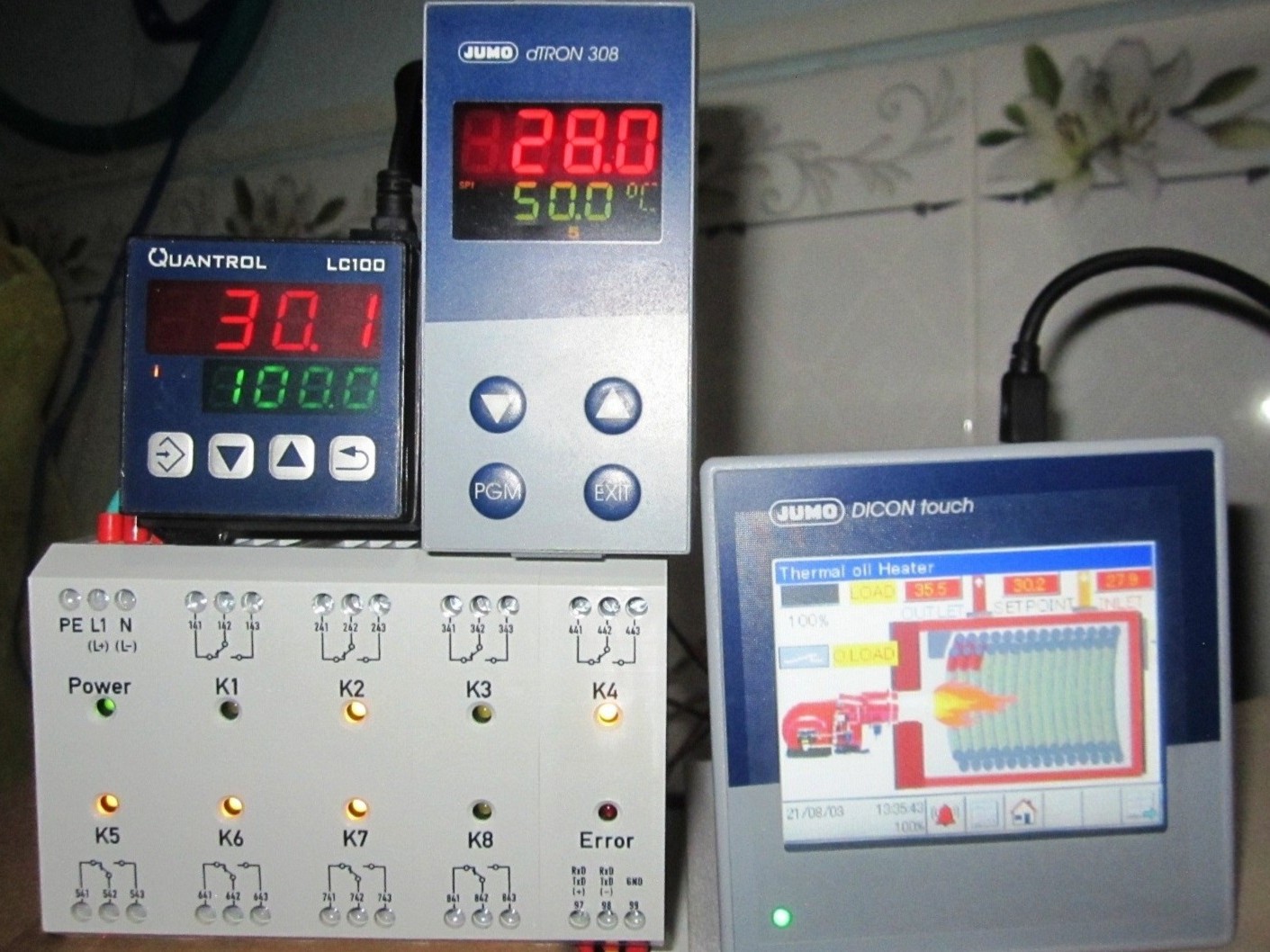

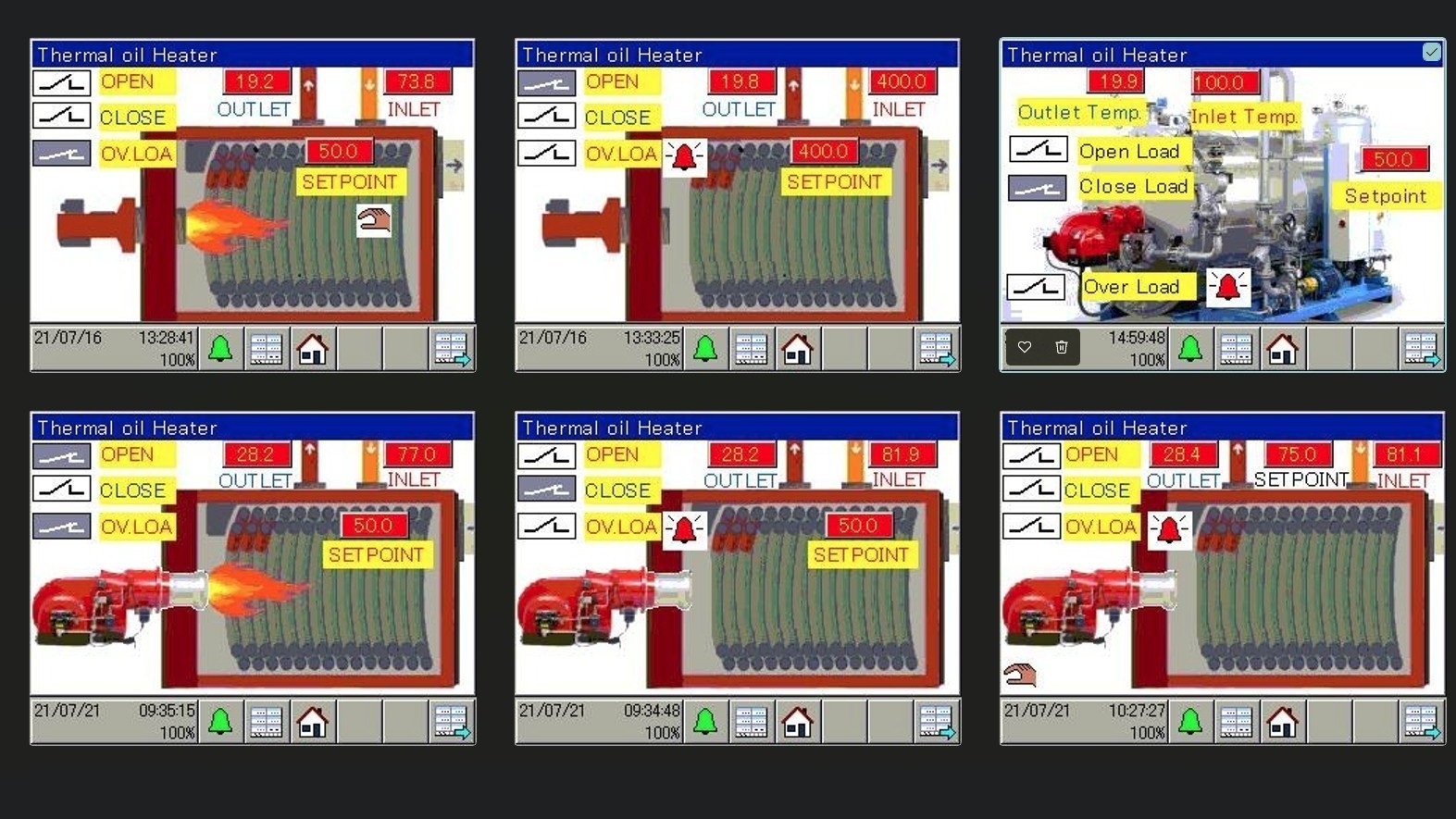

• Get all information related to project: heaters capacity, operation mode, required for screen display on new controllers.

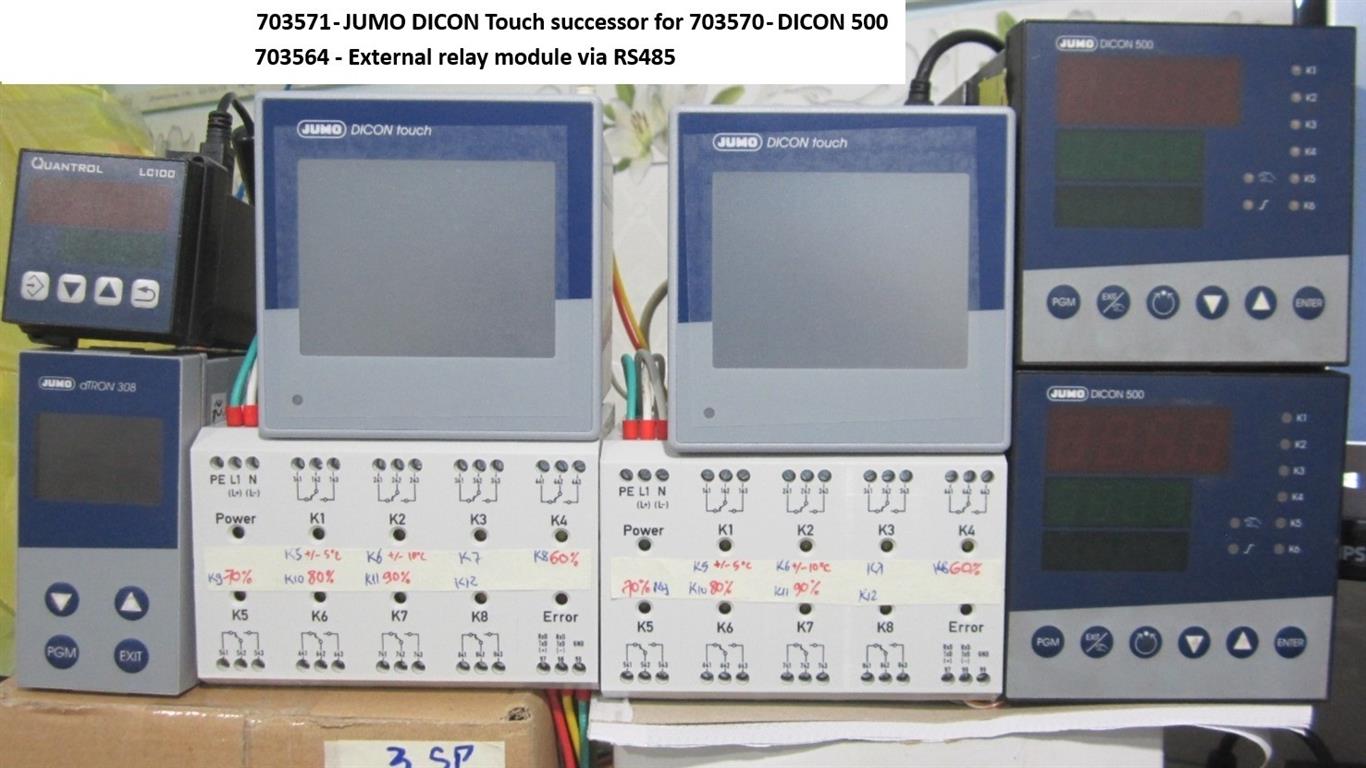

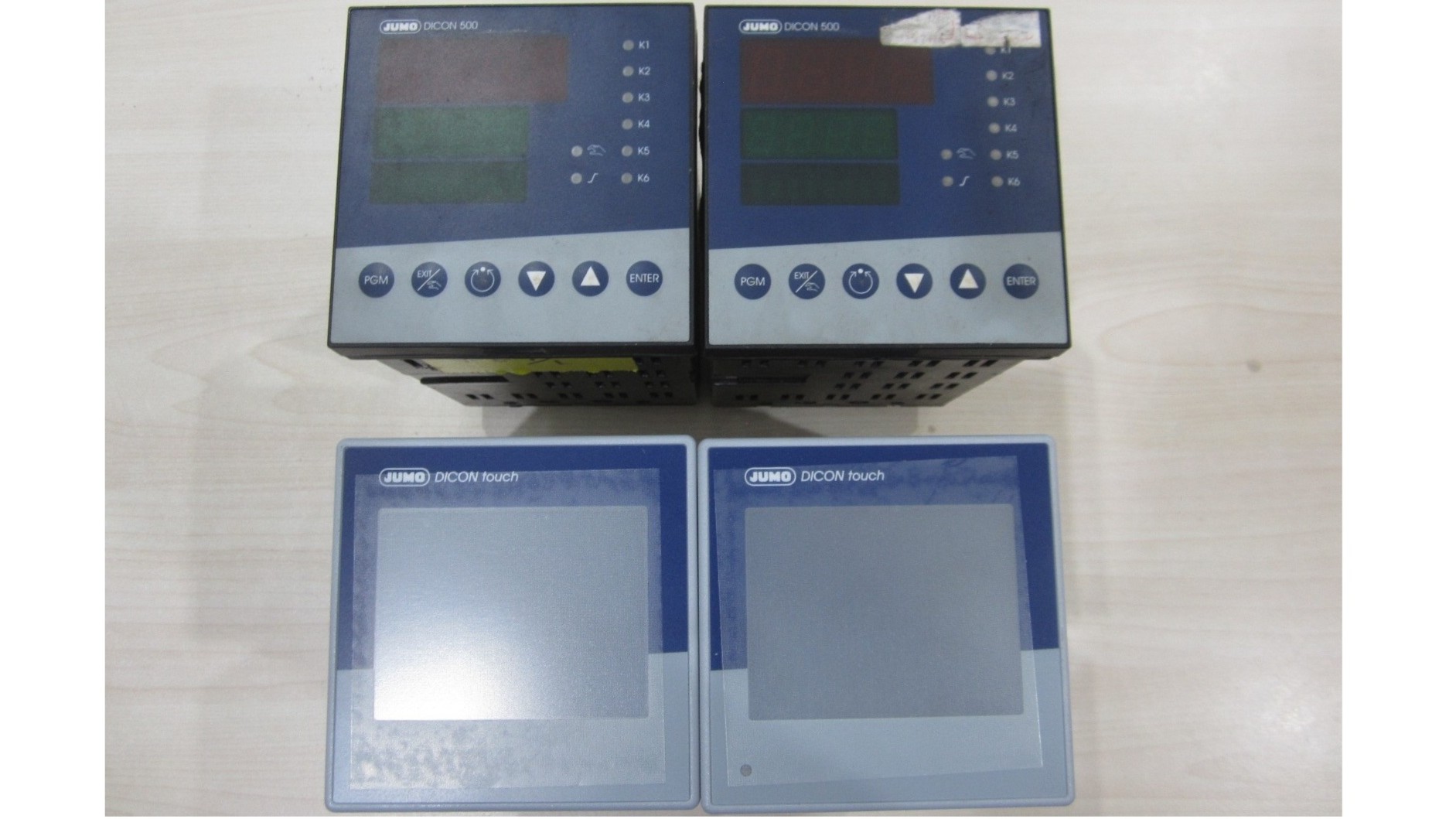

• Backup existing data from two old controllers DICON 500.
• Comparation all old data, setting on software 266 and transfer to new controller DICON Touch
