Weishaupt burner - Chemical Factory in Dong Nai (CH007000)

2 x WKG70 for Steam Boilers & 3 x WKG50 for Thermal Oil Heaters
Weishaupt burner - Chemical Factory in Dong Nai (CH007000)

5 Weishaupt burners type WKG Burners for Chemical Factory in Dong Nai

For their factory expansion a chemical factory in Vietnam chose 5 Weishaupt WK burners for their reliability, fuel efficiency and ease of use.

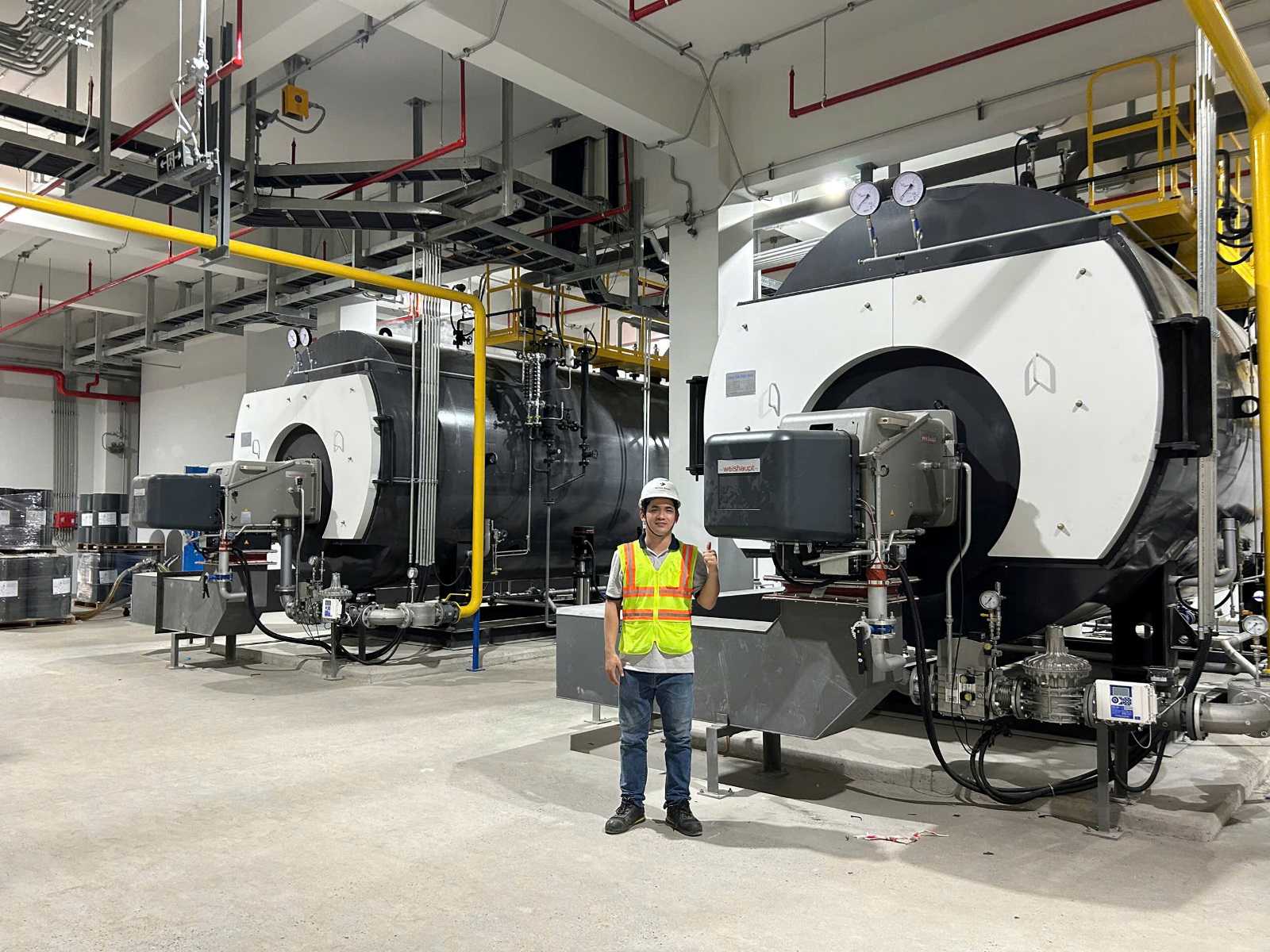

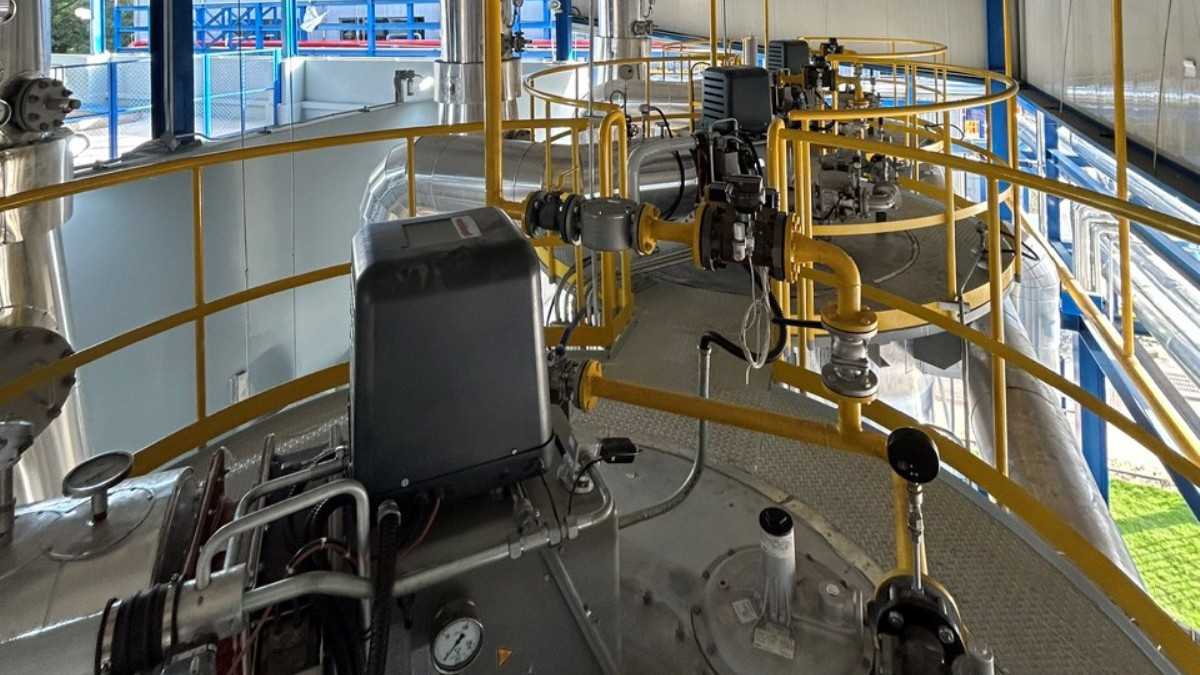

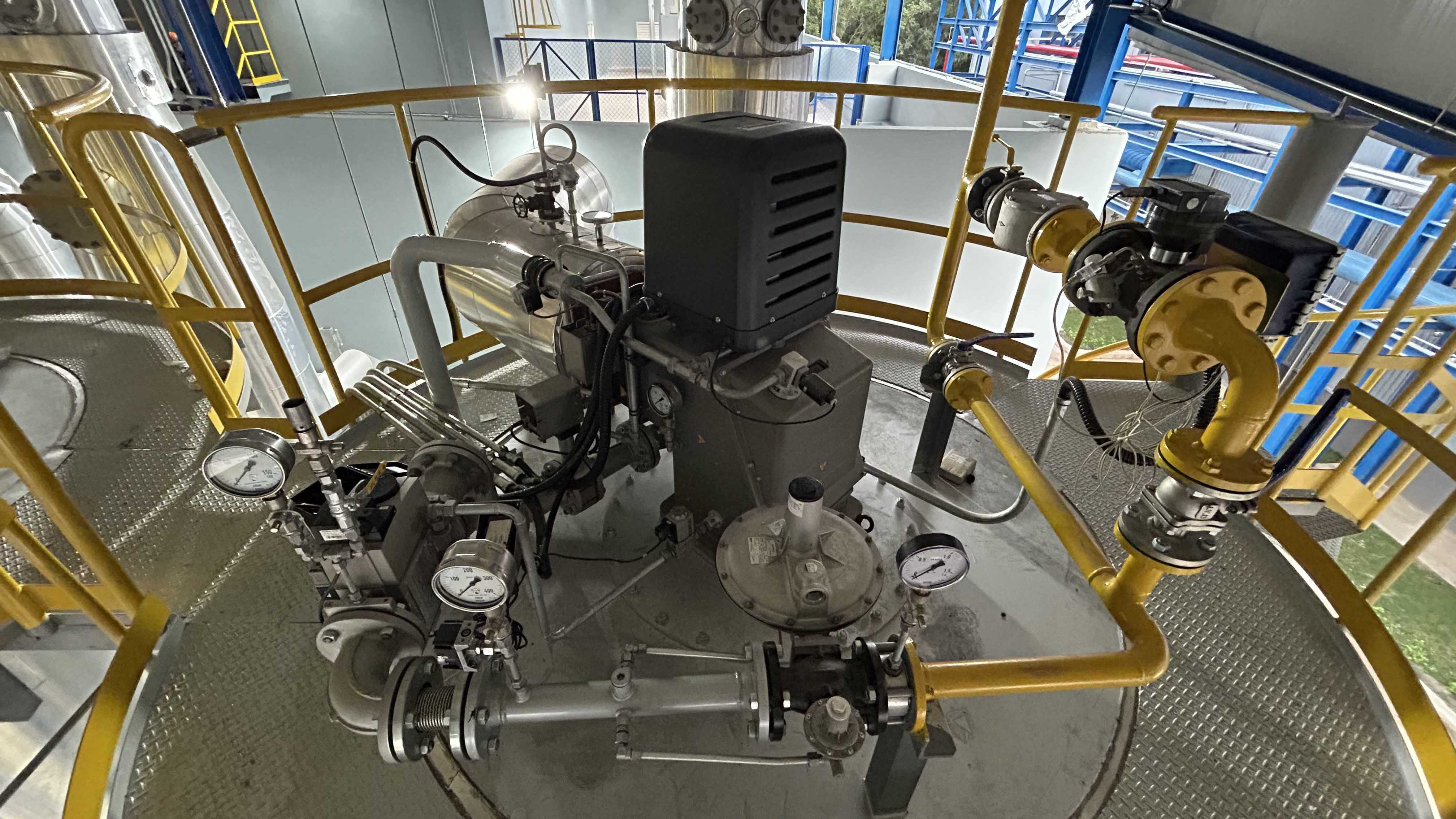

2 x WKG70/3-A burners with burner ratings of from 1.400 - 9.600 kW were installed on 2  steam boilers and 3 x WKG50/1-B burners were installed on 3 vertical thermal hot oil boilers with burner rating from 600 - 3.200 kW.

Huynh Bang helped with selection, sizing, installation supervision and commissioning of the burners:



ApplicationSteam boilerThermal Oil Heater
Location on systemMain burner

Main burner

Application capacity6 000 000 kCal/h

2 000 000 kCal/h

2 500 000 kCal/h

Weishaupt burner typeWKG70 ZMH-NR

WKG50 ZMH-NR

Fuel gas typeCNG gas

CNG gas

Burner capacity1400 - 9600 kW

600 - 3200 kW

800 - 4800 kW

Burner quantity02 systems03 systems
Digital combustion managerW-FM 200
W-FM 200

Special features /

Customer benifits

  • Hot air supply to burner up to 250° C
  • VSD for burner fan motor
  • Hot air supply to burner up to 250° C
Scope of delivery

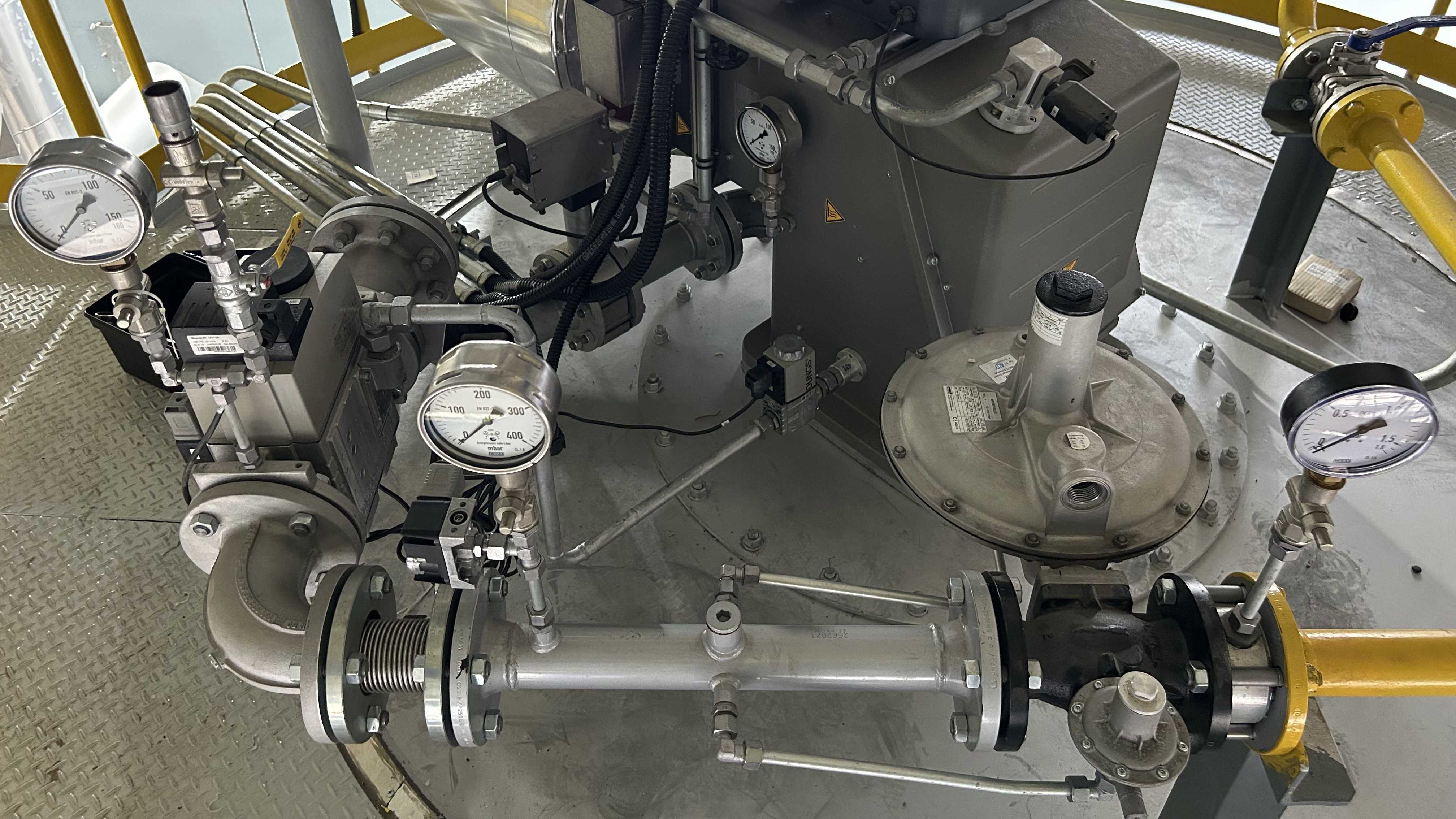

Full burners systems & gas train accessories

Full burners systems & gas train accessories
Commissioning in20242024
Technical information of burnerWKG70 dual block _ Catalog
WKG50 dual block _ Catalog

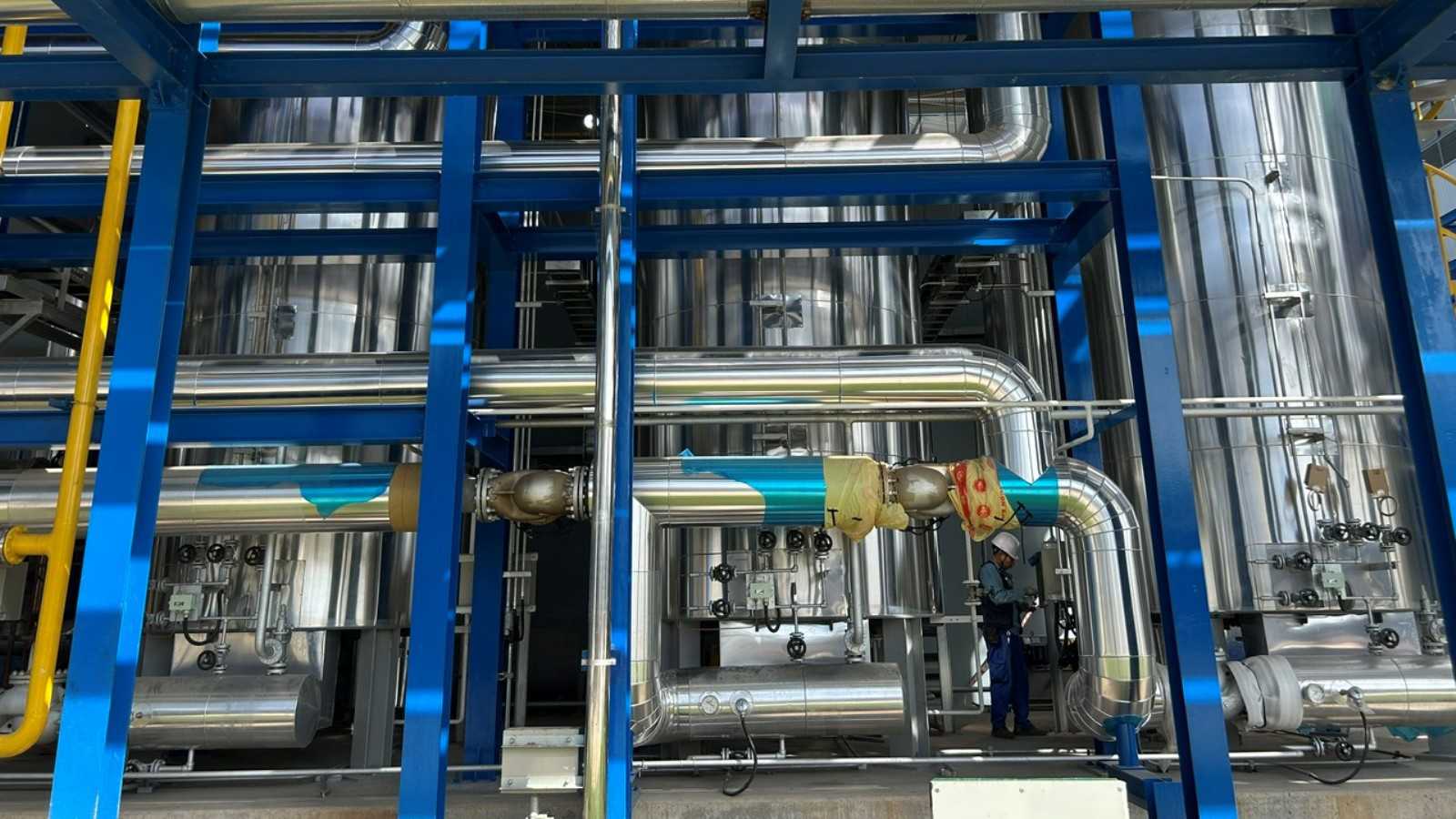

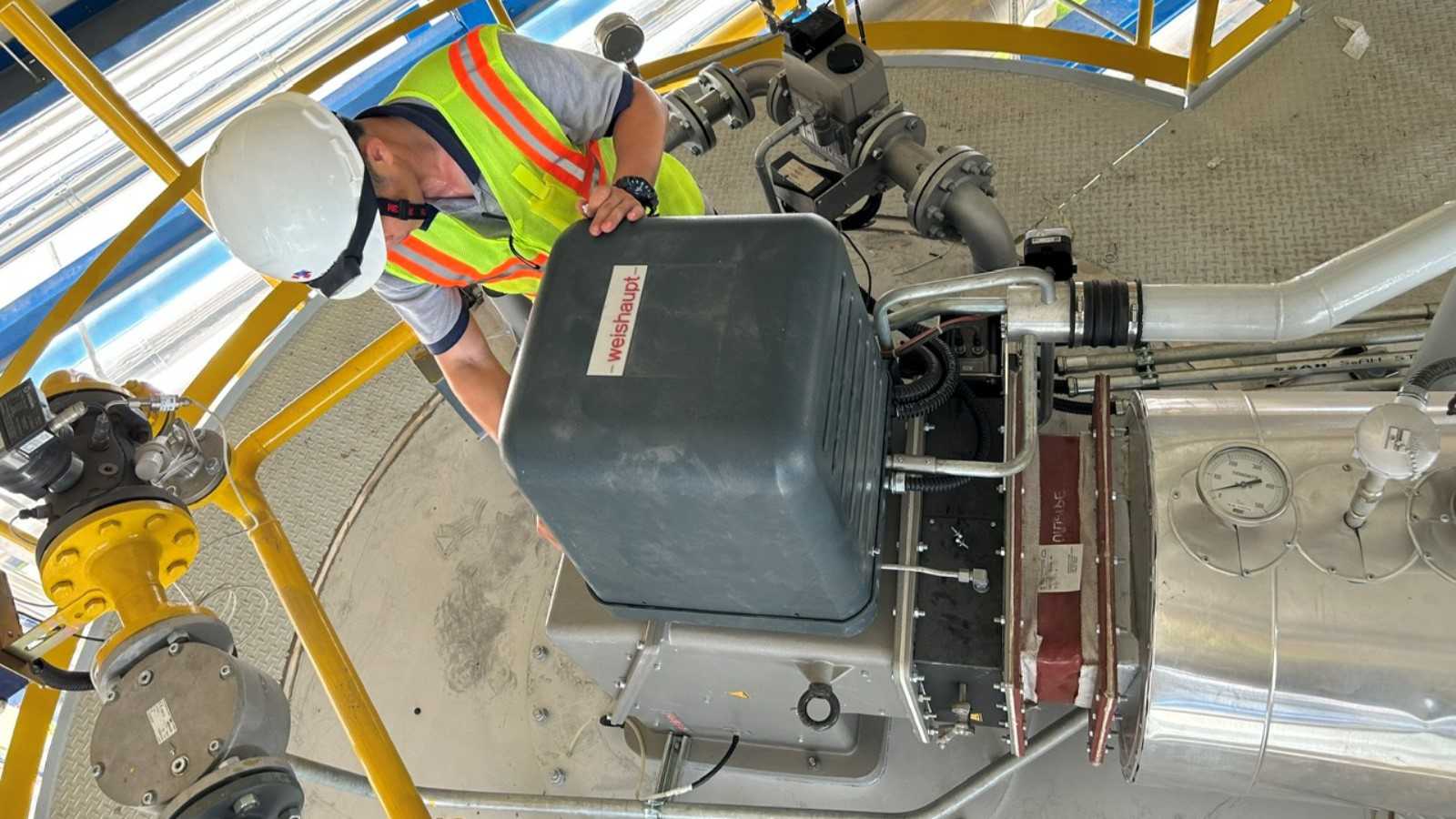

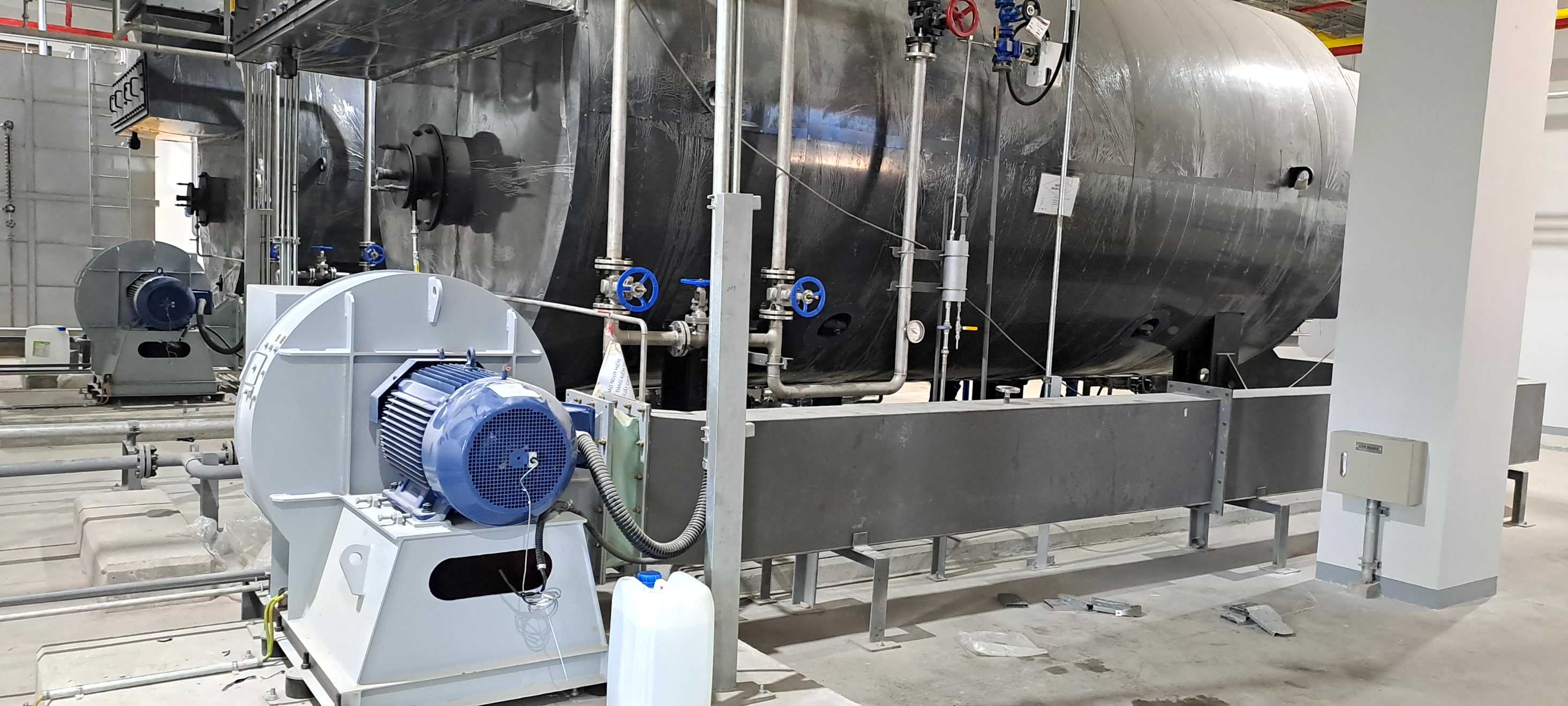

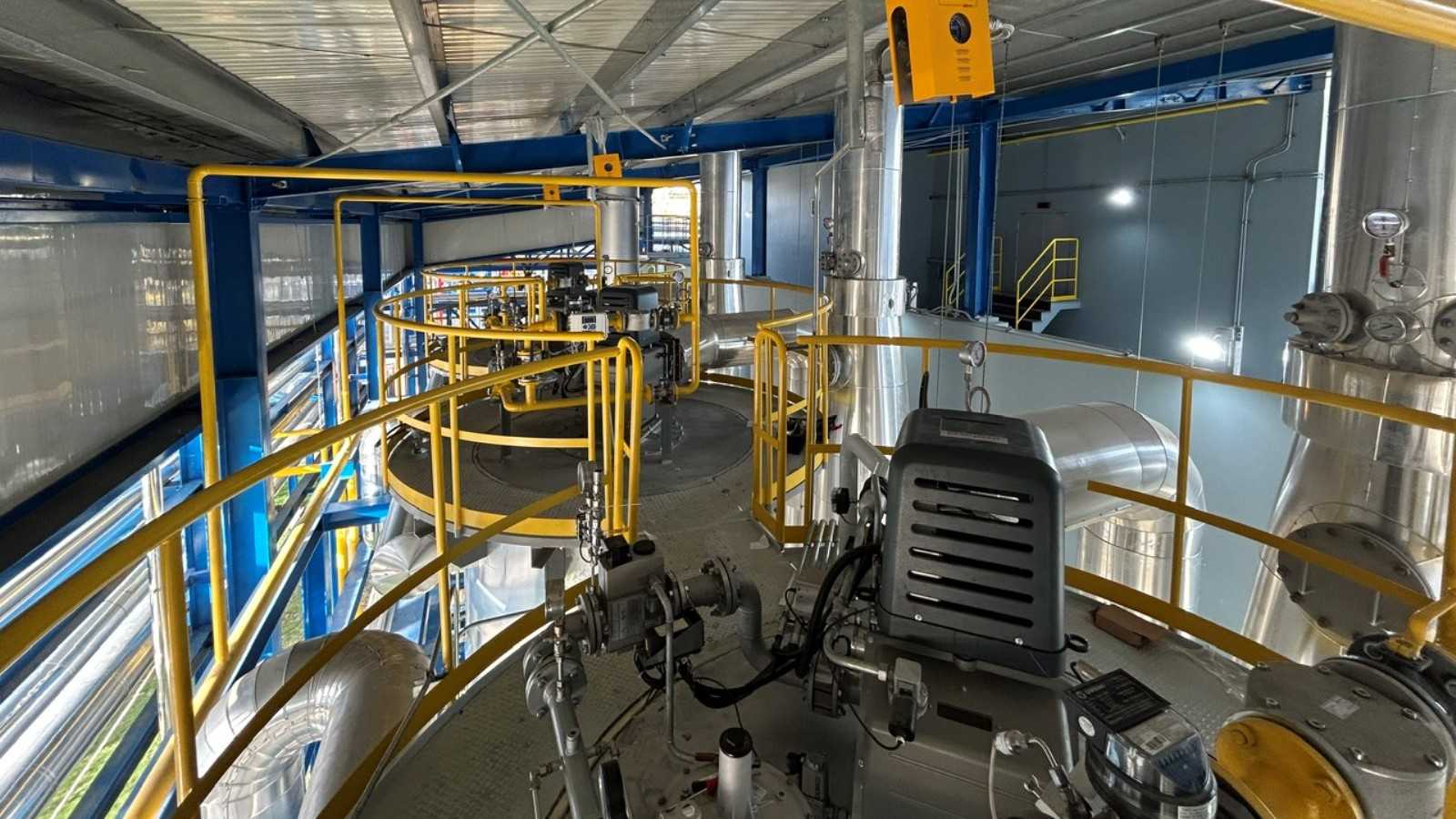

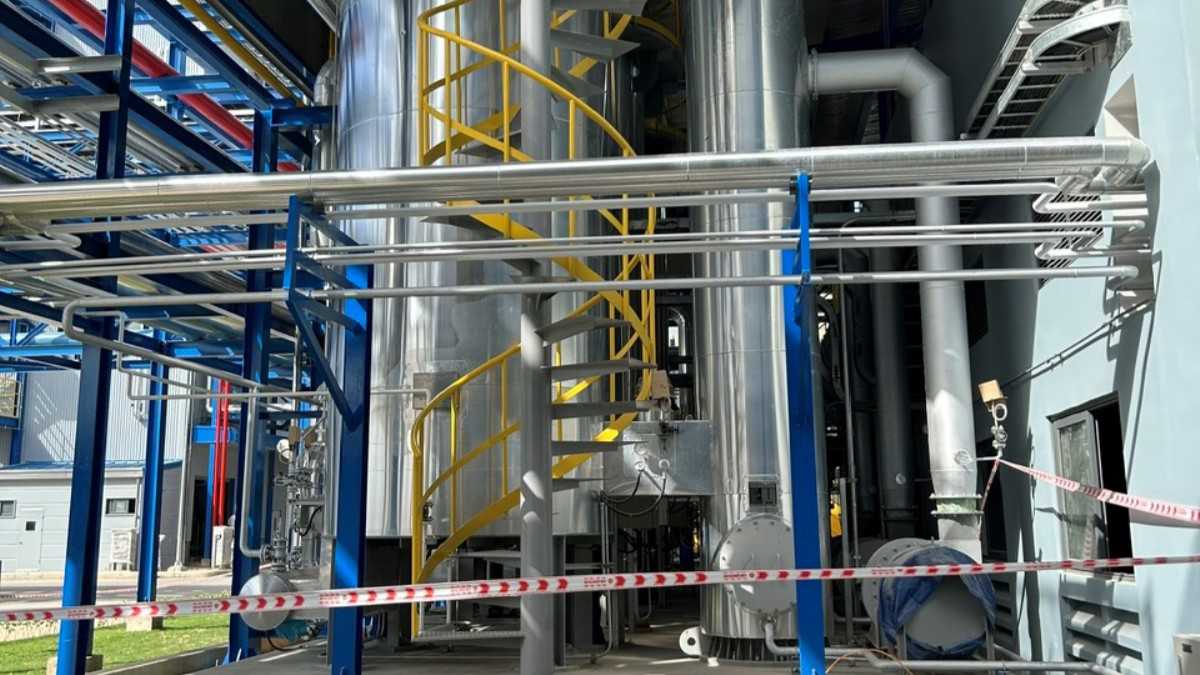

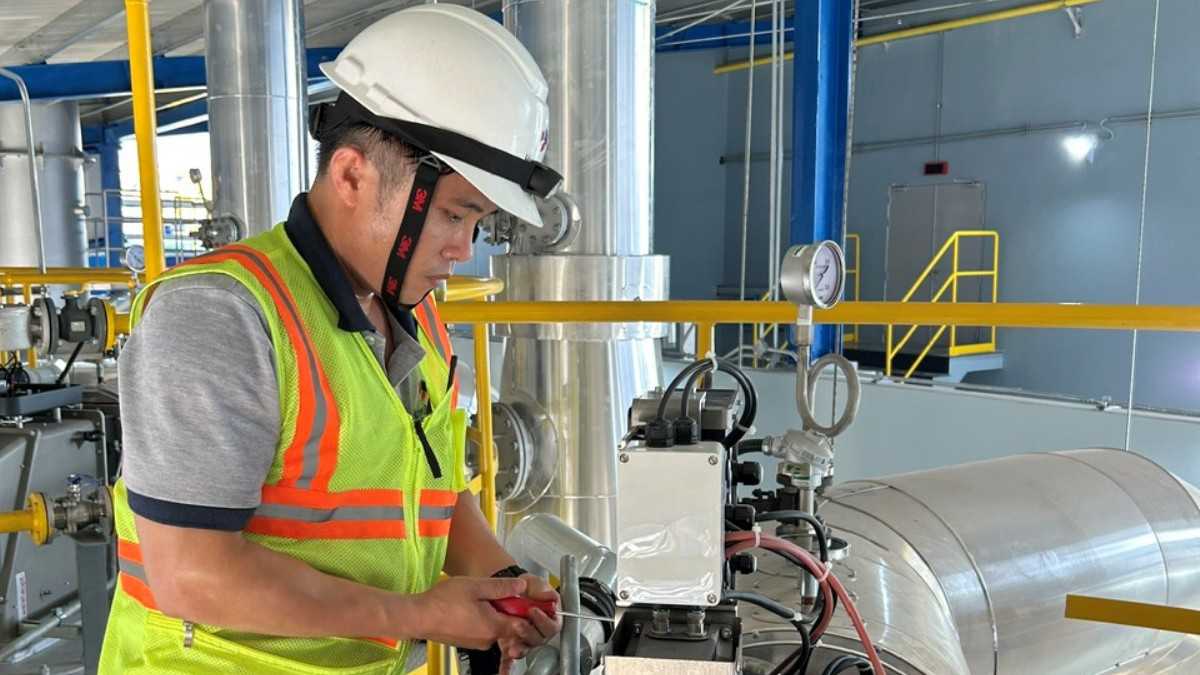

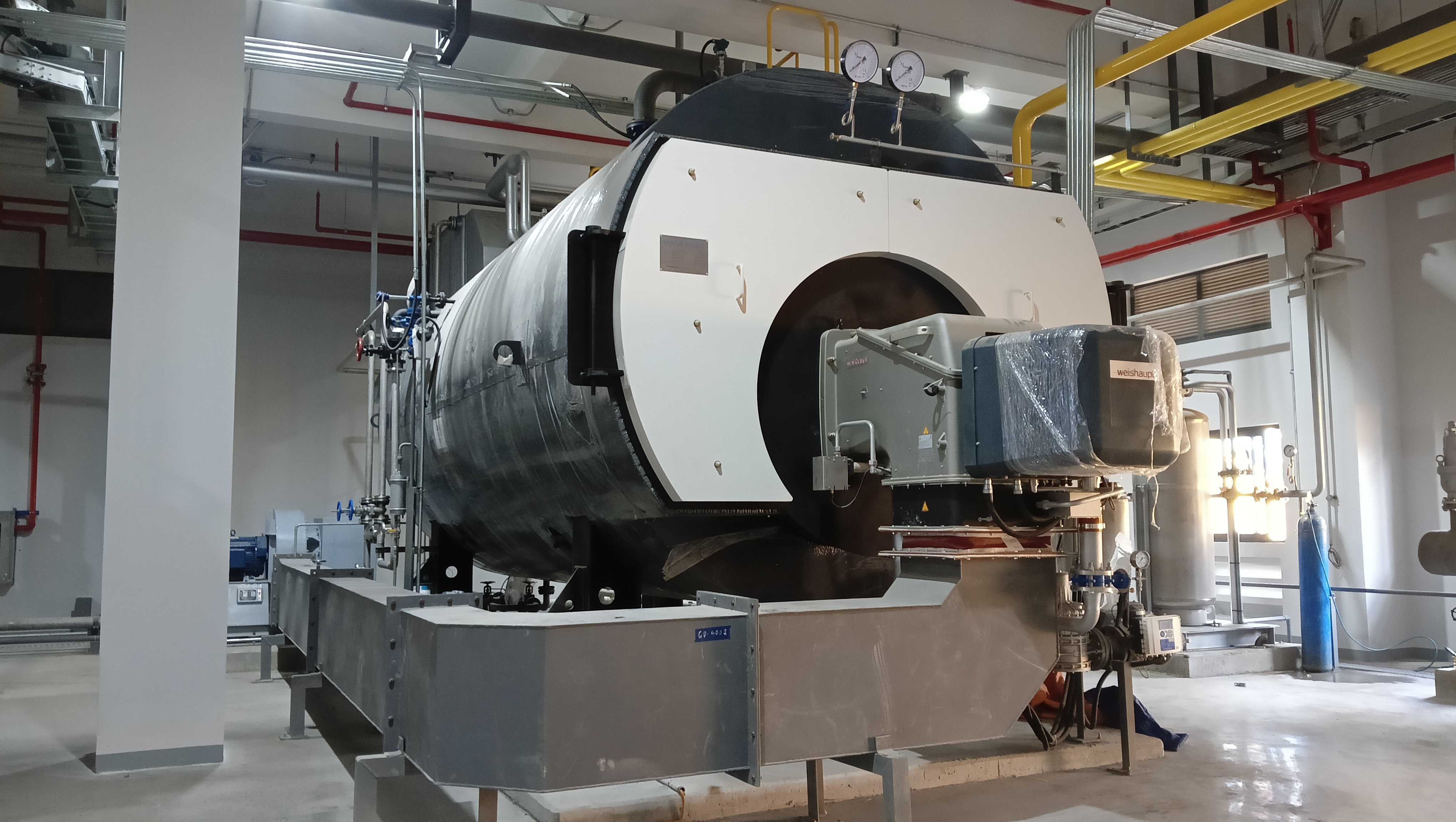

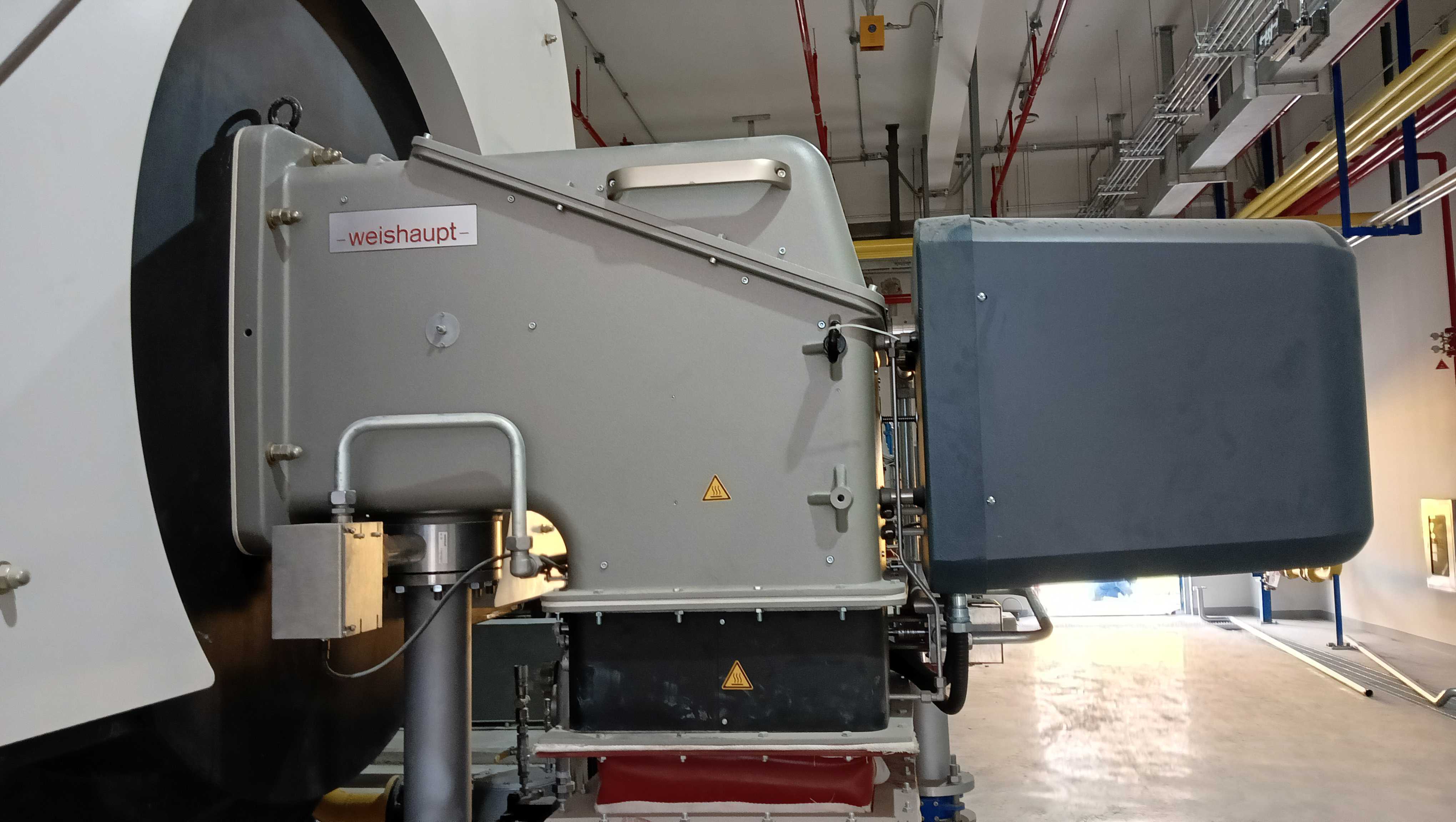

Project images:

✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨

✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨

HBC TSM B.B

Year: 2024
