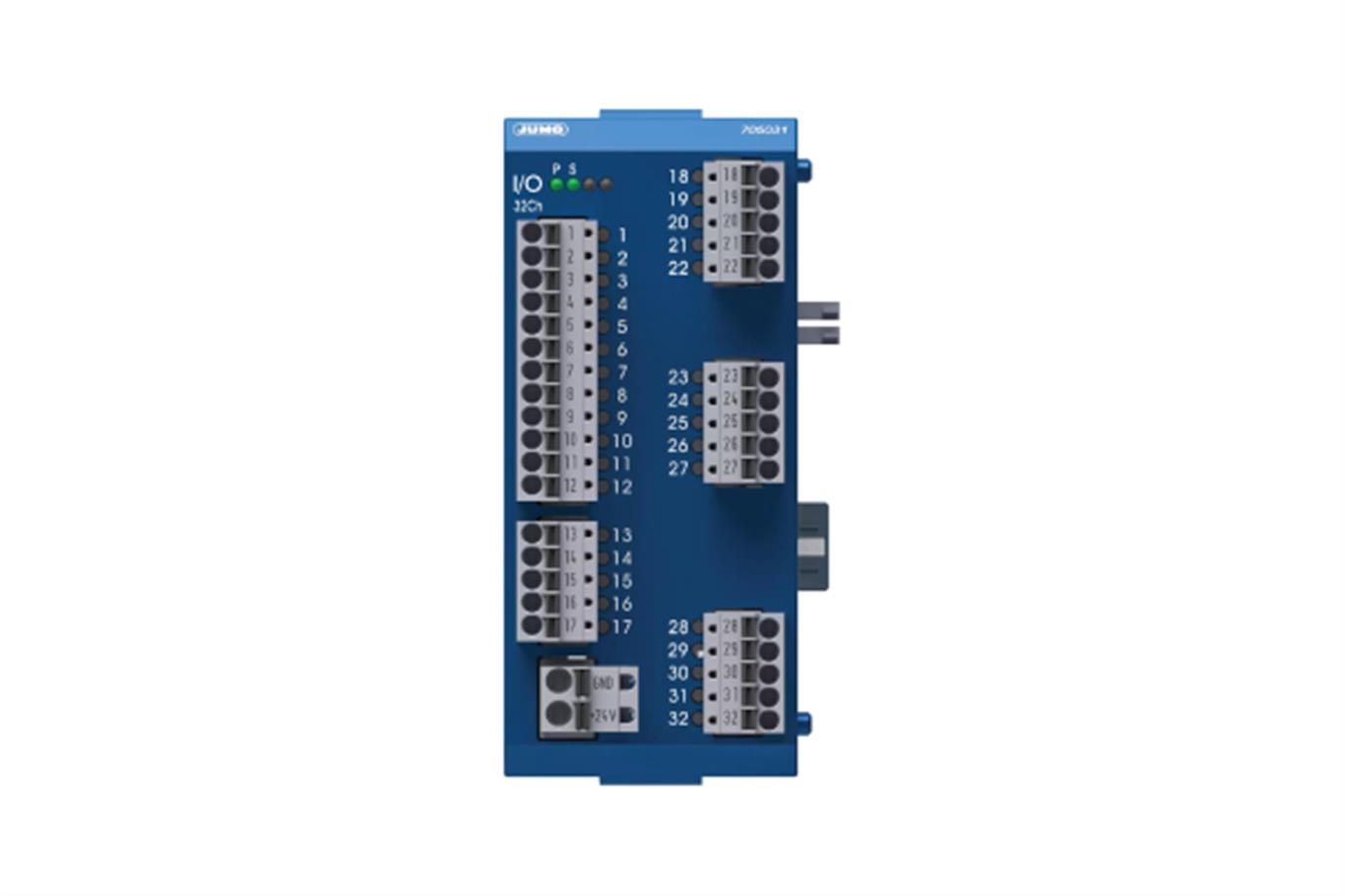

Digital input/output module 32-channel
Module for JUMO variTRON automation system
The module offers 32 channels. Of these, 17 are configured as digital outputs by default. Up to 3 option cards with 5 channels each can be used to add digital inputs and outputs. The digital input signals can be further processed in the JUMO variTRON central unit. The digital outputs forward signals that are transmitted by the system bus.
 |
 |
 |
|
Flexibly configurable
inputs and outputs |
High load capacity
per digital output |
Convenient, flexible
planning of a plant |
GENERAL TECHNICAL DATA |
| Number of channels | 32 |
| Measurement inputs | up to 15 digital inputs DC 24 V (optional) |
| Outputs | 17 fixed and optionally up to 15 additional digital outputs DC 24 V, max. 500 mA |
| Special features | 3 optional expansion slots for 5 digital inputs or outputs each, switching statuses are visualized with LEDs, external voltage supply for digital inputs/outputs via terminal on the front, automatic configuration after replacement of the module insert (Plug and Play), connection of inputs on the front, removable terminal strips with PUSH IN technology, fast wiring of operating voltage and system bus provided by simple module connection principle |
| Connection | Removable terminal strips with PUSH IN technology on the front |
| Voltage supply | C 24 V +25/-20 %, external voltage supply for outputs on the front panel: DC 24 V +25/-20 % SELV |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Protection type | IP20 |
| Ambient temperature range | -20 to +55 °C |
| Dimensions (W × H × D) | 45 mm × 103.6 mm × 101.5 mm (without connection elements) |
Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
 |
 |
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |
Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
 |
 |
|
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |
Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
|
|
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
