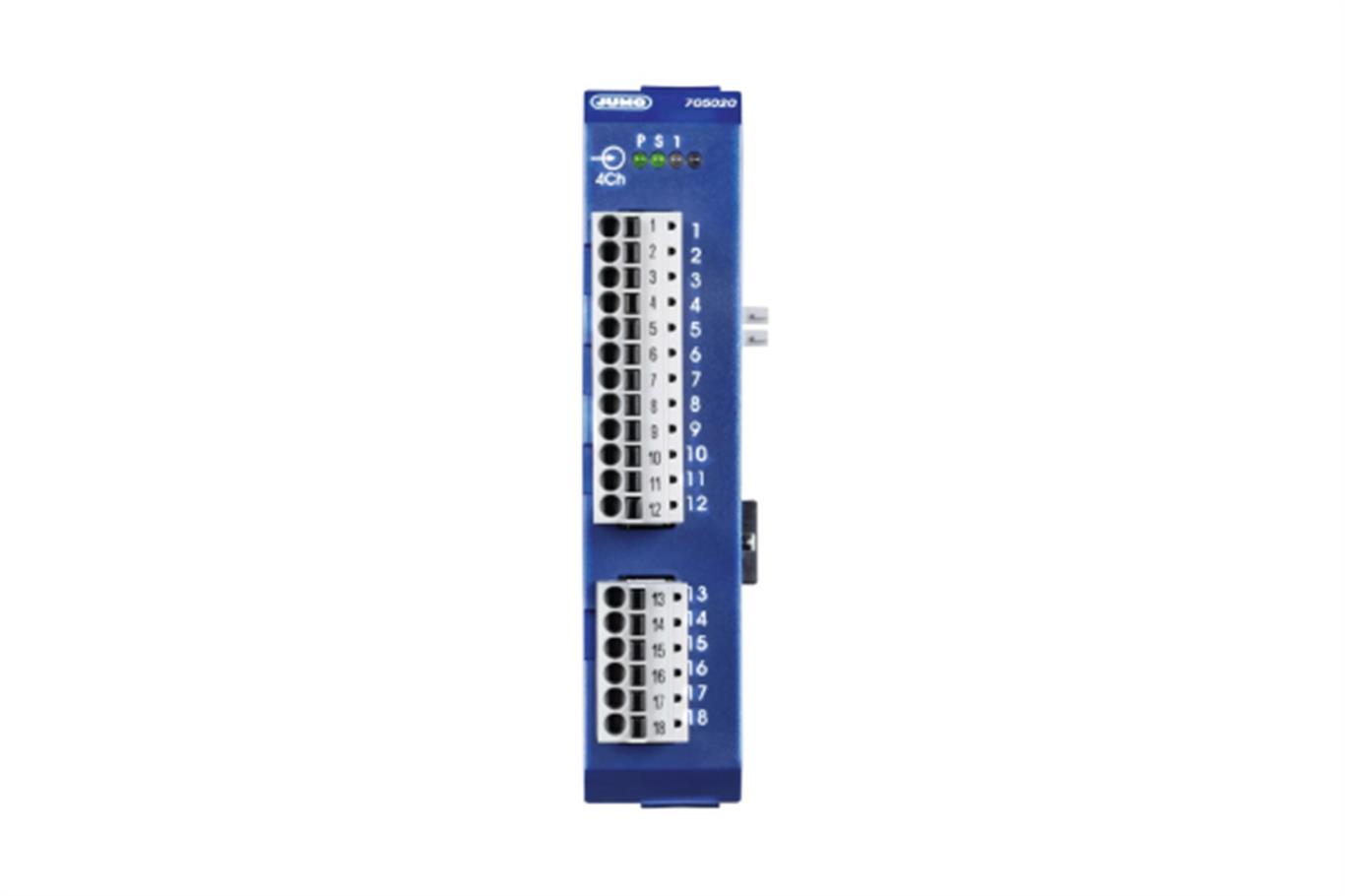

JUMO mTRON T 705020
Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
 |
 |
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
GENERAL TECHNICAL DATA |
| Measurement inputs | 4 universal, high-quality, user configurable analog inputs for RTD temperature probes, resistance transmitters, thermocouples, and standard signals (current 0(4) to 20 mA, voltage 0(2) to 10 V, A/D converter 16-bit resolution), 1 digital input |
| Special features | Switching statuses are visualized with LEDs, automatic configuration after replacement of the module insert (hot swap capable), connection of inputs on the front, fast wiring of operating voltage and system bus provided by simple module connection principle, all inputs are galvanically isolated from each other, customer-specific linearization possible, limit value monitoring function |
| Features | All inputs are galvanically isolated from one another, customer-specific linearization possible, limit value monitoring function |
| Dimensions (W × H × D) | 22.5 mm × 103.6 mm × 101.5 mm (without connection elements) |
| Connections | Removable terminal strips with PUSH IN technology |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Protection type | IP20 |
| Ambient temperature | -20 to +55 °C |
| Voltage supply | DC 24 V +25/-20 % |
| Approvals | UL, metrological certificate, DNV GL, AMS2750/CQI-9 (extra code) |
Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
|
 |
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |
Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
 |
|
|
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |
Analog output module 4-channel
The analog output module 4-channel is equipped with 4 outputs. The output signal, 0(2) to 10 V or 0(4) to 20 mA, can be configured individually for each channel. The analog outputs are controlled via the system bus.
 |
|
|
|
Configurable behavior
in the event of malfunction |
Removable terminal
strips |
Connection of
outputs on the front |
