JUMO mTRON T 705025
Analog output module 4-channel

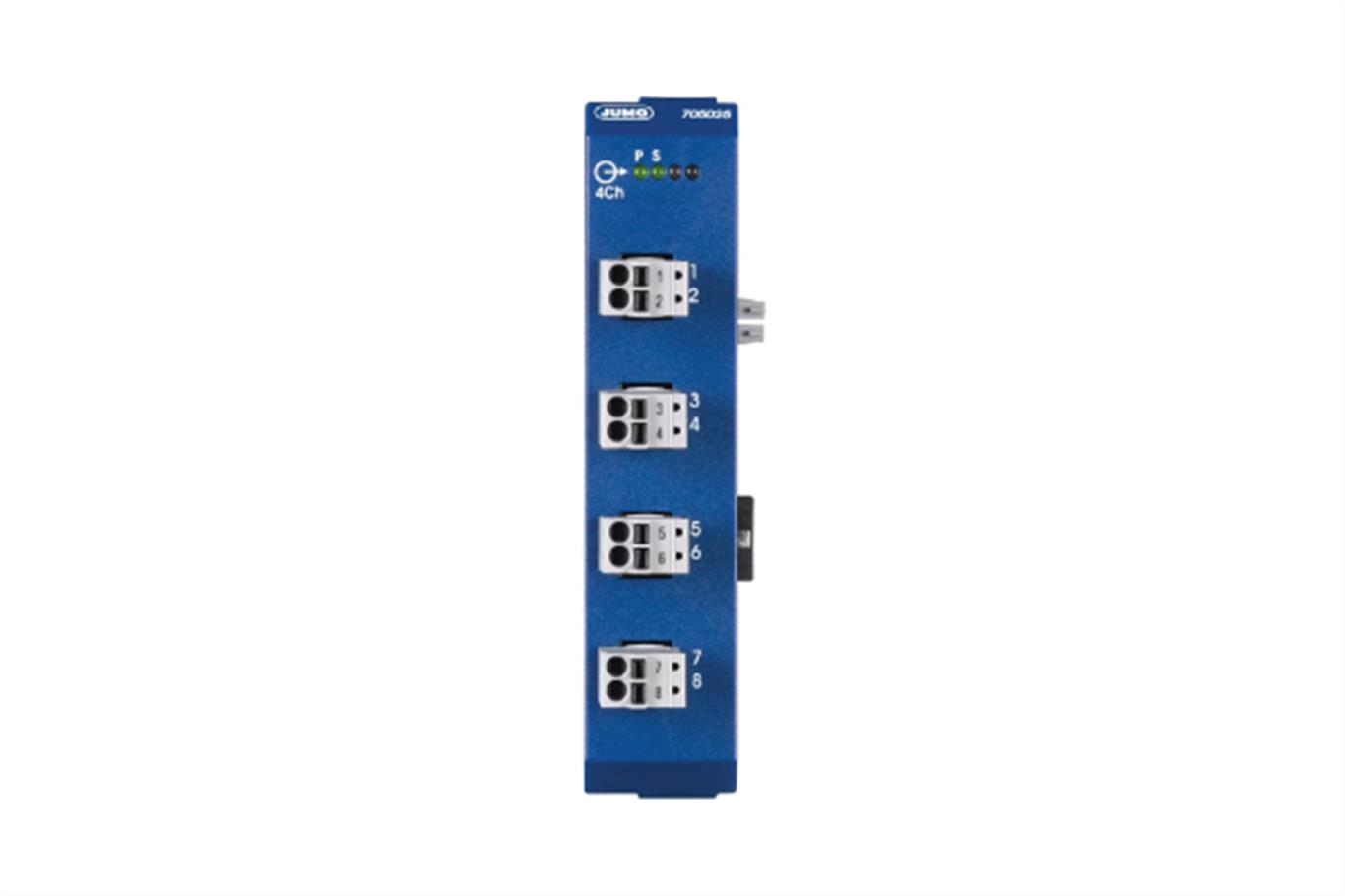

The analog output module 4-channel is equipped with 4 outputs. The output signal, 0(2) to 10 V or 0(4) to 20 mA, can be configured individually for each channel. The analog outputs are controlled via the system bus.
 |
 |
 |
|
Configurable behavior
in the event of malfunction |
Removable terminal
strips |
Connection of
outputs on the front |
GENERAL TECHNICAL DATA |
| Output signal | 0(4) to 20 mA or 0(2) to 10 V (configurable per channel) |
| Number of analog outputs | 4 |
| Special features | Configurable behavior in the event of malfunction, automatic configuration after replacement of the module insert (hot swap capable), connection of outputs on the front, fast wiring of operating voltage and system bus provided by simple module connection principle |
| Connections | Removable terminal strips with PUSH IN technology on the front |
| Approvals | UL, DNV GL |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Protection type | IP20 |
| Ambient temperature range | -20 to +55 °C |
| Dimensions (W × H × D) | 22.5 mm × 103.6 mm × 101.5 mm (without connection elements) |
Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
 |
|
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |
Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
 |
|
|
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |
Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
|
|
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
