JUMO mTRON T 705021

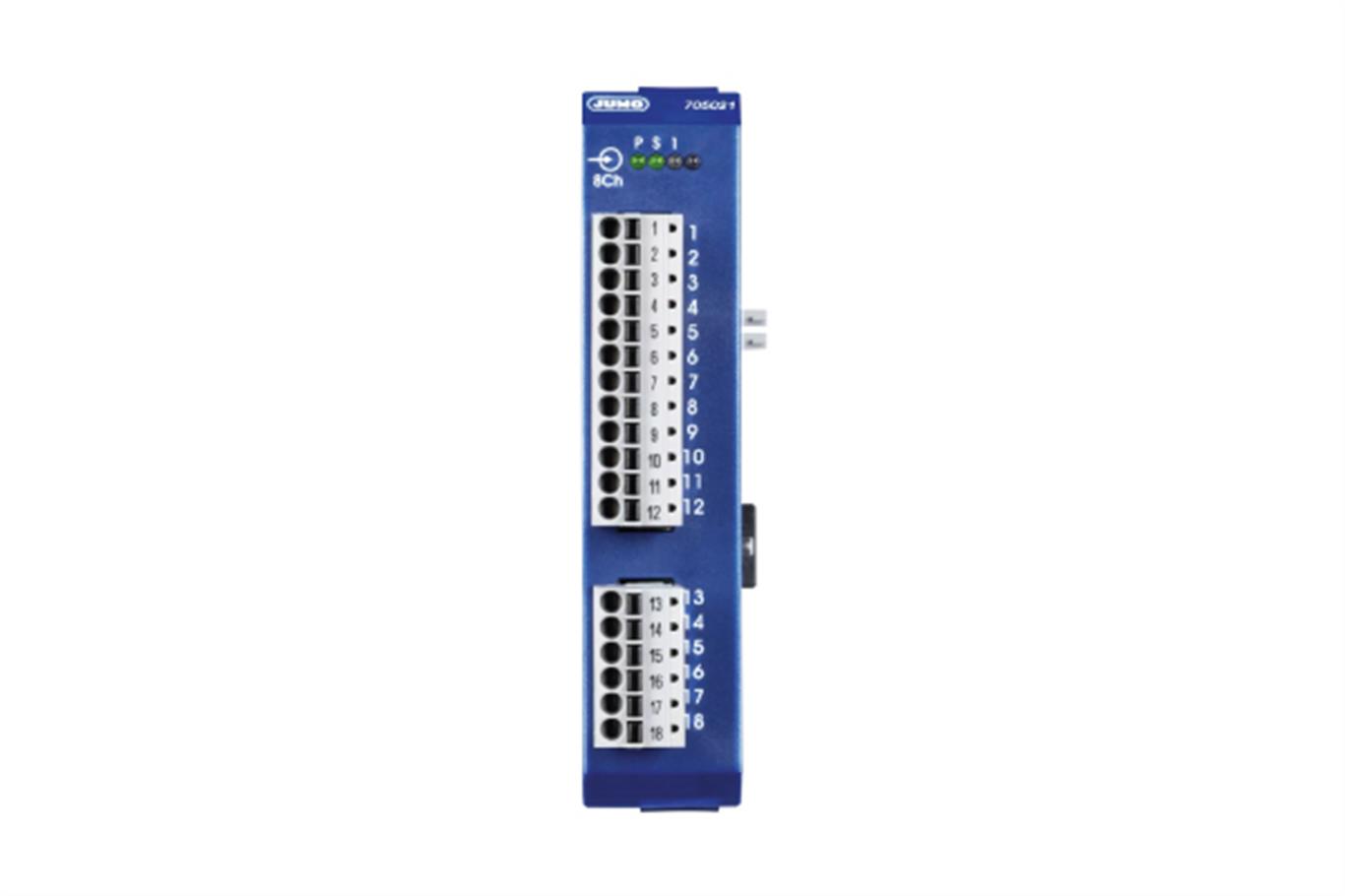

Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
 |
 |
 |
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |
GENERAL TECHNICAL DATA |
| Measurement inputs | 8 analog inputs for RTD temperature probes in two-wire circuit, 1 digital input |
| Features | - 8 high-quality analog inputs for RTD temperature probes Pt100, Pt500, Pt1000 in two-wire circuit - Limit value monitoring function - Additional digital input |
| Special features | HMI with recording function for up to 9 groups with 6 analog and 6 digital inputs respectively. Each recording group has available batch reporting. Batch data can be entered by touchscreen or loaded via interface (e.g. by barcode scanner). Integrated web server, math function in the optional controller modules, PLC CODESYS V3 in the central processing unit for the monitoring of measuring signals, and further calculations. |
| Interfaces | As a standard feature (in CPU and HMI), a USB device interface (setup), a LAN connection (Ethernet), and 2 system bus connections are available. As an option (in CPU and HMI), up to 2 interfaces can be used for fieldbus applications. Furthermore, USB host interfaces (e.g. for a USB flash drive) are available in HMI. |
| Approvals | UL, metrological certificate, DNV GL |
Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
 |
|
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |

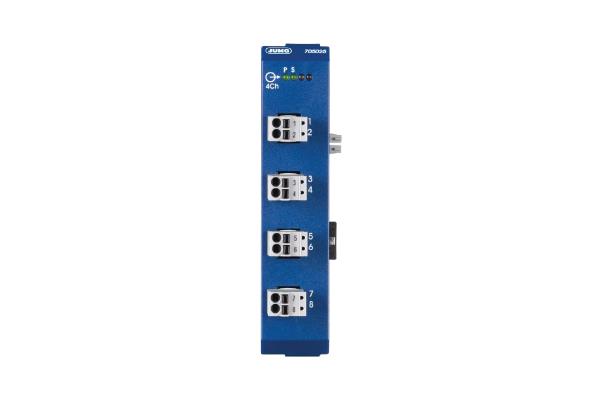

Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
|
|
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
Analog output module 4-channel
The analog output module 4-channel is equipped with 4 outputs. The output signal, 0(2) to 10 V or 0(4) to 20 mA, can be configured individually for each channel. The analog outputs are controlled via the system bus.
 |
|
|
|
Configurable behavior
in the event of malfunction |
Removable terminal
strips |
Connection of
outputs on the front |
