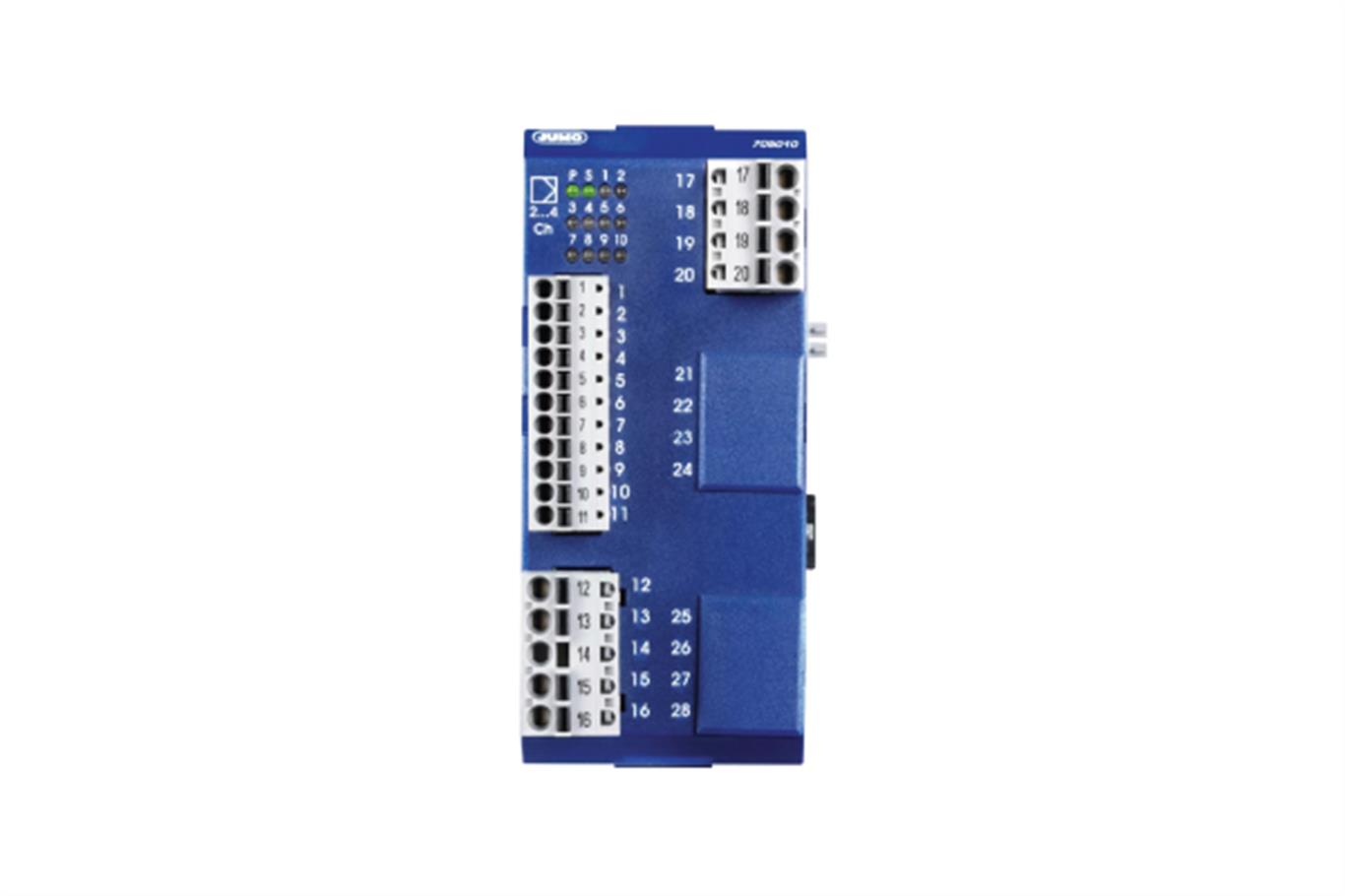

JUMO mTRON T 705010
Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
 |
 |
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |
GENERAL TECHNICAL DATA |
| Special features | Up to 4 independently user configurable PID control loops with a fast cycle time and tried-and-tested control algorithms, independent operation, math and logic functions, counter input up to 10 kHz |
| Number of analog inputs | 2 + 2 (optional) |
| A/D converter | Dynamic resolution up to 16 bit |
| Number of digital inputs | 2 + 6 (optional) |
| Controller types | Two-state controller, three-state controller, three-step controller, continuous controller, continuous controller with integrated position controller |
| Controller structures | P/PD/PI/PID |
| Voltage supply | DC 24 V +25/-20 % |
| Current consumption | Max. 300 mA (at DC 19.2 V) |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Approvals | UL, DNV GL |
| Ambient temperature | -20 to +55 °C |
| Protection type | IP20, according to DIN EN 60529 |
| Dimensions (W × H × D) | 45 mm × 103.6 mm × 101.5 mm (without connection elements) |
Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
 |
 |
|
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |
Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
|
|
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
Analog output module 4-channel
The analog output module 4-channel is equipped with 4 outputs. The output signal, 0(2) to 10 V or 0(4) to 20 mA, can be configured individually for each channel. The analog outputs are controlled via the system bus.
 |
|
|
|
Configurable behavior
in the event of malfunction |
Removable terminal
strips |
Connection of
outputs on the front |
