Turbine Flow Meters
Mechanical

Turbine Flow Meters with Flange Connections for lubricating and non-lubricating media

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

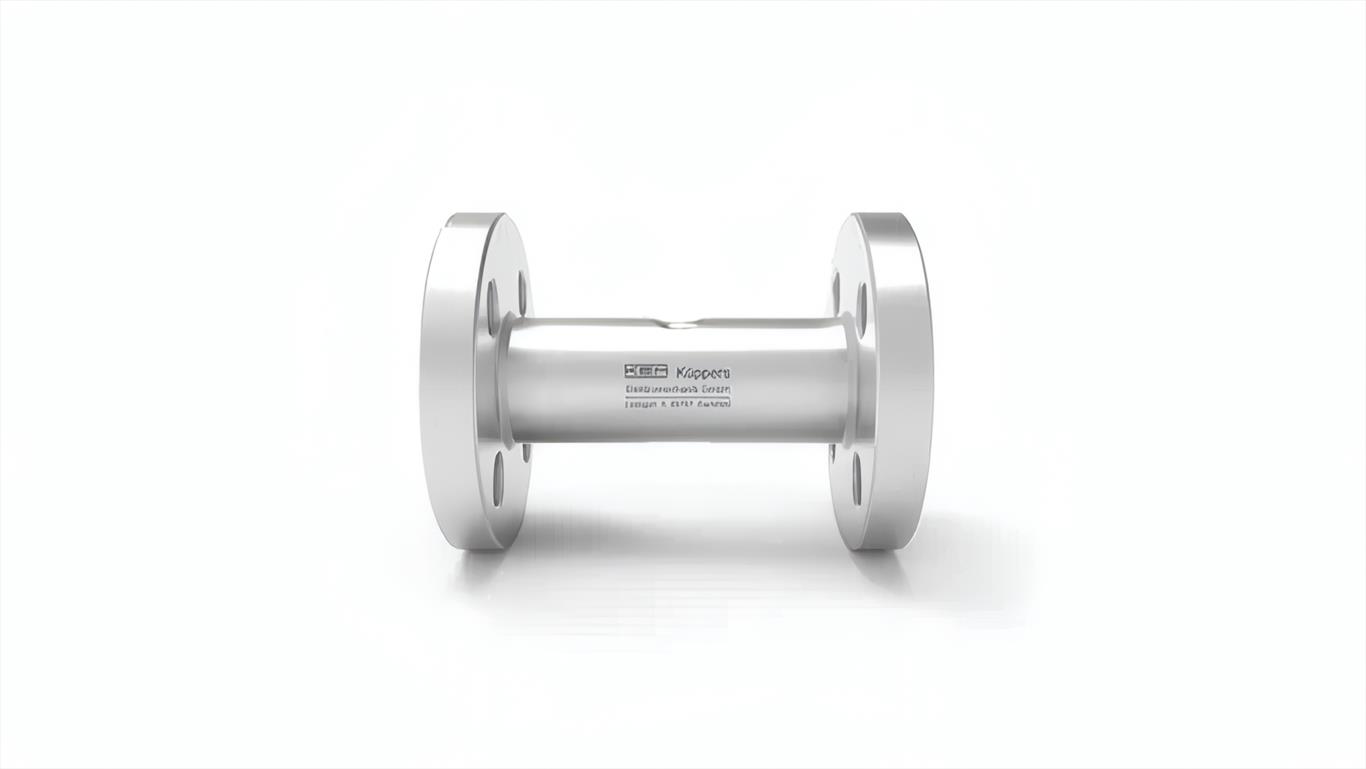

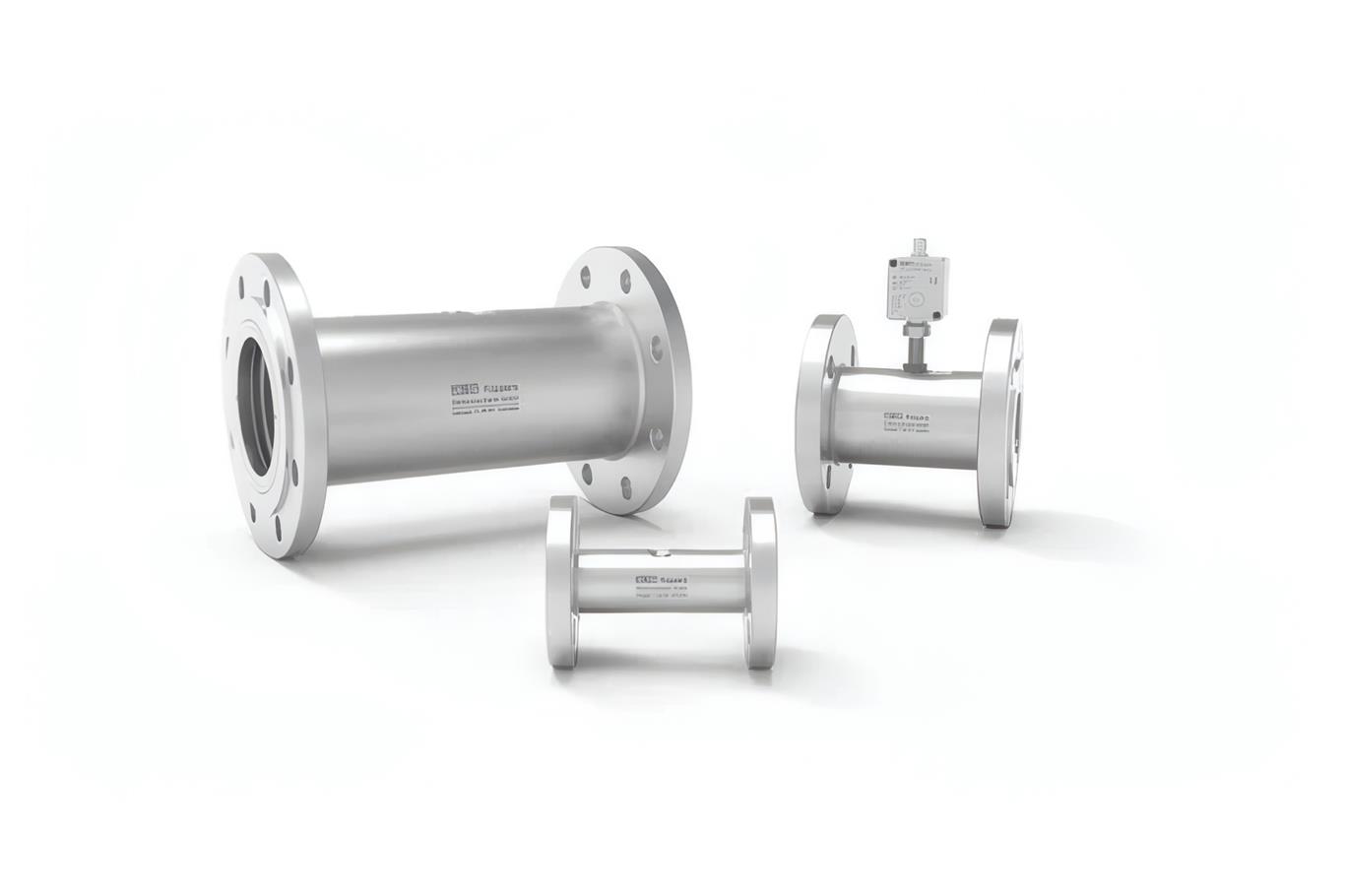

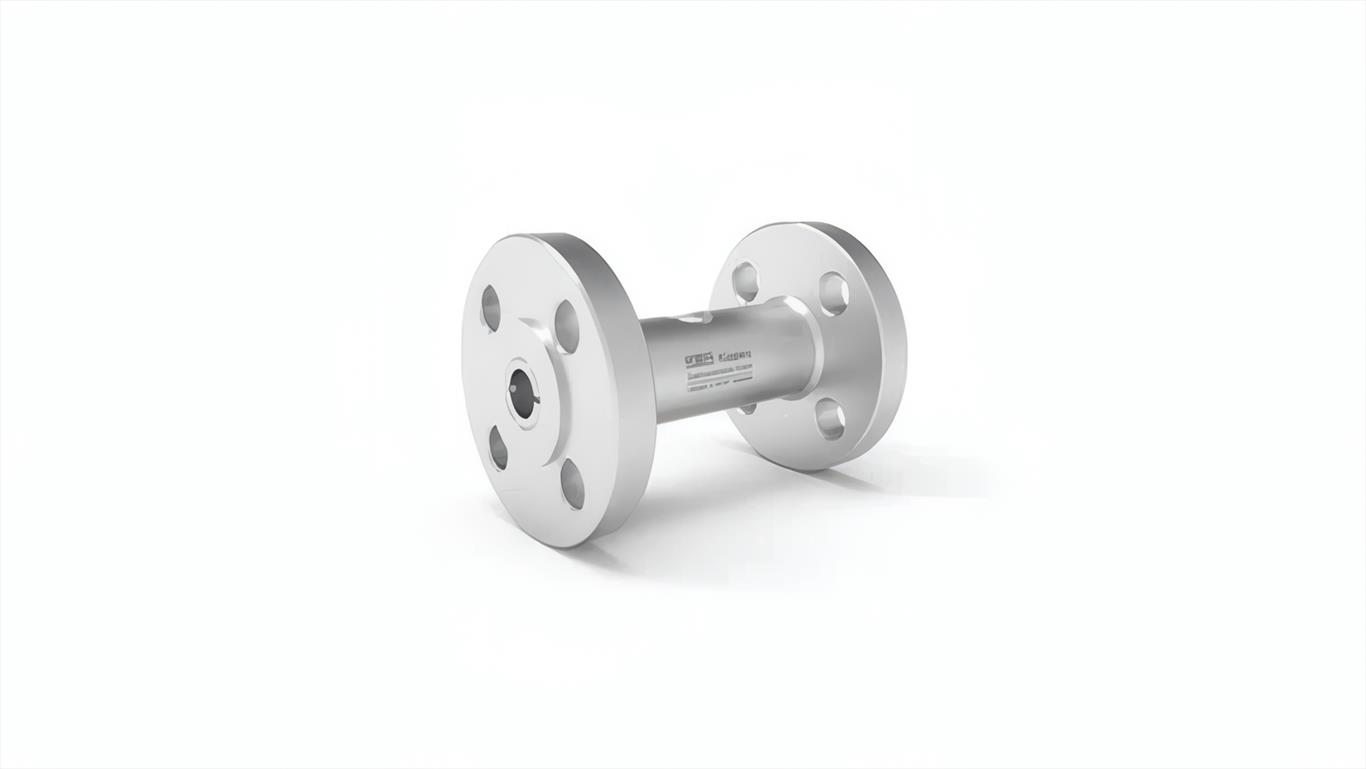

The HM F turbine flow meter series (F for flange connections) is used to measure continuous and discontinuous flow rates. They are mainly used for lubrication and non-lubrication media. They are particularly suitable for low and medium viscosity liquids, such as water, emulsions, glycol mixtures and light oils.

Measuring Ranges 1 to 10,000 l/min
Repeatability ±0.05 % (in standard measuring range & under the same conditions)
Linearity ±1 % of actual flow
Viscosity Range 1 up to 10 mm²/s
Materials
  • Housing and internal parts: DIN 1.4404 [AISI 316L]
  • Wheels: DIN 1.4462 [AISI S31803]
  • Bearing: Tungsten carbide sleeve bearing
Pressure 16 up to 250 bar [232 up to 3,626 psi]
Medium Temperature -60 °C up to +350 °C [-76 °F up to +662 °F]
Gear Flow Meters – Datasheet HM F Series Dowload PDF
