Turbine Flow Meters
Mechanical

Turbine Flow Meters with BSPP Threads for lubricating and non-lubricating media

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

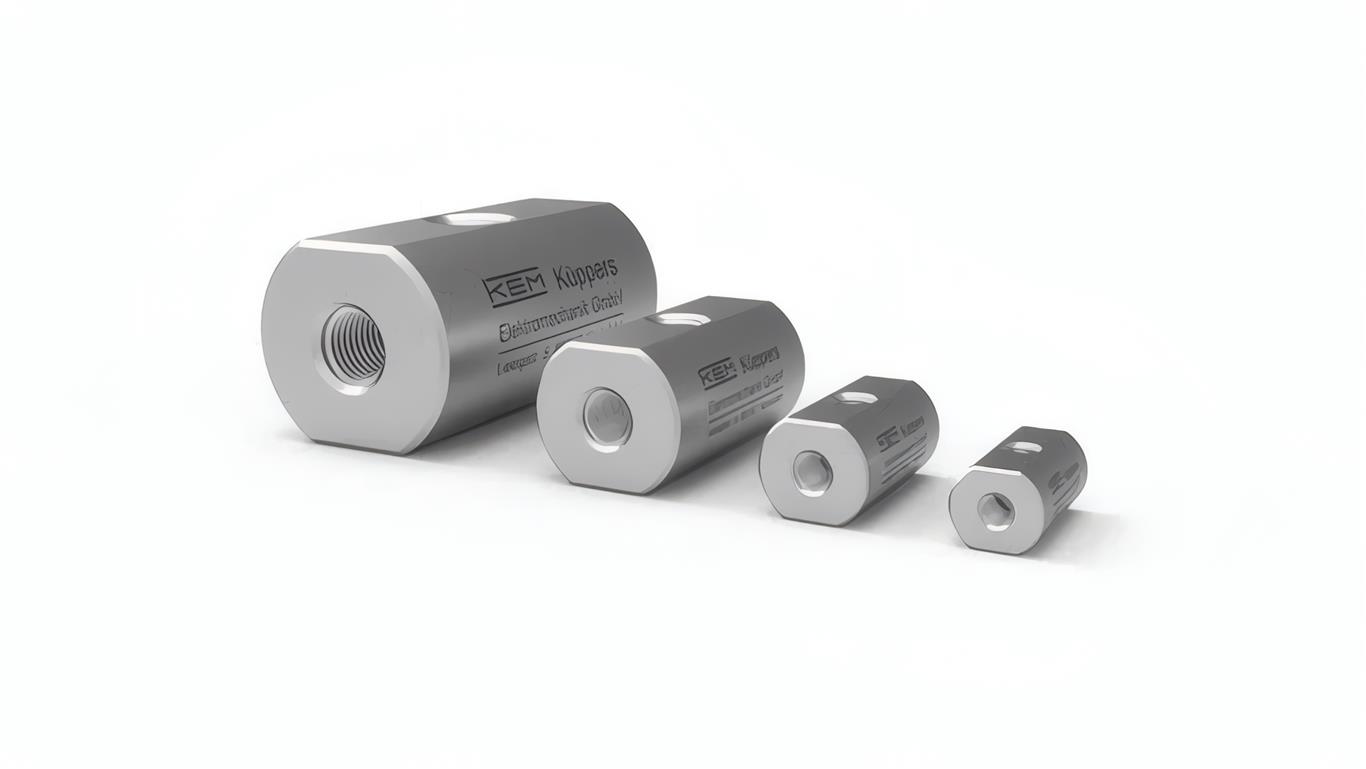

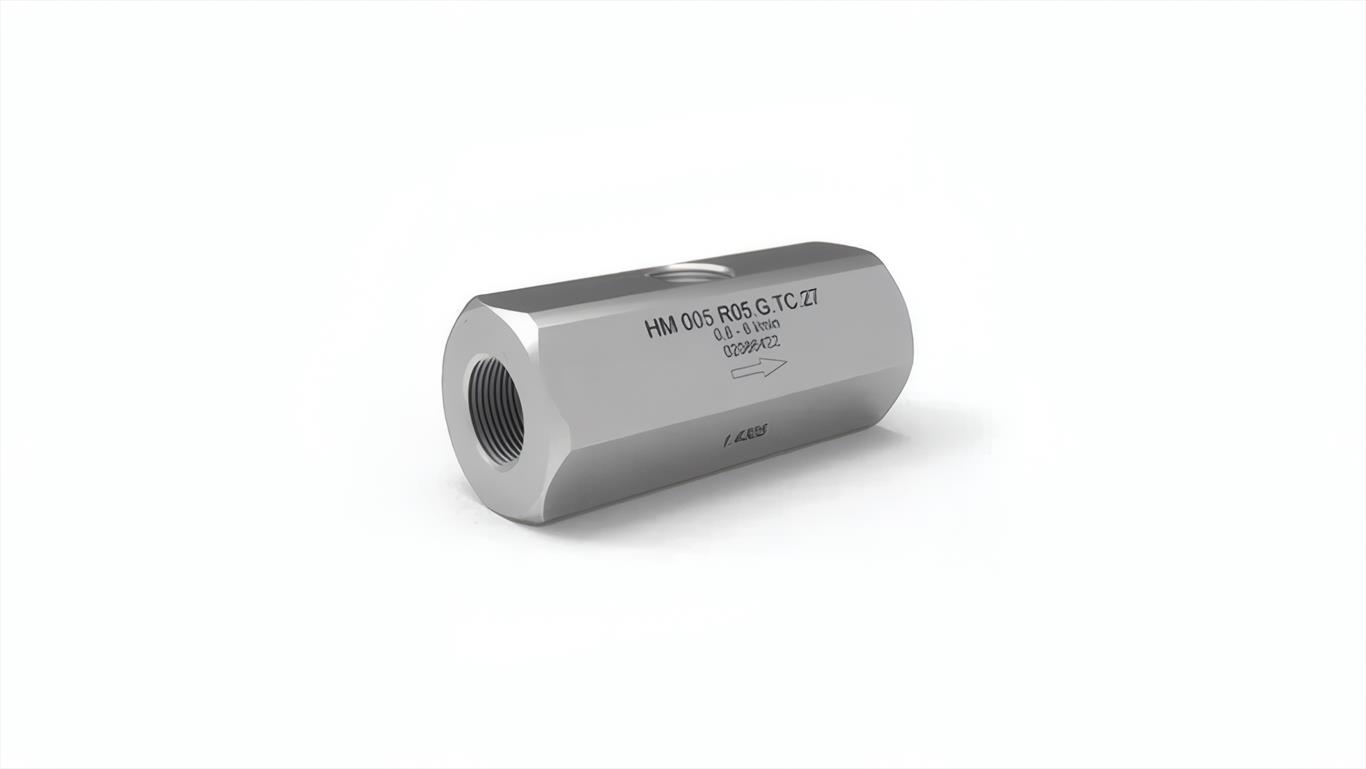

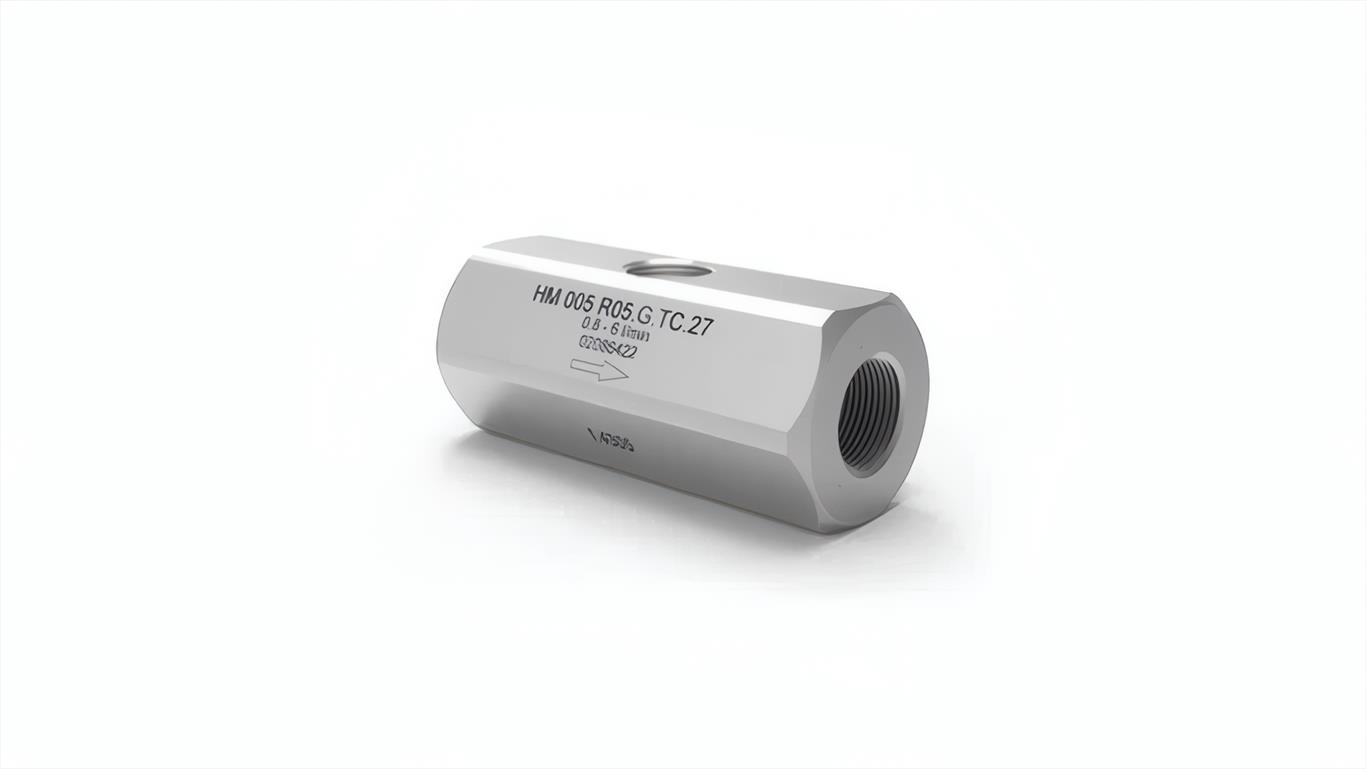

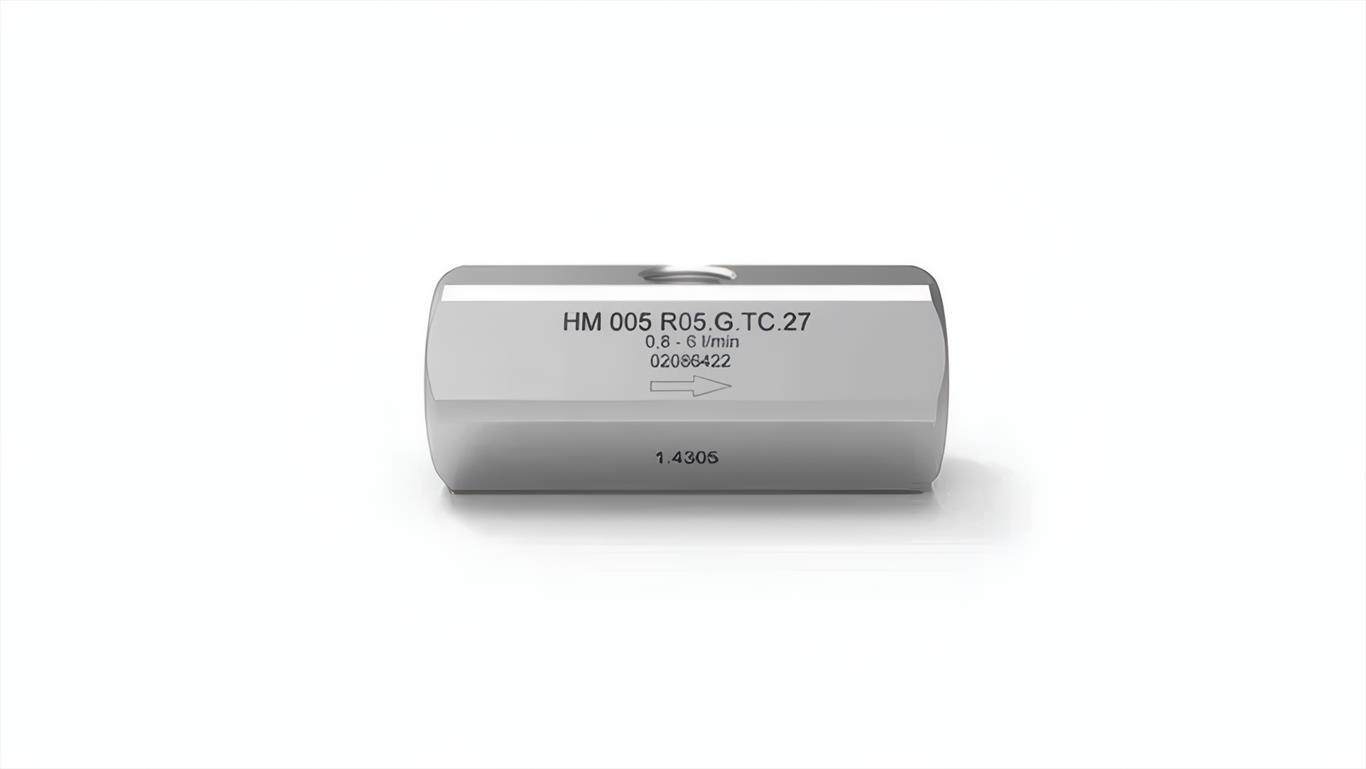

The HM R turbine flow meter series (R for Female Inch Threads) is used to measure continuous and discontinuous flow rates. They are mainly used for lubrication and non-lubrication media. They are particularly suitable for low and medium viscosity liquids, such as water, emulsions, glycol mixtures and light oils. Even the measurement of cryogenic fluids is possible.

Measuring Ranges 0.3 up to 400 l/min
Repeatability ±0.05 % (under the same conditions)
Linearity ±1 % of actual flow
Viscosity Range 0.8 up to 30 mm²/s
Materials
  • Housing: as per DIN 1.4404 [AISI 316L] (others on request)
  • Wheels: as per DIN 1.4460 [AISI 329] (others on request)
  • Bearing: Tungsten carbide sleeve bearing
Pressure up to 630 bar [9,140 psi]
Medium Temperature -60 °C up to +350 °C [-70 °F up to +662 °F]
Turbine Flow Meters – Datasheet HM R Series Dowload PDF
Turbine Flow Meters – Manual HM Series Dowload PDF
