Turbine Flow Meters
Mechanical

Turbine Flow Meters for Solvents with integrated sensor electronics

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

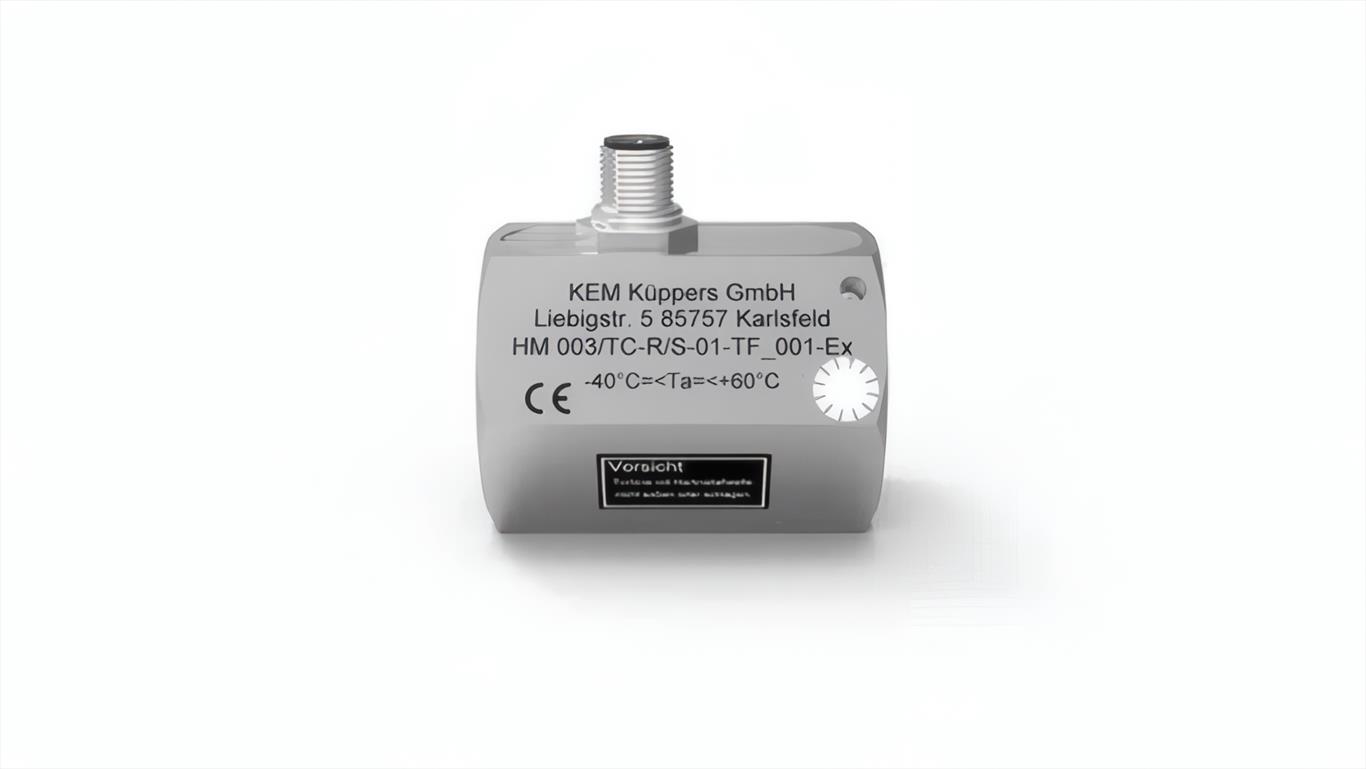

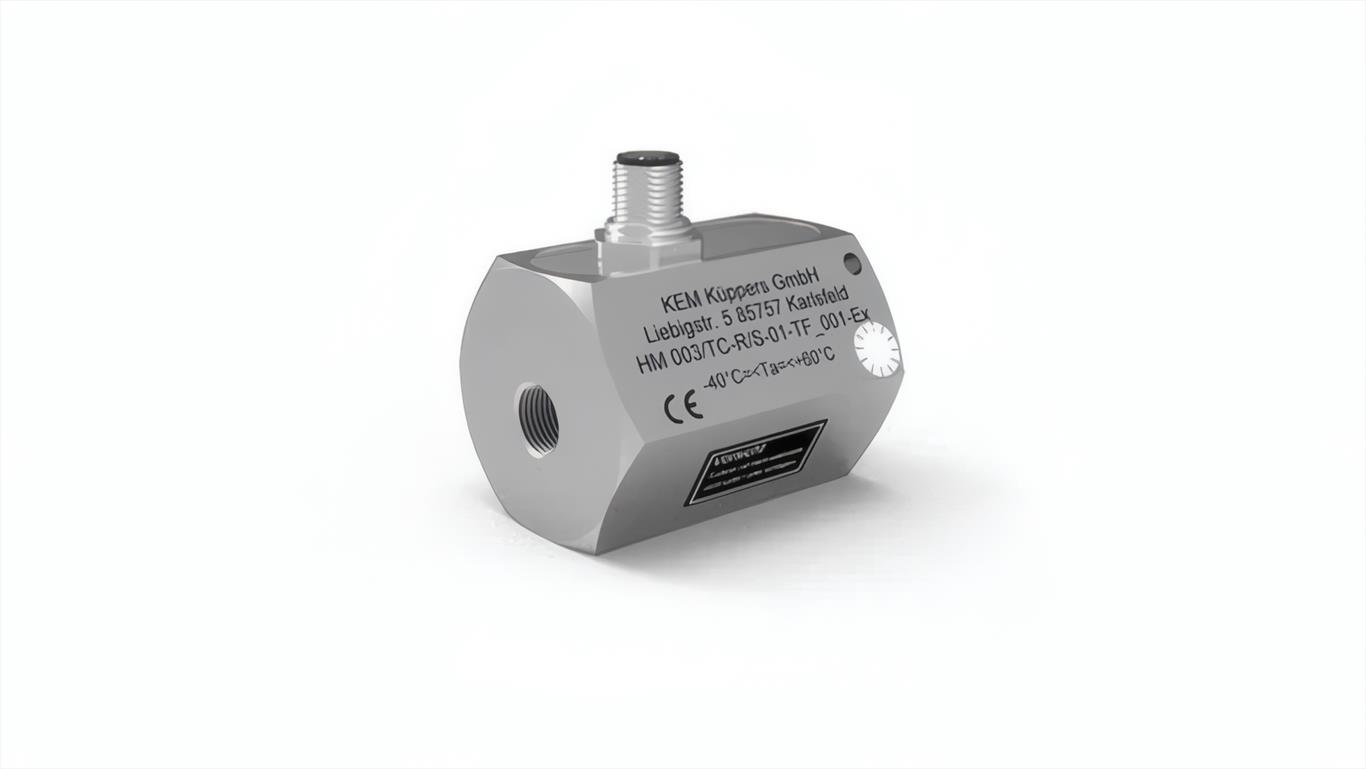

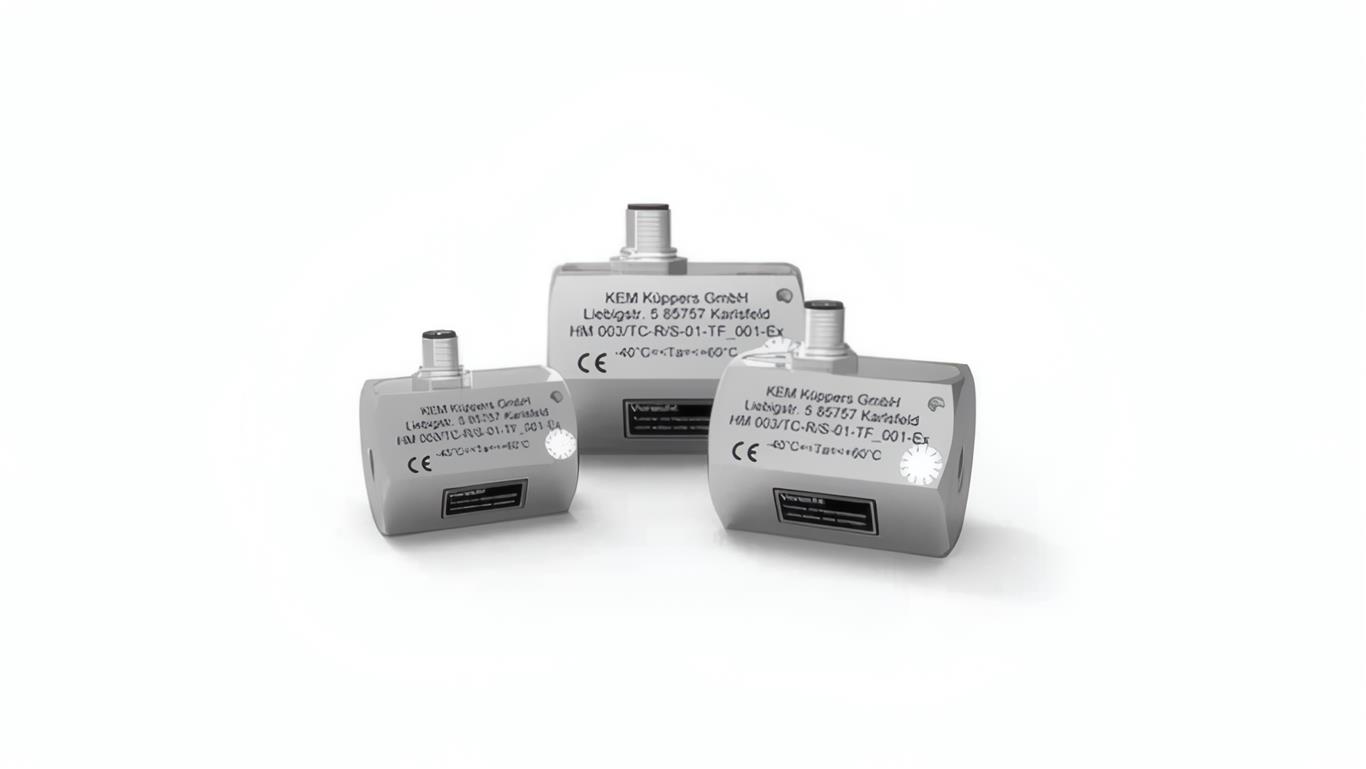

The HM TC-R turbine flow meter series (TC-R for BSPP ports and compact electronics) is used to measure continuous and discontinuous flow rates. Mainly used for non-lubricating media. Especially well-suited for low-viscosity fluids such as water and solvents.

Measuring Ranges 0.3 up to 85 l/min
Repeatability ±0.05 % (under the same conditions)
Linearity ±1 % of actual flow (viscosity 1 mm²/s)
Viscosity Range 0.6 up to 1 mm²/s
Materials
  • Housing: as per DIN 1.4305 [AISI 303]
  • Wheels: as per DIN 1.4460 [AISI 329]
  • Bearing: Tungsten carbide sleeve bearing
Pressure up to 630 bar [9,135 psi]
Medium Temperature -40 °C up to +80 °C [-40 °F up to +176 °F]
Gear Flow Meters – Datasheet HM TC-R Series Dowload PDF
Gear Flow Meters – Manual HM Series Dowload PDF
