Turbine Flow Meters
Mechanical

Turbine Flow Meters for Pharmaceutical Applications

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

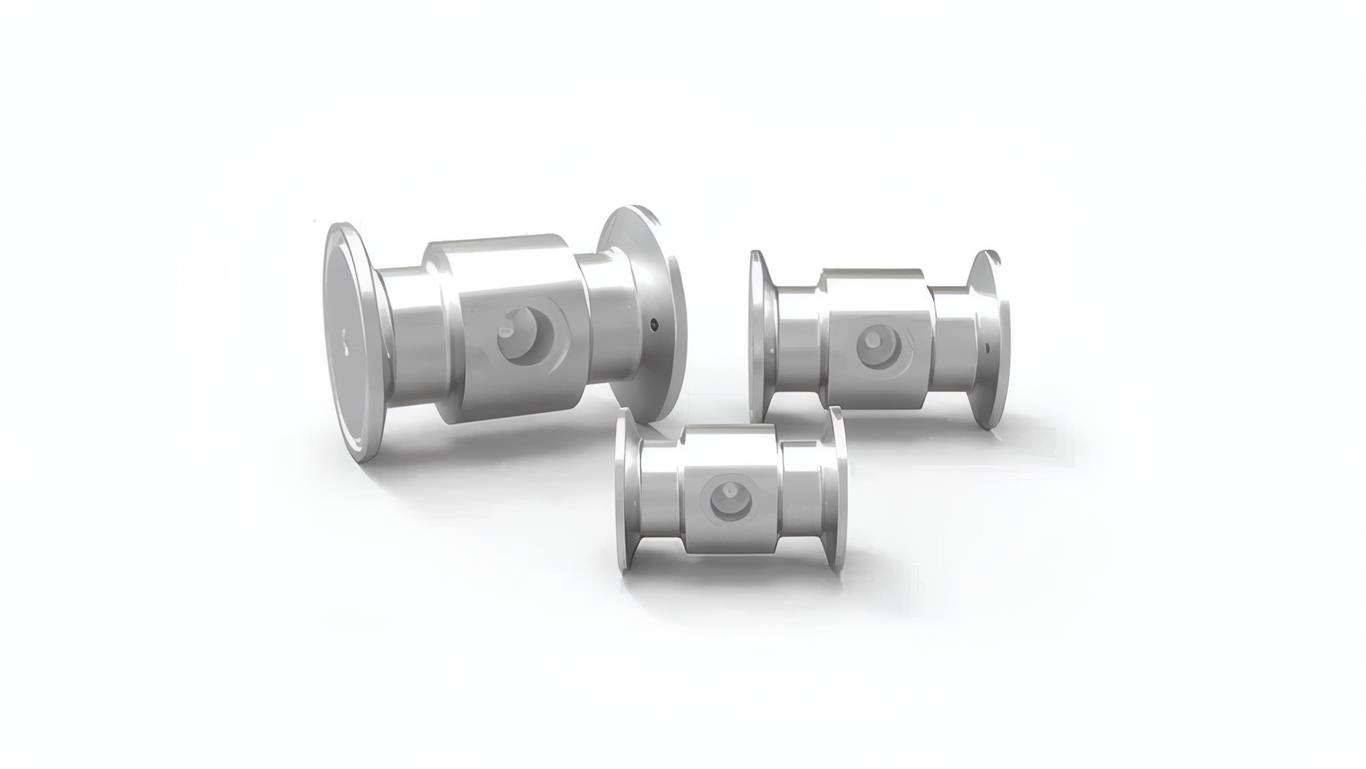

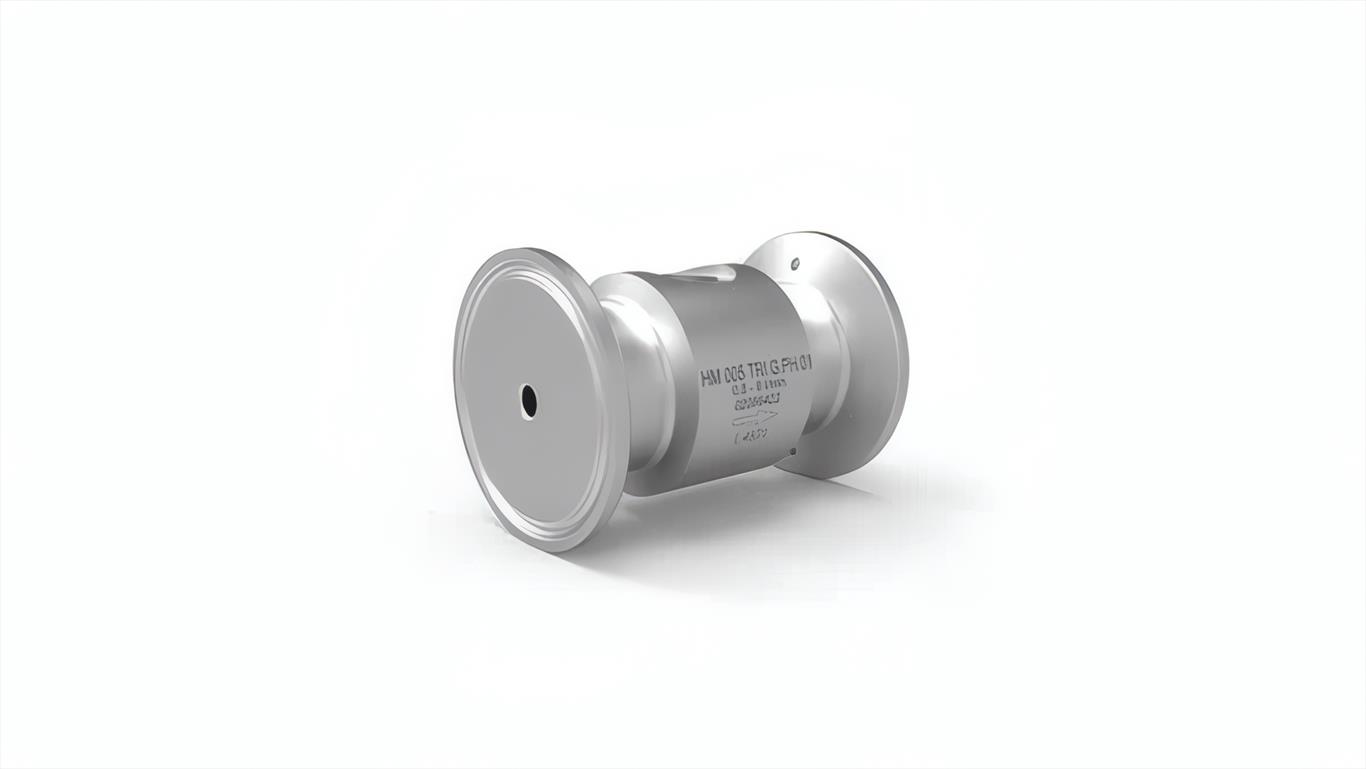

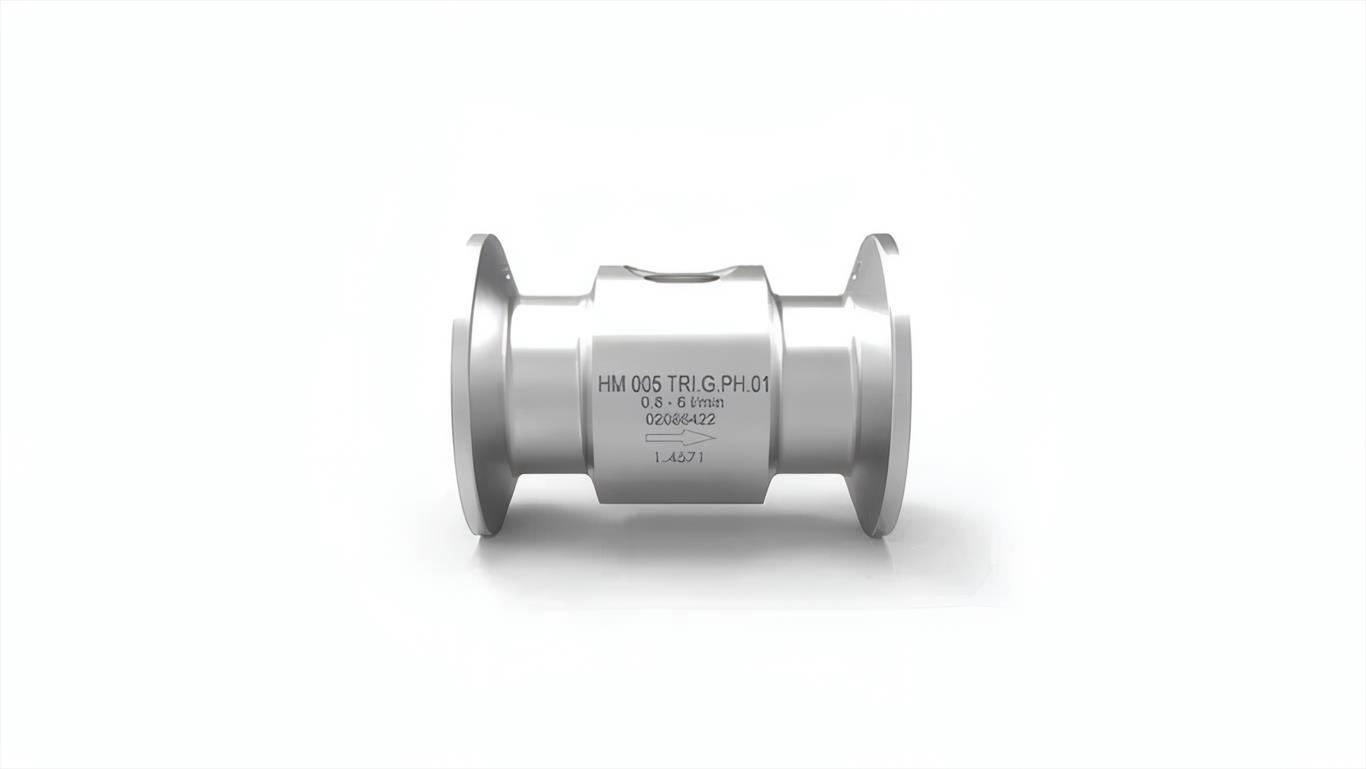

The HM TRI turbine flow meter series (TRI for Tri-Clamp connectors) is used to measure continuous and discontinuous flow rates. Used primarily in pharmaceuticals and the food industry. The innovative, dead space free construction and special flushing bores in the bearing make it very easy to flush.

Measuring Ranges 0.3 up to 400 l/min
Repeatability ±0.05 % (under the same conditions)
Linearity ±1 % of actual flow (viscosity 1 mm²/s)
Viscosity Range 1 mm²/s
Materials
  • Housing: as per DIN 1.4404 [AISI 316 L]
  • Wheels: as per DIN 1.4460 [AISI 329]
  • Bearing: PTFE
Pressure up to 16 bar [232 psi]
Medium Temperature -40 °C up to +150 °C [-40 °F up to +302 °F]
Gear Flow Meters – Datasheet HM TRI Series Dowload PDF
Gear Flow Meters – Manual HM Series Dowload PDF
