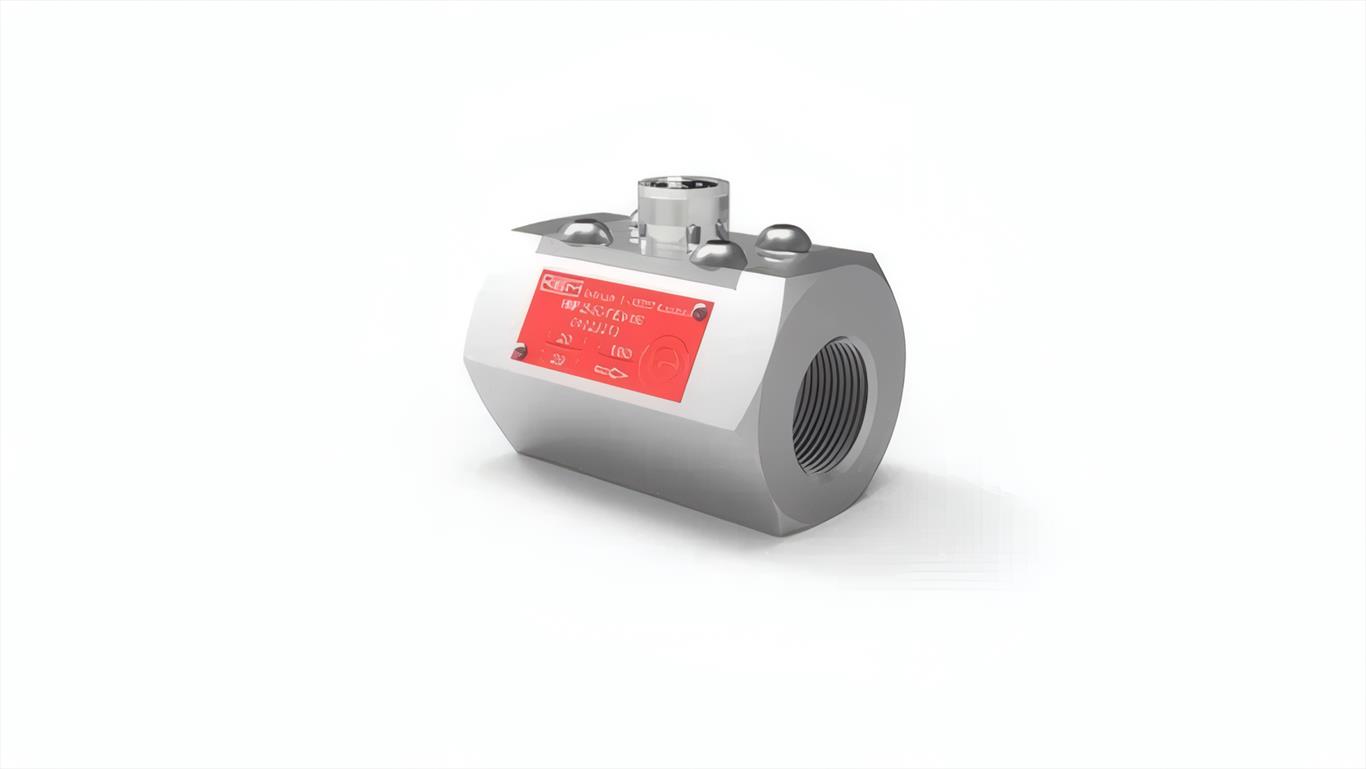

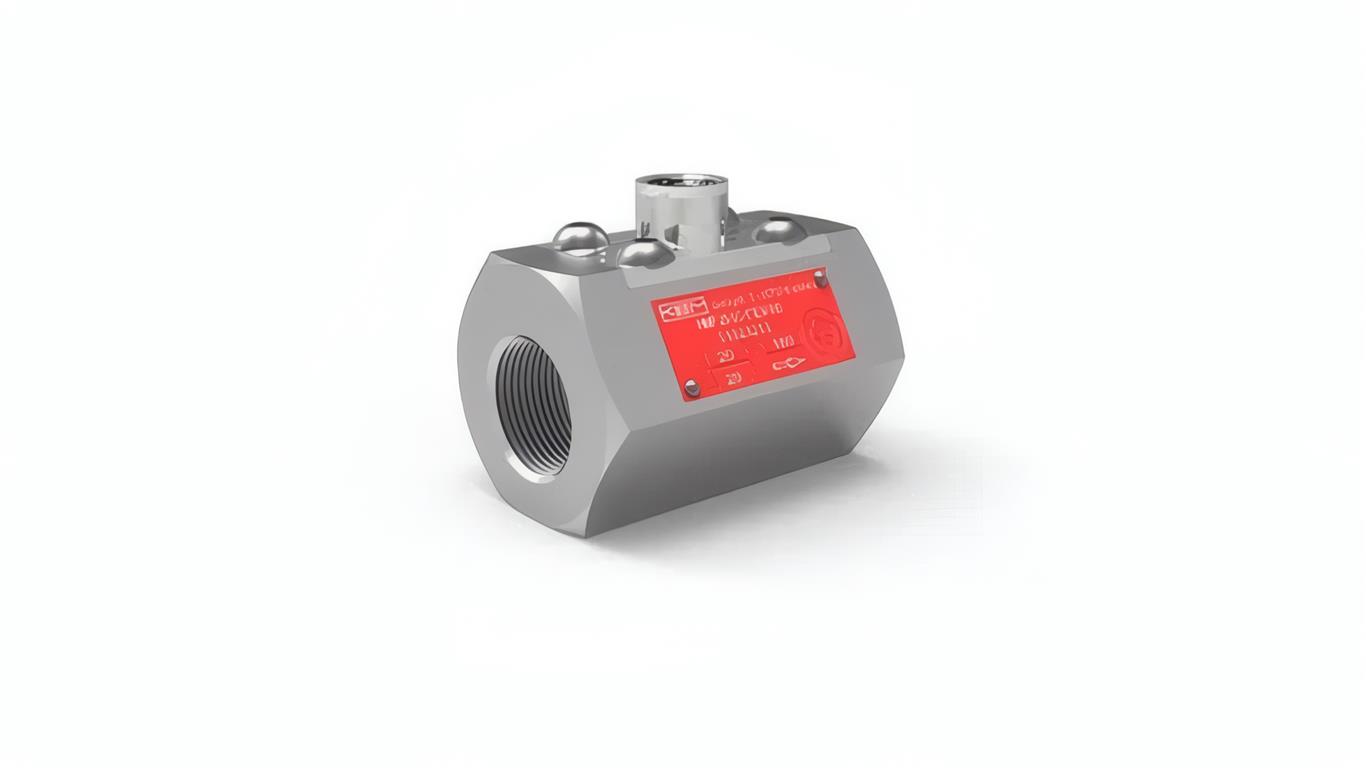

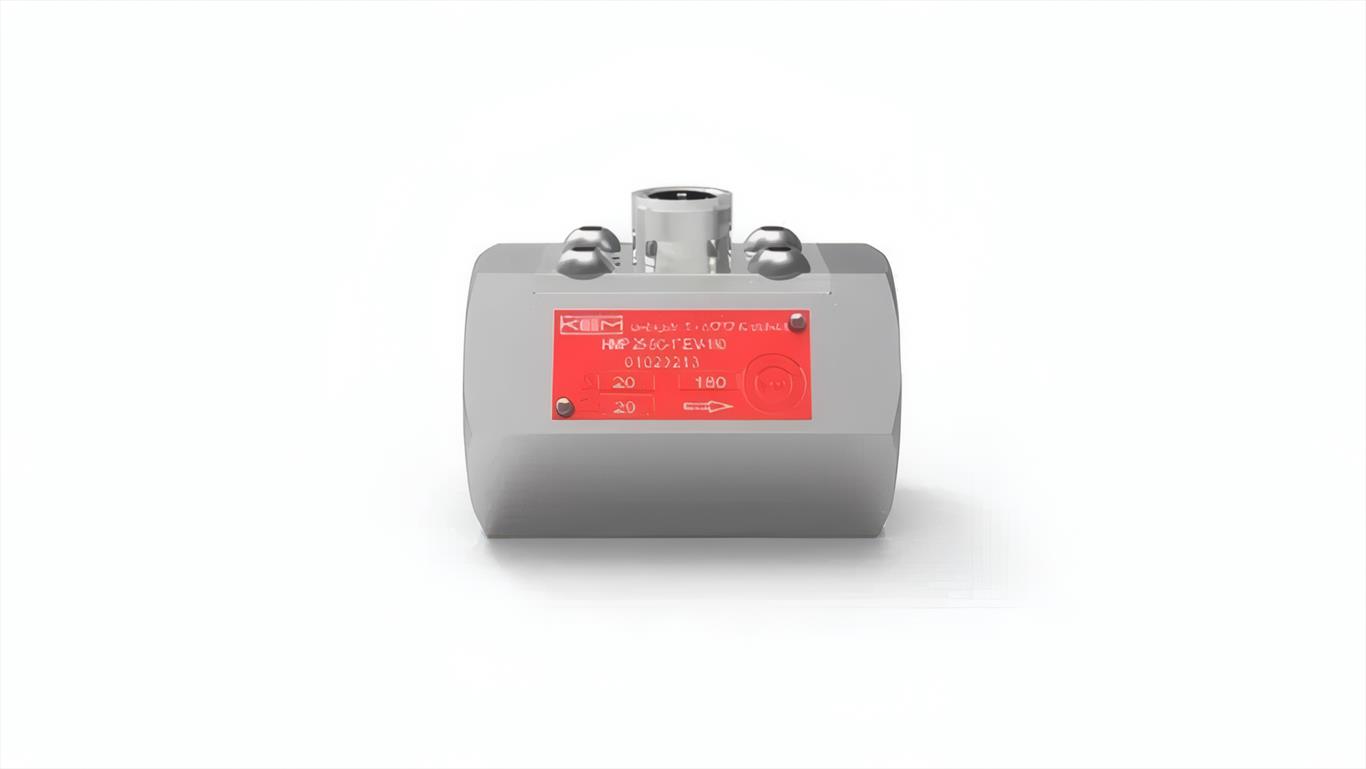

HM P Series
HM P Series
HM P Series
HM P Series
HM P Series
HM P Series

HM P Series

Turbine Flow Meters
Mechanical

Turbine Flow Meters with Pelton Wheel for monitoring heating and cooling circuits

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

The HM P (P for Pelton wheel) series turbine flowmeter works according to the Pelton wheel turbine principle and is used to measure continuous and discontinuous volume flows. It is used primarily for cost-effective flow rate measurement in heating and cooling circuits. Even heavily contaminated media at very high temperatures can be measured thanks to the special design and bearing concept.

Measuring Ranges 3.0 up to 280 l/min
Repeatability ±0.5 % (under the same conditions)
Linearity ±2.5 % of actual flow (viscosity 1 mm²/s)
Viscosity Range 0.8 up to 10 mm²/s
Materials
  • Housing: as per DIN 1.4305 [AISI 303]
  • Wheels: as per DIN 1.4122
  • Bearing: Brass, Ceramics
  • Seals: FKM, graphite
Pressure up to 20 bar [290 psi]
Medium Temperature -60 °C to +350 °C [-76 °F up to +662 °F]
Gear Flow Meters – Datasheet HM P Series Dowload PDF
Gear Flow Meters – Manual HM Series Dowload PDF
