Turbine Flow Meters
Mechanical

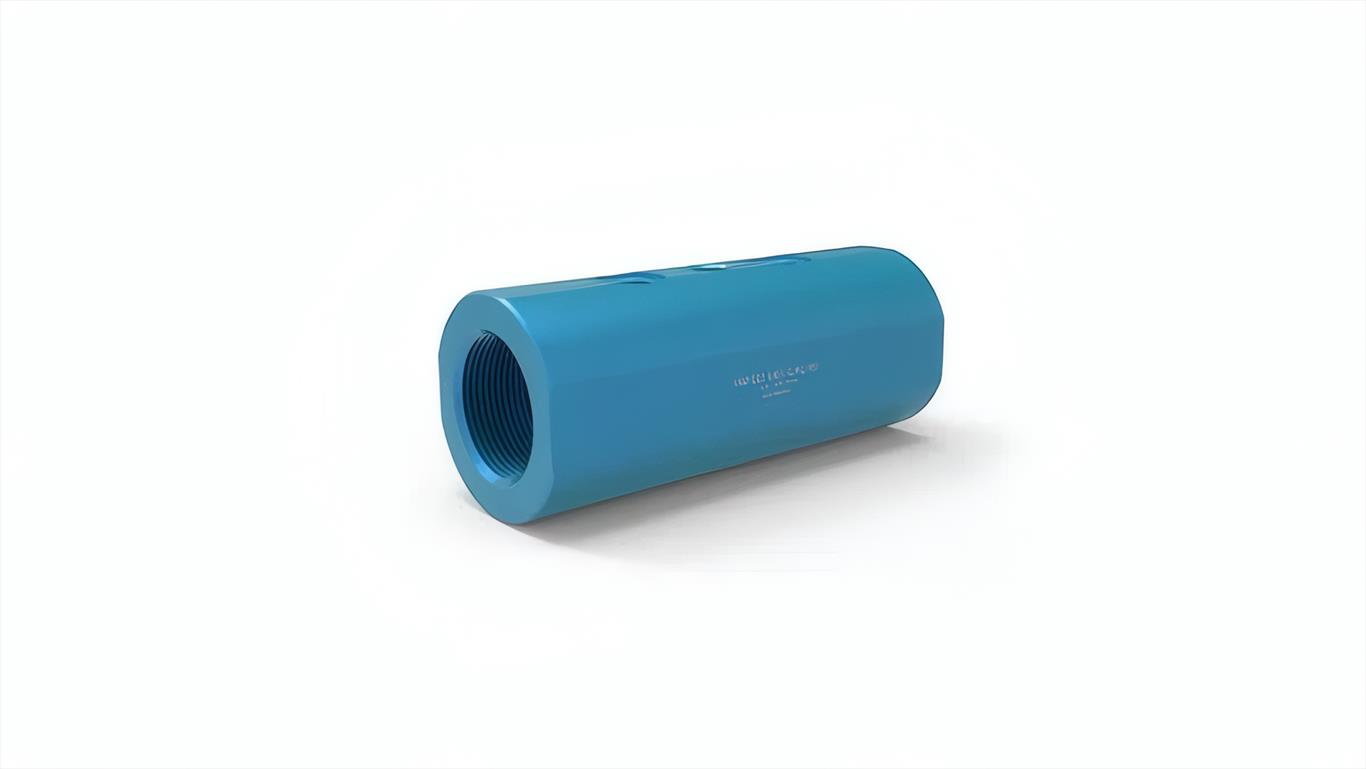

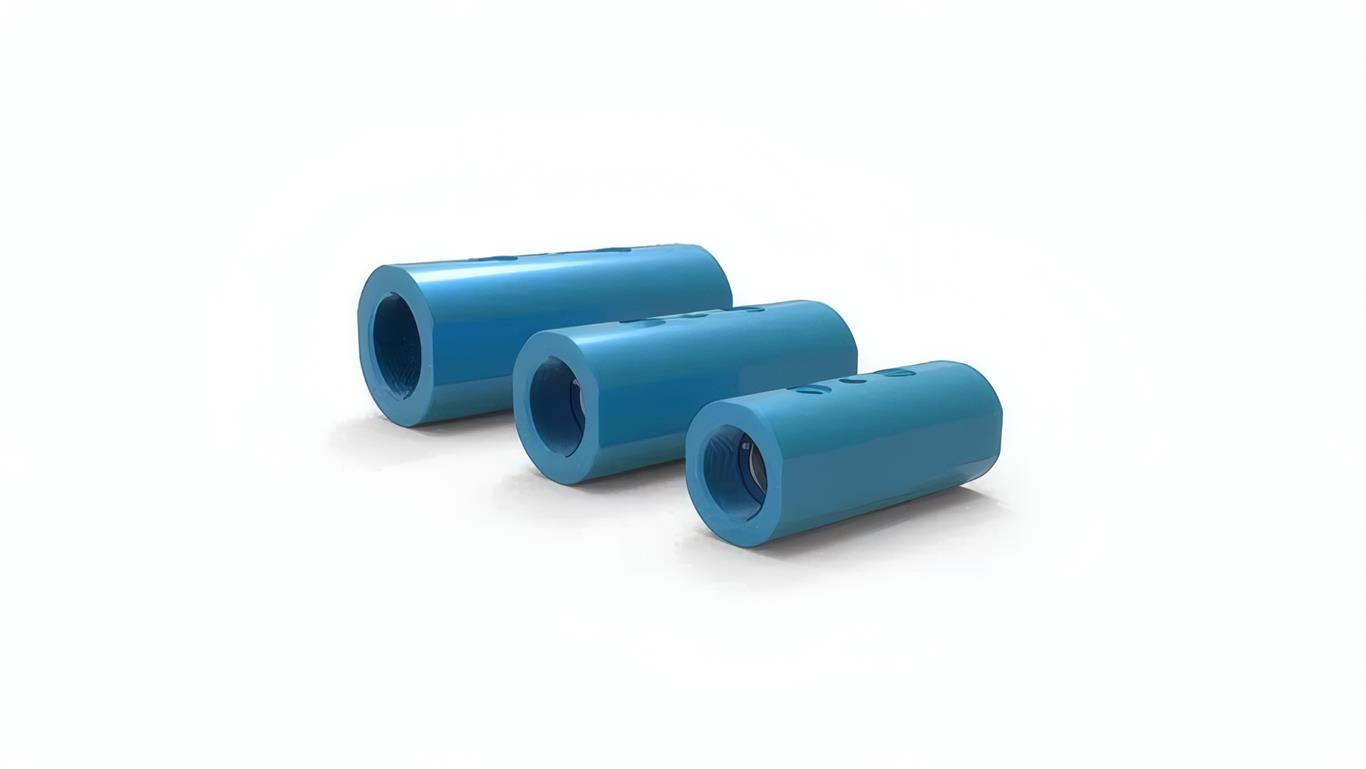

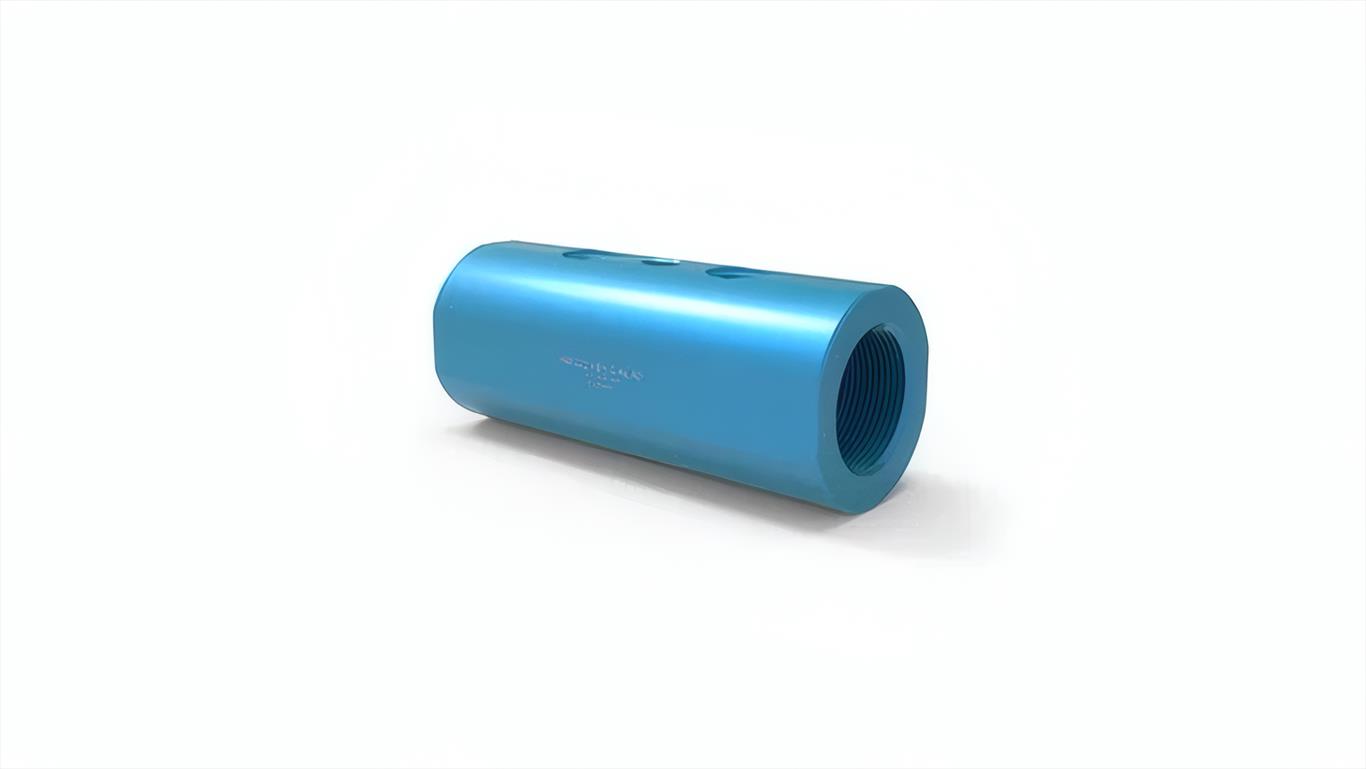

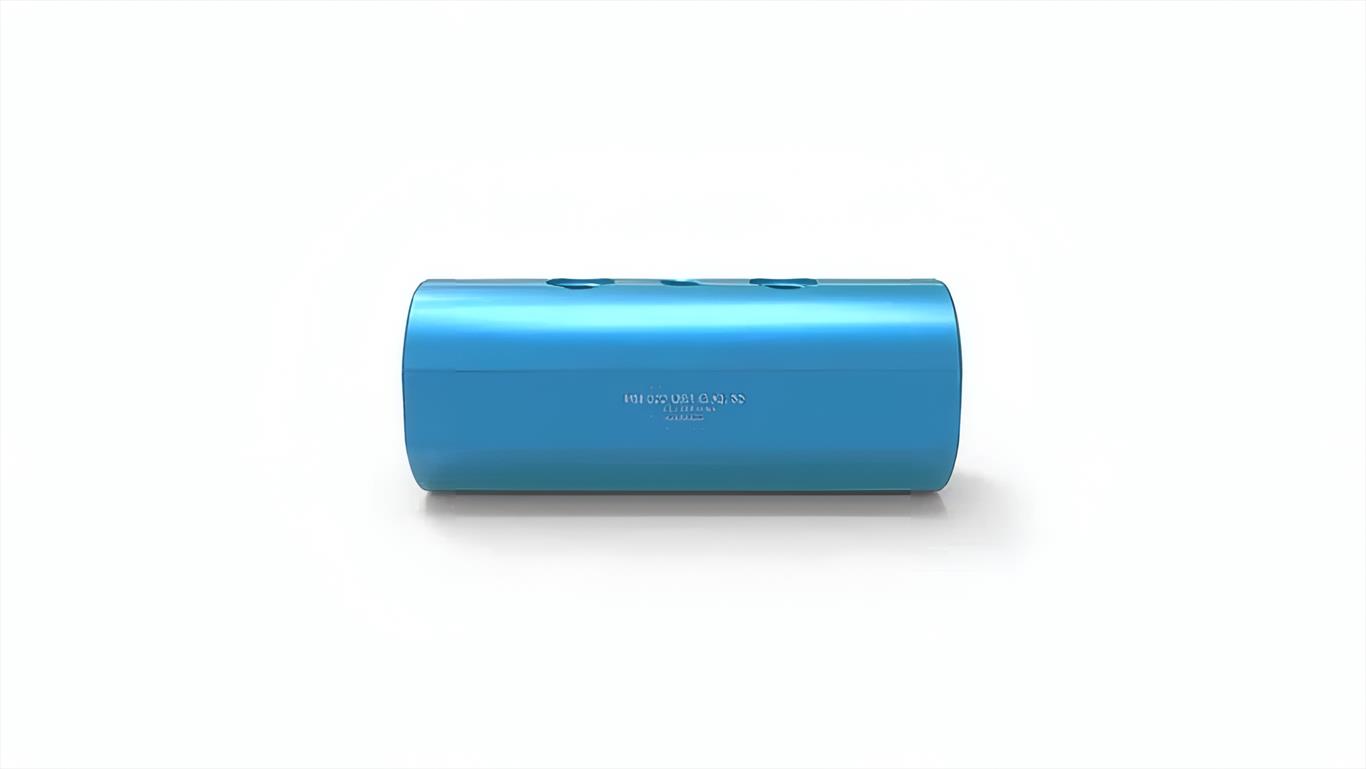

Aluminum Turbine Flow Meters with ball bearings for hydraulic applications

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

The HM U turbine flow meter series (U for aluminum housing and ball bearing) is used to measure continuous and discontinuous flow rates. They are mainly used for lubrication media. Especially well-suited for oils and hydraulic fluids.

Measuring Ranges 1.2 up to 600 l/min
Repeatability ±0.5 % (under the same conditions)
Linearity ±2.5 % of actual flow (viscosity 30 mm²/s)
Viscosity Range 30 mm2 /s
Materials
  • Housing: as per DIN 3.4365 [EN AW-7075]
  • Wheels: as per DIN 1.4122
  • Bearing:
    • HM 007 - 011: Tungsten carbide sleeve bearing
    • HM 022 - 030: Stainless steel ball bearing
Pressure up to 420 bar [6,090 psi]
Medium Temperature -40 °C up to +120 °C [-40 °F up to +248 °F]
Gear Flow Meters – Datasheet HM U Series Dowload PDF
Gear Flow Meters – Manual HM Series Dowload PDF
