JUMO DELOS HP
Precision pressure transmitter with switching contacts and display
The product is equipped with an electronic pressure switch with analog output and is specially designed for use on test benches, in laboratory areas, and for special machine construction. The default nominal values are between 160 and 600 bar.
 |
 |
 |
|
Flexible instalinstallation
position |
High bursting
safety |
Simple
configuration |
GENERAL TECHNICAL DATA |
| Output | 1x PNP switching output, 2x PNP switching output, 1x PNP switching output, and 1x analog output) (either: 0(4) to 20 mA, 0 to 10 V) |
| Accuracy (linearity) | 0.10 % |
| Input | 160 to 600 bar relative |
| Process connection | Thread |
| Special features | Programmable, switching output, measuring range scaling 1:4, selectable measuring unit, housing and process connection made of stainless steel |
| Medium temperature | -25 to +100 °C |
| Ambient temperature | -25 to +75 °C |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
|
 |
|
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Multifunction digital indicator with PLC function
The multifunctional digital controller impresses with the individual design of its user interface and hardware equipment. Analog and digital inputs and outputs, counting inputs, as well as interfaces can be flexibly added to display the required process variables. The indicator masters even complex applications with math and logic functions as well as the implementation of control functions via ST code.
|
 |
 |
|
High degree of
interface connectivity |
Intuitive configuration
and operation |
Quick and simple
startup |

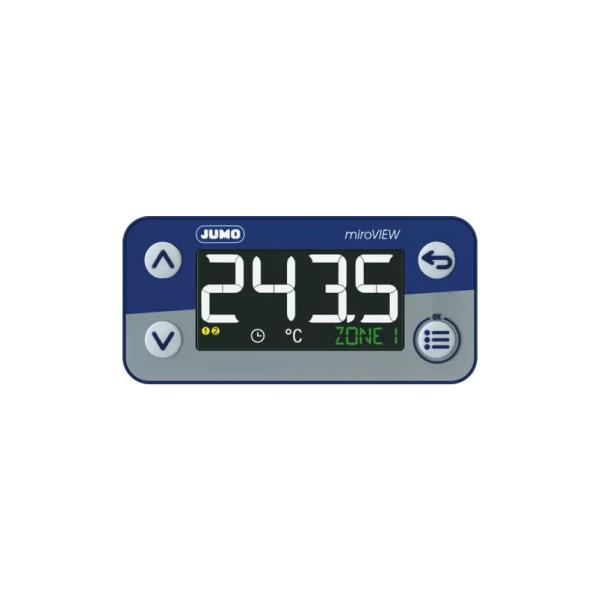

Smart digital indicator with limit value monitoring function for panel mounting
The JUMO miroVIEW is a digital indicator with measurement inputs for RTD temperature probes or thermocouples and standard signals for panel mounting.
 |
|
|
|
Flexible in its
application |
Intuitive operation
in plain text |
Quick and simple
startup |
