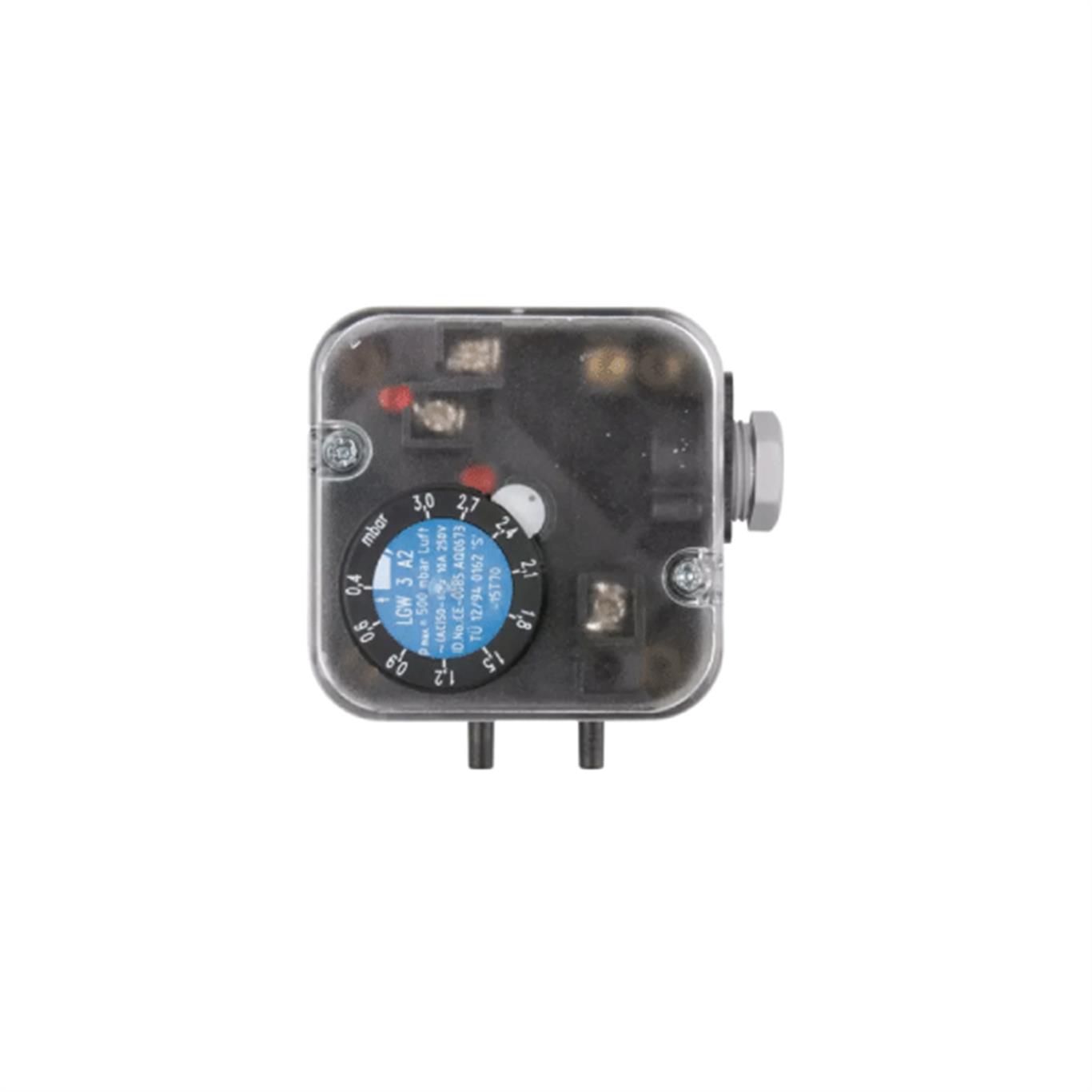

JUMO differential pressure monitor
For air, smoke, and exhaust gases
The type 4 ADS product acquires the negative pressure, overpressure, or differential pressure of air, smoke, and exhaust gases in ventilation, air-conditioning, and filter systems. It is suitable to switch a current circuit ON, OFF or change it over, when the actual value changes in relation to the setpoint value.
 |
 |
 |
|
TÜV test as
pressure monitoring |
Protection type:
IP54 IEC 529 (EN 60529) |
Additional
air-conditioning set for mounting |
GENERAL TECHNICAL DATA |
| Medium temperature | -15 to +60 °C |
| Setting ranges | 0.0004 to 1.5 bar differential pressure |
| Switching point accuracy | ± 15 % |
| Operating pressure | 0 to 0.5 bar |
| Protection type | IP54 |
| Contact type | 1-pole switch as toggle fine silver (Ag) |
| Cable entry | Pg 11 |
| Electrical connection | Screw connection up to 2.5 mm² conductor cross section |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
 |
|
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |

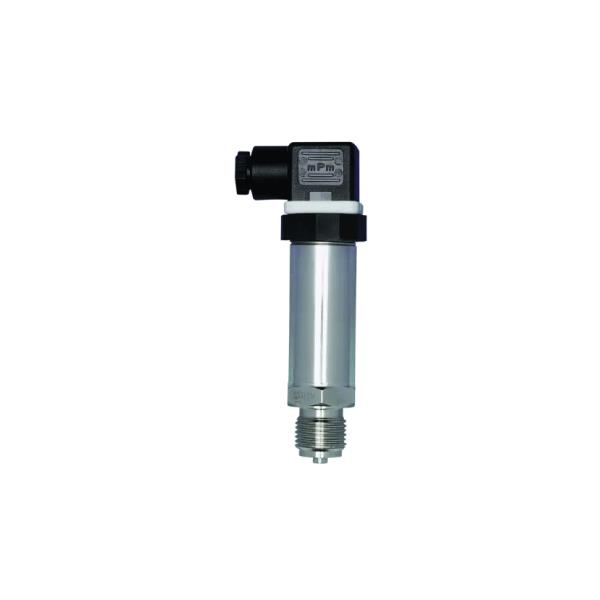

Pressure transmitter
This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal. It uses the thick film strain gauge measuring principle based on an aluminum oxide ceramic material (Al2O3). It is used in particular in mechanical and plant engineering.
 |
 |
 |
|
Low investment
costs |
Has different
output signals |
Long-term stability
+ overload resistance |

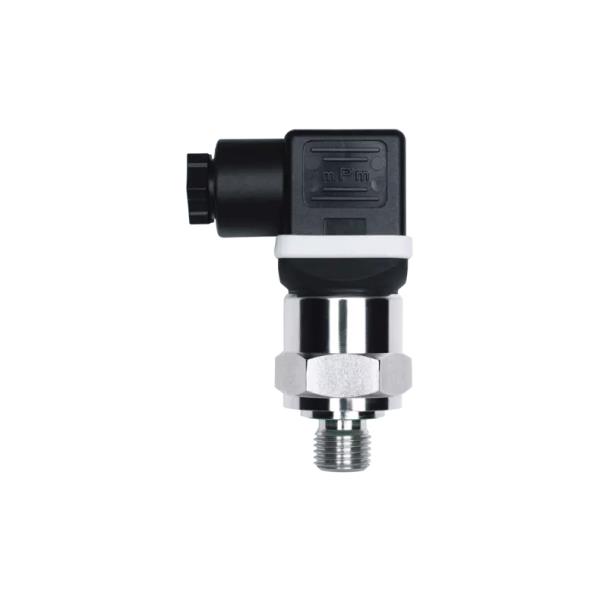

Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
|
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
