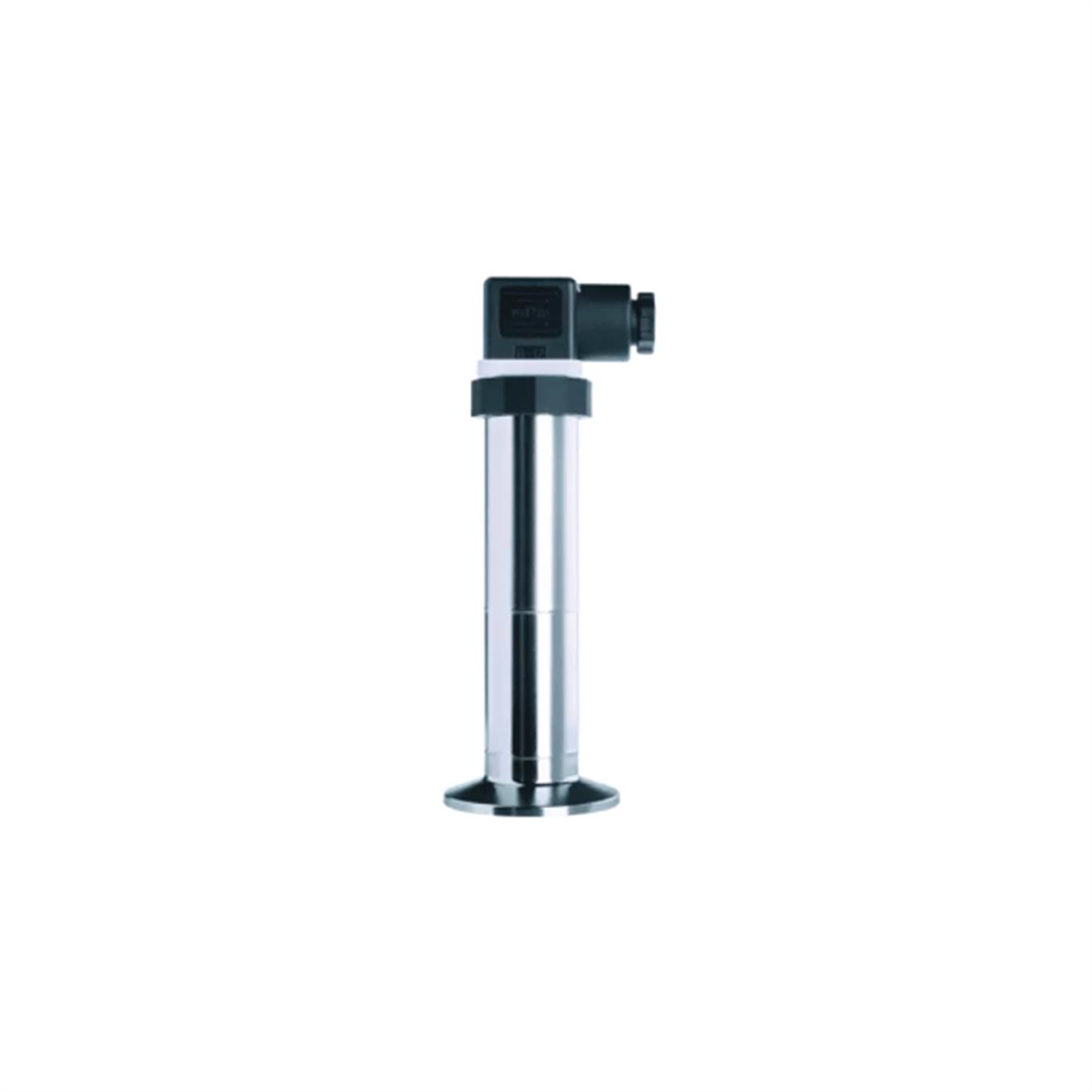

JUMO dTRANS p31
Pressure transmitter for increased medium temperatures
The product acquires either the relative or absolute pressure of liquid and gaseous media and transforms it into an electrical signal. The transmitter is made entirely of stainless steel and has a hygienic design. It is mainly used in the food and pharmaceutical industry.
 |
 |
 |
|
A wide range of
process connections |
Piezoresistive
high-temperature measuring cell |
For temperatures
up to 200 °C |
GENERAL TECHNICAL DATA |
| Medium temperature | -30 to +200 °C |
| Output | 4 to 20 mA two-wire, 0(4) to 20 mA three-wire, DC 0.5 to 4.5 V three-wire, DC 0 to 10 V three-wire, DC 1 to 5(6) V three-wire |
| Accuracy (linearity) | 0.2 to 0.5 % |
| Input | 1 to 60 bar relative, absolute |
| Process connection | Thread; hygienic connections; JUMO PEKA; diaphragm seal |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
 |
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter
This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal. It uses the thick film strain gauge measuring principle based on an aluminum oxide ceramic material (Al2O3). It is used in particular in mechanical and plant engineering.
 |
 |
 |
|
Low investment
costs |
Has different
output signals |
Long-term stability
+ overload resistance |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
|
|
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
