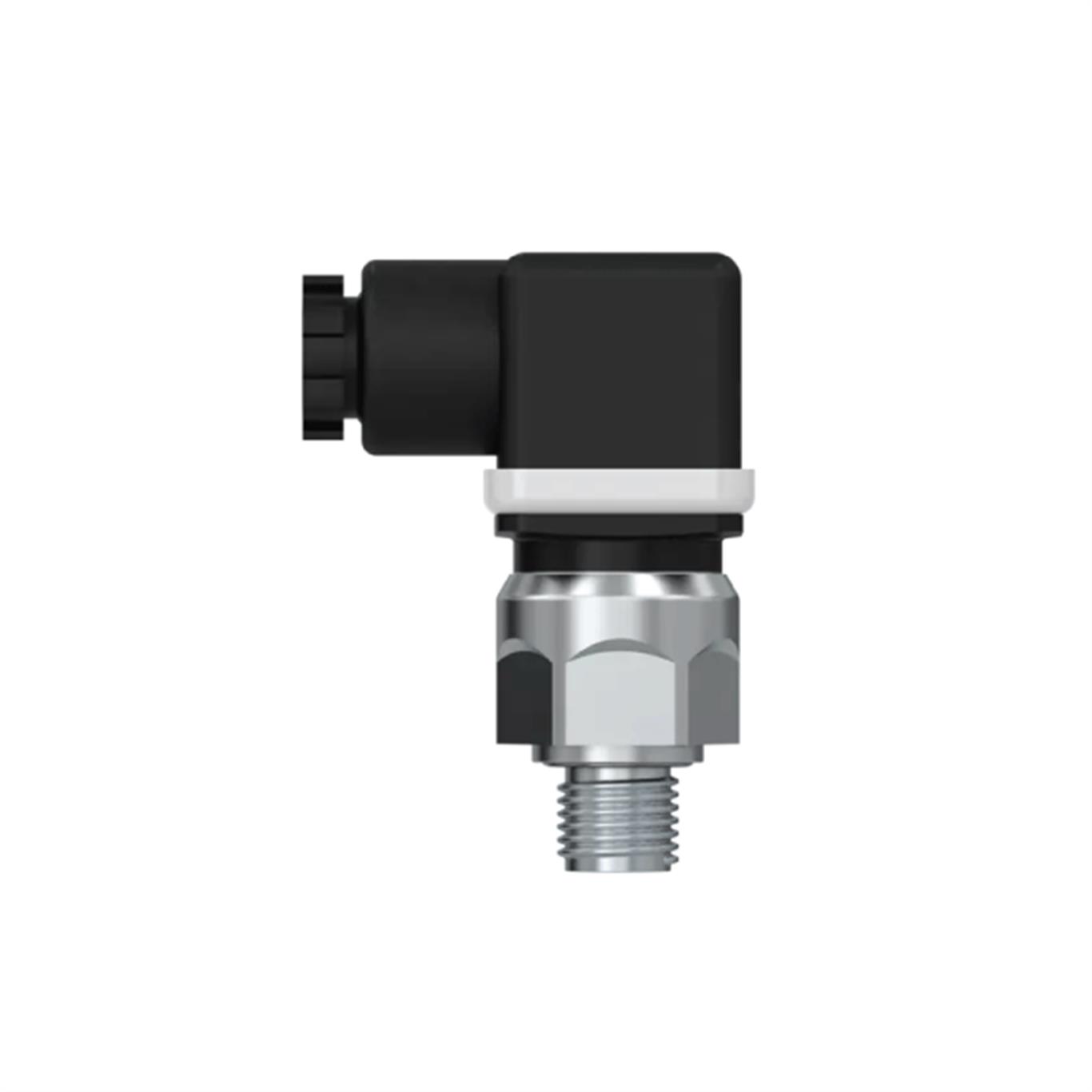

JUMO MIDAS C12 CA
Pressure transmitter − Compressed Air
The JUMO MIDAS C12 CA is designed as a pressure transmitter especially for requirements in the field of compressor pressure measurement. The ceramic sensor detects relative pressures which provides a reliable and long-term stable signal.
 |
 |
 |
|
Custom fit
design for compressor area |
No service or
maintenance required |
Simple startup
due to standardization |
GENERAL TECHNICAL DATA |
| Measuring range | 0 to16 bar, 0 to10 bar, -1 to +15 bar, -1 to +9 bar |
| Process connection | G 1/4 DIN 3852-11 |
| Output | 4 ~ 20 mA, two wires |
| Long-term stability | 0.3 % |
| Material Process Connection/Housing | Aluminum or stainless steel |
| Electrical connection | Plug connection DIN EN 175301-803, form A |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
|
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter
This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal. It uses the thick film strain gauge measuring principle based on an aluminum oxide ceramic material (Al2O3). It is used in particular in mechanical and plant engineering.
 |
 |
 |
|
Low investment
costs |
Has different
output signals |
Long-term stability
+ overload resistance |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
|
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
