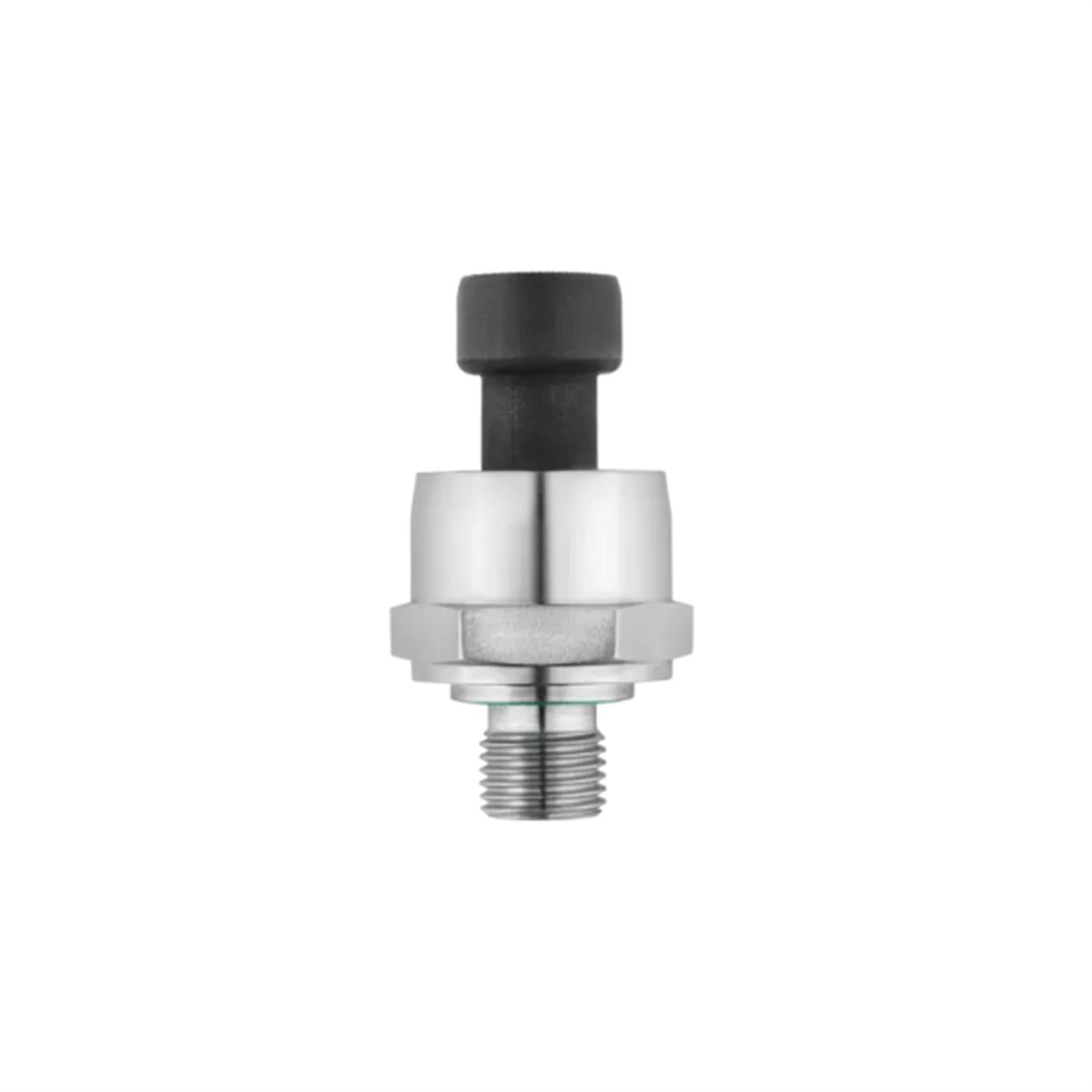

JUMO MIDAS H20 HP
OEM pressure transmitter for high pressure applications
This pressure transmitter is used for measuring the pressure of liquid and gaseous media. The product works on the basis of the thin-film measuring principle and transforms the pressure into a voltage or current-based electrical standard signal. It is mainly used for high-pressure applications in commercial vehicles.
 |
 |
 |
|
Various plug
variants |
High insulation
voltage |
Vibration and
shock resistance |
GENERAL TECHNICAL DATA |
| Process connection | All screw connections that are standard in the industry |
| Accuracy (linearity) | 0.5 to 1 % |
| Input | 0 to 1000 bar relative pressure |
| Output | 4 to 20 mA two-wire; DC 0.5 to 10 V three-wire |
| Medium temperature | -40 to +125 °C |
| Measuring system | Thin-film technology |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
|
 |
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter
This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal. It uses the thick film strain gauge measuring principle based on an aluminum oxide ceramic material (Al2O3). It is used in particular in mechanical and plant engineering.
|
 |
 |
|
Low investment
costs |
Has different
output signals |
Long-term stability
+ overload resistance |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
|
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
