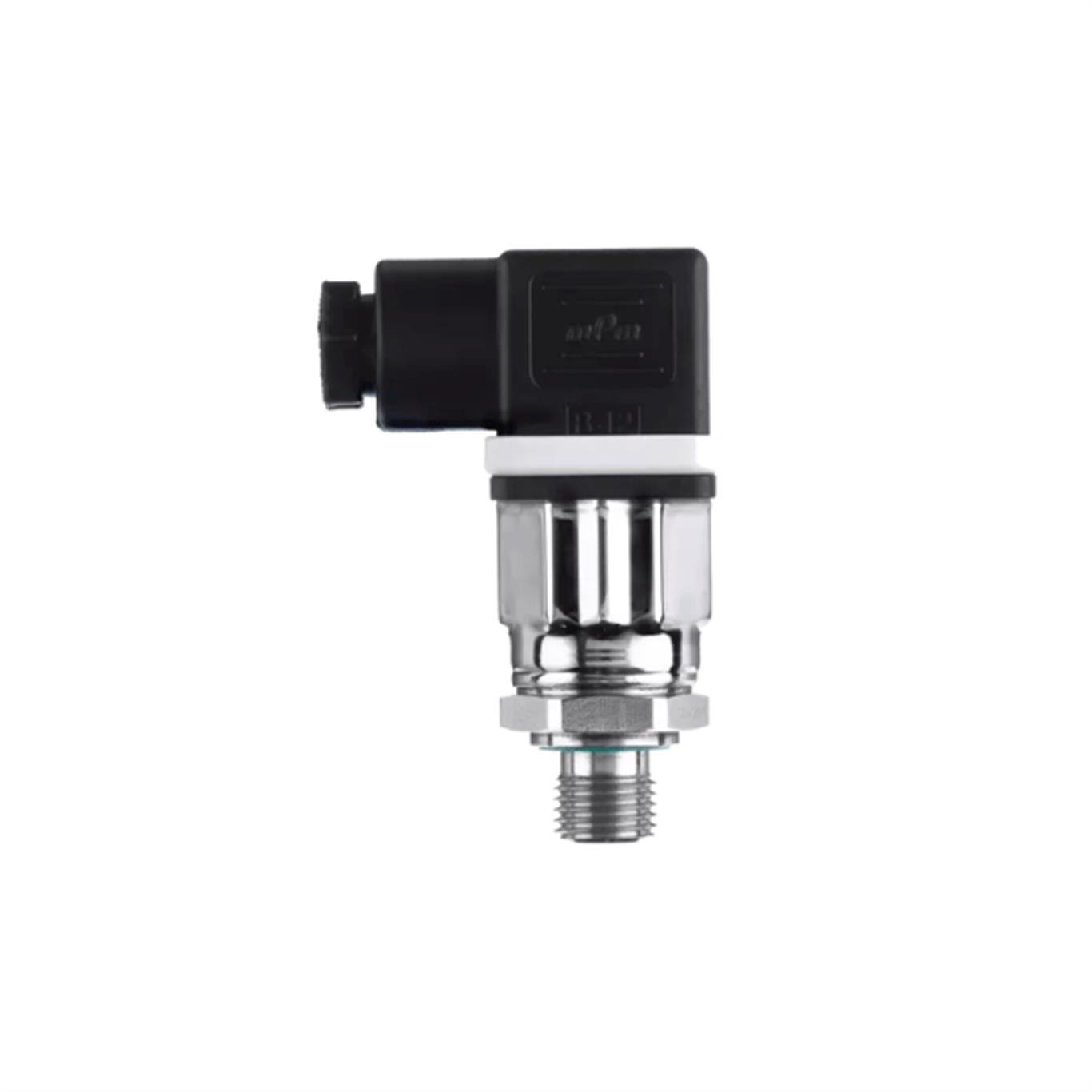

JUMO MIDAS S06
OEM pressure transmitter for low pressure applications
This pressure transmitter is completely welded and designed for use in harsh conditions. It can also be used for level measurement. The applied silicon sensor is extremely resilient.
 |
 |
 |
|
Parts in contact
with media are made of stainless steel |
Straightforward
mounting |
Low investment
costs |
GENERAL TECHNICAL DATA |
| Input | -400 to +400 mbar relative pressure |
| Output | 4 to 20 mA two-wire; DC 0 to 10 V three-wire |
| Accuracy (linearity) | 0.3 to 0.35 % |
| Medium temperature | -20 to +100 °C |
| Process connection | All screw connections that are standard in the industry |
| Measuring system | Silicon sensor with stainless steel separating membrane (piezoresistive) |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
 |
 |
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
|
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter and level probe for Ex areas
The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.
|
 |
|
|
High overload
resistance |
Numerous process
connections |
Reverse-polarity
protection |
