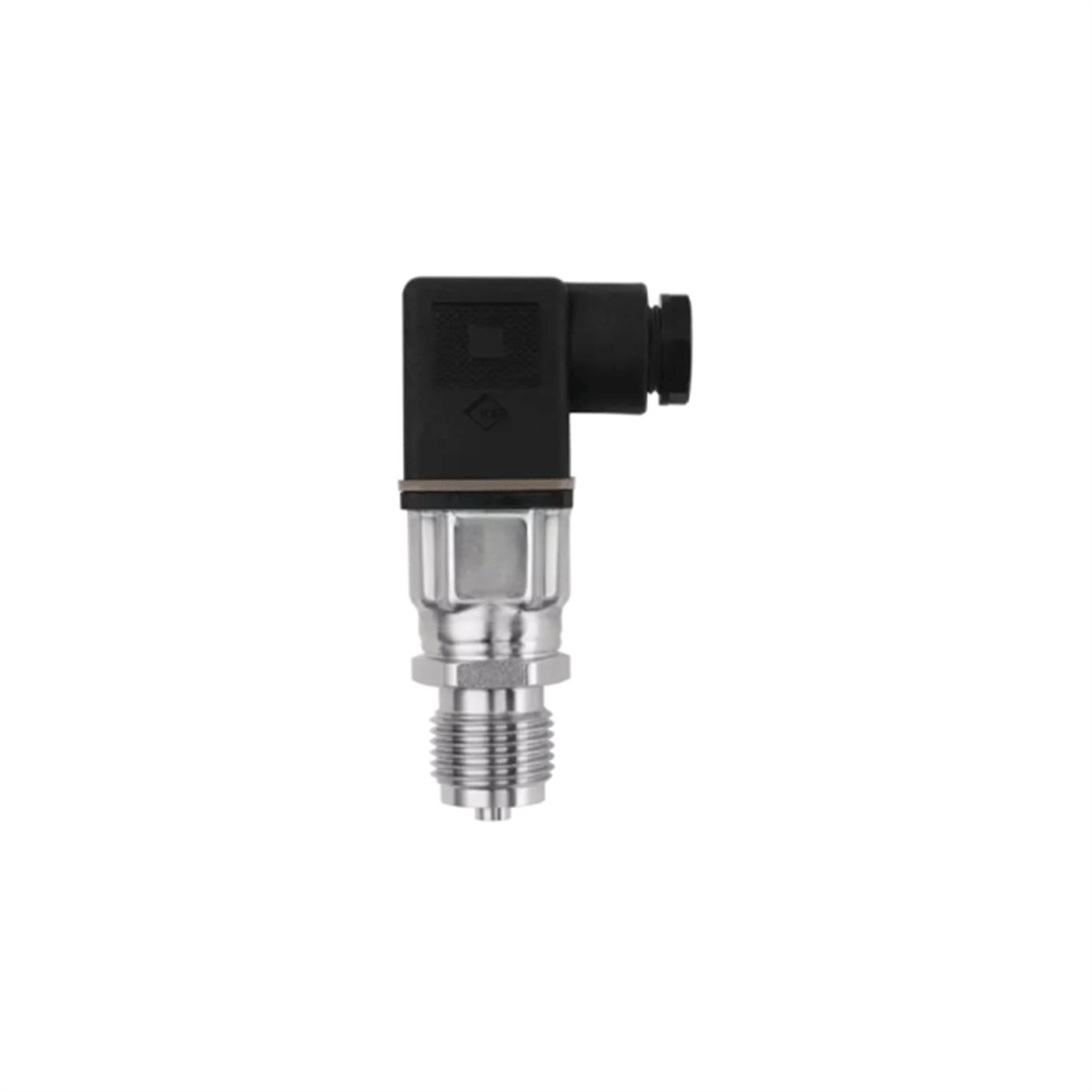

JUMO MIDAS S07 MA
OEM pressure transmitter – maritime approved
Depending on customer requirements, the product is available as a relative or absolute pressure transmitter. It meets the requirements of Environmental Category C, EMC 2 according to DNV GL directives. The pressure transmitter is mainly used in shipbuilding.
 |
 |
 |
|
Silicon sensor
|
Measuring system
without seal |
Minimal installation
effort |
GENERAL TECHNICAL DATA |
| Accuracy (linearity) | 0.2 to 0.3 % |
| Input | -1 to +60 bar relative pressure; 0 to 25 bar absolute pressure |
| Process connection | All screw connections that are standard in the industry |
| Medium temperature | -40 to +125 °C |
| Output | 4 to 20 mA two-wire; DC 0.5 to 10 V three-wire |
| Measuring system | Silicon sensor with stainless steel separating membrane |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
 |
 |
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
|
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter and level probe for Ex areas
The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.
|
 |
|
|
High overload
resistance |
Numerous process
connections |
Reverse-polarity
protection |
