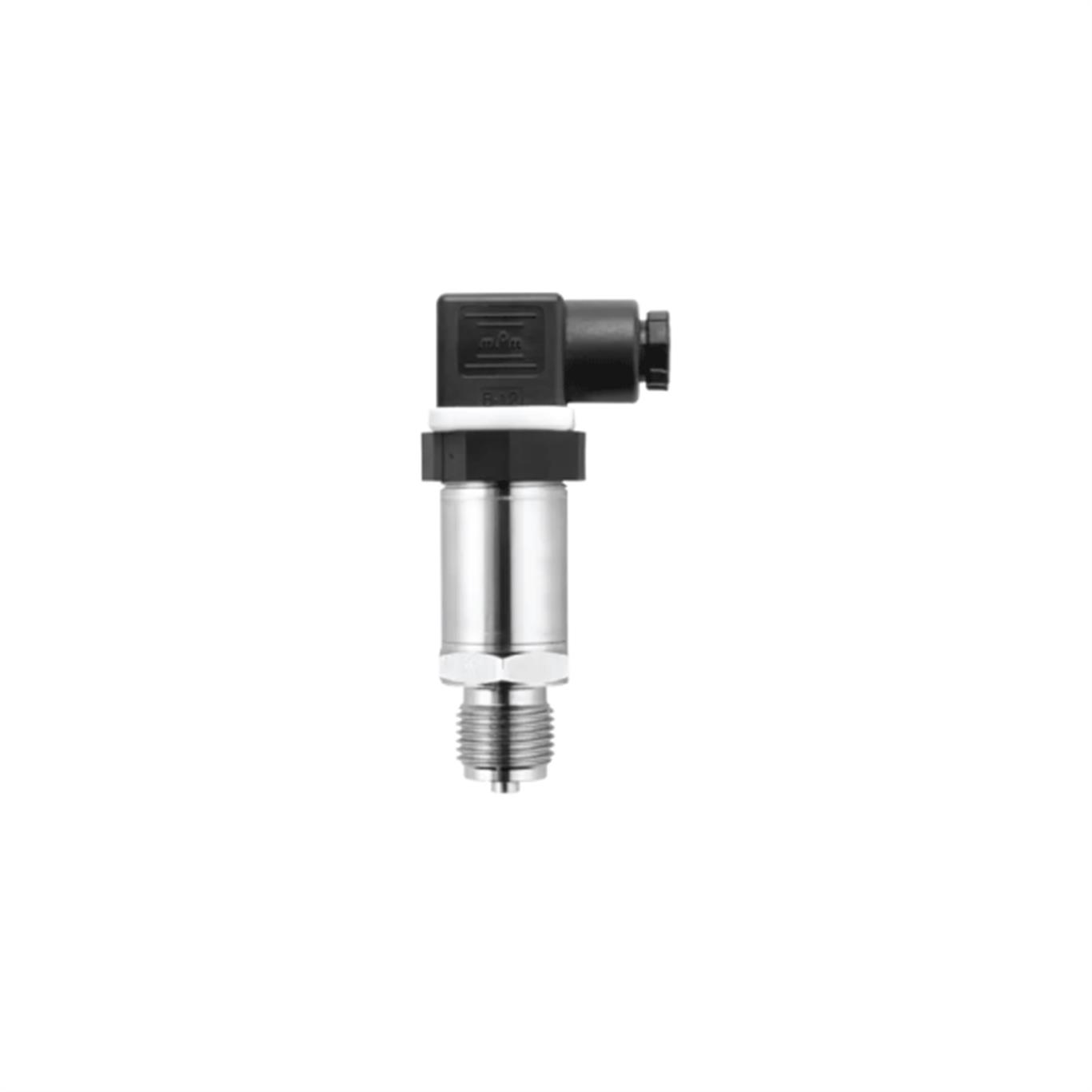

JUMO MIDAS S19 R
OEM pressure transmitter for railway applications
This pressure transmitter has a completely welded measuring system without a seal and has been specifically designed for use in rail vehicles. The applied silicon sensor is extremely resilient even at low measuring ranges.
 |
 |
 |
|
DIN EN
category 1B |
For the highest
EMC requirements |
Vibration and
shock-resistant |
GENERAL TECHNICAL DATA |
| Process connection | All screw connections that are standard in the industry |
| Medium temperature | -40 to +125 °C |
| Output | 4 to 20 mA, two-wire |
| Input | 2.5 to 60 bar relative pressure; 0 to 40 bar absolute pressure |
| Measuring system | Silicon sensor with stainless steel separating membrane (piezoresistive) |
| Accuracy (linearity) | 0.25 to 0.3 % |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
 |
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter
This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal. It uses the thick film strain gauge measuring principle based on an aluminum oxide ceramic material (Al2O3). It is used in particular in mechanical and plant engineering.
 |
 |
 |
|
Low investment
costs |
Has different
output signals |
Long-term stability
+ overload resistance |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
|
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
