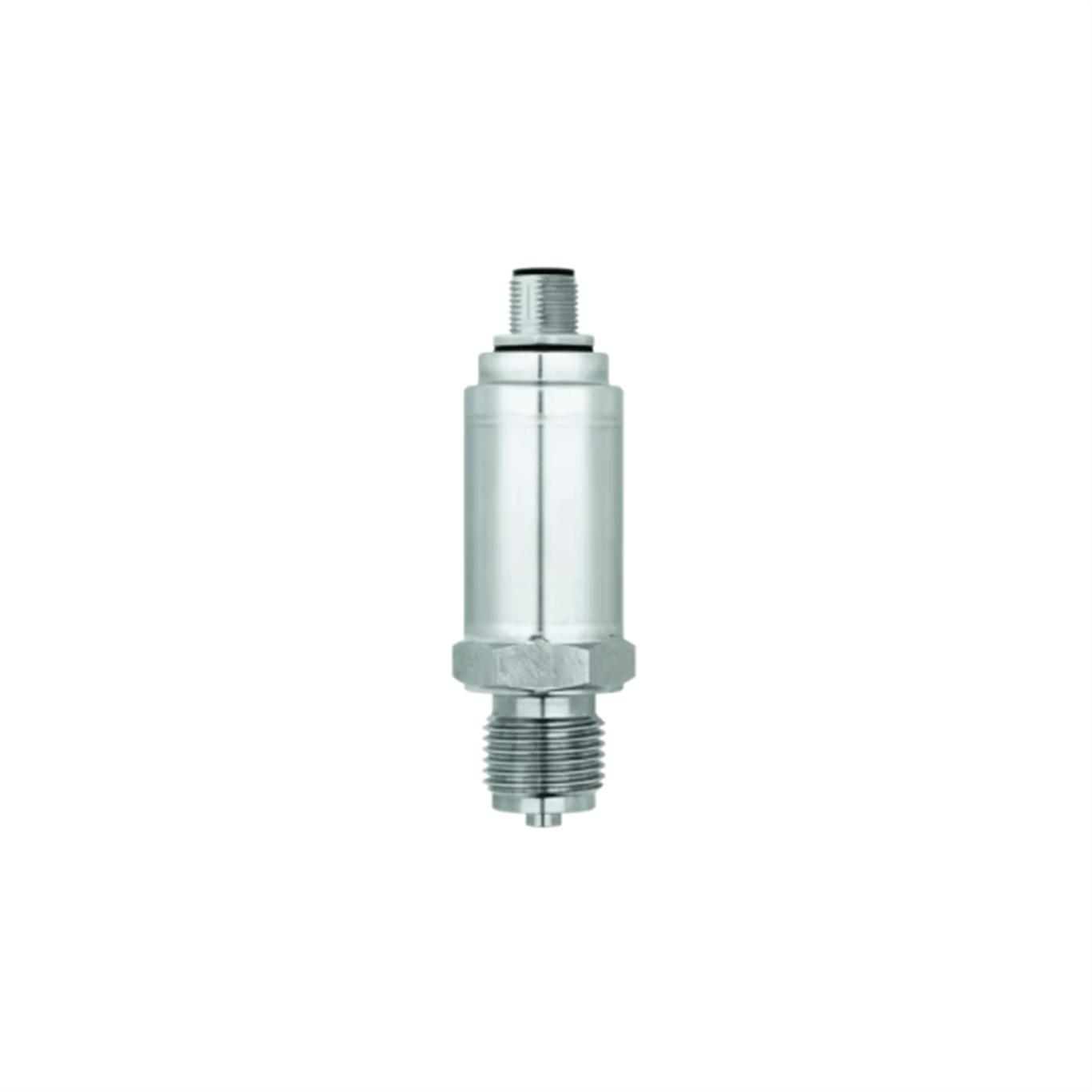

JUMO MIDAS S21 Ex
Pressure transmitter for use in Ex areas
The product measures the relative and absolute pressure of gases, steam, and liquids on the basis of the piezoresistive measuring principle. It is completely welded and is particularly suitable for use in explosion-proof areas. Including oil, fuel, or gas plants.
 |
 |
 |
|
Reverse-polarity
protection |
Minimal installation
effort |
ATEX approval
|
GENERAL TECHNICAL DATA |
| Measuring system | Silicon sensor with stainless steel separating membrane |
| Input | 0.25 to 100 bar relative; 0.6 to 25 bar absolute |
| Output | 4 to 20 mA, two-wire |
| Medium temperature | -40 to +85 °C |
| Accuracy (linearity) | 0.3 % |
| Process connection | All screw connections that are standard in the industry |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
|
|
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter
This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal. It uses the thick film strain gauge measuring principle based on an aluminum oxide ceramic material (Al2O3). It is used in particular in mechanical and plant engineering.
 |
 |
 |
|
Low investment
costs |
Has different
output signals |
Long-term stability
+ overload resistance |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
|
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
