JUMO mTRON T 705015

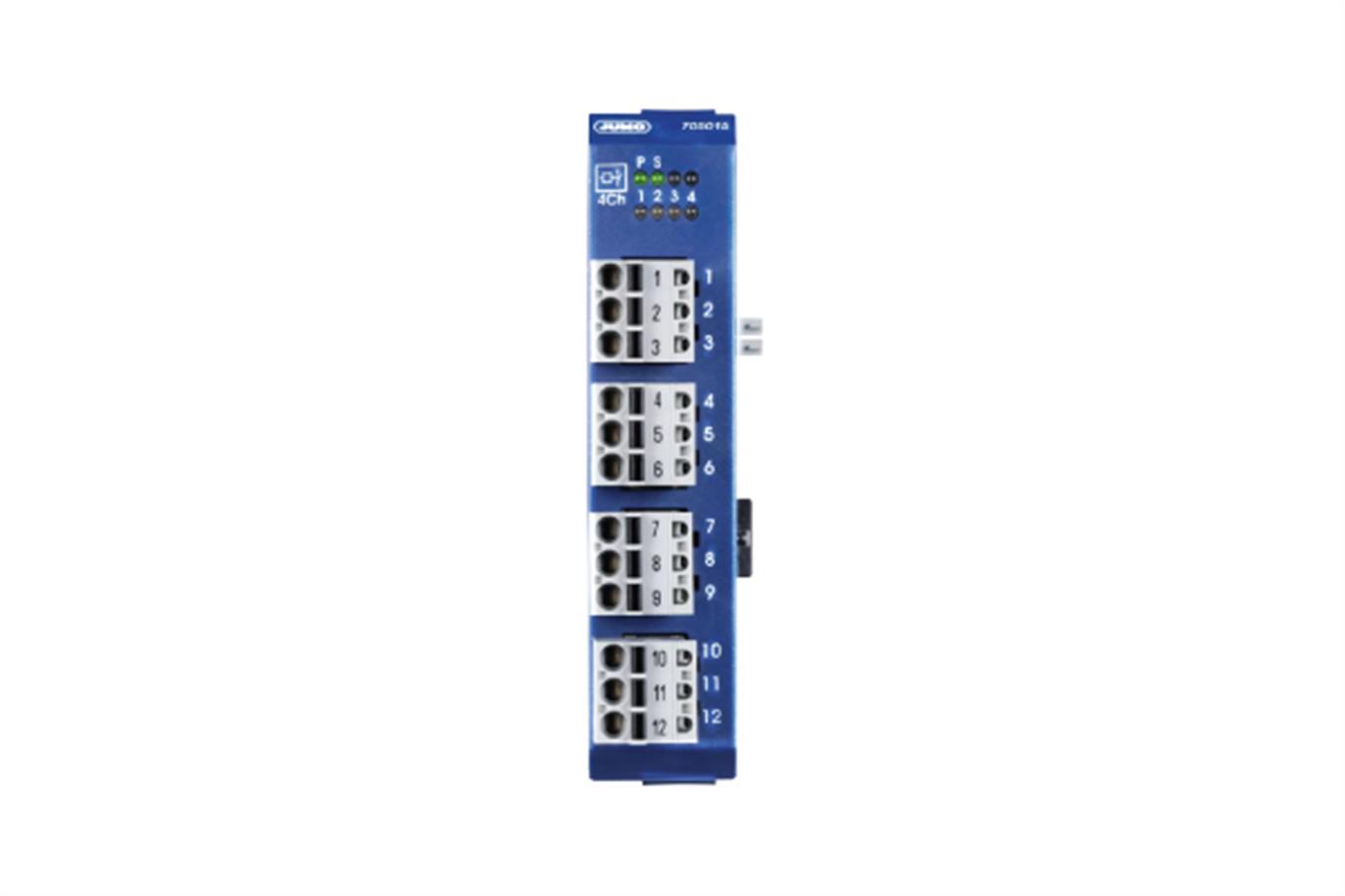

Relay module 4-channel
The relay module provides 4 relay outputs, which are controlled via the system bus by digital signals (assignment in the connection list or directly by the PLC). Each relay output is equipped with a changeover contact AC 230 V/3 A.
 |
 |
 |
|
Automatic configuration
(Plug and Play) |
Connection of outputs
on the front |
Removable terminal
strips for each channel |
GENERAL TECHNICAL DATA |
| Outputs | 4 relay outputs (each with changeover contact 230 V/3 A) controlled via the system bus by digital signals |
| Connections | Removable terminal strips with PUSH IN technology |
| Special features | Switching statuses are visualized with LEDs, automatic configuration after replacement of the module insert (Plug and Play), connection of outputs on the front, fast wiring of operating voltage and system bus provided by simple module connection principle |
| Approvals | UL, metrological certificate, DNV GL |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Protection type | IP20 |
| Ambient temperature | -20 to +55 °C |
| Voltage supply | DC 24 V +25/-20 % |
| Dimensions (W × H × D) | 22.5 mm × 103.6 mm × 101.5 mm (without connection elements) |
Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
 |
|
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |
Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
|
|
|
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |
Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
|
|
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
