JUMO mTRON T

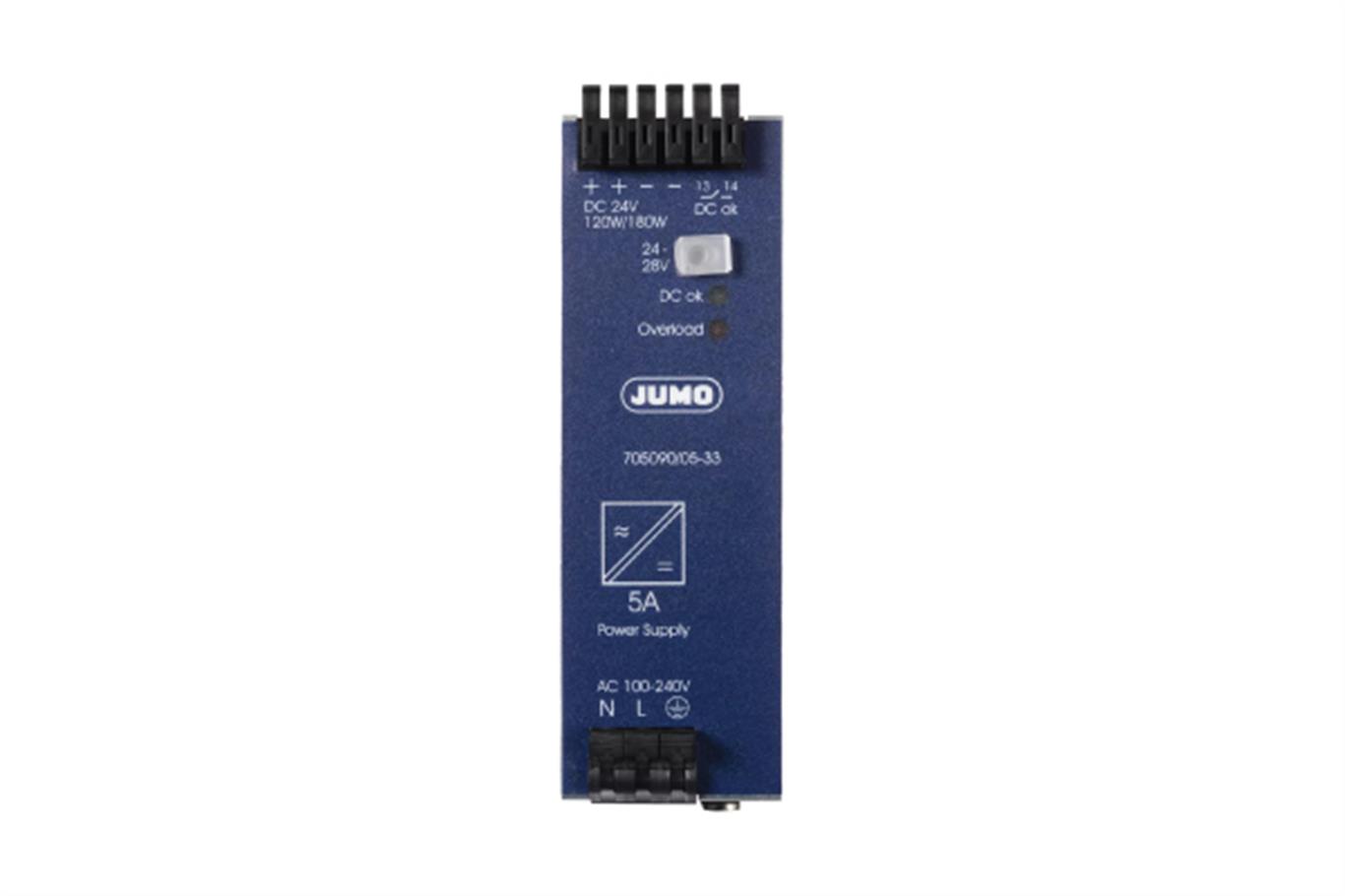

Power supply units
The special features of these DIN rail power supply units include their high level of efficiency and small size. Low sensitivity to transients and overvoltage as well as barely any electromagnetic radiation make usage possible in almost any environment.
 |
 |
 |
|
Quick-connect
spring terminals |
Active power
factor correction |
Robust metal
case |
GENERAL TECHNICAL DATA |
| Output voltage | DC 24 V SELV |
| Setting range | DC 24 to 28 V |
| Operating temperature range | -25 to +70 °C |
| Connection | Quick-connect spring terminals |
| Approvals | GL (EMC2), UL |
| Housing | Robust metal case |
| Special features | Efficiency of up to 93.5 %, active power factor correction (PFC), 150 % peak load capacity |
Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
 |
 |
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |
Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
 |
|
|
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |
Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
|
|
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
