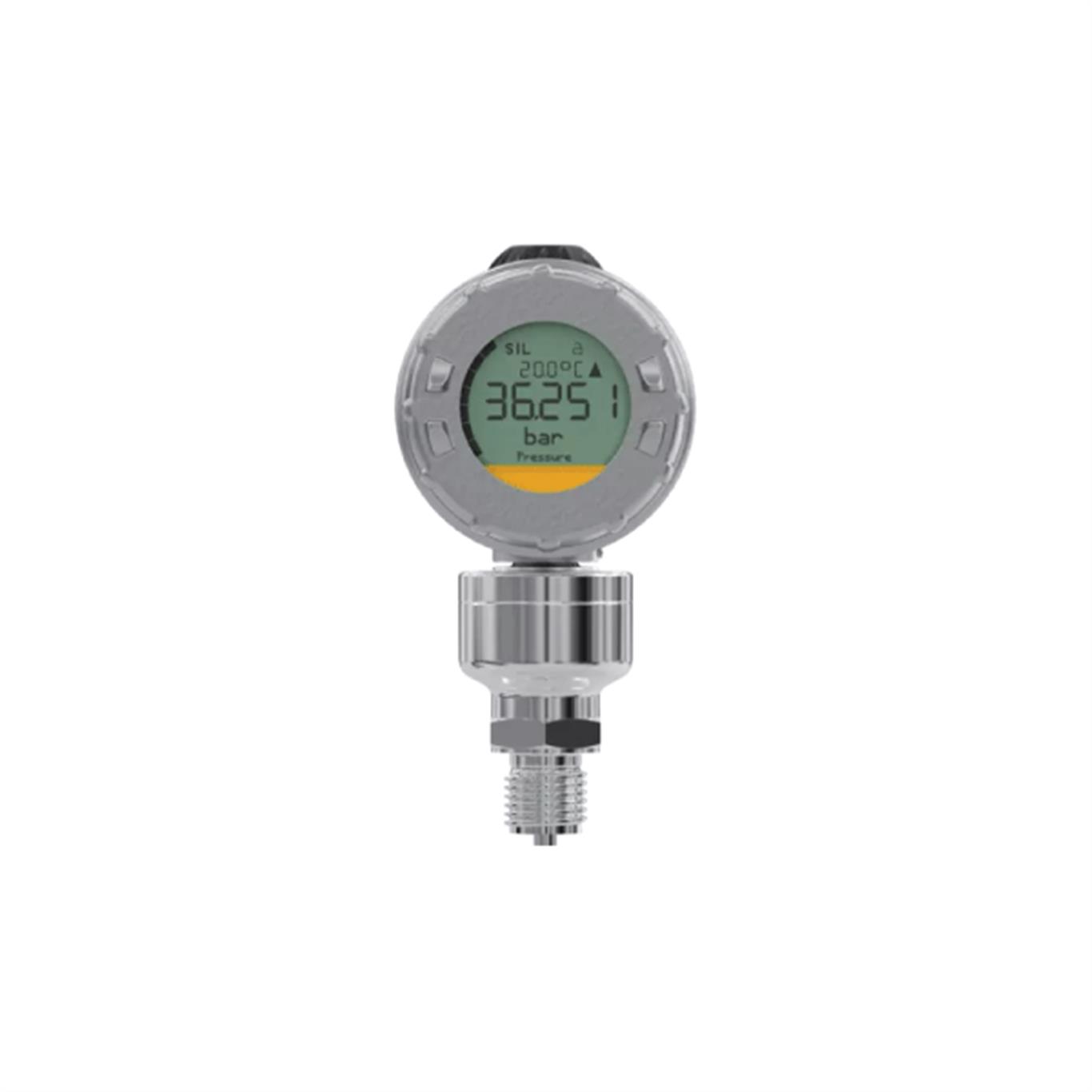

JUMO SIRAS P21 AR
Process pressure transmitter with SIL/PL
The pressure transmitter reliably and accurately measures relative and absolute pressure of liquids, steam, and gases. It was developed for use in safety-related plants with Safety Integrity Level (SIL) according to DIN EN 61508. As a result, the transmitter is perfectly suited for safety measuring chains in the process industry and mechanical engineering.
 |
 |
 |
|
Safety Integrity
Level (SIL 2/SIL 3), PL c/PL d |
Long-term
stability of < 0.1 % per year |
Linearity: 0.05 %
|
GENERAL TECHNICAL DATA |
| Measuring range | Up to 100 bar |
| Linearity | 0.05 % |
| Outputs | 4 to 20 mA, two-wire; HART® (4 configurable measured values) |
| Process connection | Thread |
| Materials in contact with the medium | Stainless steel (316L) |
| Approvals | SIL 2/SIL 3 according to DIN EN 61508, DIN EN 13849 (PL), and PED (PED 2014/68/EU in combination with JUMO safetyM STB/STW and transmitter power supply unit) |
| Special features | Highest precision; programmable; sensor made of stainless steel; stainless steel case; can be used within a safety chain, e.g. with JUMO safetyM STB/STW; comprehensive error diagnosis |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
 |
|
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
|
|
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter and level probe for Ex areas
The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.
|
 |
|
|
High overload
resistance |
Numerous process
connections |
Reverse-polarity
protection |
