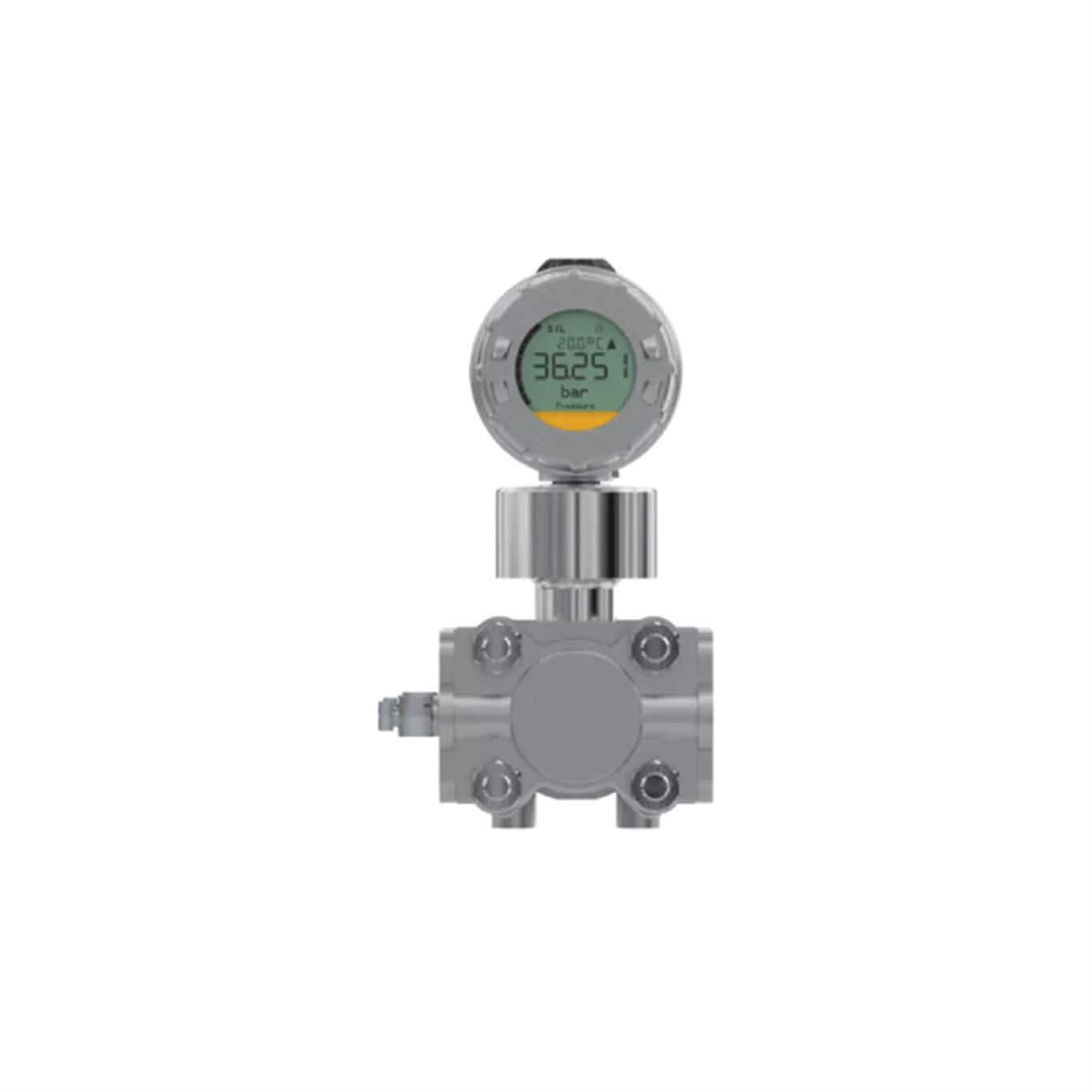

JUMO SIRAS P21 DP
Process pressure transmitter with SIL/PL
The pressure transmitter reliably and accurately measures differential pressure of liquids, steam, and gases. It was developed for use in safety-related plants with Safety Integrity Level (SIL) according to DIN EN 61508. As a result, the transmitter is perfectly suited for safety measuring chains in the process industry and mechanical engineering.
 |
 |
 |
|
Safety Integrity
Level (SIL 2/SIL 3), PL c/PL d |
Long-term
stability of < 0.1 % per year |
Linearity: 0.05 %
|
GENERAL TECHNICAL DATA |
| Measuring range | Up to 100 bar |
| Linearity | 0.05 % |
| Outputs | 4 to 20 mA, two-wire; HART® (4 configurable measured values) |
| Process connection | Thread |
| Materials in contact with the medium | Stainless steel (316L) |
| Approvals | SIL 2/SIL 3 according to DIN EN 61508, DIN EN 13849 (PL), and PED (PED 2014/68/EU in combination with JUMO safetyM STB/STW and transmitter power supply unit) |
| Special features | Highest precision; programmable; sensor made of stainless steel; stainless steel case; can be used within a safety chain, e.g. with JUMO safetyM STB/STW; comprehensive error diagnosis |
Float switch with chamber
For point level measurement of liquids with chamber. In the event of a lack of space or turbulent media, the device is mounted on the side of the tank. Available with 1 float and up to 2 switching contacts as well as an optional temperature sensor/switch.
 |
|
 |
|
Maintenance-free
device setup |
Price-performance
ratio |
Side mounting
via compression fitting |
Float switch in miniature form
For point level measurement in liquids with up to 4 floats and up to 4 switching contacts. The optional temperature sensor can be used for point level measurement as well as to acquire temperature with only one measuring point.
|
|
 |
|
Maintenance-free
device setup |
Price-performance
ratio |
No isolating
switch amplifier for [Ex d] required |
Standard version of float switch
For point level measurement in liquids with up to 5 floats and up to 5 switching contacts. Both the optional temperature sensor and the temperature switch can be used for point level measurement as well as to acquire temperature with only one measuring point.
|
|
|
|
Maintenance-free
device setup |
Price-performance
ratio |
No isolating
switch amplifier for [Ex d] required |
