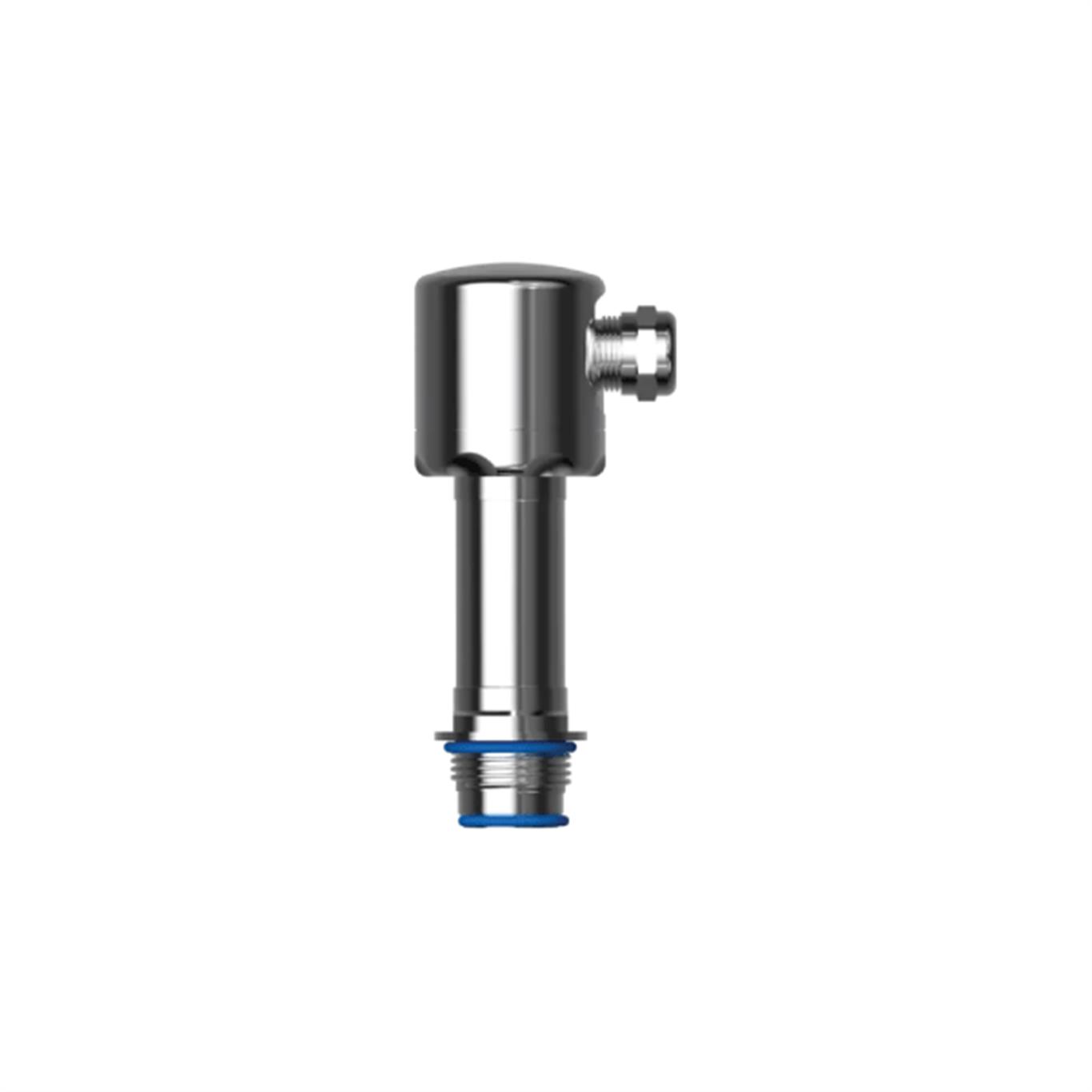

JUMO TAROS S46 H
Hygienic pressure transmitter
The device is designed according to the hygienic requirements for precision measurement and a long lifecycle. It offers process reliability through a high degree of accuracy, even over a wide temperature range. The measuring ranges are between 0.1 and 100 bar rel. pressure or between 0.25 and 40 bar abs. pressure. The transmitter is used is the food and pharmaceutical industry.
 |
 |
 |
|
Hygienic process
connections |
High process
reliability |
Zero point correction
using a magnet |
GENERAL TECHNICAL DATA |
| Measuring range | 0.1 to 100 bar rel; 0.25 to 40 bar abs |
| Medium temperature | -25 to +125 °C (maximum 140 °C for 1h/day) |
| Accuracy | Up to 0.25 % of the measuring span at 20 °C |
| Linearity | 0,1 % |
| Long-term stability | 0,1 % |
| Parts in contact with the product | 1.4404 and 1.4435 (316L) |
| Process connections | Hygienic process connections: Milk cone, tank connection; EHEDG-certified process connections: Clamp, VARIVENT®, JUMO PEKA; electrolytically polished process connections (optional). |
| Electrical connection | Attached cable, round plug M12 × 1, line socket, terminal head |
| Protection type | IP65 to IP69 (depending on the electrical connection) |
| Voltage supply | DC 24 V |
| Special features | Easy zero point correction using a magnet, hygienic process connections, FDA-compliant materials |
| Application areas | Food and beverage industry; CIP and SIP applications; sterilizers and autoclaves; pharmaceutical, medical and biotechnology, suitable for all hygienic pressure measurement applications. |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
 |
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
 |
|
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter and level probe for Ex areas
The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.
|
 |
|
|
High overload
resistance |
Numerous process
connections |
Reverse-polarity
protection |
