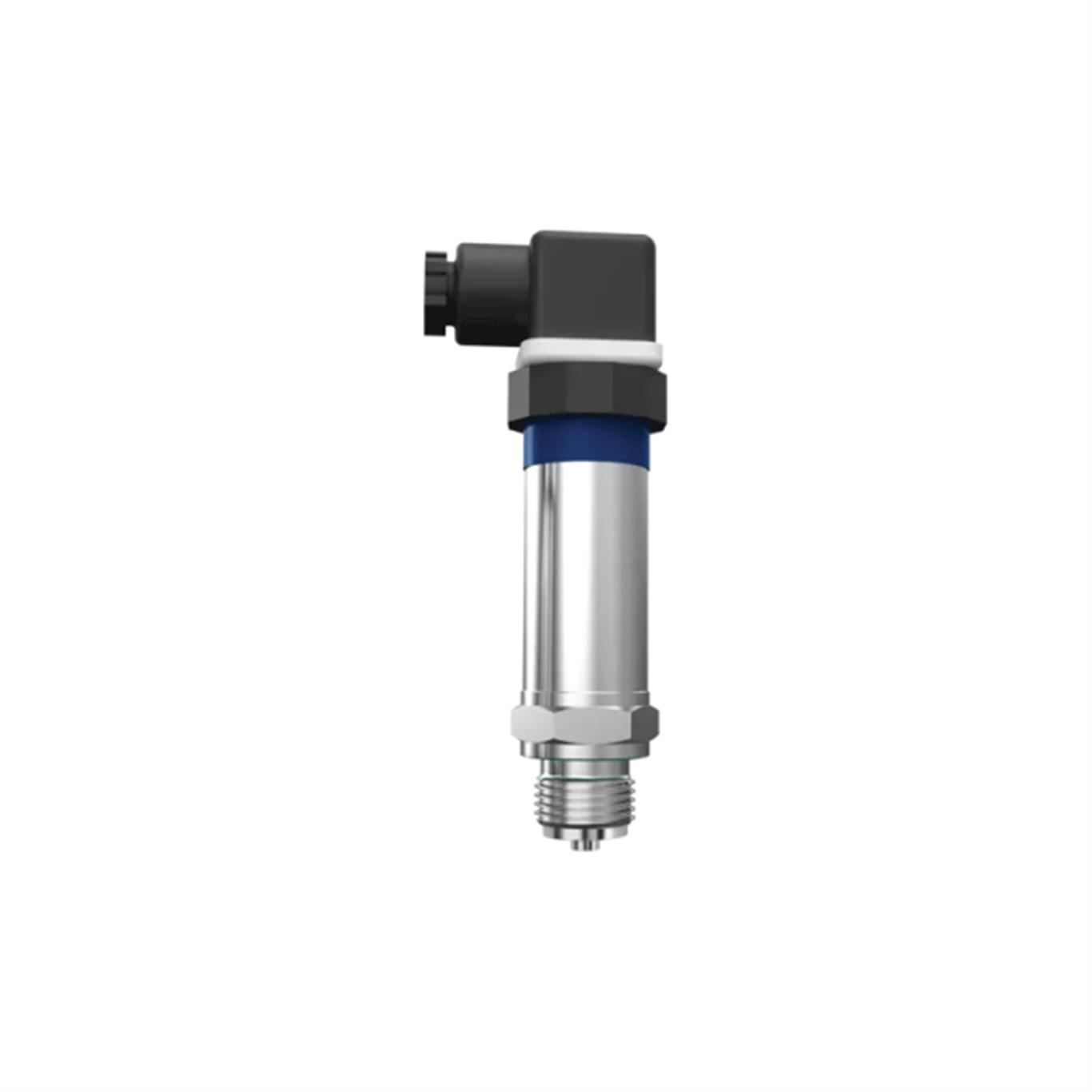

JUMO TAROS S47 P
Precision pressure transmitter
The pressure transmitter is used to measure relative and absolute pressures in liquid and gaseous media. It offers high process reliability through maximum accuracy as well as over a wide temperature range. The measuring ranges are between 0.1 and 100 bar rel. or 0.6 and 40 bar abs. The precision transmitter is used, among other things, in mechanical and plant engineering.
 |
 |
 |
|
High process
reliability |
Zero point
correction using a magnet |
High accuracy
|
GENERAL TECHNICAL DATA |
| Measuring range | 0.1 to 100 bar rel; 0.6 to 40 bar abs |
| Medium temperature | -25 to +125 °C (maximum 140 °C for 1h/day) |
| Accuracy | Up to 0.25 % of the measuring span at 20 °C |
| Linearity | 0,1 % |
| Long-term stability | 0,1 % |
| Parts in contact with the product | 1.4404 and 1.4435 (316L) |
| Process connections | All common process connections |
| Electrical connection | Attached cable, round plug M12 × 1, line socket, terminal head |
| Protection type | IP65 to IP69 (depending on the electrical connection) |
| Voltage supply | DC 24 V |
| Special features | Simple zero point correction using a magnet |
| Application areas | Plant construction and mechanical engineering, pump construction, sterilizers, test equipment construction, calibration technology, laboratories |
Pressure transmitter
The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
|
 |
 |
|
High degree of
process reliability |
Long-term
stability |
High overload
resistance |
For small measuring ranges
The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
|
|
 |
|
Long-term
stability |
Chemical
resistance |
High overload
resistance |
Pressure transmitter and level probe for Ex areas
The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.
|
 |
|
|
High overload
resistance |
Numerous process
connections |
Reverse-polarity
protection |
