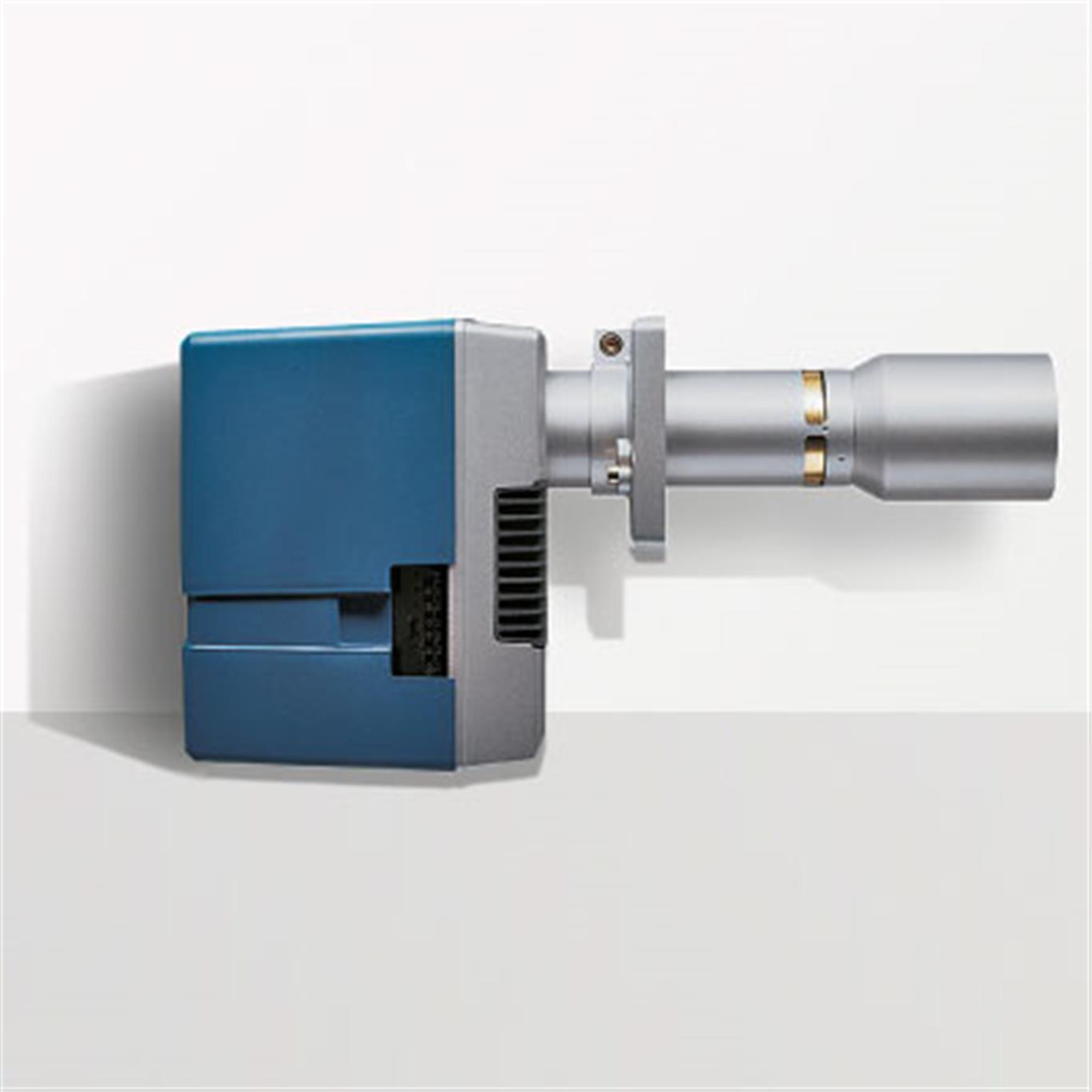

Purflam® Compact oil burners
The Weishaupt purflam® compact oil burners (16.5 - 40 kW) Weishaupt purflam® burners combust fuel oil with a blue flame that's so clean no soot is produced. Operation is economical and quiet. Emission limits are not only met, but significantly undercut.
Exceptionally
clean
combustion
figures.
With
modern oil
burners.
|
|
|
|
The purflam® oil burner's unique technology combusts oil so cleanly that no soot is created and, at 70–90 mg/kWh, oxides of nitrogen are well below legal limits.
Weishaupt oil burners are suitable for Class D and Class A2 gas oil per BS 2869 (fuel oil EL and low-sulphur fuel oil EL per DIN 51603-1), and blended gas oil with a biogenic admixture of up to 20.9 % (fuel oil EL A Bio), which can be optionally increased to up to 30.9 %. Paraffinic gas oil (fuel oil EL P per DIN/TS 51603-8) can also be used
The oil pump is driven separately from the Combustion air fan. The fan is driven by a speed-adjusted dc motor that has its speed set to suit the burner's output. This minimises power consumption.
|
Purflam® burners are available for five capacity ranges between 16.5 kW and 40 kW..
Weishaupt purflam® technology represents many years of experience and development work. Only the best materials are used in its manufacture.
|
Purflam® burners are equipped with a digital Combustion manager and operate fully automatically. Capable microprocessors monitor and control all burner functions. Maintenance has also been well considered. A separate servicing position offers unparalleled access to the burner's components, and the quick-release housing saves time and money.
Weishaupt purflam®-technology effects the virtual gasification of the oil mist prior to combustion. The homogeneous air/oil mixture that is created burns with a blue flame and very low Emissions.
|
Energy saving
Benefits
System solutionPurflam® compact oil burners (16.5 to 40 kW)
| Type | Rating (Kw/h) | |
| WL5 PB-H 1.19 | 16 - 20 |
|
| WL5 PB-H 1.21 | 20 - 24 |
|
| WL5 PB-H 1.22 | 23 - 26 |
|
| WL5 PB-H 1.23 | 26 - 29 |
|
| WL5 PB-H 1.24 | 28 - 32 |
|
| WL5 PB-H 2.24 | 31 - 35 |
|
| WL5 PB-H 2.25 | 34 - 40 |
|

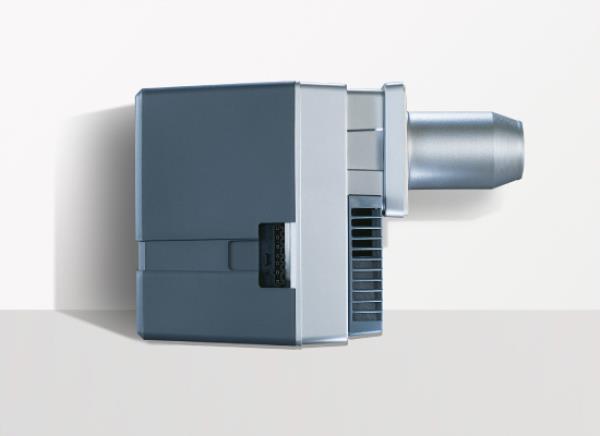

The Weishaupt WG5-40 compact gas burners (12.5 - 550 kW/h) Weishaupt WG5–WG40 burners cover a considerable capacity range up to 550 kW/h. These gas burners represent the ultimate in reliability and safety – of particular importance to schools, hospitals, bakeries, and paintshops, but equally of benefit to all applications, including residential buildings large or small.
