WG5-40 Compact Gas Burners

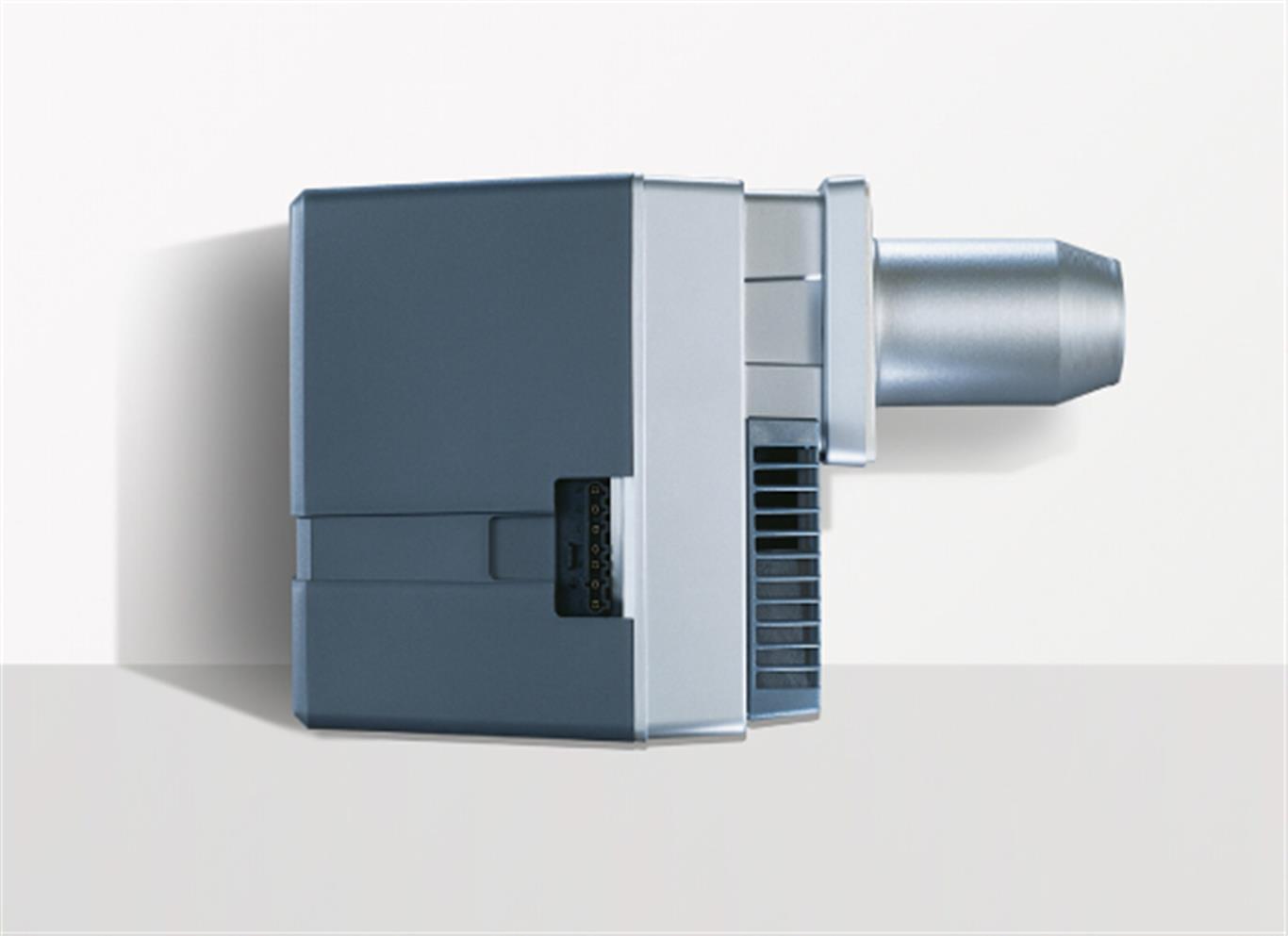

The Weishaupt WG5-40 compact gas burners (12.5 - 550 kW/h) Weishaupt WG5–WG40 burners cover a considerable capacity range up to 550 kW/h. These gas burners represent the ultimate in reliability and safety – of particular importance to schools, hospitals, bakeries, and paintshops, but equally of benefit to all applications, including residential buildings large or small.
Utterly
reliable.
Our
compact gas
burners.
|
|
|
|
Low-NOx technology has been standard on Weishaupt W-series power gas burners for a long time now. Clean combustion and the lowest possible NOx figures have always been a focus, but – and this is crucial – key Weishaupt characteristics, such as reliable start behaviour, for example, or the same inspection intervals, also had to be maintained.
|
The special matching of the flame geometry to the Heat generator's combustion chamber is every Weishaupt burner's recipe for success. It allows customized use on different heat generators, such as air heaters or steam boilers.
The air inlet housing is sound attenuated, which results in a noticible reduction in noise.

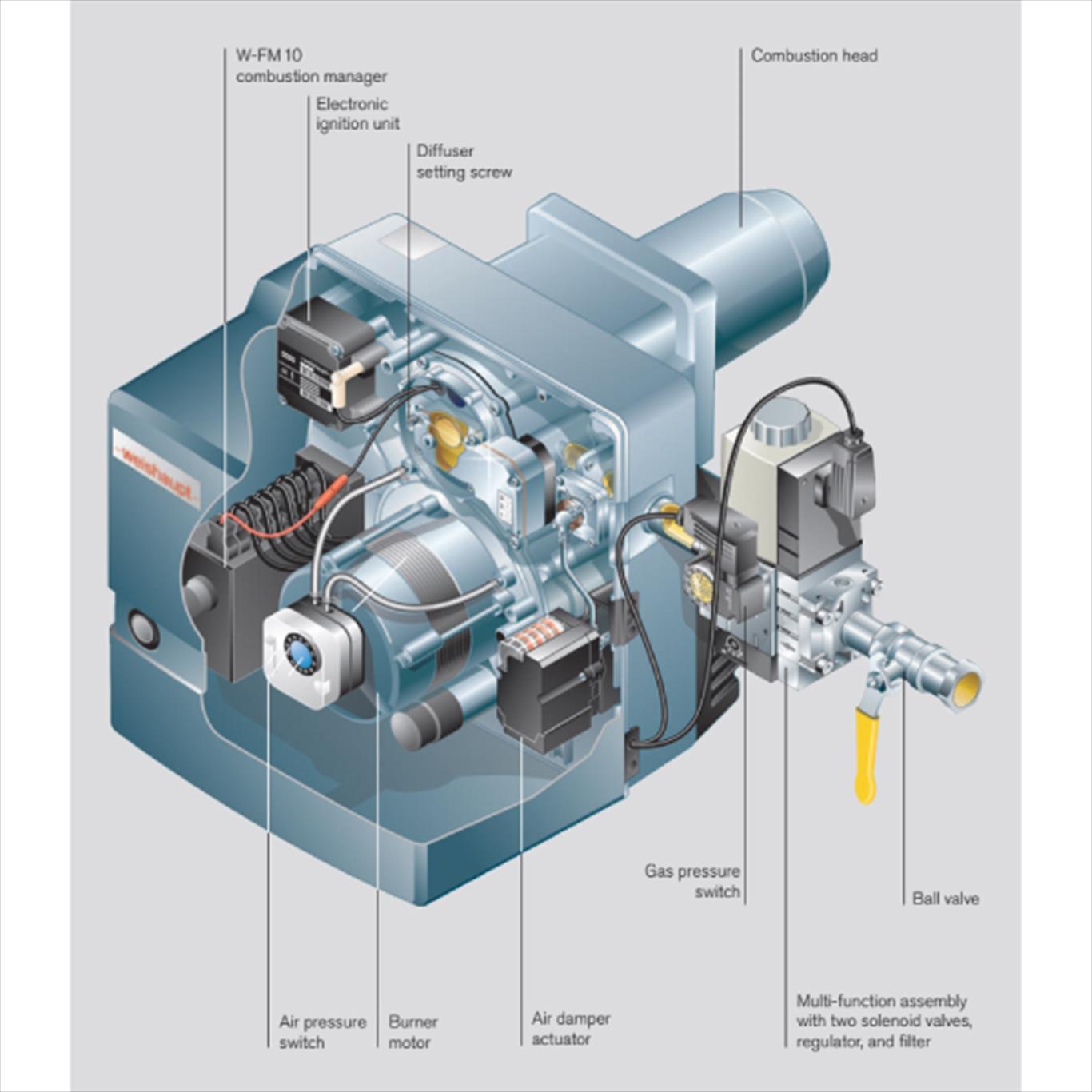

The Combustion manager 's integrated connection console and its coded and numerically labelled plugs leave no room for doubt. They enable components to be removed quickly, reduce maintenance work, and prevent connection errors. Simple and perfect!
|
The W-FM25 digital Combustion manager with its optional Modbus/ field bus module offers the possibility of communication with other systems, enabling the burner to be integrated with building management and other automation systems. Industry standards, like remote control, monitoring, and fault diagnosis, are well understood by Weishaupt.
|
Energy saving
Benefits

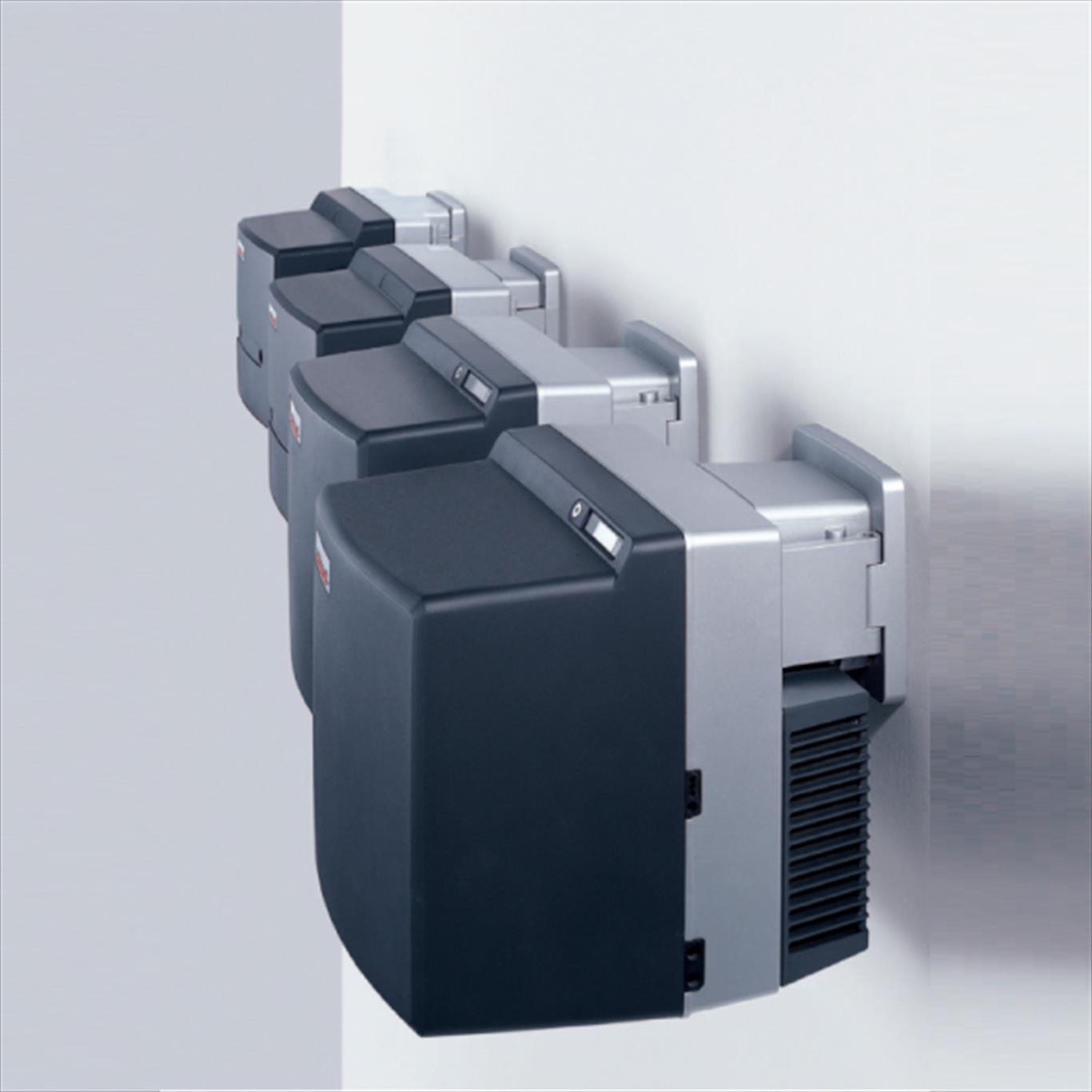

System solutionWG5–40 compact gas burners (12.5 to 700 kW)
| Type | Rating (Kw/h) | |
| WG5/1 | 12.5 - 50 |
|
| WG10/0 | 12.5 - 50 |
|
| WG10/1 | 25 - 110 |
|
| WG20/1 | 35 - 200 |
|
| WG30/1 | 40 - 350 |
|
| WG40/1 | 55 - 550 |
|
| Type | Rating (Kw/h) | |
| WG10/0 | 4.5 - 60 |
|
| WG10/1 | 8.5 - 135 |
|
| WG20/1 | 14 - 235 |
|
| Type | Rating (Kw/h) | |
| WG40/2 | 60 - 600 |
|
| WG40/3 | 60 - 700 |
|
Information.
Detailed,
comprehensive,
interesting.
|
|
|
|
|
|
WG5.../1-A LN |

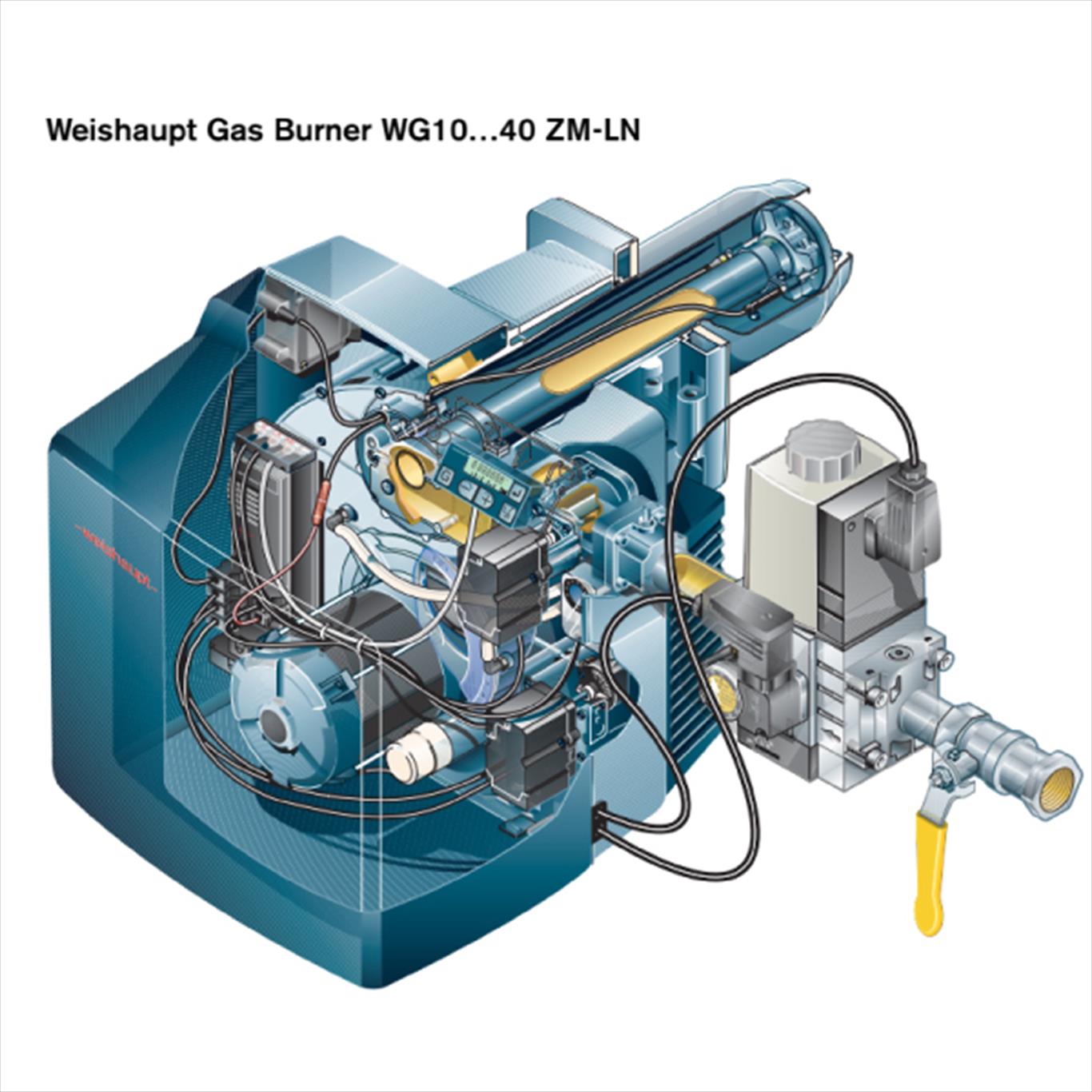

WG10.../0-D ZM-LN |
WG10.../1-D ZM-LN |
WG20.../1-C ZM-LN |
|
|
|
|
|
|
WG30.../1-C ZM-LN |
WG40.../1-A ZM-LN |
WG40.../2-A ZM-PLN |
WG40.../3-A ZM-PLN |
 |
 |
|
WG 5 to WG 40 |
WG 40 PLN |

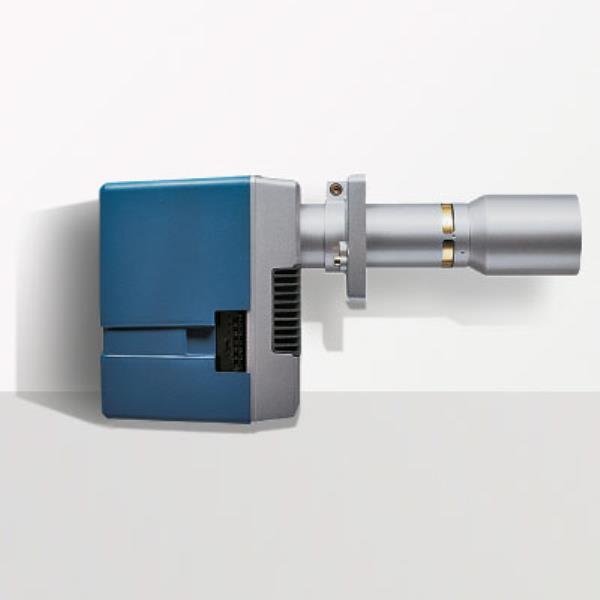

The Weishaupt WL5-40 compact oil burners (16.5 - 570 kW) Weishaupt WL5–WL40 burners cover a considerable capacity range up to 570 kW. Forced-draught oil burners are always the first choice when mains gas isn't available.
Highly reliable and safe, these burners are an ideal choice for domestic, commercial, and thermal process applications.

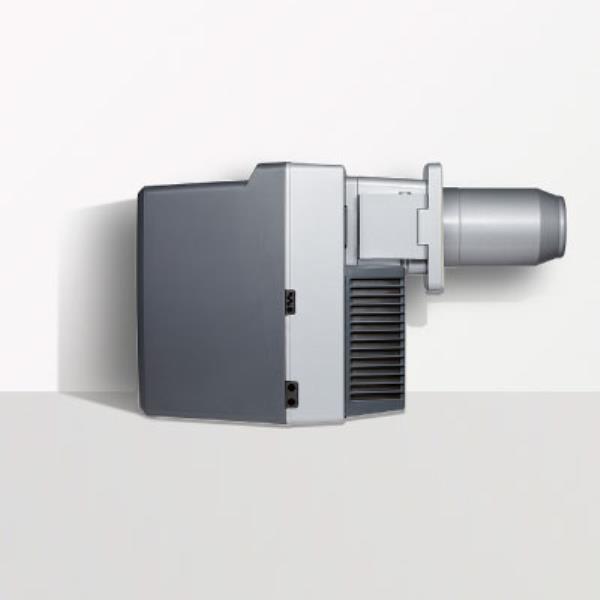

The Weishaupt WGL30-40 compact dual-fuel burners (70 - 550 kW) Weishaupt dual-fuel burners offer the flexibility of gas or oil-fired operation. In normal operation, gas is generally used as the main fuel. Remote fuel easily effected via the optional field bus expansion module.
