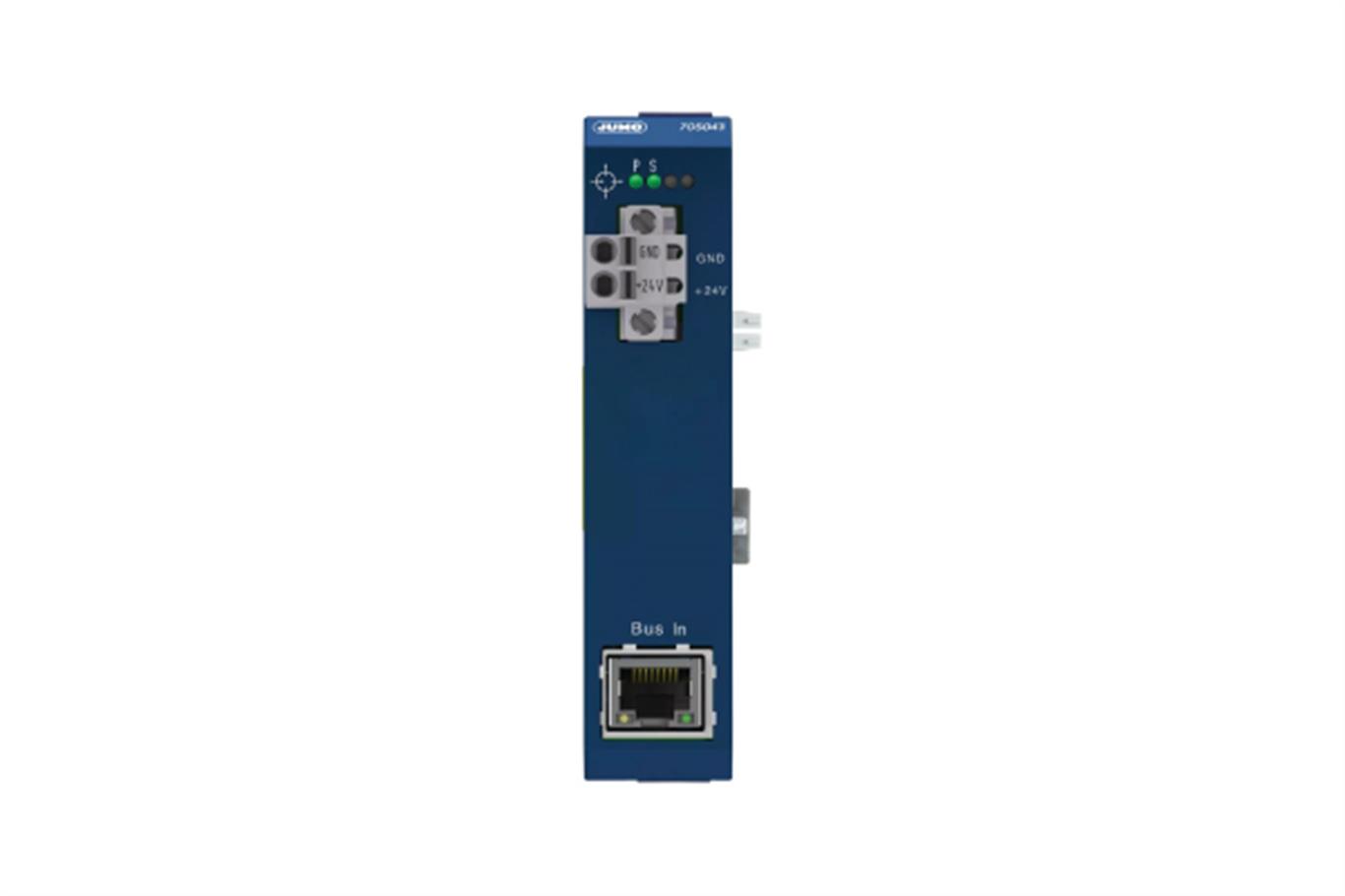

Router module 1-port
Module for automation system JUMO variTRON
The router module 1-port is a system component of the JUMO variTRON automation system. The module 1-port is primarily used together with a variTRON 300 central processing unit. It laterally provides the system bus output and power supply for connecting the input and output modules.
 |
 |
 |
|
Connection
to JUMO variTRON 300 |
Supply of
operating voltage |
Fast wiring
|
GENERAL TECHNICAL DATA |
| Interfaces | 1 RJ45 on the front side: 1 Bus In (system bus), 1 Bus Out (Out 2 = system bus) |
| Special features | compatible with JUMO variTRON from system version 4, connects the variTRON 300 central processing unit (available from system version 6) to the modules, alternatively also supports decentralized module arrangement, first module on an additional DIN rail for connecting further modules, electrical isolation of the system bus connection, supply of operating voltage, fast wiring of operating voltage and system bus by simply plugging the modules together |
| Voltage supply | DC 24 V +25/-20 % SELV |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Dimensions (W × H × D) | 22.5 x 101 x 23,9 mm |
| Protection type | IP20 |
| Ambient temperature | -20 to +55 °C |
| Approvals | UL |
Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
 |
 |
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |
Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
 |
|
|
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |
Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
|
|
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
