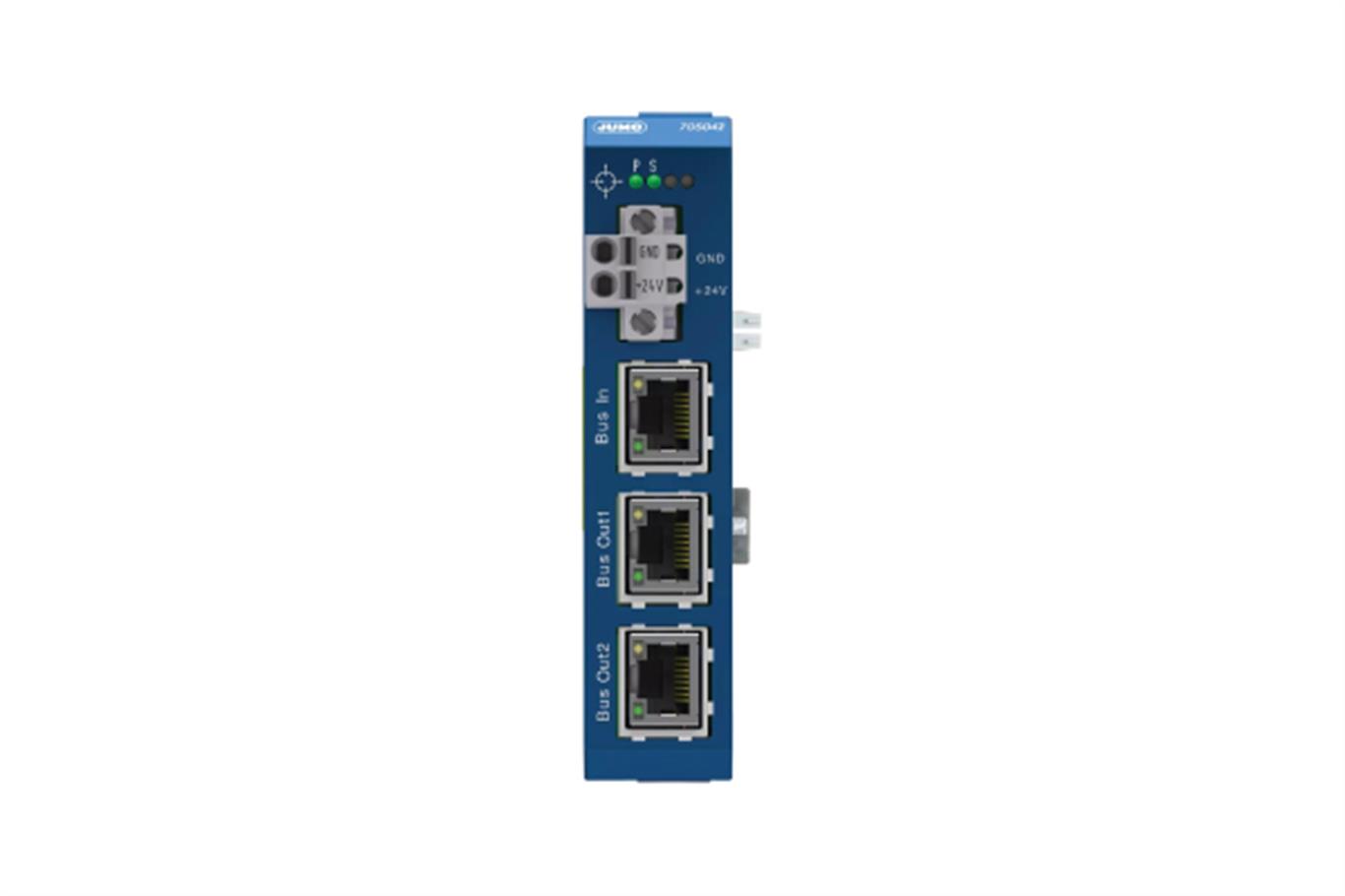

Router module 3-port
Module for automation system JUMO variTRON
With the 3-port router module, you can arrange the JUMO variTRON automation system in a decentralized and free way. It enables input and output modules to be distributed over several DIN rails or control cabinets. A maximum distance of 100 m is possible between 2 router modules or between the central unit and the router module.
 |
 |
 |
|
Supports decentralized
module assignment |
Supply of
operating voltage |
Fast wiring
|
GENERAL TECHNICAL DATA |
| Interfaces | 3 RJ45 on the front side: 1 Bus In (system bus), 2 Bus Out (Out 2 = system bus) |
| Special features | Decentralized arrangement of the modules of the automation system with a distance of up to 100 meters between multifunction panels, basic modules/router modules, addressing via rotary coding switch for special applications, galvanic isolation of the interfaces on the front, supply of operating voltage, fast wiring of operating voltage and system bus provided by simple module connection principle |
| Voltage supply | DC 24 V +25/-20 % |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Dimensions (W × H × D) | 22.5 x 103.6 x 101.5 mm |
| Protection type | IP20 |
| Ambient temperature | -20 to +55 °C |
| Approvals | UL |
Multichannel controller module
The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).
 |
 |
 |
|
The inputs
and outputs can be extended |
Customer-specific
linearization |
Reliability through
independent operation |
Analog input module 8-channel
The analog input module 8-channel has 8 analog inputs for RTD temperature probes in a two-wire circuit, and 1 digital input (DC 0/24 V). The analog inputs are not galvanically isolated from each other.
 |
 |
|
|
Automatic configuration
(Plug and Play) |
Connection of
inputs on the front |
Removable terminal
strips with PUSH IN |
Analog input module 4-channel
The analog input module 4-channel has 4 universal analog inputs with galvanic isolation. The digitized input values/states are available in the system for further processing.
|
|
 |
|
Galvanically isolated
analog inputs |
Customer-specific
linearization |
Limit value
monitoring functions |
