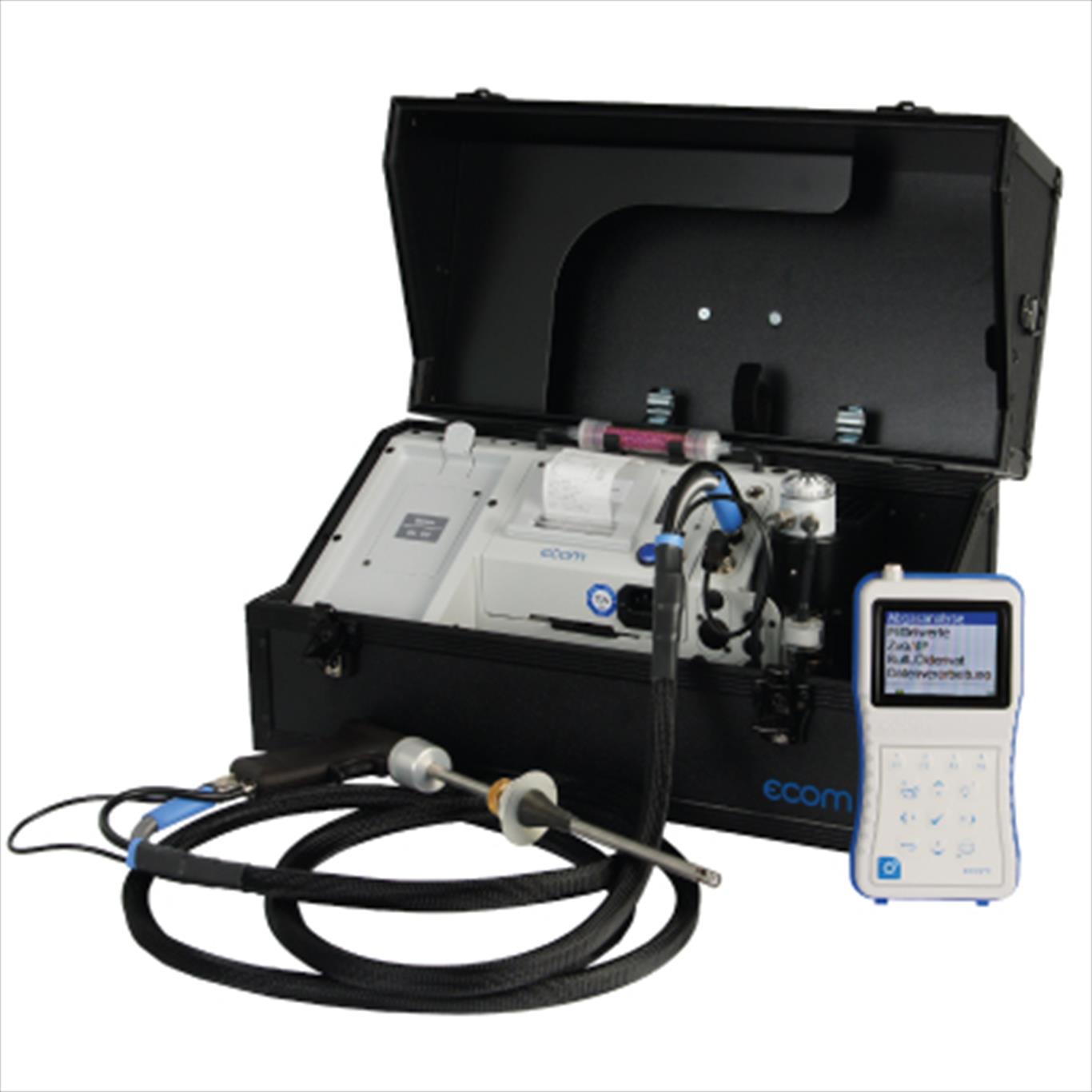

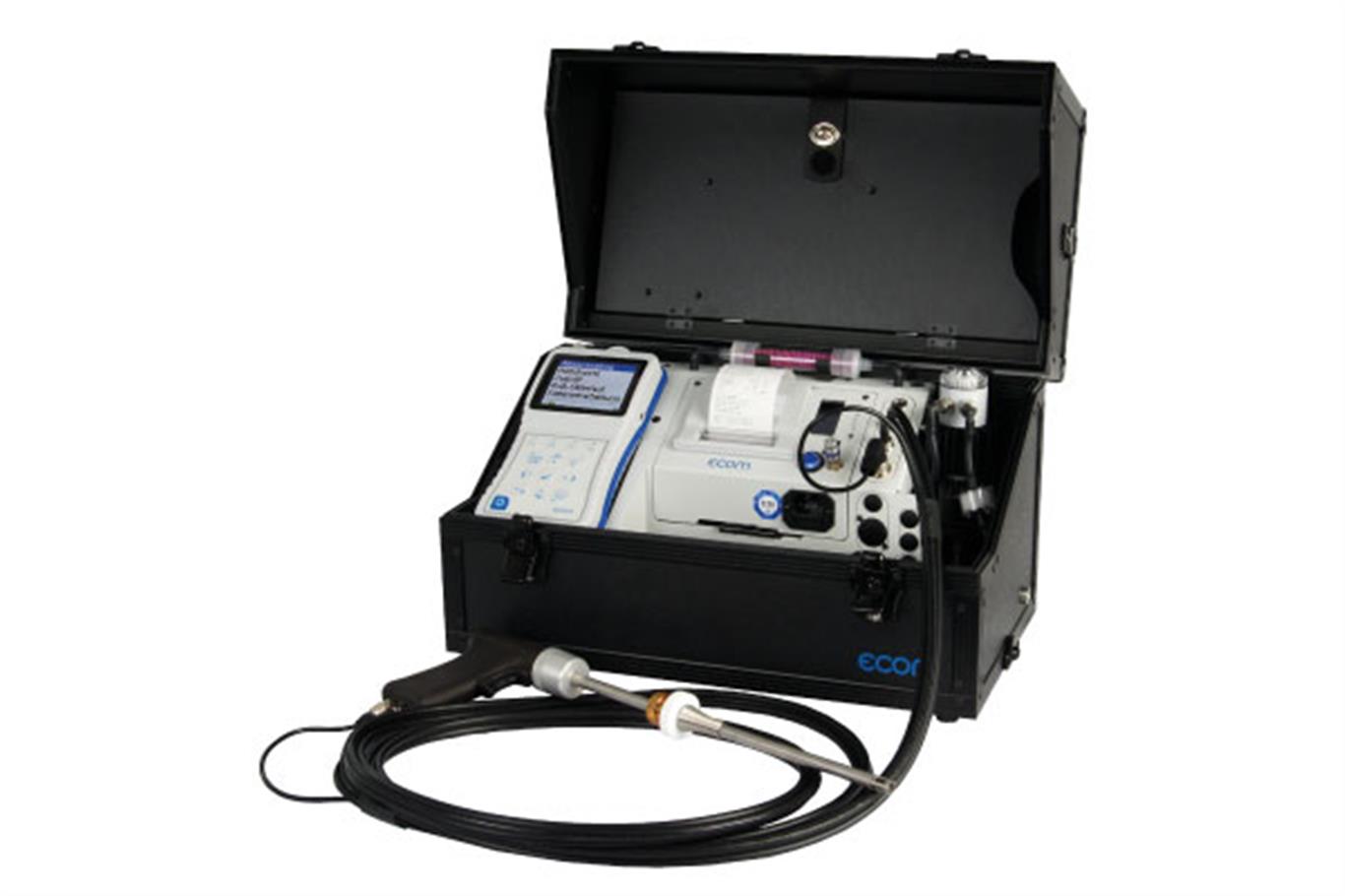

ecom-J2KNpro - EXTREMELY long range

• With O₂/CO (H₂ comp.) longlife sensors
• automatic CO shutdown and flushing (but without interrupting the measurement)
• Condensate trap or sample gas cooler including electronic condensate monitoring (depending on which equipment variant is selected)
• powerful lithium-ion battery
• wireless data transfer (e.g. to a smartphone or tablet)
• automatic condensate drainage
• integrated thermal printer
• with high-quality sampling probe including thermocouple, cone and high-quality 3-chamber hose
• Status display for displaying basic functions, settings and warning messages
• completely in a robust yet ultra-light aluminum housing
• T-room sensor/T-room stick (depending on your requirements or equipment variant)
• with integrated soot measurement (included in standard delivery)
• in a spacious aluminum frame transport case with comfortable carrying strap
• Calibration certificate - created after 100% sensor calibration in the climate chamber
• ecom service package (including free PC software)

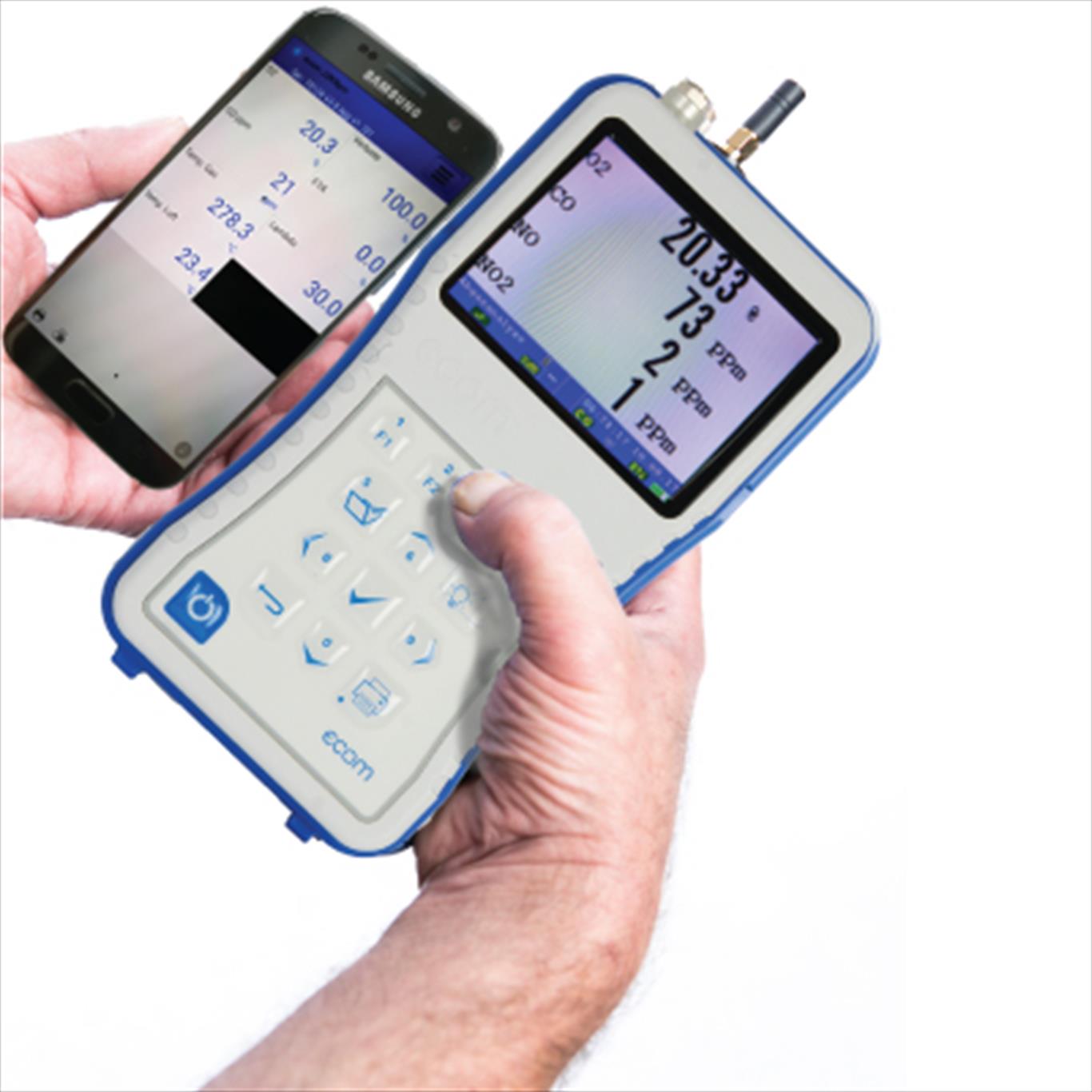

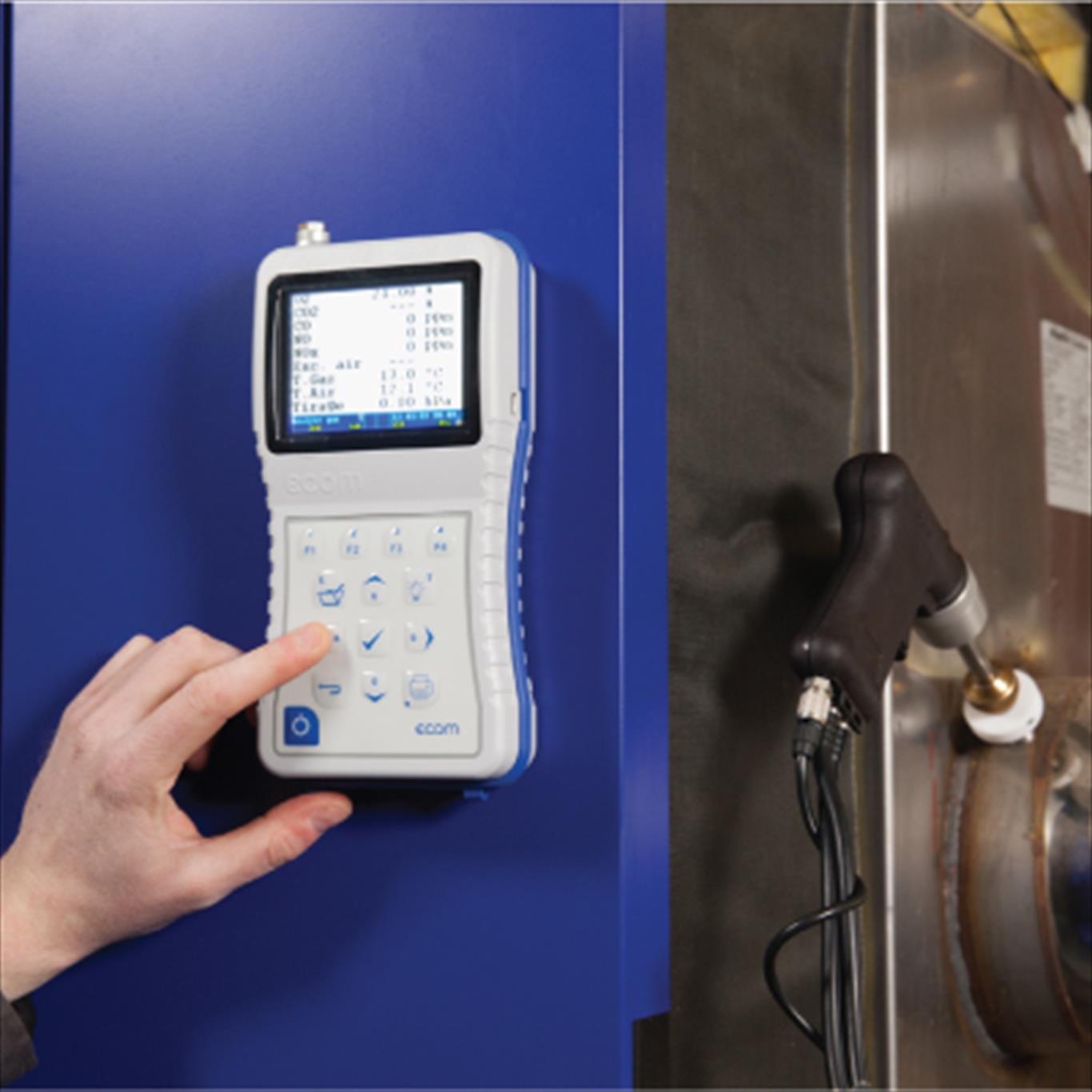

radio remote control

(included in every standard delivery)

• long range to bridge distances between the measuring point (exhaust gas opening) and setting (e.g. burner, control cabinet, etc.)
• incl. thermocouple input, mini USB port (data transfer to a laptop or PC), SD card slot
• backlit membrane keyboard and high-quality TFT color display
• Display, printing and storage of measurement data
• complete device operation (including manual CO shutdown, start and end of measurements, data processing, ...)
• In addition, stable data transmission via radio (greatest possible avoidance of interference, overcoming obstacles made of metal or concrete, automatic connection establishment, no abrupt connection interruption while retaining all measurement data as well as automatic establishment and restoration of the radio connection)

Dimensions

• (L x H x W): approx. 450 x 315 x 250 mm or 510 x 330 x 250 mm (depending on version)

Weight

• approx. 12 kg (complete in the measuring case)

Testing according to DIN EN 50379-2 and 1st. BImSchV.	UKCA approved

Data Sheet

ecom-J2KNpro flyer

Biogas option package for raw gas analysis

(Extension for ENGINE variant)

• CH₄ (NDIR) sensor, 0-100 %
• H₂ S (EC) sensor, 0-5000 ppm
• Viton extraction hose, 3 m

Biogas brochure

option package with approval according to MCERTS performance standard

• Variants with O₂  , CO, NO, NO₂ , SO₂  possible
• Stainless steel gas cooler with electronic level indicator and automatic condensate drain
• Heated sampling probe (300 mm), cone and NO_x  hose (3.5 m)

Certified to MCERTS performance standards for handheld emission monitoring systems (HEMS)

certificate

• NO _x  calculation via NO measurement value or NO _x  measurement possible
• additional sensor options (SO₂  , H₂ S, H ₂  , CO%)
• higher resolution and accuracy in the NO _Low  (0 - 300 ppm) or NO _2-Low  (0 - 100 ppm) range
• C_x H_y  - measurement via catalytic measuring method (pellistor)
• Measurement of the flow velocity in the exhaust gas
• ecomFORD- Devices FULL Service.
